How it works
Spring-return rotary actuator
Butterfly disc
5/2 double-solenoid pilot
The number that matters
Max. medium temperature
180°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Neutral Media
- Food Industry
The butterfly valve is designed to be used as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
DNOVA pneumatic rotary actuators double-acting PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
The pneumatic distributor is used to change the direction, start, stop compressed air flows in a pneumatic system depending on the external control action.
The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant from the reservoir to the compressed air flow to the elements of the pneumatic system.

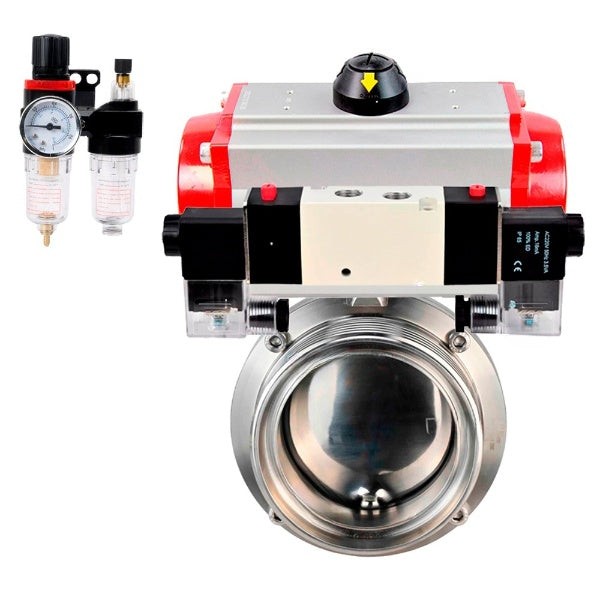

Technical characteristics of the DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4V320-08 220V, ATU AFC2000
| Characteristic | Meaning |
| Shutter type | rotary disc |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working environment temperature | from -50 to +180°C |
| Application | Food industry |
| Connection type | coupling (threaded) |
| Control type | pneumatic drive |
| Sealing class | A |
| Guarantee | 12 months |
Rotary pneumatic actuators DNOVA double acting PA-DA
Technical characteristics of DNOVA double-acting rotary pneumatic actuators PA-DA:
| Characteristic | Meaning |
| Pneumatic drive type | double acting |
| Drive torque | 14-30 Nm |
| Nominal pressure | 12 bar |
| Working pressure | 2...8 bar |
| Maximum particle diameter | less than 30 µm2 |
| Working environment | filtered compressed air or non-aggressive gases, oils |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Air supply | G1/4" |
| Working environment temperature | from –20 to +80 °C |
Pneumatic distributors DNOVA 4V320-08 220V
Technical characteristics of pneumatic distributors DNOVA 4V320-08 220V:
| Characteristic | Meaning |
| Model of pneumatic distributor | 4V320-08 220V |
| Supply voltage | 220V |
| Type of pneumatic distributor | spool valve |
| Nominal pressure | 12 bar |
| Working pressure | 1.5...8 bar |
| Ambient temperature | from -5 to +50 °C |
| Working environment | purified air (filtration fineness 40 microns) |
| Response frequency | 5 cycles/s |
| Degree of protection | IP65 |
| Control | two-way electromagnetic |
| Body material | aluminum alloy and technopolymer |
| Response time | 0.05 sec |
| Diameter of working channels | 1/4" |
Air preparation units DNOVA AFC2000
Technical characteristics of air preparation units DNOVA AFC2000:
| Characteristic | Meaning |
| Working pressure | 8 bar |
| Maximum pressure | 10 bar |
| Adjustable pressure range | 0.5...9 bar |
| Destruction pressure | 15 bar |
| Operating temperature | from -5°C to +60°C |
| Air connection | 1/4" |
| Size of filtered particles | 40 microns |
| Oil viscosity | ISO VG 32 |
Sketch of dimensions of butterfly valves DNOVA WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Overall and installation dimensions of the DNOVA WBV3131S-2W-CH clamp-type butterfly valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Sketch of the dimensions of rotary pneumatic actuators DNOVA with return springs PA-SA
Overall and installation dimensions of rotary pneumatic actuators DNOVA with return springs PA-SA:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | M, mm | N, mm | O, mm | P, mm |
| PA-DA(SA)-052 | 108 | 153 | 30 | 41 | 72 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-065 | 125 | 174 | 36 | 46 | 89 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-083 | 152 | 216 | 46 | 55 | 109 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-105 | 189 | 279 | 55 | 64 | 134 | 26 | 25 | 80 | 30 | 41 | 20 |
| PA-DA(SA)-130 | 210 | 308 | 67.5 | 70 | 157 | 36 | 25 | 80 | 30 | 62 | 30 |
| PA-DA(SA)-140 | 268 | 405 | 76 | 77 | 174 | 36 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-160 | 310 | 465 | 87.5 | 87.5 | 199 | 38 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-210 | 390 | 542 | 113 | 113 | 257 | 38 | 40 | 130 | 30 | 79 | 30 |
| PA-DA(SA)-270 | 510 | 722 | 146 | 146 | 333 | 38 | 52 | 130 | 30 | 79 | 30 |
Sketch of dimensions of pneumatic distributors DNOVA 4V320-08 220V
Overall and installation dimensions of pneumatic distributors DNOVA 4V320-08 220V:
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| H, mm | 82.4 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 83.4 |
| P, mm | 22 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
Sketch of dimensions of air preparation units DNOVA AFC2000
Overall and installation dimensions of air preparation units DNOVA AFC2000:
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Materials of parts of DNOVA WBV3131S-2W-CH rotary clamp disc valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel AISI 304 |
| 2 | Rotary assembly | Stainless steel AISI 304 |
| 3 | Disc | Stainless steel AISI 304 |
| 4 | Seat seal | EPDM or Silicon |
| 5 | Nut | Steel A2~70 |
| 6 | Bolt | Steel A2~70 |
| 7 | Plug | ABS plastic |
| 8 | Handle | Polyamide plastic |
Sketch of materials of butterfly valves DNOVA WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Sketch of rotary pneumatic actuators DNOVA with return springs PA-SA
Design of rotary pneumatic actuators DNOVA with return springs PA-SA:
| No. | Name | Quantity | Material |
| 1 | Frame | 1 | extruded aluminum (hard anodized finish) |
| 2 | Side plugs | 2 | cast aluminum |
| 3 | Gear | 1 | stainless steel (nickel plated) |
| 4 | Piston | 2 | steel/aluminium (oxidation/galvanized) |
| 5 | Plugs | 8 | stainless steel |
| 6 | Piston ring | 2 | NBR |
| 7 | Springs | 0-12 | spring steel (epoxy coating) |
| 8 | Piston bearing | 2 | engineering plastic |
| 9 | Piston ring | 2 | NBR |
| 10 | Plug | 2 | NBR |
| 11 | Thrust ring | 2 | engineering plastic |
| 12 | Ring | 1 | engineering plastic |
| 13 | Washer | 1 | stainless steel |
| 14 | Spring clamp | 2 | stainless steel |
| 15 | Indicator | 1 | plastic |
| 16 | Indicator housing | 1 | plastic |
| 17 | Bearing | 1 | engineering plastic |
| 18 | Cam | 1 | steel (oxidized/galvanized) |
| 19 | Bearing | 1 | NBR |
| 20 | Bearing | 1 | engineering plastic |
| 21 | Bearing | 1 | engineering plastic |
| 22 | Sealing ring | 2 | NBR |
| 23 | Sealing ring | 2 | NBR |
| 24 | Bearing | 2 | stainless steel |
| 25 | Adjusting nut | 2 | stainless steel |
| 26 | Adjustment screw | 2 | stainless steel |
| 27 | Sleeve | 2 | aluminum |
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- 180 °C
- Connection type
- Threaded
- Control type
- Pneumatic actuator
- Operating environment
- Water, Steam, and Neutral Media
- Applications
- Food Industry
- Type of seal
- Silicone
- Disc material
- Stainless steel AISI 304
- Manual override
- Hexagon
- Limit switches
- No
- Type of pneumatic actuator
- with return springs
- Country of origin
- China
