Description
The butterfly valve is designed to be used as a shut-off or control valve for flow control in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
DNOVA pneumatic rotary actuators double-acting PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface, for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the distributors have one-way or two-way control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. They are intended for use with quarter-turn pneumatic actuators.
The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the elements of the pneumatic system.

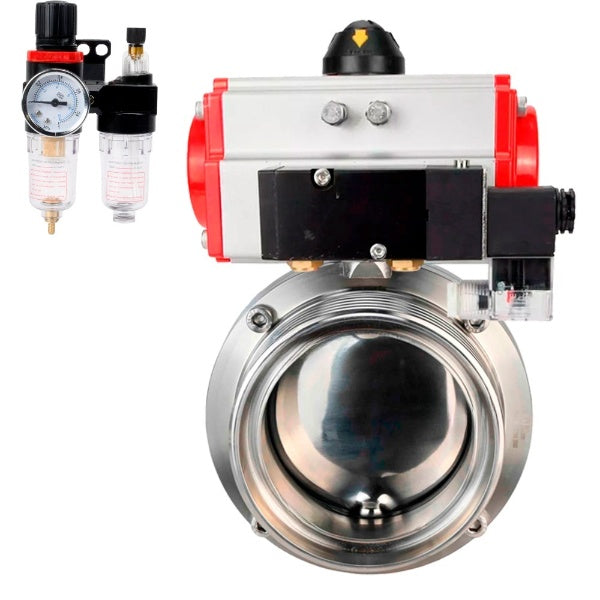

Technical characteristics of the DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4M310-08 220V, ATU AFC2000
| Characteristic | Meaning |
| Shutter type | rotary disc |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working environment temperature | from -50 to +180°C |
| Application | Food industry |
| Connection type | coupling (threaded) |
| Control type | pneumatic drive |
| Sealing class | A |
| Guarantee | 12 months |
Rotary pneumatic actuators DNOVA double acting PA-SA
Technical characteristics of DNOVA double-acting rotary pneumatic actuators PA-SA:
| Characteristic | Meaning |
| Pneumatic drive type | with return springs |
| Drive torque | 14-30 Nm |
| Nominal pressure | 12 bar |
| Working pressure | 2...8 bar |
| Maximum particle diameter | less than 30 µm2 |
| Working environment | filtered compressed air or non-aggressive gases, oils |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Air supply | G1/4" |
| Working environment temperature | from –20 to +80 °C |
Pneumatic distributors DNOVA 4M310-08 220V
Technical characteristics of pneumatic distributors DNOVA 4M310-08 220V:
| Characteristic | Meaning |
| Model of pneumatic distributor | 4m310-08 220v |
| Supply voltage | 220V |
| Design | spool type |
| Nominal pressure | 12 bar |
| Working pressure | 1.5...8 bar |
| Ambient temperature | from +5 to +50 ⁰C |
| Working environment | filtered compressed air |
| Response frequency | 5 cycles/s |
| Degree of protection | IP65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec |
Air preparation units DNOVA AFC2000
Technical characteristics of air preparation units DNOVA AFC2000:
| Characteristic | Meaning |
| Working pressure | 8 bar |
| Maximum pressure | 10 bar |
| Adjustable pressure range | 0.5...9 bar |
| Destruction pressure | 15 bar |
| Operating temperature | from -5°C to +60°C |
| Air connection | 1/4" |
| Size of filtered particles | 40 microns |
| Oil viscosity | ISO VG 32 |
Sketch of dimensions of butterfly valves DNOVA WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Overall and installation dimensions of the DNOVA WBV3131S-2W-CH clamp-type butterfly valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Sketch of the dimensions of rotary pneumatic actuators DNOVA with return springs PA-SA
Overall and installation dimensions of rotary pneumatic actuators DNOVA with return springs PA-SA:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | M, mm | N, mm | O, mm | P, mm |
| PA-DA(SA)-052 | 108 | 153 | 30 | 41 | 72 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-065 | 125 | 174 | 36 | 46 | 89 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-083 | 152 | 216 | 46 | 55 | 109 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-105 | 189 | 279 | 55 | 64 | 134 | 26 | 25 | 80 | 30 | 41 | 20 |
| PA-DA(SA)-130 | 210 | 308 | 67.5 | 70 | 157 | 36 | 25 | 80 | 30 | 62 | 30 |
| PA-DA(SA)-140 | 268 | 405 | 76 | 77 | 174 | 36 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-160 | 310 | 465 | 87.5 | 87.5 | 199 | 38 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-210 | 390 | 542 | 113 | 113 | 257 | 38 | 40 | 130 | 30 | 79 | 30 |
| PA-DA(SA)-270 | 510 | 722 | 146 | 146 | 333 | 38 | 52 | 130 | 30 | 79 | 30 |
Sketch of dimensions of pneumatic distributors DNOVA 4M310-08 220V
Overall and installation dimensions of pneumatic distributors DNOVA 4M310-08 220V:
| Depth, mm | 27 |
| Height, mm | 69 |
| Width, mm | 134.5 |
Sketch of dimensions of air preparation units DNOVA AFC2000
Overall and installation dimensions of air preparation units DNOVA AFC2000:
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Materials of parts of DNOVA WBV3131S-2W-CH rotary clamp disc valves DN15-100 food grade stainless steel 304, Silicon:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel AISI 304 |
| 2 | Rotary assembly | Stainless steel AISI 304 |
| 3 | Disc | Stainless steel AISI 304 |
| 4 | Seat seal | EPDM or Silicon |
| 5 | Nut | Steel A2~70 |
| 6 | Bolt | Steel A2~70 |
| 7 | Plug | ABS plastic |
| 8 | Handle | Polyamide plastic |
Sketch of materials of butterfly valves DNOVA WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Sketch of rotary pneumatic actuators DNOVA with return springs PA-SA
Design of rotary pneumatic actuators DNOVA with return springs PA-SA:
| No. | Name | Quantity | Material |
| 1 | Frame | 1 | extruded aluminum (hard anodized finish) |
| 2 | Side plugs | 2 | cast aluminum |
| 3 | Gear | 1 | stainless steel (nickel plated) |
| 4 | Piston | 2 | steel/aluminium (oxidation/galvanized) |
| 5 | Plugs | 8 | stainless steel |
| 6 | Piston ring | 2 | NBR |
| 7 | Springs | 0-12 | spring steel (epoxy coating) |
| 8 | Piston bearing | 2 | engineering plastic |
| 9 | Piston ring | 2 | NBR |
| 10 | Plug | 2 | NBR |
| 11 | Thrust ring | 2 | engineering plastic |
| 12 | Ring | 1 | engineering plastic |
| 13 | Washer | 1 | stainless steel |
| 14 | Spring clamp | 2 | stainless steel |
| 15 | Indicator | 1 | plastic |
| 16 | Indicator housing | 1 | plastic |
| 17 | Bearing | 1 | engineering plastic |
| 18 | Cam | 1 | steel (oxidized/galvanized) |
| 19 | Bearing | 1 | NBR |
| 20 | Bearing | 1 | engineering plastic |
| 21 | Bearing | 1 | engineering plastic |
| 22 | Sealing ring | 2 | NBR |
| 23 | Sealing ring | 2 | NBR |
| 24 | Bearing | 2 | stainless steel |
| 25 | Adjusting nut | 2 | stainless steel |
| 26 | Adjustment screw | 2 | stainless steel |
| 27 | Sleeve | 2 | aluminum |
