Description
The butterfly valve is designed to be used as a shut-off or control valve for flow control in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
DN.ru pneumatic rotary actuators double-acting PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface, for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the distributors have one-way or two-way control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. They are intended for use with quarter-turn pneumatic actuators.
The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the elements of the pneumatic system.

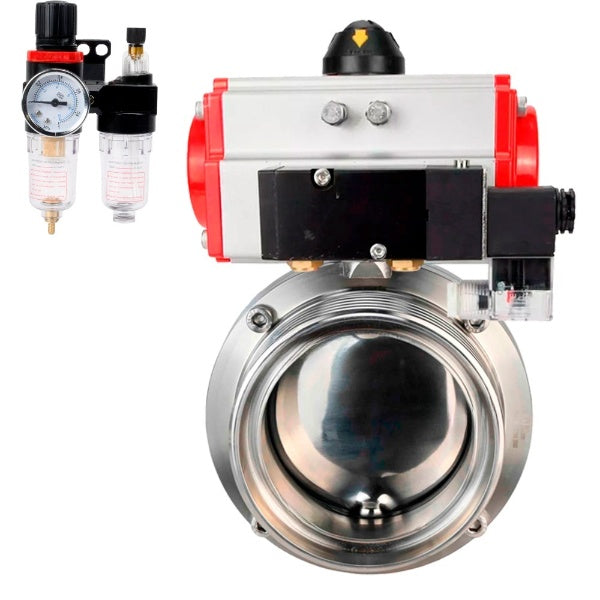

Technical characteristics of the Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4M310-08 24V, ATU AFC2000
| Characteristic | Meaning |
| Shutter type | rotary disc |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working environment temperature | from -50 to +180°C |
| Application | Food industry |
| Connection type | coupling (threaded) |
| Control type | pneumatic drive |
| Sealing class | A |
| Guarantee | 12 months |
Technical data of SA pneumatic actuators with return springs:
| Type of pneumatic actuator | SA - with return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, ⁰C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
SA pneumatic actuators rotary with return springs
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Air preparation units Elephant AFC2000
Technical characteristics of air preparation units Elephant AFC2000:
| Characteristic | Meaning |
| Working pressure | 8 bar |
| Maximum pressure | 10 bar |
| Adjustable pressure range | 0.5...9 bar |
| Destruction pressure | 15 bar |
| Operating temperature | from -5°C to +60°C |
| Air connection | 1/4" |
| Size of filtered particles | 40 microns |
| Oil viscosity | ISO VG 32 |
Sketch of dimensions of butterfly valves Elephant WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Overall and installation dimensions of the Elephant WBV3131S-2W-CH clamp-type butterfly valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Dimensions and mounting dimensions of SA pneumatic actuators with return springs:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| PA-x-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| PA-x-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| PA-x-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| PA-x-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| PA-x-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| PA-x-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| PA-x-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| PA-x 210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| PA-x-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| PA-x-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| PA-x-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| PA-x-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| PA-x-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| PA-x-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| PA-x-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| PA-x-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| PA-x-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| PA-x-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| PA-x 210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| PA-x-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| PA-x-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| PA-x-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
Sketch of dimensions of SA pneumatic actuators with return springs
Sketch of dimensions of pneumatic distributors Elephant 4M310-08 24V
Overall and installation dimensions of pneumatic distributors Elephant 4M310-08 24V:
| Depth, mm | 27 |
| Height, mm | 69 |
| Width, mm | 134.5 |
Sketch of dimensions of air preparation units Elephant AFC2000
Overall and installation dimensions of air preparation units Elephant AFC2000:
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Materials of parts of Elephant WBV3131S-2W-CH rotary clamp disc valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel AISI 304 |
| 2 | Rotary assembly | Stainless steel AISI 304 |
| 3 | Disc | Stainless steel AISI 304 |
| 4 | Seat seal | EPDM or Silicon |
| 5 | Nut | Steel A2~70 |
| 6 | Bolt | Steel A2~70 |
| 7 | Plug | ABS plastic |
| 8 | Handle | Polyamide plastic |
Sketch of materials of butterfly valves Elephant WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Materials of parts of SA pneumatic actuators with return springs:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of SA pneumatic actuators with return springs
