How it works
Spring-return rotary actuator
Two-way ball valve
The number that matters
Max. medium temperature
180°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Petroleum Products
- Neutral Media
- Gaseous Media
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Pneumatic actuators DNOVA rotary with return spring PA-SA are designed to automate the process of controlling industrial valves with a maximum torque value of up to 2128 Nm.

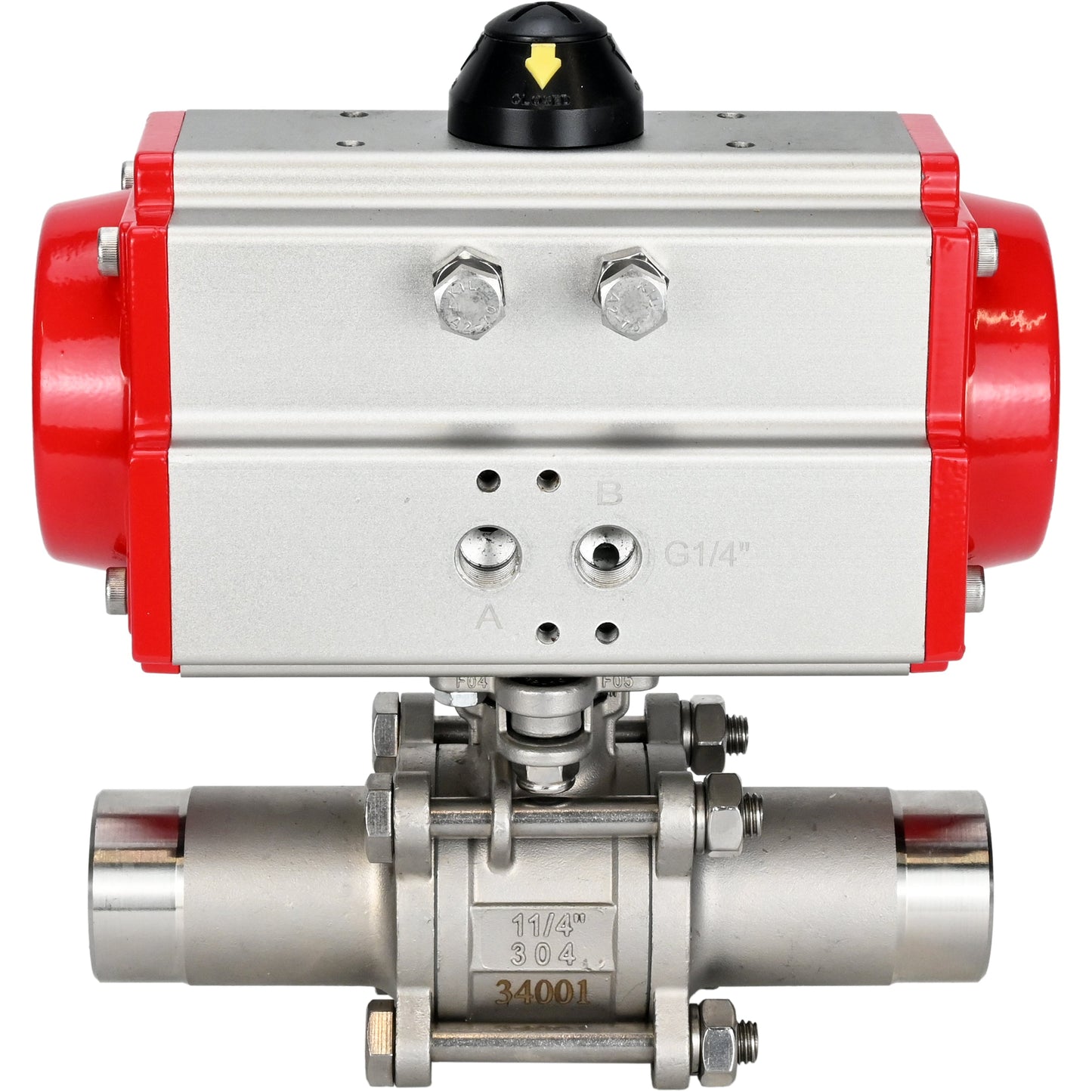

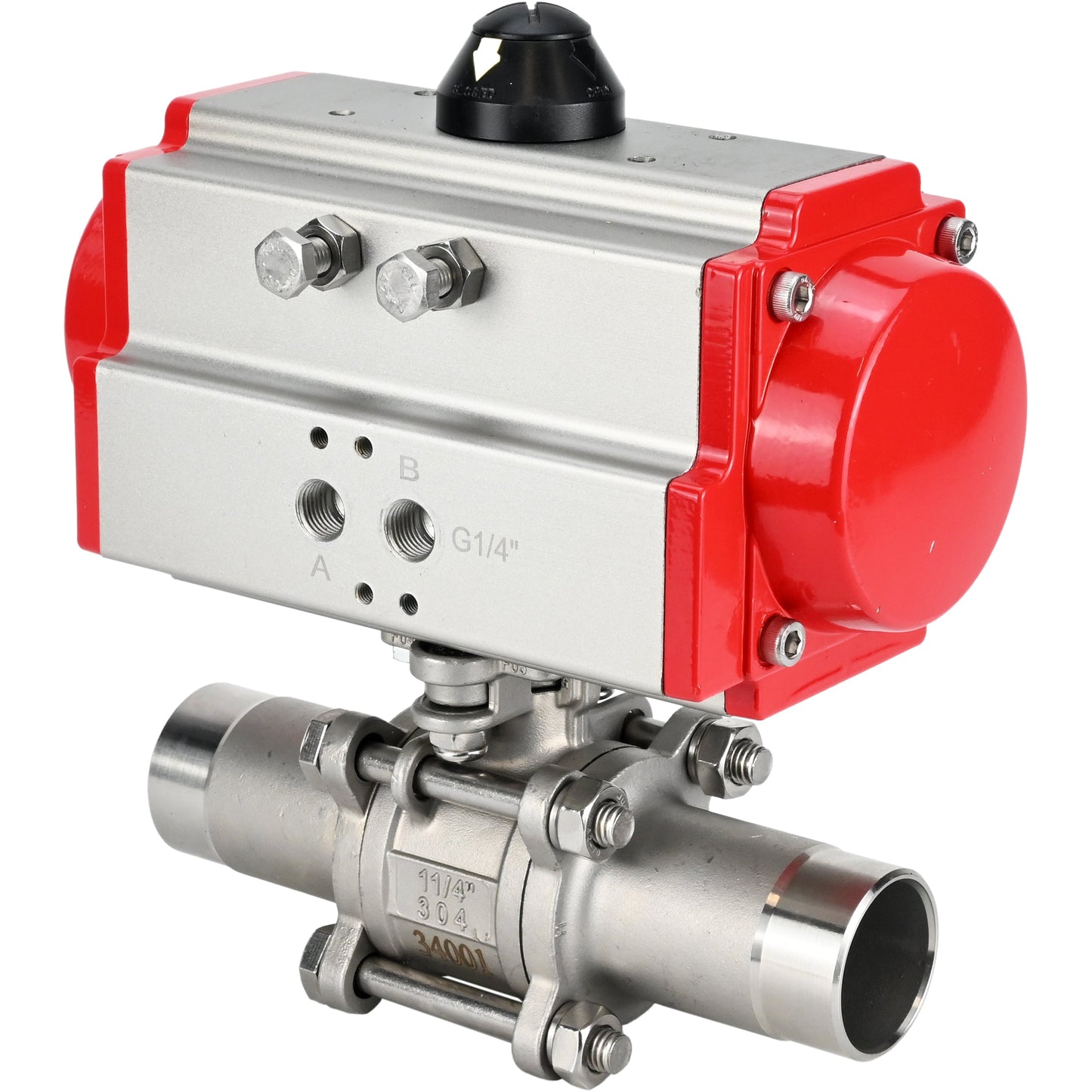

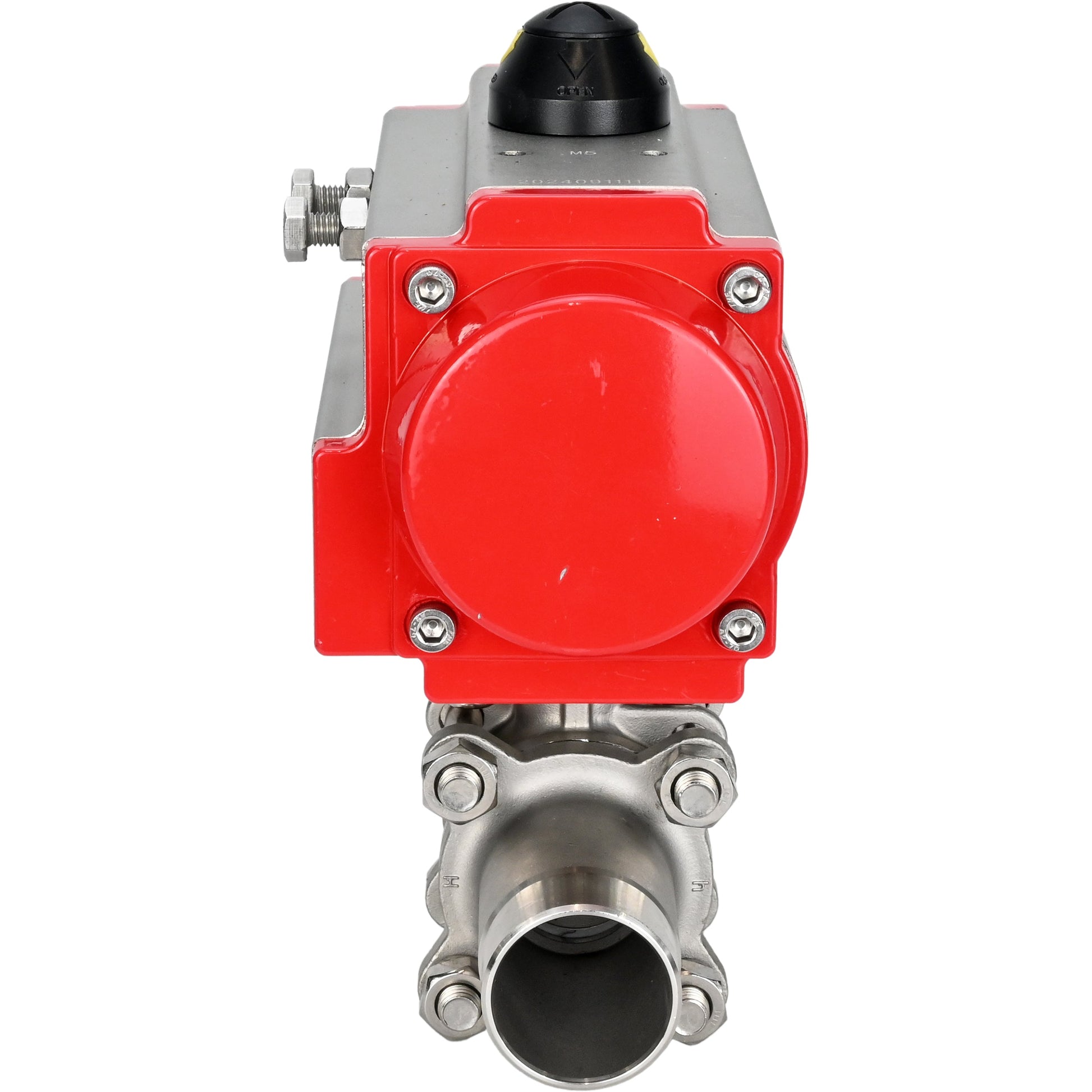

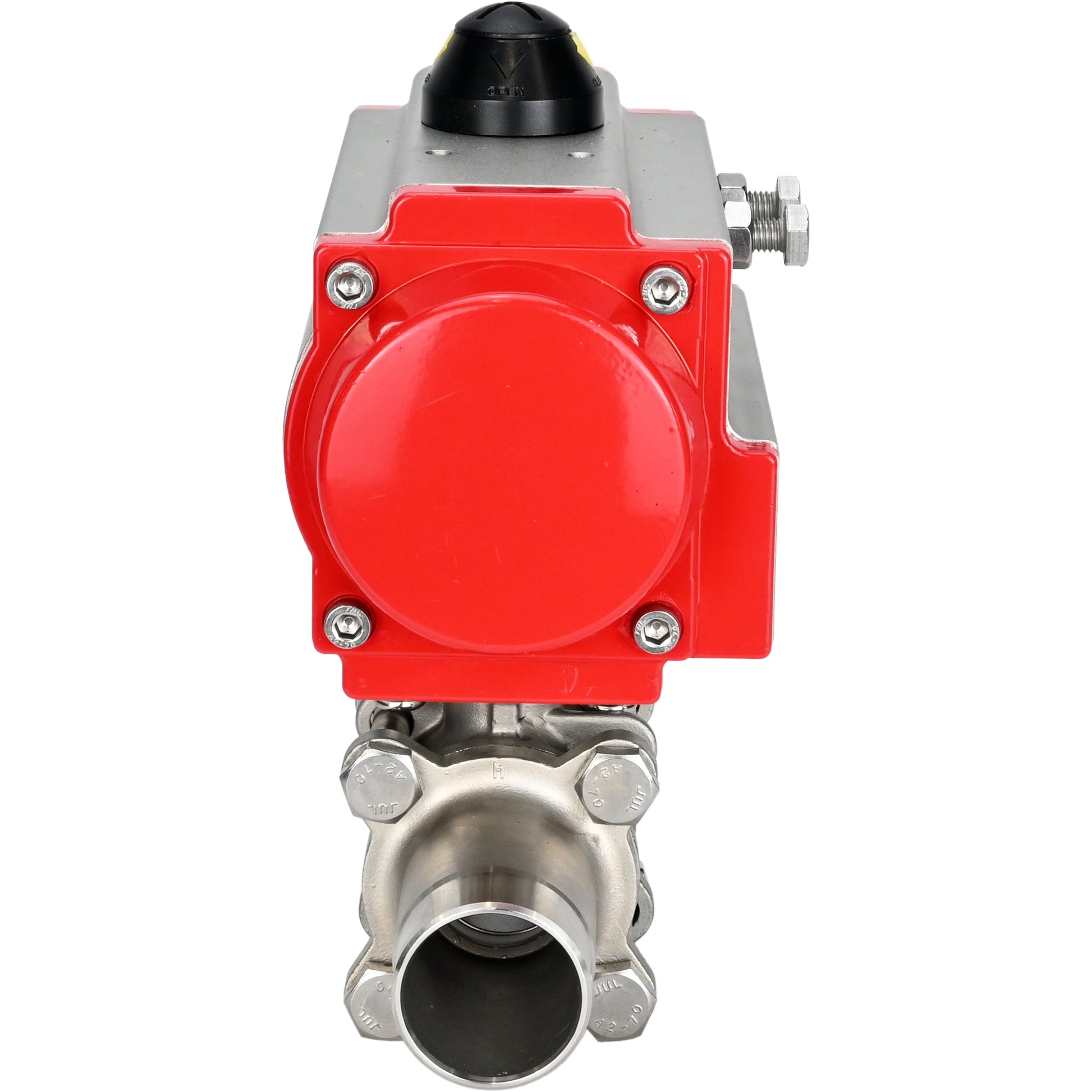

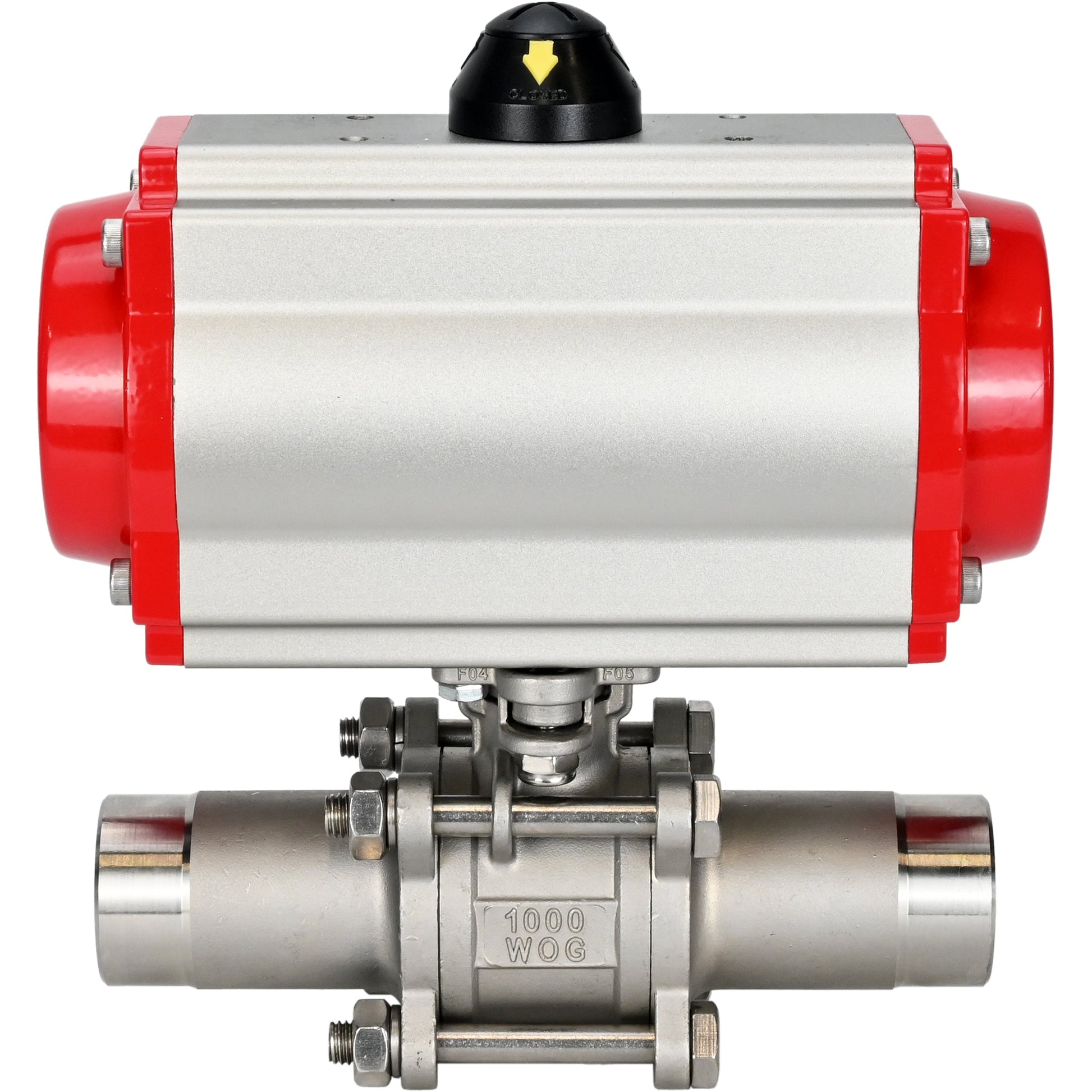

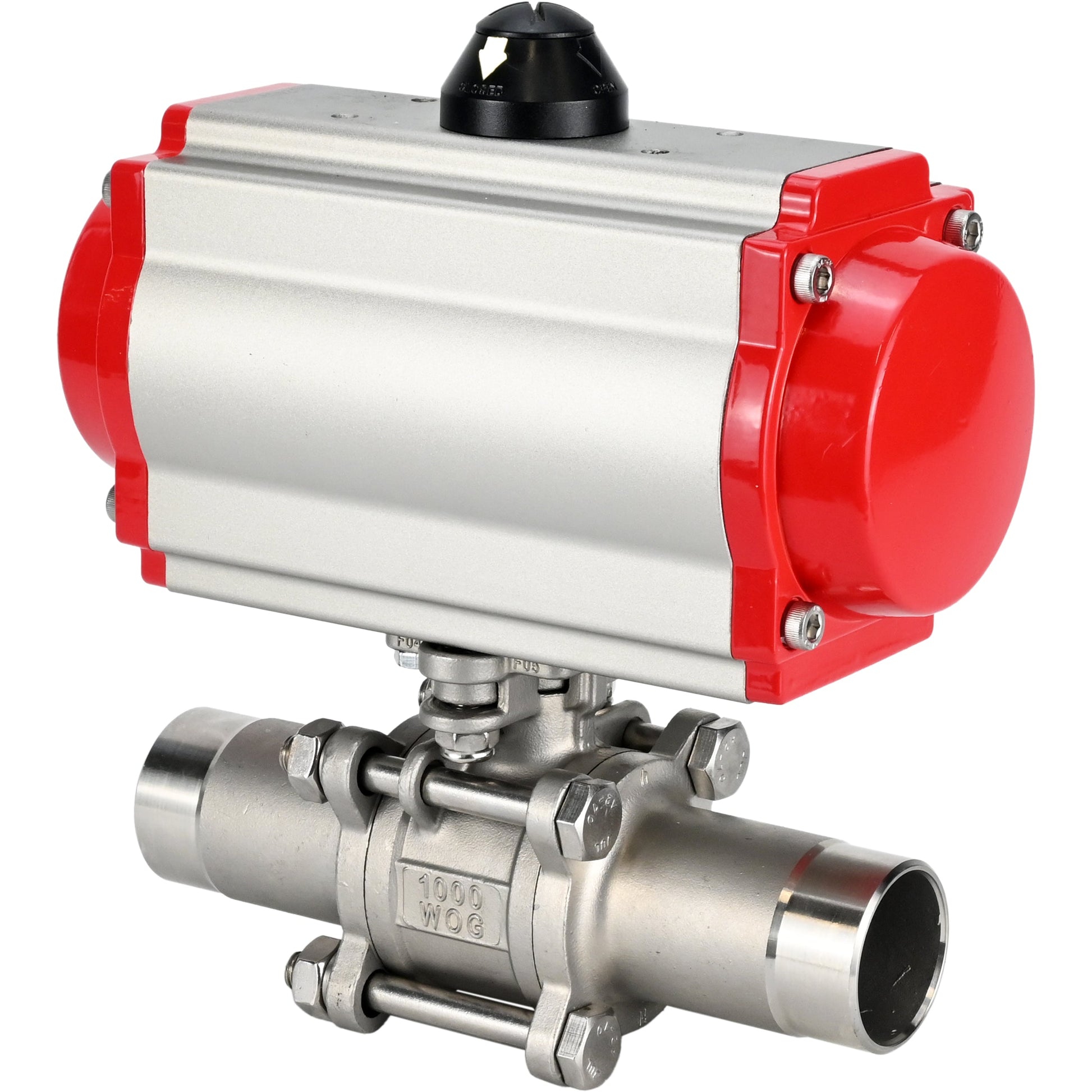

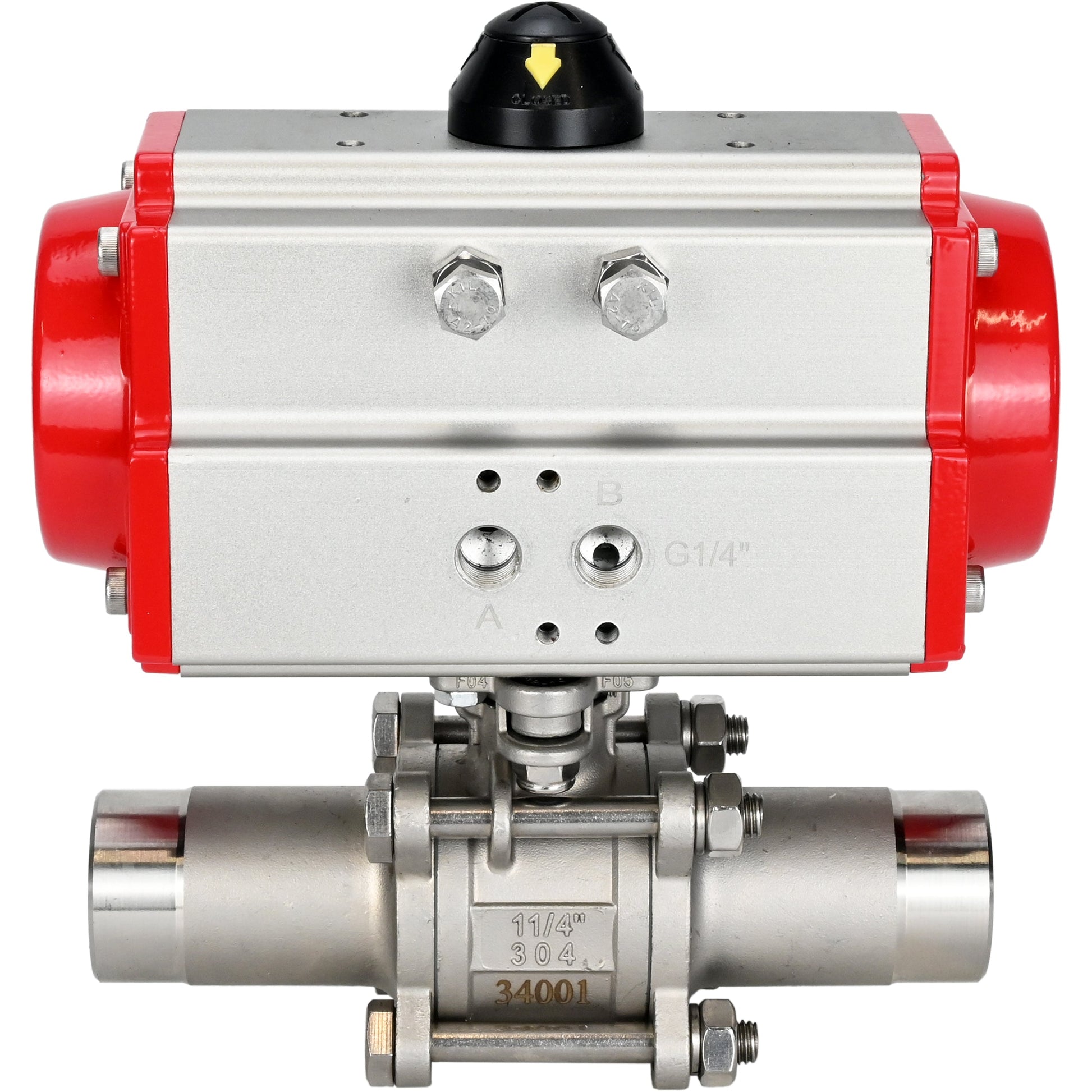

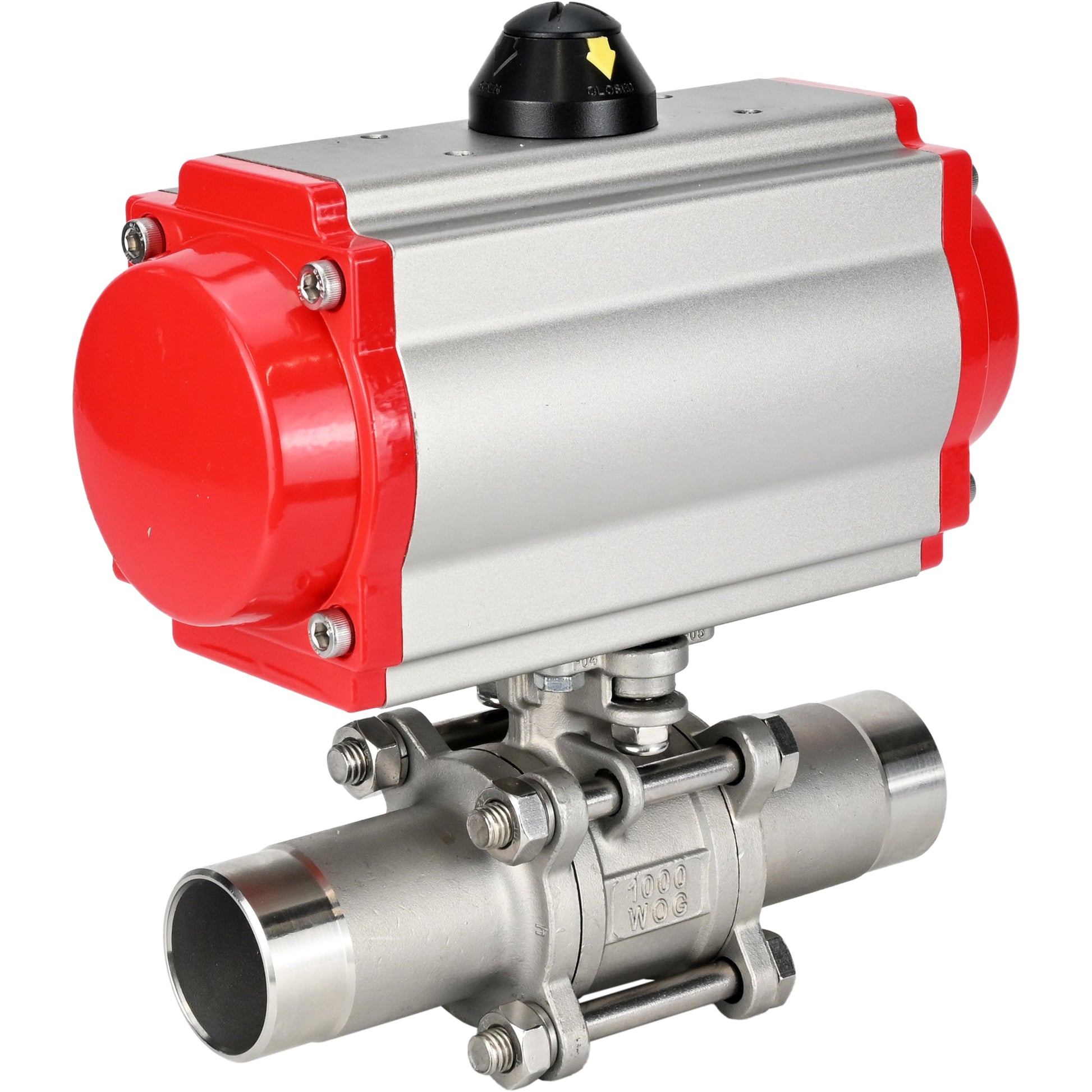

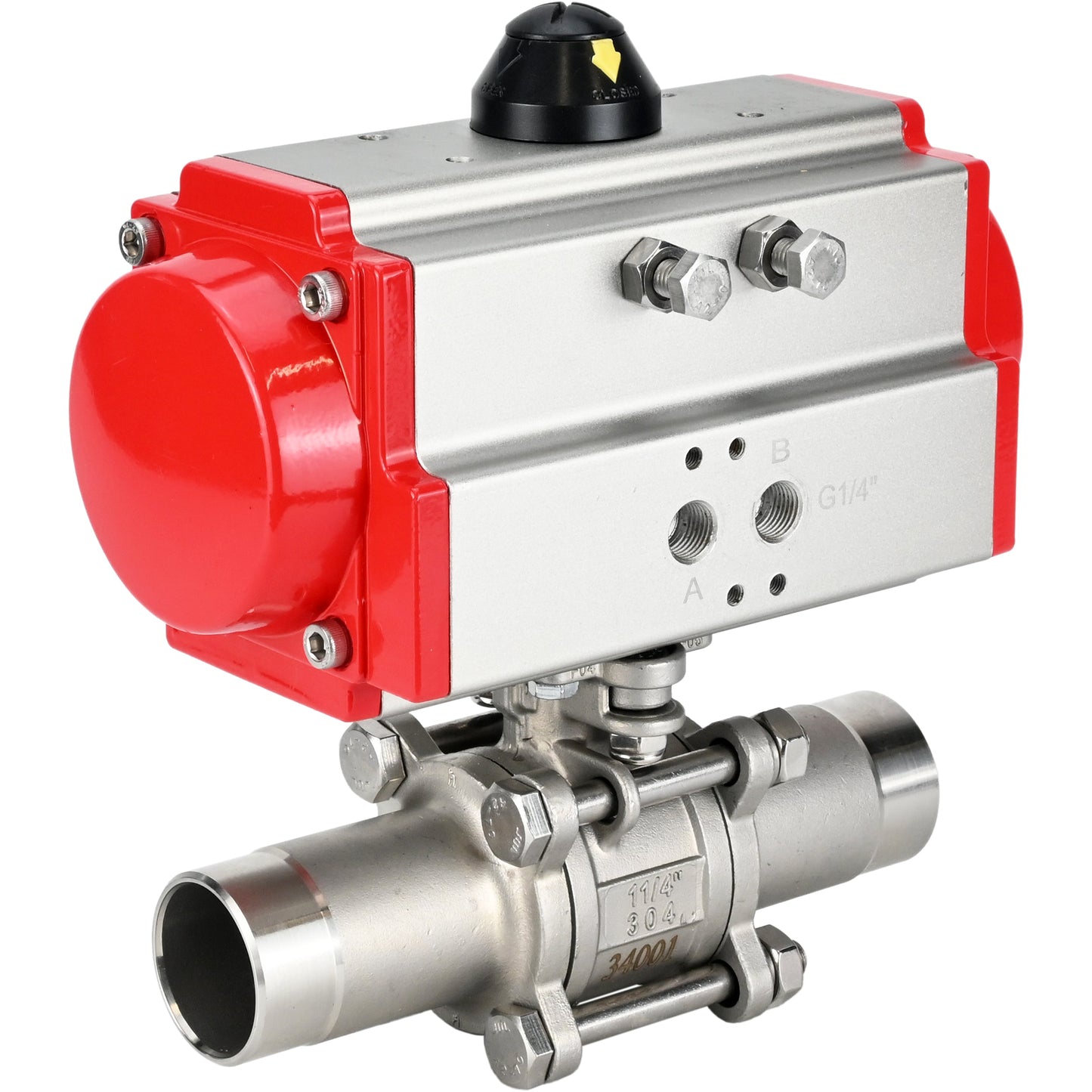

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 180 |
| Type of crane device | two-way |
| Application | water supply, heat supply, industry |
| Working environment | water, steam, petroleum products, neutral media, gaseous media |
| Connection to the pipeline | for welding |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | for welding |
| Control | pneumatic actuator with return springs |
| Availability of limit switches | No |
| Availability of pneumatic distributor | No |
| Availability of electropneumatic positioner | No |
| Average service life, years | 5 |
| Warranty, g. | 1 |
Sketch of the dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA
Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA:
| Model | L, mm | A, mm | E, mm |
| DN10 | 130 | 153 | 72 |
| DN15 | 150 | 216 | 109 |
| DN20 | 155 | 279 | 134 |
| DN25 | 186 | 279 | 134 |
| Du32 | 195 | 216 | 109 |
| DN40 | 231 | 279 | 134 |
| DN50 | 243 | 279 | 134 |
| DN65 | 290 | 279 | 134 |
| DN80 | 302 | 308 | 157 |
| DN100 | 326 | 405 | 174 |
| DN125 | 360 | 542 | 257 |
| DN150 | 390 | 542 | 257 |
Sketch of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA
Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA:
| Item No. | Part name | Material |
| 1 | Frame | stainless steel 304 |
| 2 | Side element (2 pcs) | stainless steel 304 |
| 3 | Ball | stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | stainless steel 304 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Pneumatic drive DNOVA
Technical parameters of the pneumatic drive DNOVA
| Name | Meaning |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
Sketch of the dimensions and sizes of the pneumatic drive DNOVA
Dimensions and sizes of the pneumatic drive DNOVA:
| Model | PA-SA-52 | PA-SA-83 | PA-SA-105 | PA-SA-130 | PA-SA-140 | PA-SA-210 |
| A1, mm | 108 | 152 | 189 | 210 | 268 | 390 |
| B1, mm | 153 | 216 | 279 | 308 | 405 | 542 |
| C, mm | 30 | 46 | 55 | 67.5 | 76 | 113 |
| D, mm | 41 | 55 | 64 | 70 | 77 | 113 |
| E, mm | 72 | 109 | 134 | 157 | 174 | 257 |
| F, mm | 26 | 26 | 26 | 36 | 36 | 38 |
| G, mm | 15 | 15 | 25 | 25 | 30 | 40 |
| H, mm | F03 | F05 | F07 | F07 | F10 | / |
| I, mm | F05 | F07 | F10 | F10 | F12 | F14 |
| J, mm | 4-M5x8 | 4-M6x10 | 4-M8x12 | 4-M8x12 | 4-M10x16 | / |
| K, mm | 4-M6x10 | 4-M8x12 | 4-M10x16 | 4-M10x16 | 4-M12x20 | 4-M12x20 |
| L, mm | 11x11 | 17x17 | 22x22 | 22x22 | 27x27 | 36x36 |
| Mmm | 80 | 80 | 80 | 80 | 130 | 130 |
| N, mm | 30 | 30 | 30 | 30 | 30 | 30 |
| F0, mm | 34 | 34 | 41 | 62 | 62 | 79 |
| R, mm | 20 | 20 | 20 | 30 | 30 | 30 |
Table of parts and materials of pneumatic drive DNOVA:
| No. | Name | Quantity | Material | Coating |
| 1 | Frame | 1 | extruded aluminum | hard anodized |
| 2 | Side plugs | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/galvanic zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clamp | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator housing | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/galvanic zinc plating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjusting nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Sleeve | 2 | aluminum |
- Port opening
- full bore
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- 180 °C
- Connection type
- For welding
- Control type
- Pneumatically actuated
- Operating environment
- Water, Steam, Petroleum Products, Neutral Media, and Gaseous Media
- Type of seal
- PTFE
- Torque
- 3 Nm
- Limit switches
- No
- Type of pneumatic actuator
- spring loaded
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
