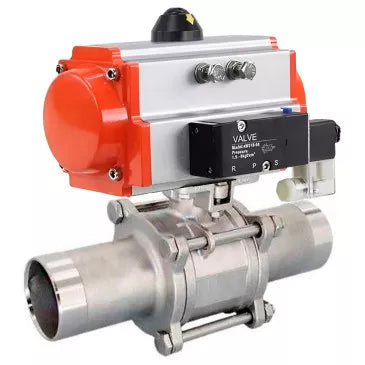

Ball valve BV3131P(3pc)-FP-W-ISO-H LONG with pneumatic spring-return actuator

PA-SA · 4V320-10 220V pilot · weld-end, AISI 304 body, PTFE seal

Model BV3131P(3pc)-FP-W-ISO-H SKU D160-51485

$155.33 USD

Sale Sold out

Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.

View full details

How it works

Spring-return rotary actuator

Two-way ball valve

5/2 double-solenoid pilot

5/2 double-solenoid pilot: Both coils off — **Both coils off**The spool keeps its last position; the drawing retains the coil-14 example.

Applications

Media and industries

Water
Steam
Petroleum Products
Neutral Media
Gaseous Media
Water Supply

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Pneumatic DNOVA rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Name	Value
Operating medium temperature, °C	from -20 to 180
Valve type	two-way
Application	water supply, heating, industry
Working medium	water, steam, petroleum products, neutral media, gaseous media
Pipeline connection	weld-on
Water dispensing	no
Bore type	full bore
Sealing class	A
Control type	with pneumatic actuator
Connection	weld-on
Control	pneumatic actuator with return springs
End position switches	yes
Pneumatic distributor presence	yes
Electro-pneumatic positioner presence	no
Average service life, years	5
Warranty, years	1
Country of origin	China

Dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Model	L, mm	A, mm	E, mm
10	130	153	72
15	150	216	109
20	155	279	134
25	186	279	134
32	195	216	109
40	231	279	134
50	243	279	134
65	290	279	134
80	302	308	157
100	326	405	174
125	360	542	257
150	390	542	257

Sketch dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Table of parts and materials for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

No.	Part Name	Material
1	Body	Stainless steel 304
2	Side element (2 pcs)	Stainless steel 304
3	Ball	Stainless steel 304
4	Ball seal	PTFE
5	Stem seal	PTFE
6	Bushing	Stainless steel 304
7	Stem	Stainless steel 304
8	Washer	Stainless steel
9	Nut	Steel A2-70
10	Bolt	Steel A2-70

Parts and materials sketch for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Technical parameters of pneumatic actuator DNOVA

Name	Value
Design	With return springs
Control pressure, bar	2 ÷ 8
Presence of manual override	No

Dimensions and dimensions of pneumatic actuator DNOVA

Model	A1, mm	B1, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm	I, mm	J, mm	K, mm	L, mm	M, mm	N, mm	f0, mm	P, mm
PA-SA-52	108	153	30	41	72	26	15	F03	F05	4-M5x8	4-M6x10	11x11	80	30	34	20
PA-SA-83	152	216	46	55	109	26	15	F05	F07	4-M6x10	4-M8x12	17x17	80	30	34	20
PA-SA-105	189	279	55	64	134	26	25	F07	F10	4-M8x12	4-M10x16	22x22	80	30	41	20
PA-SA-130	210	308	67.5	70	157	36	25	F07	F10	4-M8x12	4-M10x16	22x22	80	30	62	30
PA-SA-140	268	405	76	77	174	36	30	F10	F12	4-M10x16	4-M12x20	27x27	130	30	62	30
PA-SA-210	390	542	113	113	257	38	40	/	F14	/	4-M12x20	36x36	130	30	79	30

Sketch of dimensions and dimensions of pneumatic actuator DNOVA

Parts and materials table for pneumatic actuator DNOVA

Here is the translated table:

№	Name	Qty	Material	Coating
1	Housing	1	Extruded aluminum	Hard anodized
2	Side plugs	2	Cast aluminum
3	Gear	1	Stainless steel	Nickel-plated
4	Piston	2	Steel/Aluminum	Oxidation/Galvanic zinc coating
5	Plugs	8	Stainless steel
6	Piston ring	2	NBR
7	Springs	0-12	Spring steel	Epoxy coating
8	Piston bearing	2	Engineering plastic
9	Piston ring	2	NBR
10	Plug	2	NBR
11	Stop ring	2	Engineering plastic
12	Ring	1	Engineering plastic
13	Washer	1	Stainless steel
14	Spring clamp	2	Stainless steel
15	Indicator	1	Plastic
16	Indicator housing	1	Plastic
17	Bearing	1	Engineering plastic
18	Cam	1	Steel	Oxidation/Galvanic zinc coating
19	Bearing	1	NBR
20	Bearing	1	Engineering plastic
21	Bearing	1	Engineering plastic
22	Sealing ring	2	NBR
23	Sealing ring	2	NBR
24	Bearing	2	Stainless steel
25	Adjustment nut	2	Stainless steel
26	Adjustment screw	2	Stainless steel
27	Bushing	2	Aluminum

Technical parameters of pneumatic valve DNOVA 4V320-10 220V

Name	Value
Pneumatic distributor model	4V320-10 220V
Operating pressure, bar	1.5 ÷ 8
Supply voltage, V	220V
Actuation frequency, cycles/sec	5

Dimensions and dimensions of DNOVA 4V320-10 220V pneumatic directional control valve

Model	4V320-10
A, mm	71.9
B, mm	45
C, mm	94.4
D, mm	27
E, mm	69
F, mm	40
I, mm	24
K, mm	40
L, mm	188.8
M, mm	69.4
N, mm	50
O, mm	83.4
P, mm	22
S, mm	20
T, mm	6.5
U, mm	2.4
H, mm	82.4

Sketch of dimensions and dimensions of pneumatic valve DNOVA

Body material: Stainless steel AISI 304
Maximum allowable temperature: #ИМЯ?
Connection type: For welding
Control type: Pneumatically actuated
Operating environment: Water, Steam, Petroleum Products, Neutral Media, and Gaseous Media
Applications: Water Supply
Type of seal: PTFE
Voltage: 220V
Torque: 3 Nm
Limit switches: No
Actuator model: PA-SA-052-10
Country of origin: China
