How it works
Spring-return rotary actuator
Two-way ball valve
Rotary positioner
The number that matters
Max. medium temperature
180°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Petroleum Products
- Neutral Media
- Gaseous Media
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Pneumatic actuators DNOVA rotary with return spring PA-SA are designed to automate the process of controlling industrial valves with a maximum torque value of up to 2128 Nm.
Electro-pneumatic rotary positioner is used to control rotary type pneumatic actuators by means of electric controller or control system with analog DC output signal in the range of 4 to 20 mA.

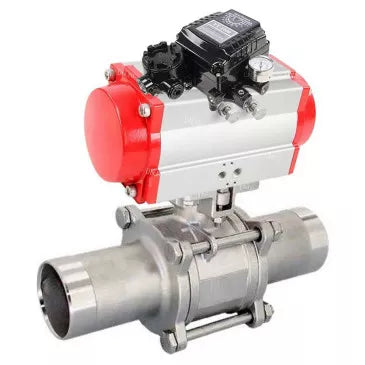

Technical parameters of DNOVA BV3131P(3pc)-FP-W-ISO-H LONG ball valves DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with DNOVA PA-SA pneumatic actuator and YT-1000RSN pneumatic positioner:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 180 |
| Type of crane device | two-way |
| Application | water supply, heat supply, industry |
| Working environment | water, steam, petroleum products, neutral media, gaseous media |
| Connection to the pipeline | for welding |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | for welding |
| Control | pneumatic actuator with return springs |
| Availability of limit switches | No |
| Availability of pneumatic distributor | No |
| Availability of electropneumatic positioner | There is |
| Average service life, years | 5 |
| Warranty, g. | 1 |
Sketch of the dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA and pneumatic positioner YT-1000RSN
Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA and pneumatic positioner YT-1000RSN:
| Model | L, mm | A, mm | E, mm | S, mm | C, mm |
| DN10 | 130 | 153 | 72 | 62.5 | 117.5 |
| DN15 | 150 | 216 | 109 | 62.5 | 117.5 |
| DN20 | 155 | 279 | 134 | 62.5 | 117.5 |
| DN25 | 186 | 279 | 134 | 62.5 | 117.5 |
| DN32 | 195 | 216 | 109 | 62.5 | 117.5 |
| DN40 | 231 | 279 | 134 | 62.5 | 117.5 |
| DN50 | 243 | 279 | 134 | 62.5 | 117.5 |
| DN65 | 290 | 279 | 134 | 62.5 | 117.5 |
| DN80 | 302 | 308 | 157 | 62.5 | 117.5 |
| DN100 | 326 | 405 | 174 | 62.5 | 117.5 |
| DN125 | 360 | 542 | 257 | 62.5 | 117.5 |
| DN150 | 390 | 542 | 257 | 62.5 | 117.5 |
Sketch of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA and pneumatic positioner YT-1000RSN
Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator DNOVA PA-SA and pneumatic positioner YT-1000RSN:
| Item No. | Part name | Material |
| 1 | Frame | stainless steel 304 |
| 2 | Side element (2 pcs) | stainless steel 304 |
| 3 | Ball | stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | stainless steel 304 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Technical parameters of the pneumatic drive DNOVA
| Name | Meaning |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
Pneumatic drive DNOVA
Technical parameters of the pneumatic drive DNOVA
| Name | Meaning |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
Table of parts and materials of pneumatic drive DNOVA:
| No. | Name | Quantity | Material | Coating |
| 1 | Frame | 1 | extruded aluminum | hard anodized |
| 2 | Side plugs | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/galvanic zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clamp | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator housing | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/galvanic zinc plating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjusting nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Sleeve | 2 | aluminum |
Technical parameters of electropneumatic rotary positioners DNOVA YT-1000RSN
| Name | Meaning |
| Model of electropneumatic positioner | YT-1000RSN |
| Input control signal, mA | 4~20 |
| Internal resistance, Ohm | 250(±15) |
| Input pressure, bar | 1.4~7 |
| Lever stroke angle | 0~90° |
| Compressed air connection thread | 1/4″ |
| Pressure gauge connection thread | 1/8″ |
| Cable entry | G1/2″ |
| Type of protection | IP66 |
| Compressed air consumption, l/min | 3 |
| Air flow at outlet, l/min | 80 |
| Body material | aluminum casting |
Dimensions and sizes of electropneumatic rotary positioners DNOVA YT-1000RSN:
| Positioner model | YT-1000RSI |
| A, mm | 224.3 |
| B, mm | 166.5 |
| C, mm | 117.5 |
| D, mm | 132.3 |
| E, mm | 6 |
| F, mm | 122 |
| G, mm | 45 |
| H, mm | 45 |
| I, mm | 23 |
| J, mm | 27 |
| K, mm | 32.5 |
| L, mm | 35.5 |
| M, mm | 91.8 |
| N, mm | 37.2 |
| O, mm | 43.5 |
| P, mm | 26.5 |
| Q, mm | 33 |
| R, mm | 80.25 |
| S, mm | 62.5 |
| T, mm | 8 |
| U1, mm | 70 |
| U2, mm | 93 |
| V1, mm | 40 |
| V2, mm | 63 |
| W, mm | 26 |
| X, mm | 32 |
| Y, mm | 9 |
| Z, mm | 24 |
- Port opening
- full bore
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- 180 °C
- Connection type
- For welding
- Control type
- Pneumatically actuated
- Operating environment
- Water, Steam, Petroleum Products, Neutral Media, and Gaseous Media
- Type of seal
- PTFE
- Torque
- 3 Nm
- Limit switches
- No
- Type of pneumatic actuator
- spring loaded
- Country of origin
- China
