Description
The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The HDM worm gear manual doubleturn actuator with reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
Technical parameters of DNOVA WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON:
| Name | Significance |
| Working pressure, bar | 16 |
| Working medium temperature, °C | from -20 to 120 |
| Application | water supply, heating |
| Connection to pipeline | interflanged |
| Gate type | swivel disk |
| Control type | pneumatic actuator |
| Manufacturer's country | China |

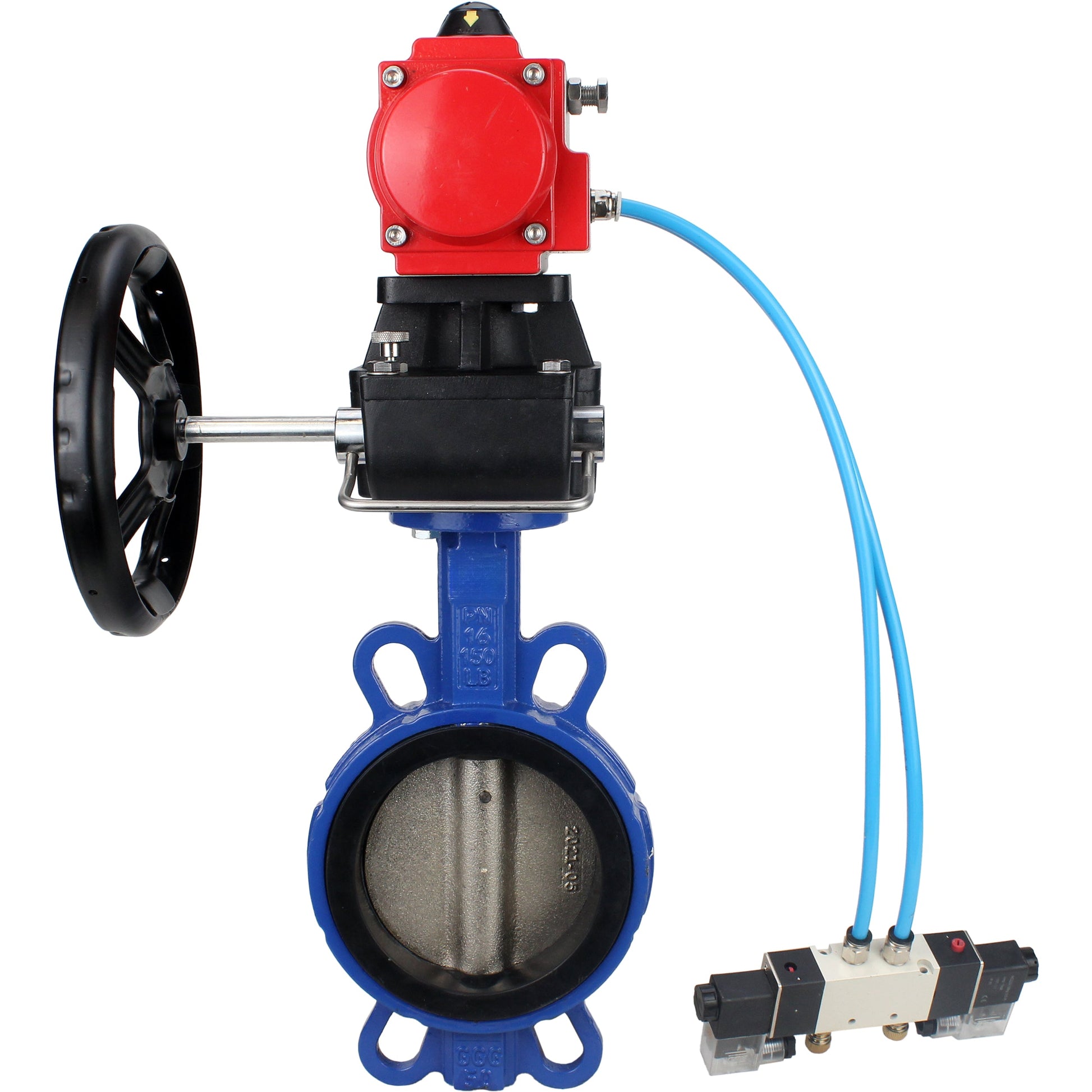

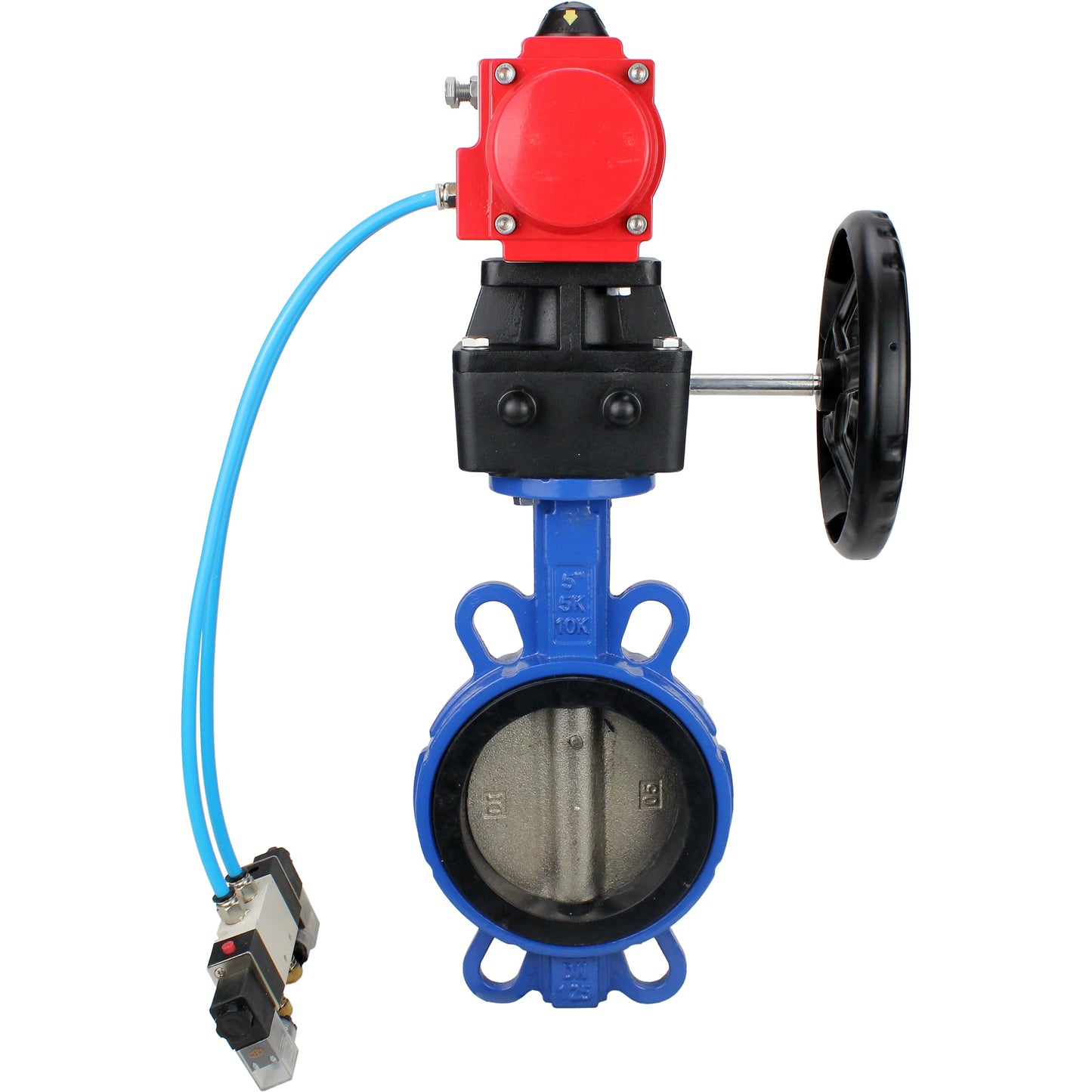

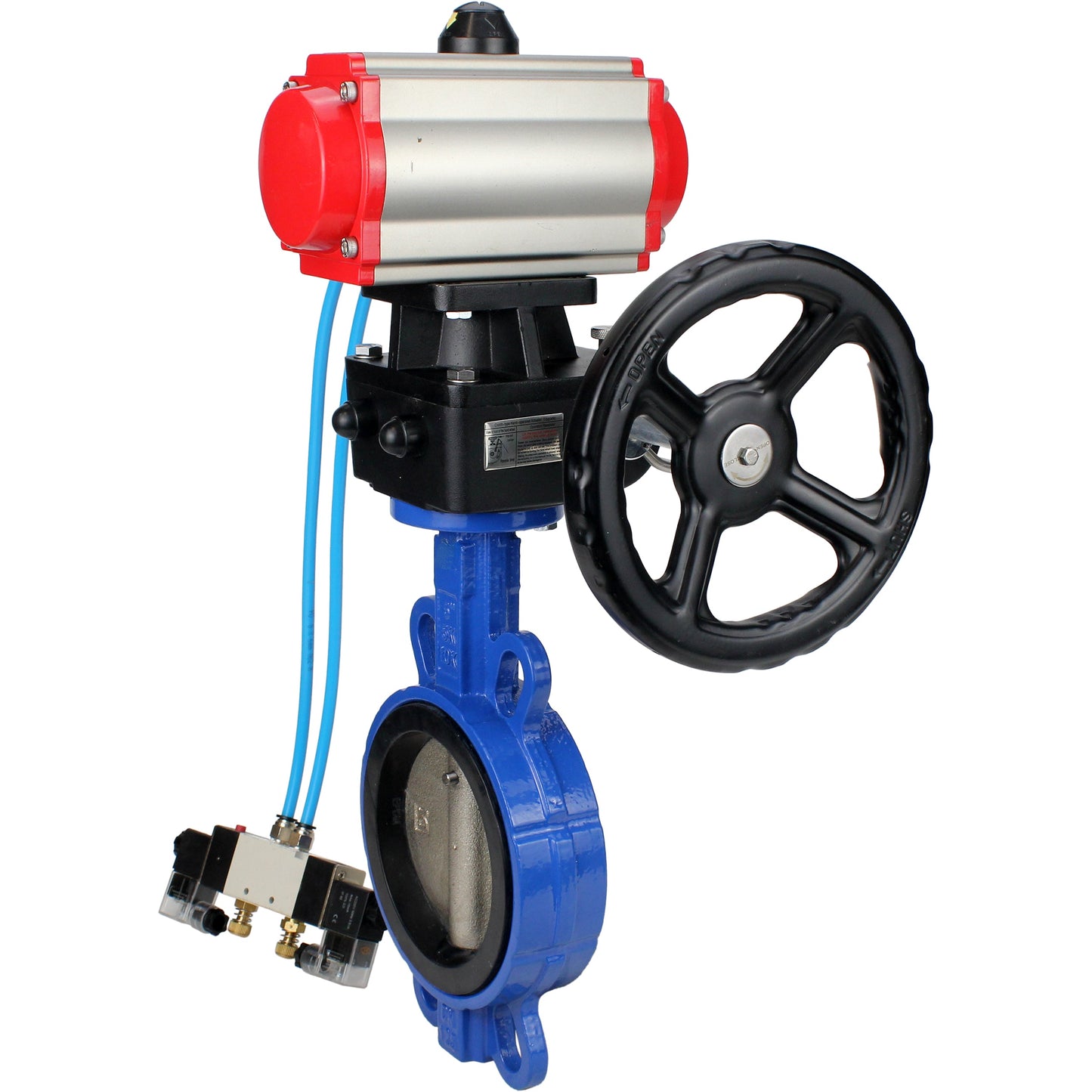

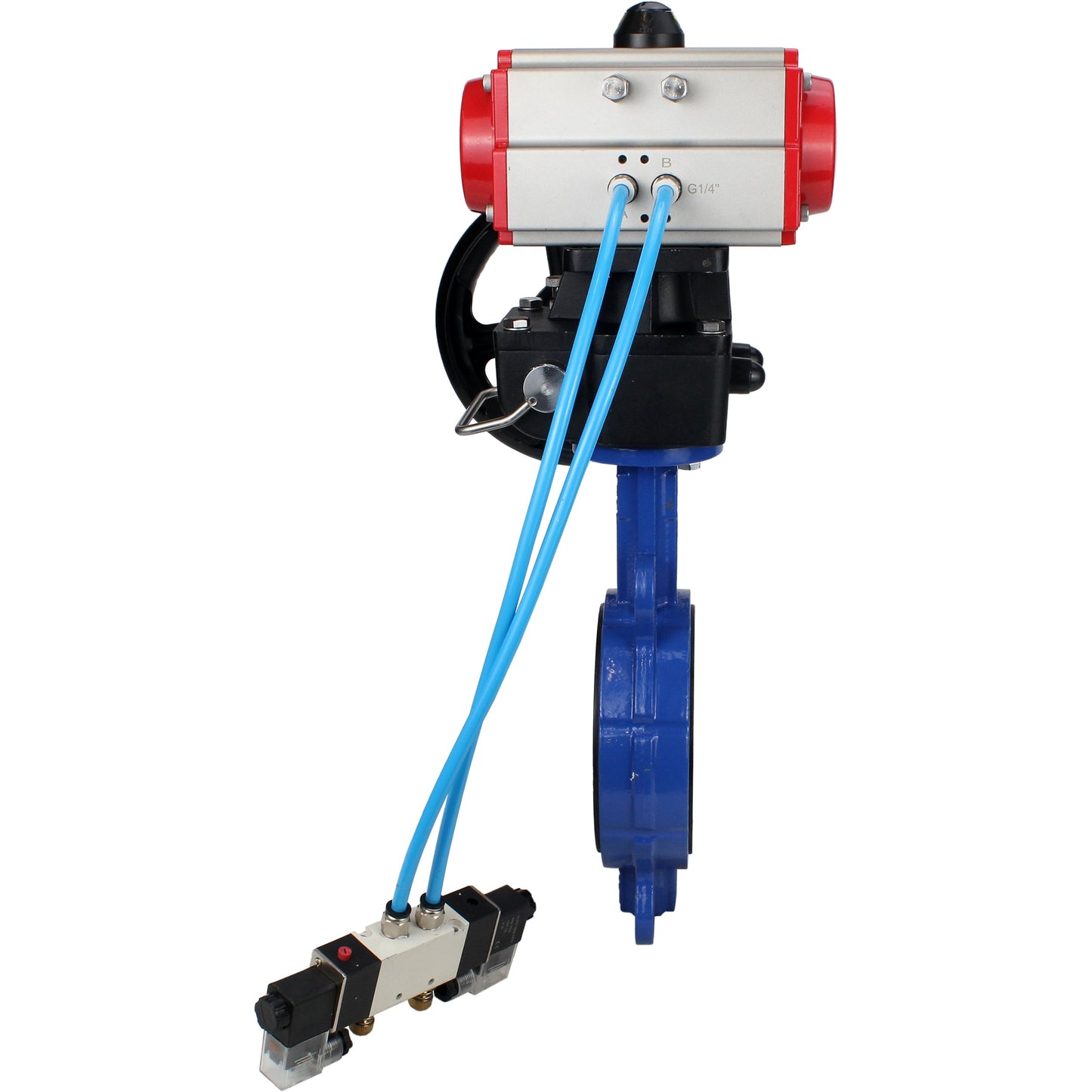

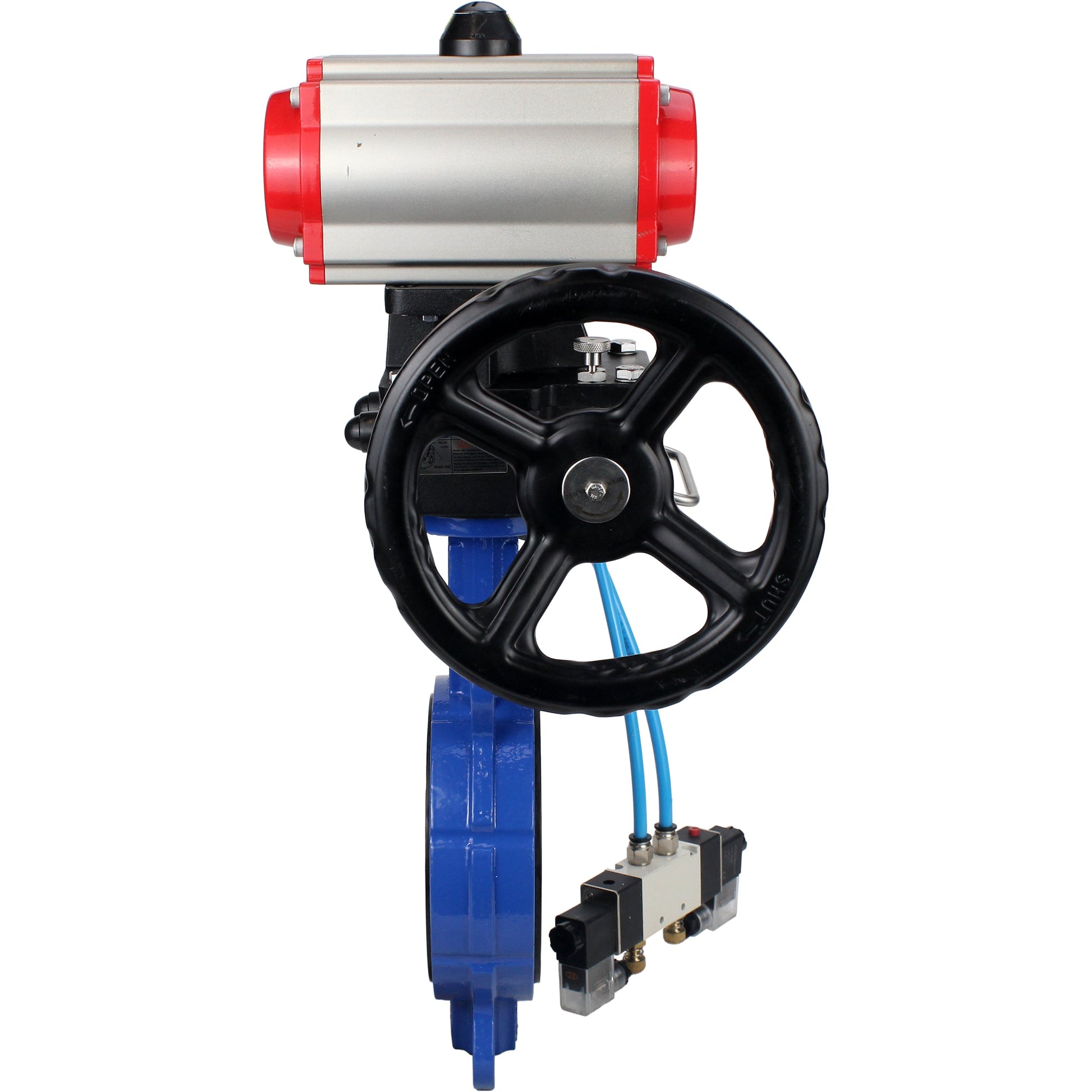

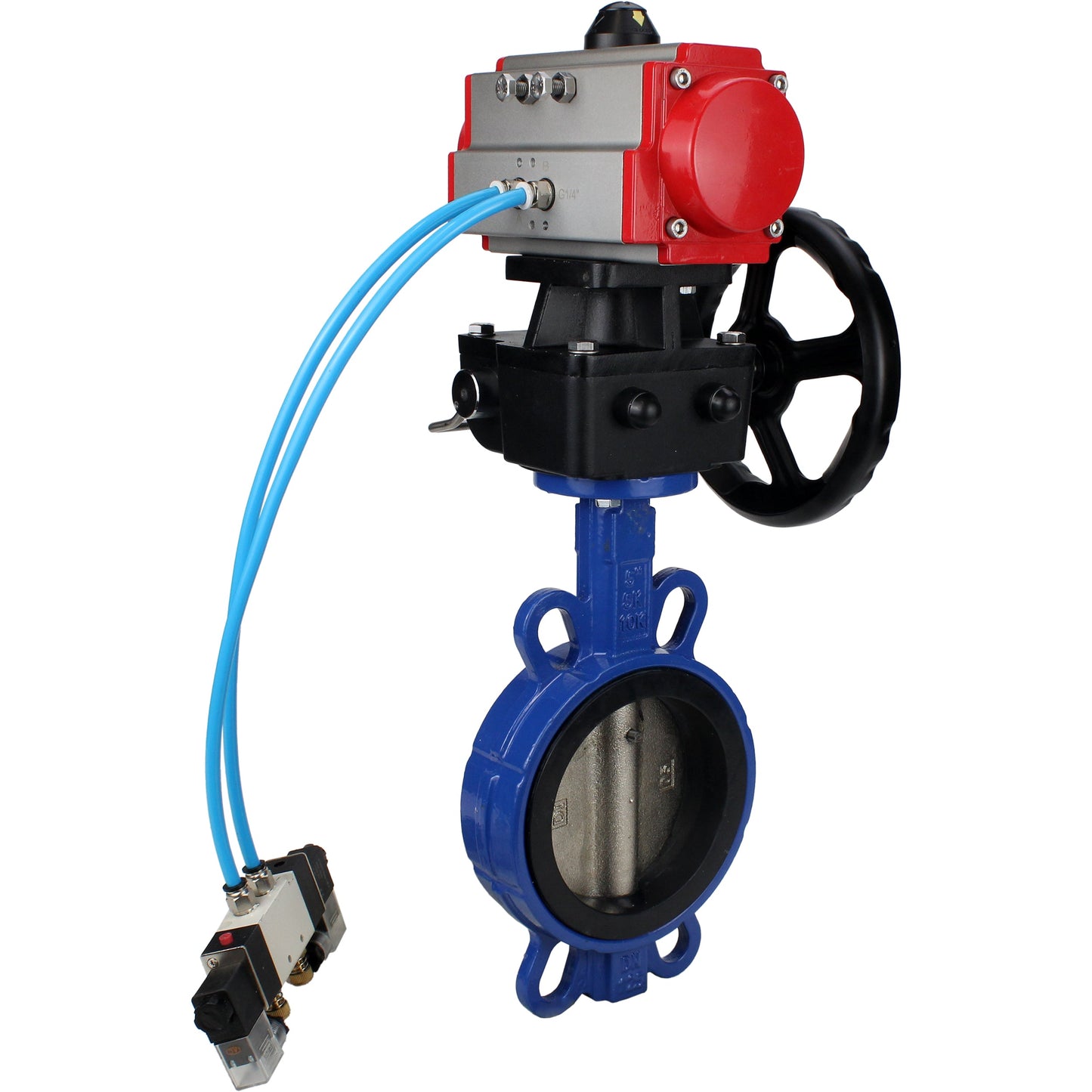

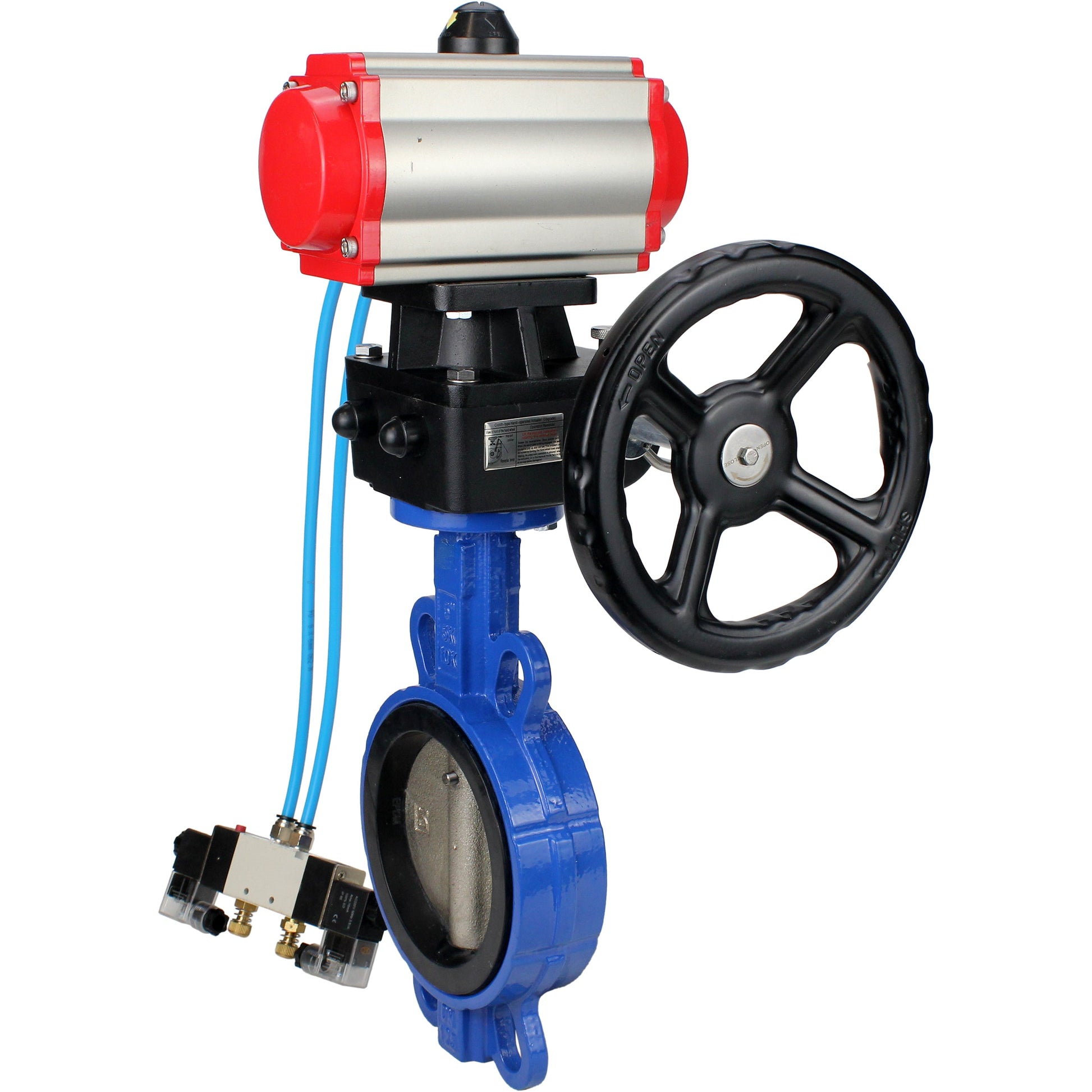

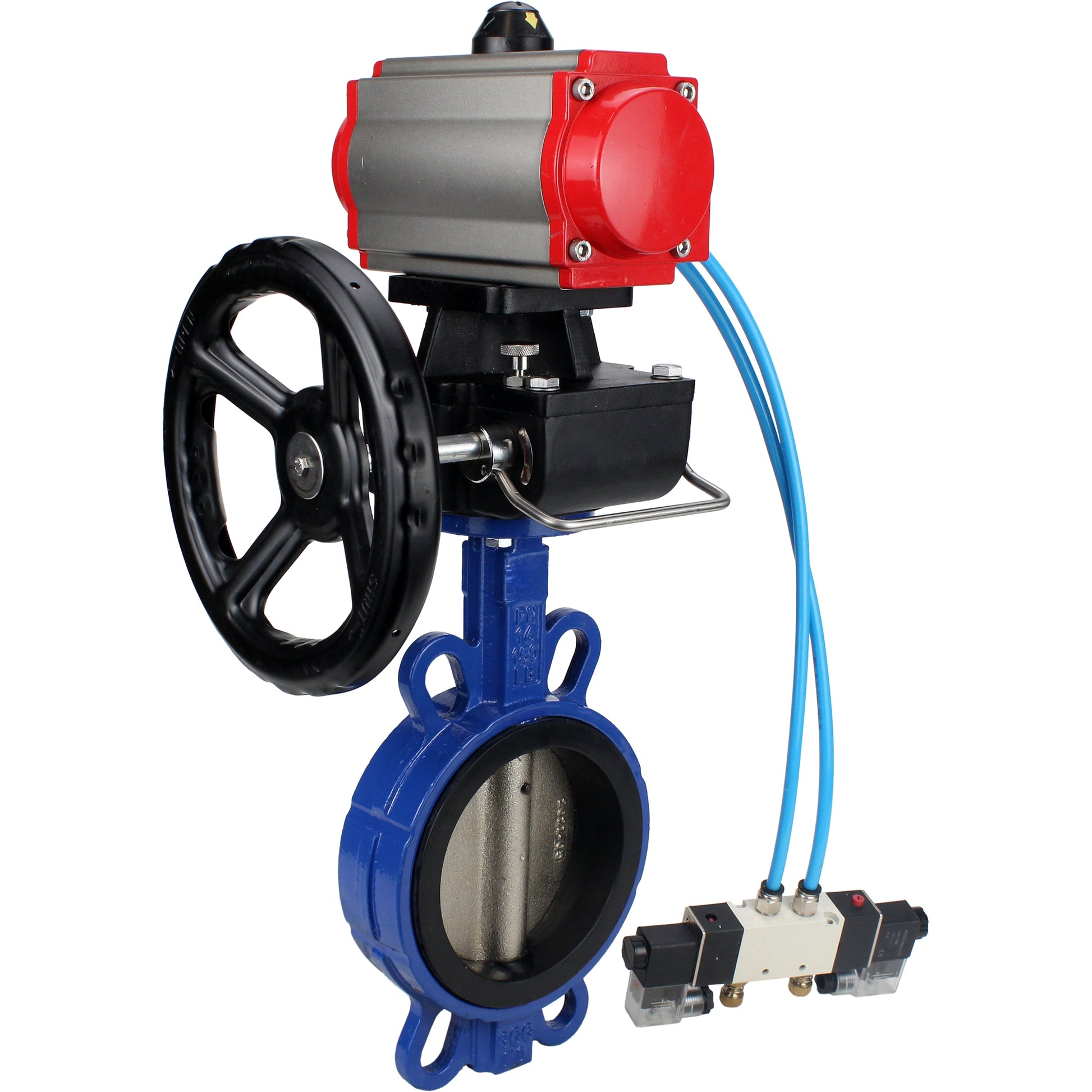

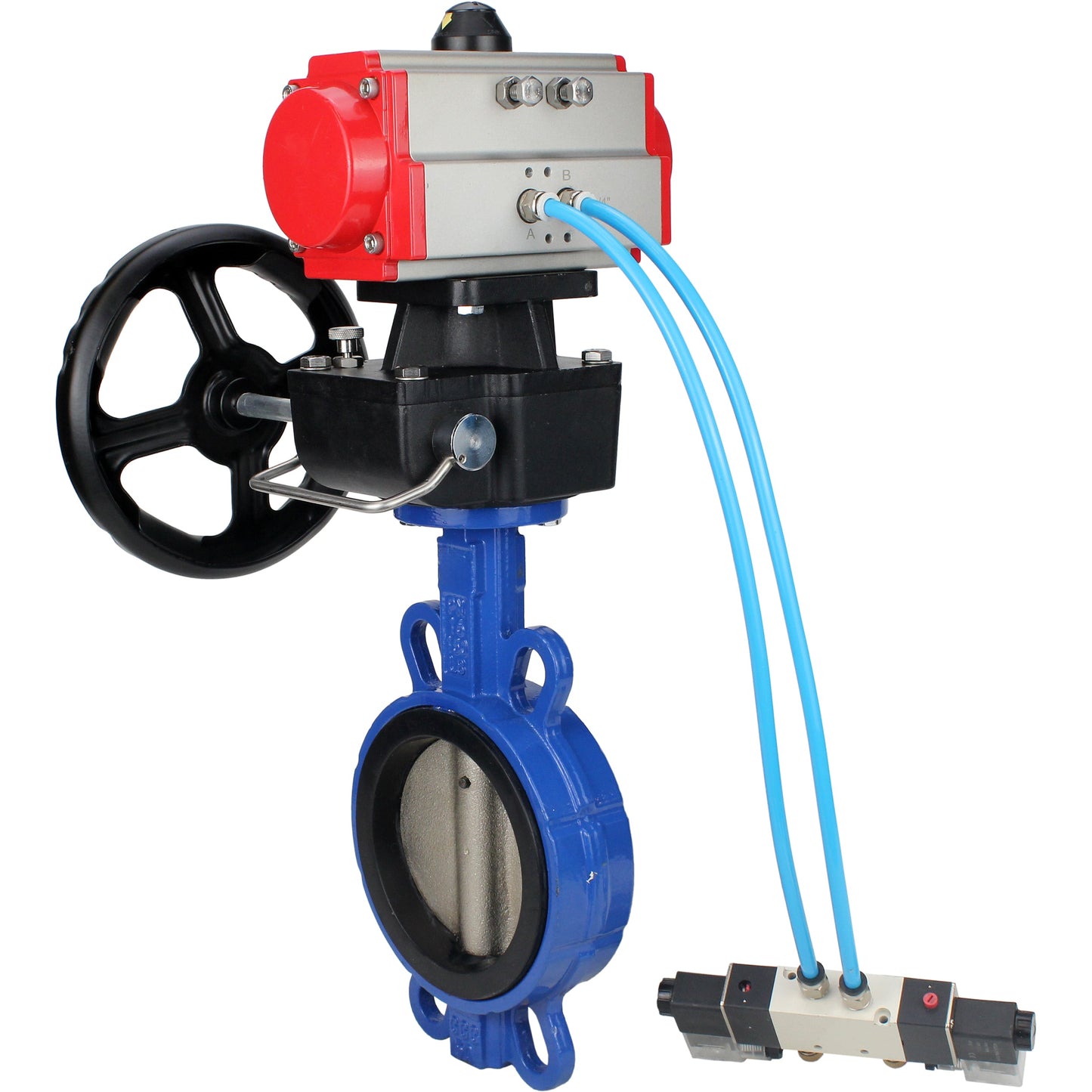

Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON
Gate dimensions DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
| DN | H | H1 | H2 | L | L1 | ØDm | ØDk | D2 (flow section) |
| mm | ||||||||
| 40 | 146 | 74 | 25 | 43 | 216 | 73 | 75 | 50 |
| DN | H | H1 | H2 | L | L1 | ØDm | ØDk |
| mm | |||||||
| 50 | 146 | 74 | 25 | 43 | 216 | 73 | 84.5 |
| 65 | 156 | 80 | 25 | 46 | 216 | 86 | 104.5 |
| 80 | 163 | 100 | 25 | 46 | 216 | 103 | 123.5 |
| 100 | 180 | 116 | 25 | 52 | 255 | 131 | 139.5 |
| 125 | 189 | 123 | 25 | 56 | 255 | 155 | 169.5 |
| 150 | 206 | 137 | 25 | 56 | 255 | 183 | 196 |
| 200 | 232 | 165 | 35 | 60 | 370 | 235 | 247 |
| 250 | 275 | 203 | 35 | 68 | 370 | 286 | 304 |
| 300 | 314 | 235 | 35 | 78 | 370 | 338 | 358 |
Sketch of gates DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
Materials of parts of rotary disc valves DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Cuff | EPDM |
| 3 | Disk | cast iron GGG40 |
| 4 | Stock | stainless steel SS 416/2Cr13 |
| 5 | Hairpin | stainless steel AISI 316L |
| 6 | Sleeve | NBR |
| 7 | Sealing ring | NBR |
| 8 | Fixing plate | carbon steel |
| 9 | Handle with lock | carbon steel |
Sketch of materials for rotary disc valves DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
Technical data of PA-DA pneumatic actuators:
| Design | Double action |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, ⁰C | - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air) |
| Adjustment range | ± 5 ° for rotation at 0 ° and 90 ° |
| Manual override | is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts are anti-corrosion coated) |
PA-DA pneumatic actuator
PA-DA pneumatic actuator component materials:
| № | Name | Material |
| 1 | Enclosure | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Parts and material sketch of the PA-DA pneumatic actuator
Technical parameters of pneumatic valve 4V320-08 220V:
| Name | meaning |
| Type of pneumatic valve | slide valve |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Total power, Va | 4.5 |
| Control | double-sided electromagnetic |
| Frequency of operation, cycle/sec | 5 |
Pneumatic valve 4V320-08 220V
Dimensions and dimensions of pneumatic valve 4V320-08 220V:
| Pneumatic valve model | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V
Technical parameters of the handwheel MON:
| Name | Value |
| Climatic version | U,UHL,T,OM |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Manual doubler MON
Dimensions and dimensions of the handwheel MON:
| Model | MON1-250-T26-ISO | MON2-450-T28-ISO | MON3-700-T38-ISO | MON4-1200-T54-ISO |
| b1, mm | 14 | 17 | 22 | 27 |
| N, mm | 22 | 22 | 28 | 32 |
| b2, mm | 14 | 17 | 22 | 27 |
| M, mm | 16 | 18 | 22 | 30 |
| D1, mm | Ø50 | Ø70 | Ø102 | Ø102 |
| 4-M1, mm | 4-M6 | 4-M8 | 4-M10 | 4-M10 |
| D2, mm | Ø70 | Ø102 | Ø125 | Ø125 |
| 4-M2, mm | 4-M8 | 4-M10 | 4-M12 | 4-M12 |
| E, mm | 70x70 | 95x95 | 114x114 | 129x129 |
| D3, mm | Ø50 | Ø70 | Ø102 | Ø125 |
| 4-Ø1, mm | 4-Ø6.5 | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 |
| D4, mm | Ø70 | Ø102 | Ø125 | Ø140 |
| 4-Ø2, mm | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 | 4-Ø16.5 |
| A, mm | 90 | 125 | 140 | 188.5 |
| B, mm | 55 | 64 | 71 | 93 |
| ØC, mm | Ø88 | Ø110 | Ø129 | Ø174 |
| F, mm | 115 | 135 | 166 | 202 |
| T, mm | 44 | 62.5 | 70 | 94 |
| Y, mm | 145 | 178 | 212 | 280 |
| H, mm | 120 | 133 | 180 | 195 |
| S, mm | 53 | 56.5 | 68.7 | 84 |
| K, mm | 10 | 13 | 12.5 | 15 |
| Ø hand wheel, mm | 180 | 200 | 280 | 320 |
Sketch of dimensions and dimensions of the MON handwheel MON
MON handwheel materials:
| № | Name | Material |
| 1 | Stem for mounting the pneumatic actuator | Steel 45 |
| 2 | Sealing ring | EPDM |
| 3 | Fixing spring | Spring steel |
| 4 | Upper end cover | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Locking bracket (main rod) | Steel 304 |
| 7 | Housing | Aluminum alloy |
| 8 | Sealing ring | EPDM |
| 9 | Gear unit | Cast iron BCh50 |
| 10 | Transition coupling | Cast iron BCh40 |
| 11 | Gear stem | Cast iron BCh40 |
Materials of the handwheel
