Description

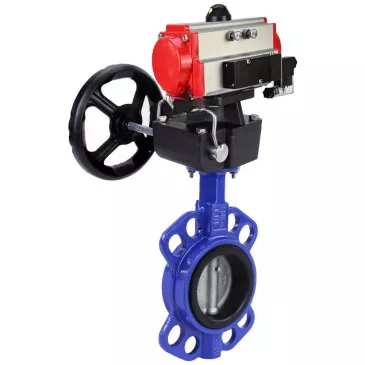

DNOVA WBV1413E-2W-Fb-H butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve DNOVA 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Technical parameters of Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
| Parameter | Value |
| Nominal diameter DN, mm | 40 – 300 |
| Nominal pressure PN, bar | 16 |
| Flow direction | Bidirectional |
| Operating medium temperature, °C | -20 to +120 |
| Ambient temperature, °C | -20 to +100 |
| Shut-off tightness | Class A |
| Working medium | Cold and hot water, oil-free and grease-free air, stationary air conditioning, mildly aggressive media, other media neutral to material |
| Body material | Cast iron GGG50 |
| Disc material | Cast iron GGG40 |
| Pipeline connection | interflange |
| Control type | Handle |
| Average service life, years | 5 |
| Average cycle life (open/close cycles) | 20,000 (under non-aggressive media and average pressure and temperature conditions) |
Dimensions and dimensions of Butterfly valves DNOVA WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM
| Diameter | H, mm | H1, mm | L, mm | Dm, mm | Dk, mm | D2, mm |
| DN40 | 146 | 74 | 43 | 73 | 75 | 50 |
| DN50 | 146 | 74 | 43 | 73 | 84.5 | 50 |
| DN65 | 156 | 80 | 46 | 86 | 104.5 | 65 |
| DN80 | 163 | 100 | 46 | 103 | 123.5 | 80 |
| DN100 | 180 | 116 | 52 | 131 | 139.5 | 100 |
| DN125 | 189 | 123 | 56 | 155 | 169.5 | 125 |
| DN150 | 206 | 137 | 56 | 183 | 196 | 150 |
| DN200 | 232 | 165 | 60 | 235 | 247 | 200 |
| DN250 | 275 | 203 | 68 | 286 | 304 | 250 |
| DN300 | 314 | 235 | 78 | 338 | 358 | 300 |
Sketch of rotary disc gate valves DNOVA WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM
Table of parts and materials for butterfly disc gate valves DNOVA WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM
| № | Name | Material |
| 1 | Body | cast iron GGG50 (analog BCh50) |
| 2 | Cuff | EPDM |
| 3 | Disk | cast iron GGG40 (analog of BCh40) |
| 4 | Stem | stainless steel SS 416/2Cr13 (analog of steel 20X13) |
| 5 | Stud | stainless steel AISI 316L (analog 03Х17Н14М3) |
| 6 | Sleeve | NBR |
| 7 | Sealing ring | NBR |
| 8 | Locking plate | carbon steel |
Sketch of parts and materials of butterfly disc gate valves DNOVA WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, ⁰C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical parameters of pneumatic valve DNOVA 4V320-10 220V
| Name | Value |
|---|---|
| Type of Pneumatic Valve | Spool |
| Pneumatic Valve Model | 4V320-10 220V |
| Operating Pressure, bar | 1.5 ÷ 8 |
| Supply Voltage, V | 220 V |
| Actuation Frequency, cycles/sec | 5 |
