How it works
Spring-return rotary actuator
Butterfly disc
5/2 double-solenoid pilot
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Technical parameters of DNOVA WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-08 220V:
| Name | Significance |
| Working pressure, bar | 16 |
| Working medium temperature, °C | from -20 to 120 |
| Application | water supply, heating |
| Connection to pipeline | interflanged |
| Gate type | swivel disk |
| Control type | pneumatic actuator |
| Manufacturer's country | China |

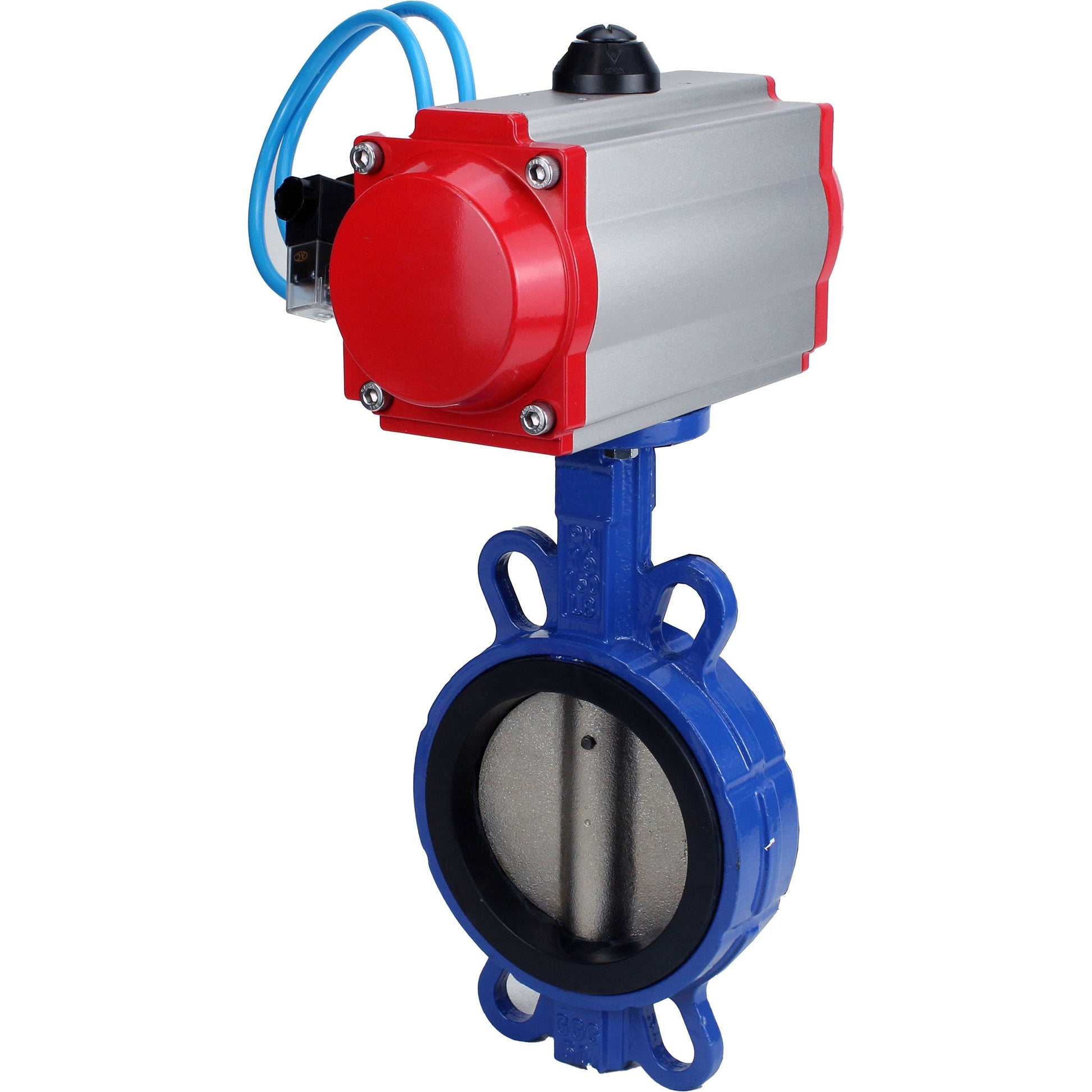

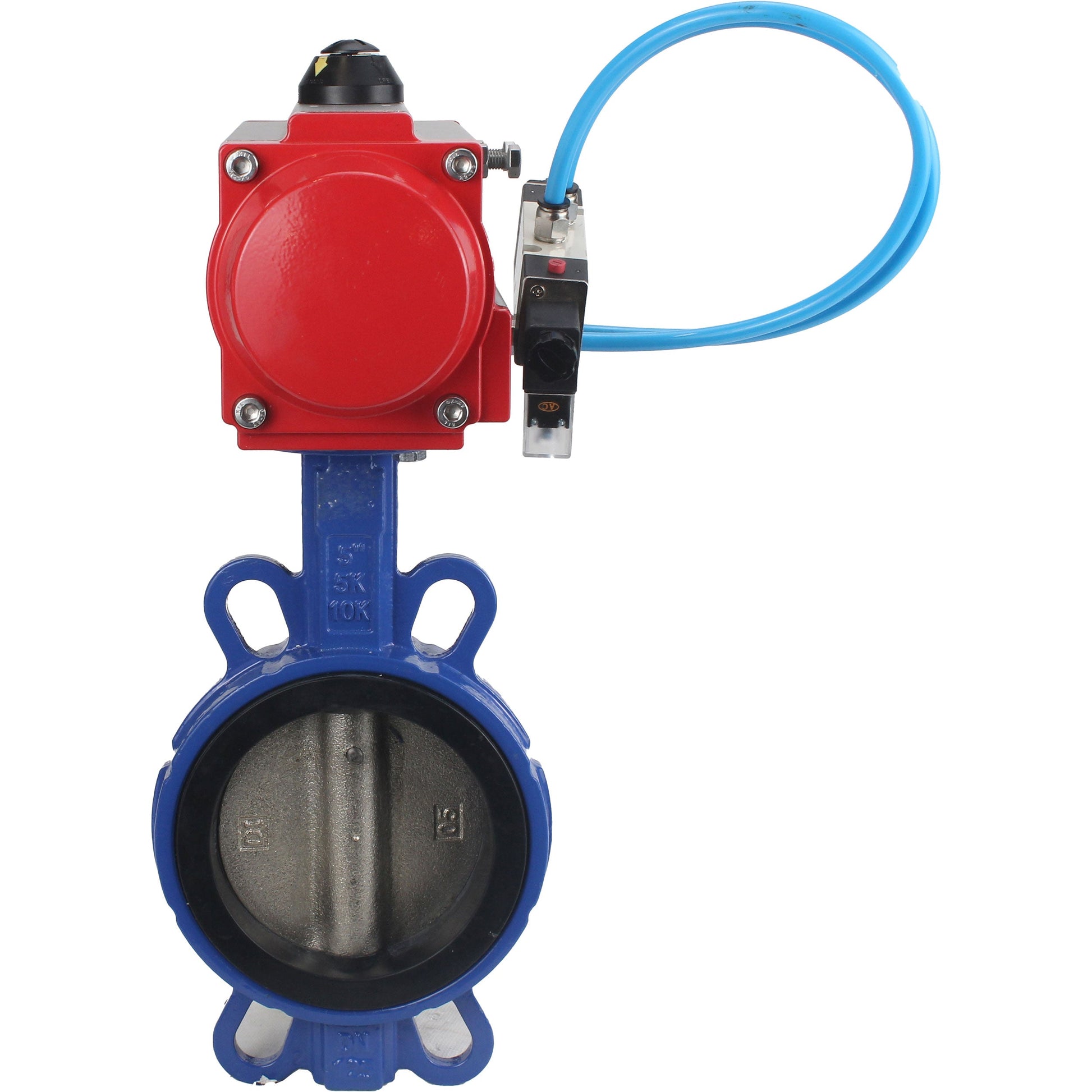

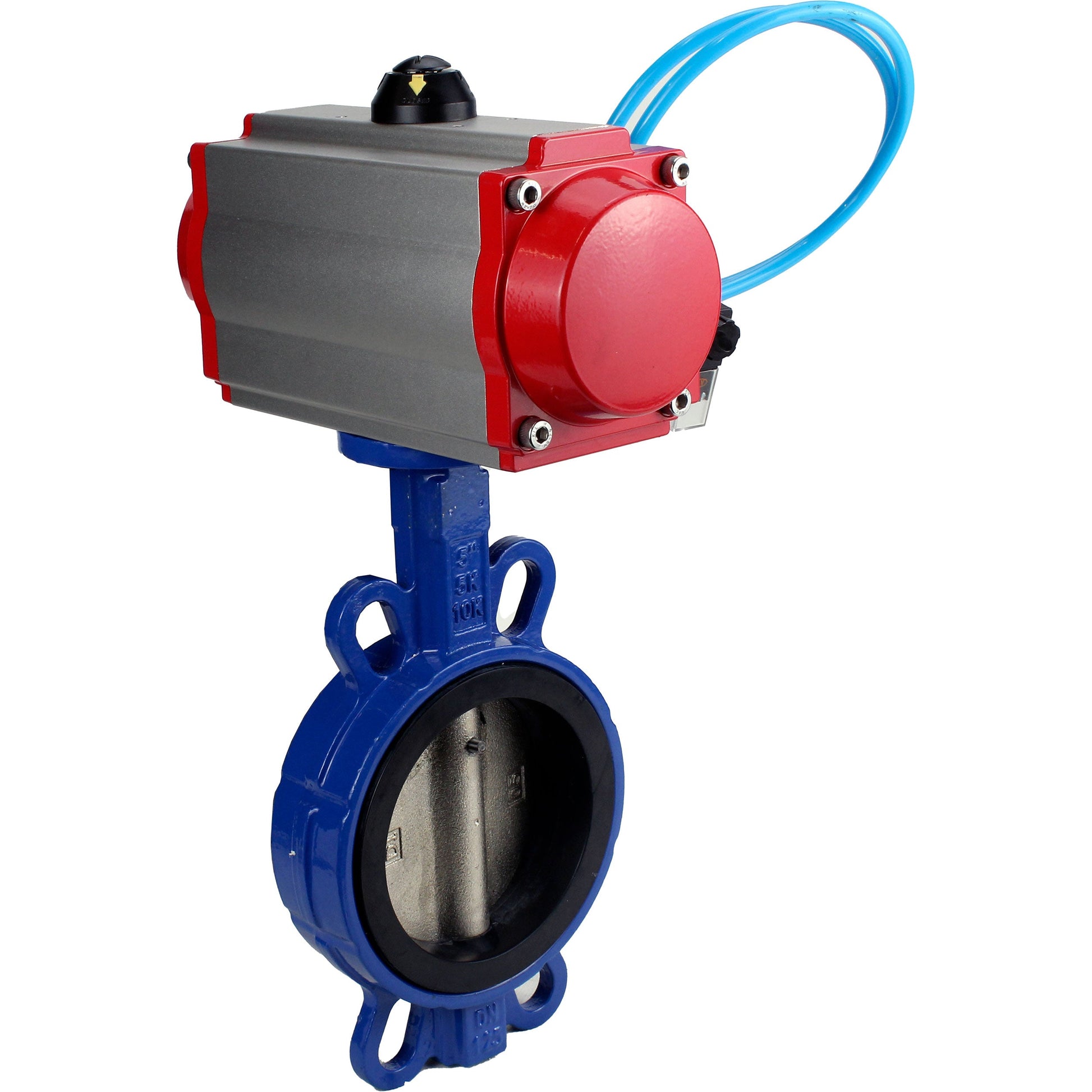

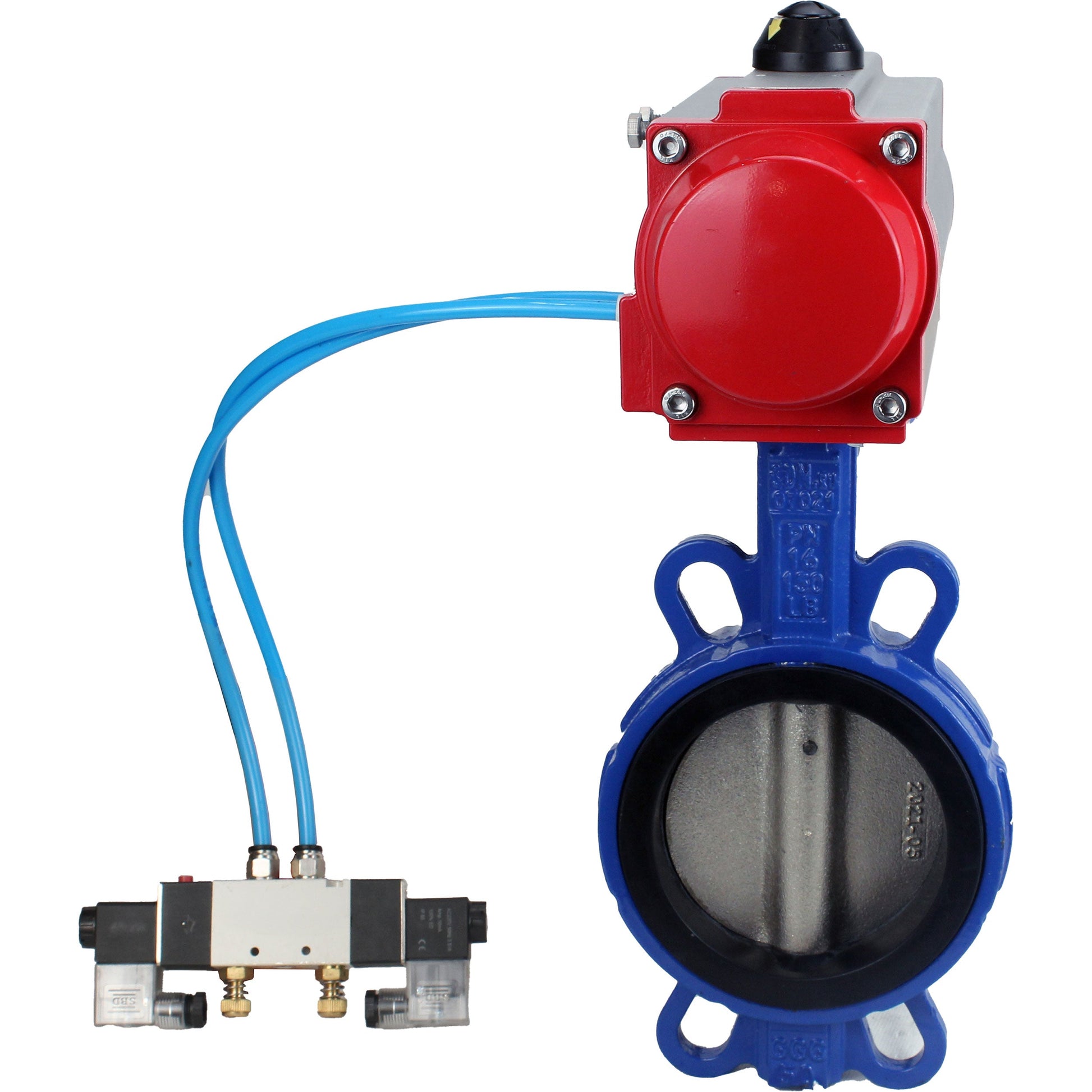

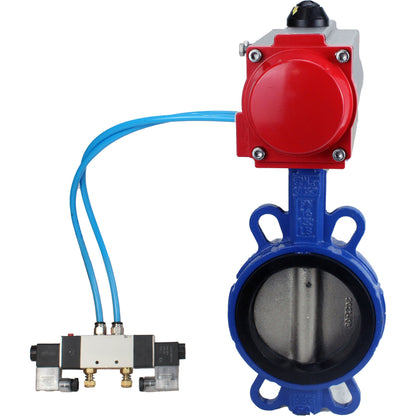

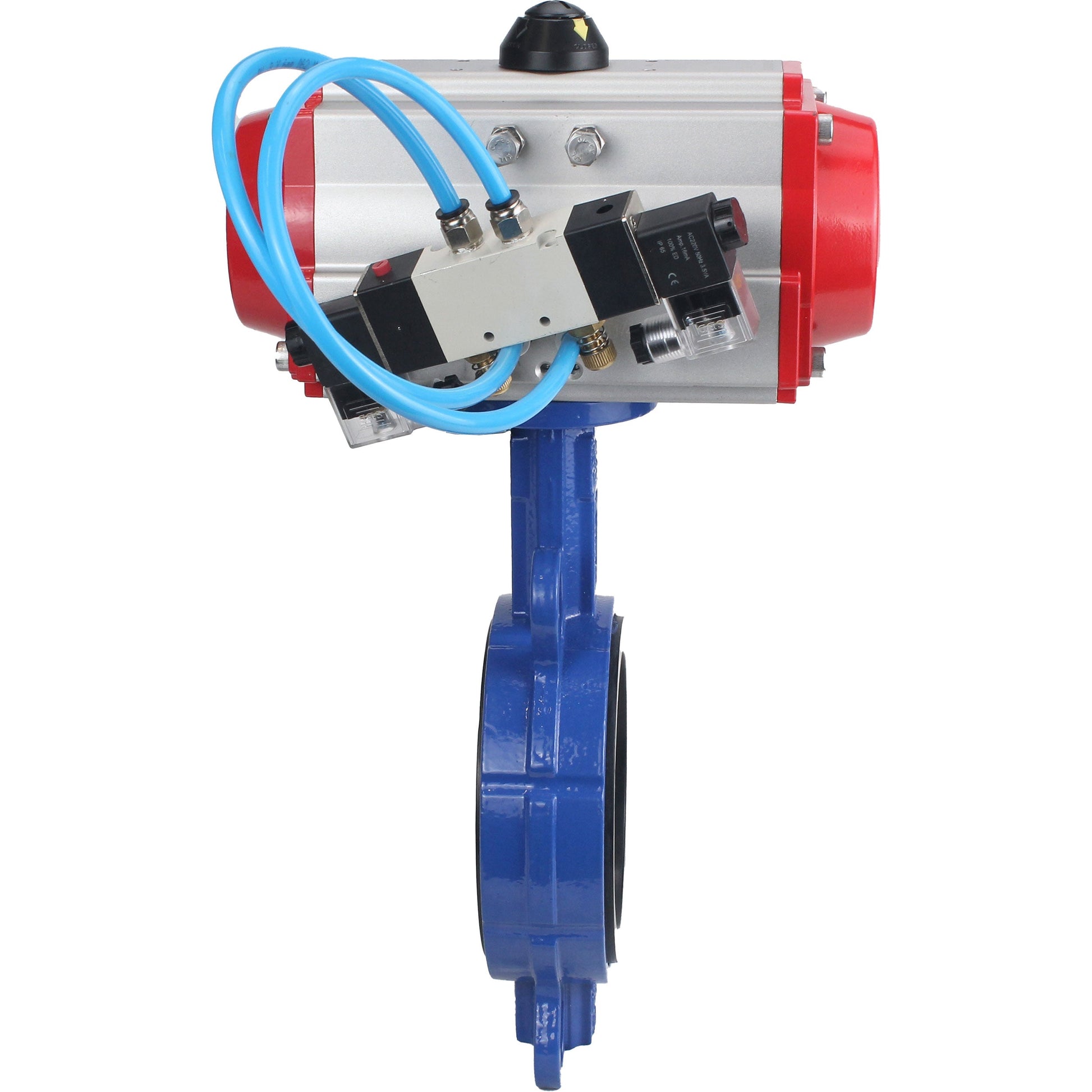

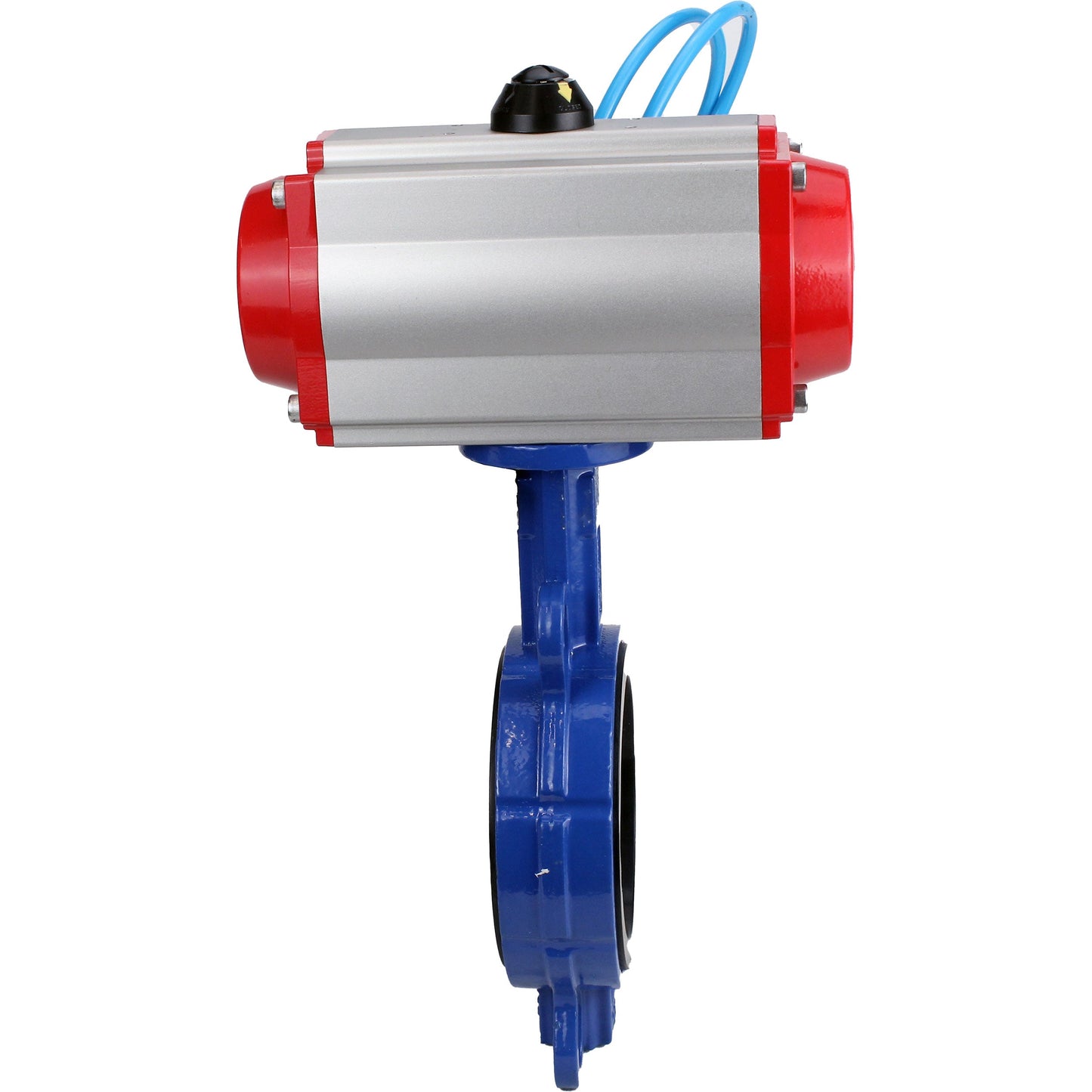

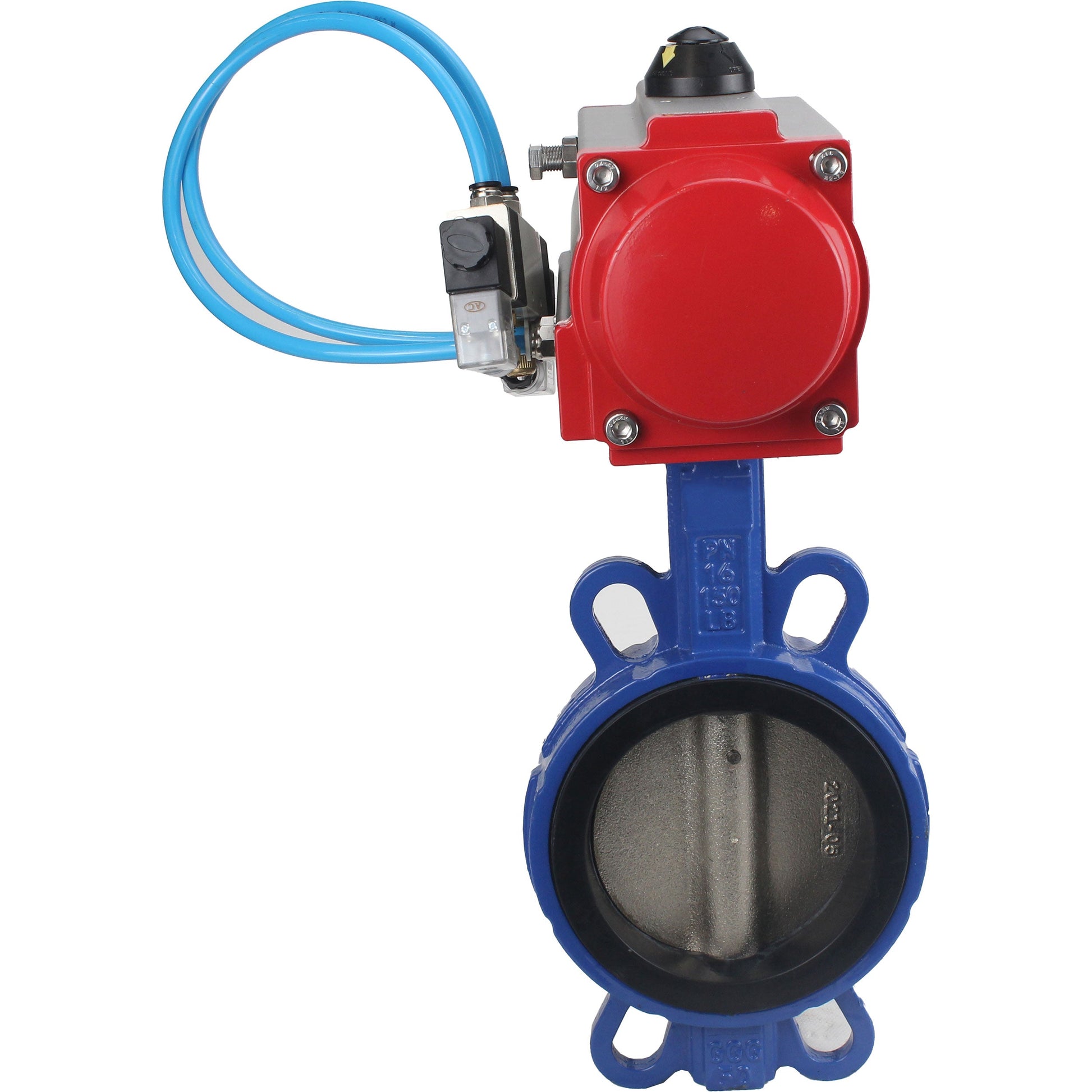

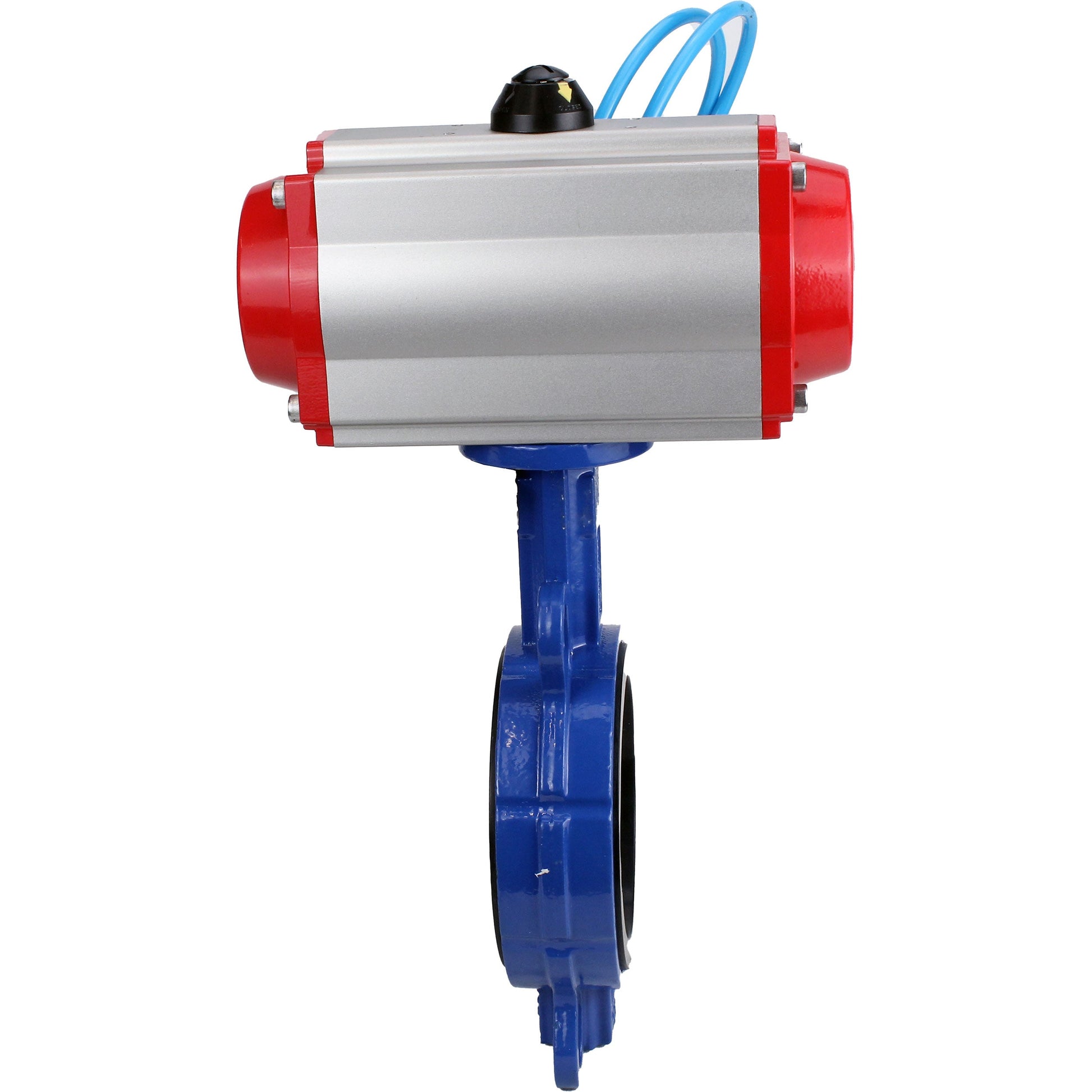

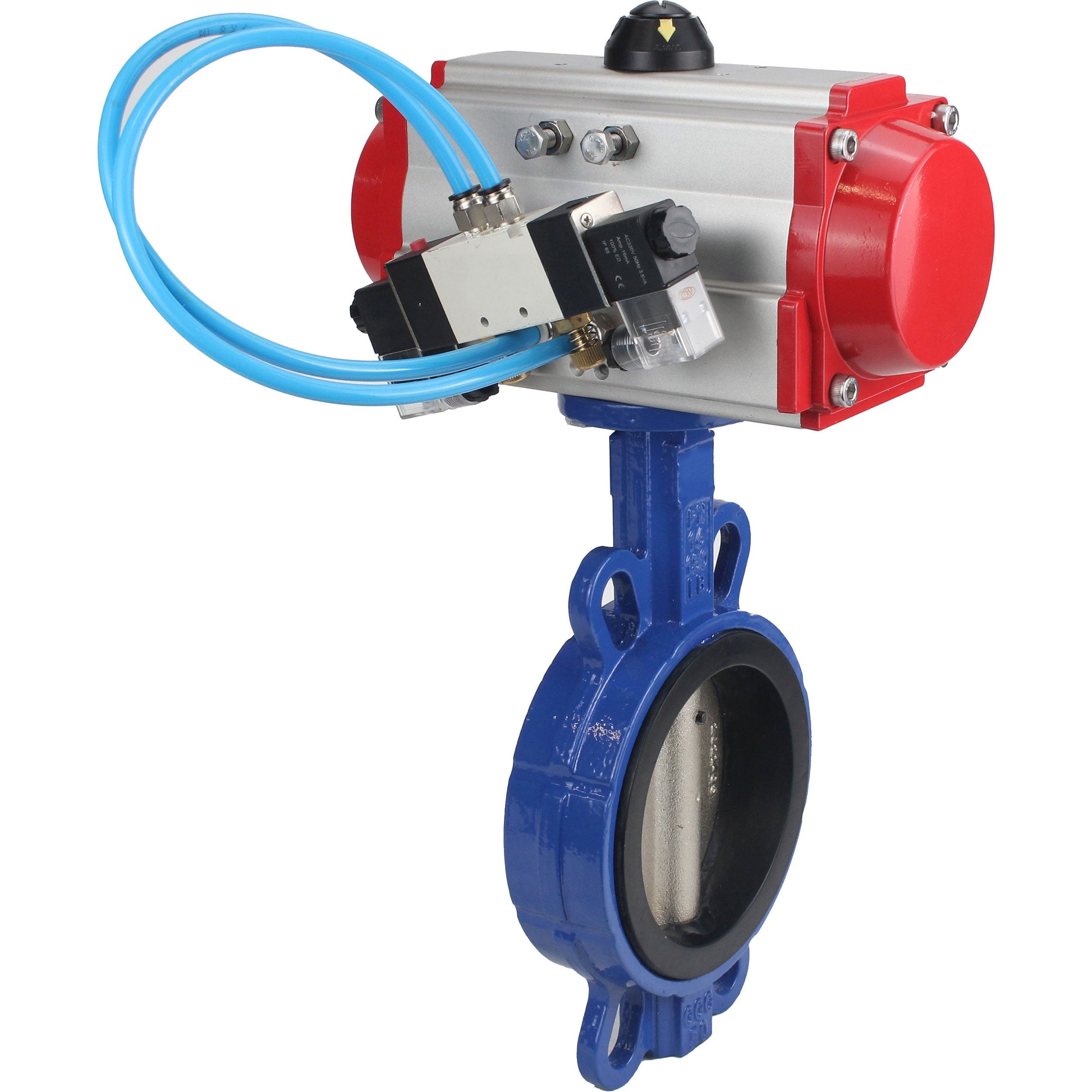

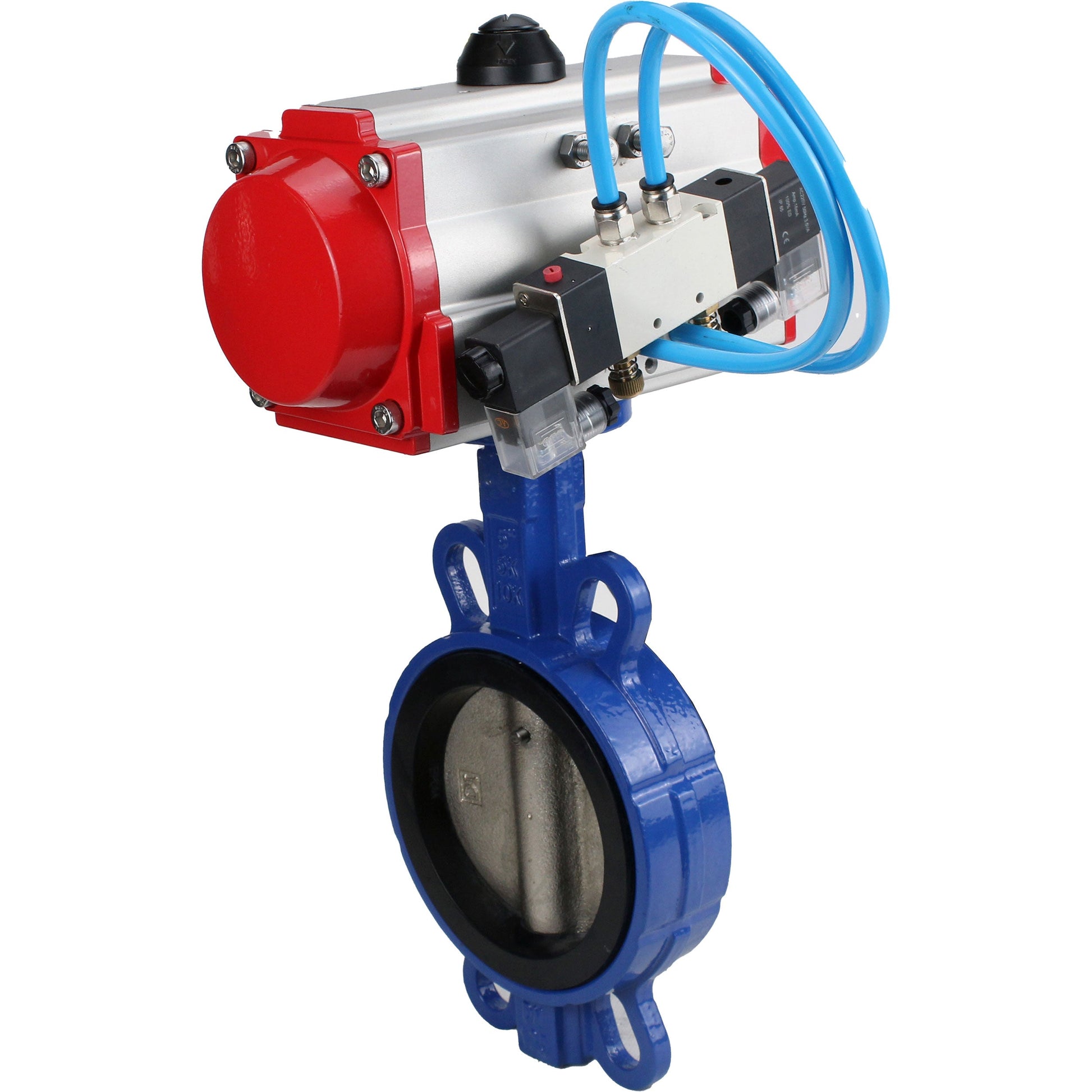

Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-08 220V
Gate dimensions DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
| DN | H | H1 | H2 | L | L1 | ØDm | ØDk | D2 (flow section) |
| mm | ||||||||
| 40 | 146 | 74 | 25 | 43 | 216 | 73 | 75 | 50 |
| DN | H | H1 | H2 | L | L1 | ØDm | ØDk |
| mm | |||||||
| 50 | 146 | 74 | 25 | 43 | 216 | 73 | 84.5 |
| 65 | 156 | 80 | 25 | 46 | 216 | 86 | 104.5 |
| 80 | 163 | 100 | 25 | 46 | 216 | 103 | 123.5 |
| 100 | 180 | 116 | 25 | 52 | 255 | 131 | 139.5 |
| 125 | 189 | 123 | 25 | 56 | 255 | 155 | 169.5 |
| 150 | 206 | 137 | 25 | 56 | 255 | 183 | 196 |
| 200 | 232 | 165 | 35 | 60 | 370 | 235 | 247 |
| 250 | 275 | 203 | 35 | 68 | 370 | 286 | 304 |
| 300 | 314 | 235 | 35 | 78 | 370 | 338 | 358 |
Sketch of gates DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
Materials of parts of rotary disc valves DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Cuff | EPDM |
| 3 | Disk | cast iron GGG40 |
| 4 | Stock | stainless steel SS 416/2Cr13 |
| 5 | Hairpin | stainless steel AISI 316L |
| 6 | Sleeve | NBR |
| 7 | Sealing ring | NBR |
| 8 | Fixing plate | carbon steel |
| 9 | Handle with lock | carbon steel |
Sketch of materials for rotary disc valves DNOVA Water Butterfly Valve DNOVA WBV1432E-2W-Fb-H
Technical data of SA pneumatic actuators
| Design | with return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, °C | - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air) |
| Adjustment range | ± 5 ° for rotation at 0 ° and 90 ° |
| Manual override | is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts are anti-corrosion coated) |
Materials of SA pneumatic actuator parts:
| № | Name | Material |
| 1 | Enclosure | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Material sketch of SA pneumatic actuator
Technical parameters of pneumatic valve 4V320-08 220V:
| Name | meaning |
| Type of pneumatic valve | slide valve |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Total power, Va | 4.5 |
| Control | double-sided electromagnetic |
| Frequency of operation, cycle/sec | 5 |
Pneumatic valve 4V320-08 220V
Dimensions and dimensions of pneumatic valve 4V320-08 220V:
| Pneumatic valve model | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V
- Body material
- Cast iron GGG50
- Maximum allowable temperature
- 110 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Coating type
- uncoated
- Disc material
- Cast iron GGG40
- Torque
- 59 Nm
- Manual override
- No
- Limit switches
- No
- Feedback sensor
- No
- Supply voltage
- 220 V
- Type of pneumatic actuator
- with return springs
- Angle of rotation
- 90°
- Country of origin
- China
