Description
Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. Use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Pneumatic actuators are used for control in pneumatic systems with NAMUR docking surface, to install the valves through through holes in the body. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are designed for use with quarter-turn pneumatic actuators.
Limit switch unit is an electrical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

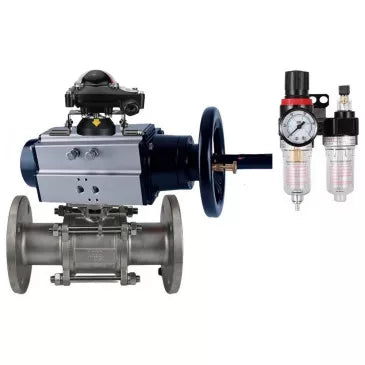

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 24V, with LSU APL-410N EX, with ATU AF:
|
Parameter |
Value |
|
Nominal pressure PN, bar |
25 |
|
Working medium temperature, °C |
From -20 to 180 |
|
Type of valve device |
Two-way |
|
Application |
Water supply, Heat supply, Pneumatic systems |
|
Working medium |
Water, steam, oil products, liquid media, neutral media, gaseous media |
|
Connection to pipeline |
Flanged |
|
Type of passage section |
Full bore |
|
Control type |
With pneumatic actuator |
|
Connection |
Flanged |
|
Control |
Double-acting pneumatic actuator |
|
Presence of limit switches |
Yes |
|
Presence of pneumatic distributor |
Yes |
|
Presence of electro-pneumatic positioner |
No |
|
Warranty, years |
1 |
Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 24V, with LSU APL-410N EX, with ATU AF:
| Model | ØD, mm | ØD1, mm | ØD2, mm | L, mm | A, mm | E, mm | I, mm | B, mm | C, mm |
| DN65 | 184 | 145 | 122 | 290 | 495 | 200 | 162 | 88 | 139 |
| DN80 | 200 | 160 | 138 | 310 | 495 | 200 | 162 | 88 | 139 |
Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 24V, with LSU APL-410N EX, with ATU AF:
|
№ |
Part name |
Material |
Quantity |
|
1 |
Body |
Steel SS304 / SS316 |
1 |
|
2 |
Ball |
Steel S304 / S316 |
1 |
|
3 |
Bolt |
Steel S201 / S304 |
4~6 |
|
4 |
Nut |
Steel S201 / S304 |
6~12 |
|
5 |
Seal |
PTFE |
1 |
|
6 |
Stem |
Steel SS304 / SS316 |
1 |
|
7 |
Gland |
Steel S201 / S304 |
1 |
|
8 |
Cover |
Steel WCB/CF8/CF8M |
2 |
|
9 |
Seat rings |
PTFE |
2 |
|
10 |
Thrust washer |
PTFE |
1 |
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve DNOVA 4M310-08
|
Name |
Value |
|
Type of pneumatic valve |
Spool valve |
|
Pneumatic valve model |
4M310-08 |
|
Working pressure, bar |
1.5 ÷ 1.8 |
|
Supply voltage, V |
24 V |
|
Response frequency, cycle/sec |
5 |
Dimensions and sizes of the pneumatic valve DNOVA 4M310-08
| Pneumatic valve model | 4M310-08 |
| D, mm | 32 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 45 |
| K, mm | 40 |
| L, mm | 134.5 |
| M, mm | 40 |
| N, mm | 24 |
| S, mm | 27 |
| U, mm | 2.4 |
| H, mm | 17.5 |
Technical parameters of limit switch units DNOVA APL-410N EX
| Name | Value |
| Model of limit switch unit | APL-410N EX |
| egree of protection of the housing, IP | 65 |
| Service life, years | 10 |
Dimensions and sizes of limit switch units DNOVA APL-410N EX:
| Model | D, mm | D1, mm | H, mm | L, mm | B, mm | M, mm |
| APL-410N EX | 9.5 | 5 | 174 | 177 | 178 | 8 |
Table of parts and materials for limit switch unit DNOVA APL-410N EX:
|
№ |
Part name |
Material |
|
1 |
Visual indicator |
ABS plastic / polycarbonate |
|
2 |
Visual indicator cover |
Polycarbonate |
|
3 |
Label |
- |
|
4 |
Cover screws |
Stainless steel |
|
5 |
Enclosure cover |
Pressure die-cast aluminum |
|
6 |
Shaft |
Stainless steel |
|
7 |
Limit switches |
- |
|
8 |
Cams (eccentrics) |
Polycarbonate |
|
9 |
Body |
Pressure die-cast aluminum |
|
10 |
Terminal block |
- |
|
11 |
Grounding terminal |
Stainless steel |
|
12 |
Hole (thread) for cable entry |
- |
|
13 |
Bracket |
Stainless steel |
Technical parameters of air preparation unit DNOVA AFC2000
| Name | Value |
| Working pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Filterable particle size, µm | 40 µm |
| Weight, kg | 0.395 |
Dimensions and sizes of air treatment unit DNOVA AFC2000:
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Passports and certificates
Data sheet for DNOVA DA/SA-xxx double-acting pneumatic actuator with return springs
Specifications
