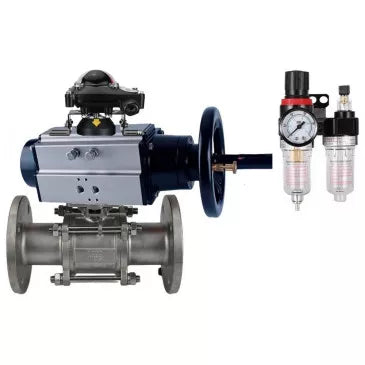

Ball valve BV3131P(3pc)-FP-F-ISO-H with pneumatic double-acting actuator

PA-DA-105-1 · APL-510N EX limit switch · 4M310-08 24V pilot · filter-regulator · flanged, AISI 304 body, PTFE seal

Model BV3131P(3pc)-FP-F-ISO-H SKU D160-47785

$143.08 USD

Sale Sold out

Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.

View full details

How it works

Double-acting rotary actuator

Two-way ball valve

5/2 single-solenoid pilot

Limit-switch box

The number that matters

Max. medium temperature

180°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

Water
Steam
Oil Products
Liquid Media
Neutral Media
Gaseous Media

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Pneumatic control valves are used for control in pneumatic systems with NAMUR docking surface, to install the valves through holes in the housing. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are designed for use with quarter-turn pneumatic actuators.
Limit switch unit is an electrical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 24V, with LSU APL-510N EX, with ATU AF:

Parameter	Value
Nominal pressure PN, bar	25
Working medium temperature, °C	From -20 to 180
Type of valve device	Two-way
Application	Water supply, Heat supply, Pneumatic systems
Working medium	Water, steam, oil products, liquid media, neutral media, gaseous media
Connection to pipeline	Flanged
Type of passage section	Full bore
Control type	With pneumatic actuator
Connection	Flanged
Control	Double-acting pneumatic actuator
Presence of limit switches	Yes
Presence of pneumatic distributor	Yes
Presence of electro-pneumatic positioner	No
Warranty, years	1

Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 24V, with LSU APL-510N EX, with ATU AF:

DN	ØD, mm	ØD1, mm	ØD2, mm	L, mm	A, mm	E, mm	I, mm	B, mm	C, mm
65	185	145	122	290	495	200	162	88	139
80	200	160	140	310	495	200	162	88	139
100 22x22, F10	220	180	158	350	495	200	162	88	139

Краны шаровые DN.ru BV3131P(3pc)-FP-F-ISO-H Ду65-100 Ру16-25, трехсоставные полнопроходные фланцевые, нержавеющая сталь SS304, уплотнение - PTFE, с пневмоприводом PA-DA-105-1 двойного действия, пневмораспределителем 4M310-08 24В, БКВ APL-510N EX, с БПВ AF

Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 24V, with LSU APL-510N EX, with ATU AF:

№	Part name	Material	Quantity
1	Body	Steel SS304 / SS316	1
2	Ball	Steel S304 / S316	1
3	Bolt	Steel S201 / S304	4~6
4	Nut	Steel S201 / S304	6~12
5	Seal	PTFE	1
6	Stem	Steel SS304 / SS316	1
7	Gland	Steel S201 / S304	1
8	Cover	Steel WCB/CF8/CF8M	2
9	Seat rings	PTFE	2
10	Thrust washer	PTFE	1

Technical parameters of pneumatic actuators DNOVA PA-DA-105-1

Name	Value
Model	PA-DA-105-1
Construction	Double-acting
Control pressure, bar	2 ÷ 8
Availability of manual doubler	No

Dimensions and sizes of pneumatic actuators DNOVA PA-DA-105-1

Model of pneumatic actuator	PA-DA-105-1
A, mm	495
A1, mm	461.5
B, mm	133
C, mm	109.5
D, mm	153
E1, mm	57.5
F, mm	64
G, mm	26
H, mm	80
I, mm	30
N, mm	22
E, mm	200
J, mm	102
K mm	70
L, mm	M10x16
M, mm	M8x13
O, mm	4
P, mm	4
S, mm	M6
T, mm	24
U, mm	32

Table of parts and materials for pneumatic actuators DNOVA PA-DA-105-1

№	Part name	Material
1	Indicator screw	ABS (plastic)
2	Position indicator	ABS (plastic)
3	Spring clamp	Stainless steel 304
4	Washer	Stainless steel 304
5	Outer washer	Engineering plastic
6	Adjustment screw	Stainless steel 304
7	Nut	Stainless steel 304
8	Washer	Stainless steel 304
9	Body	Extruded aluminum alloy
10	Piston	Pressure-cast aluminum alloy
11	Piston sealing ring	NBR
12	Bearing group	Engineering plastic
13	End cover sealing ring	NBR
14	End cover	Cast aluminum alloy, coated with polyester paint
15	Fastening screw	Stainless steel 304
16	Inner washer	Engineering plastic
17	Sealing ring	NBR
18	Bearing	Engineering plastic
19	Retainer	Alloy steel
20	Gear	Alloy steel
21	Bearing	Engineering plastic
22	Sealing ring	NBR

Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design	Spool-type
Test pressure (body strength test. Not for operation!), bar	10
Working pressure (recommended range for normal operation), bar	1.5 ÷ 8
Valve type	5/2 five-port, two-position
Working medium	purified air (40 µm filter fineness)
Operating temperature, °C	0 to +60
Actuation frequency	5 cycles per second
Manual override	yes
Protection rating/insulation class	IP65/F
Connection to pneumatic actuator	NAMUR-compliant mounting surface (VDI/VDE3845)
Body material	anodized aluminum
Effective cross-sectional area, mm2	25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere)	2 - PT1/4”
Air inlet port size (to pneumatic valve)	G1/4”
Air outlet port size (to pneumatic actuator)	2 x Ø19.2 mm
Response time, sec	0.05
Supply voltage, V	220AC/24DC
Coil power	220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg	0.35
Average service life, cycles	10,000,000

Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A	C	D	E	F	G	H	I	K	L	J	N	M
mm
40	24	28	32	40	21,5	69	45	17,5	135	29,3	40	27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№	Part Name	Material
1	Connector	Engineering plastic
2	Nut	POM + carbon steel
3	Coil	Copper
4	Control Elements	—
5	Plate	Carbon steel
6	Piston	POM
7	Control Valve Seat	Engineering plastic
8	Valve Body	Aluminum alloy
9	Spool	Aluminum alloy
10	O-Ring Seal	HNBR
11	Rear Cover	Engineering plastic
12	Filter	Synthetic material
13	Piston	POM
14	Spring	Stainless steel
15	Manual Override	Engineering plastic
16	Rear Seat	Aluminum alloy
17	Spring Seat	Aluminum alloy
18	Type C Towing Shackle	65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Technical parameters of limit switch units DNOVA APL-510N EX

Name	Value
Model of limit switch unit	APL-510N EX
egree of protection of the housing, IP	65
Service life, years	10

Dimensions and sizes of limit switch units DNOVA APL-510N EX:

Model	APL-510N EX
A, mm	118
B, mm	118
C, mm	138,4
D, mm	17
E, mm	19
F, mm	7
G, mm	3
H, mm	4
I, mm	59
J, mm	59
K, mm	59
L, mm	59
M, mm	121,4
Ød1, mm	50
Ød2, mm	5

Technical parameters of air preparation unit DNOVA AFC2000

Name	Value
Working pressure, bar	8
Adjustable pressure range, bar	0.5 ÷ 9
Filterable particle size, µm	40 µm
Weight, kg	0.395

Dimensions and sizes of air treatment unit DNOVA AFC2000:

Model	AFC2000
A, mm	162
B, mm	88
C, mm	139
D, mm	31
E, mm	53.5
F, mm	12
G, mm	8
H, mm	7
I, mm	13.3
J, mm	39
K, mm	5
L, mm	40
M, mm	32
N, mm	53
O, mm	29
P, mm	6
R, mm	41.5

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

Port opening: full bore
Body material: Stainless steel AISI 304
Maximum allowable temperature: 180 °C
Connection type: Flanged
Control type: Pneumatically actuated
Operating environment: Water, Steam, Oil Products, Liquid Media, Neutral Media, and Gaseous Media
Type of seal: PTFE
Voltage: 24 V
Explosion-proof: have
Torque: 85 Nm
Limit switches: have
Type of pneumatic actuator: double action
Country of origin: China
