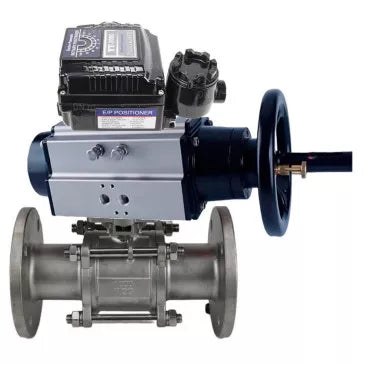

Ball valve BV3131P(3pc)-FP-F-ISO-H with pneumatic double-acting actuator

PA-DA-105-1 · YT-1000RSN with feedback positioner · flanged, AISI 304 body, PTFE seal

Model BV3131P(3pc)-FP-F-ISO-H SKU D160-48034

$229.10 USD

Sale Sold out

Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.

View full details

How it works

Double-acting rotary actuator

Two-way ball valve

Rotary positioner

Rotary positioner: Signal high — **Signal high**The drive holds the other end position.

The number that matters

Max. medium temperature

180°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

Water
Steam
Oil Products
Liquid Media
Neutral Media
Gaseous Media

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. Use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Electropneumatic rotary positioner is used to control pneumatic rotary actuators by means of electric controller or control system with analog DC output signal range from 4 to 20 mA.

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN with feedback:

Parameter	Value
Nominal pressure PN, bar	25
Working medium temperature, °C	From -20 to 180
Type of valve device	Two-way
Application	Water supply, Heat supply, Pneumatic systems
Working medium	Water, steam, oil products, liquid media, neutral media, gaseous media
Connection to pipeline	Flanged
Type of passage section	Full bore
Control type	With pneumatic actuator
Connection	Flanged
Control	Double-acting pneumatic actuator
Presence of limit switches	No
Presence of pneumatic distributor	No
Presence of electro-pneumatic positioner	Yes
Warranty, years	1

Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN with feedback:

DN	L, mm	S, mm	C, mm	A, mm	E, mm	ØD, mm	ØD1, mm	ØD2, mm
65	290	62.5	117.5	495	200	185	145	122
80	310	62.5	117.5	495	200	200	160	140
100 22x22, F10	350	62.5	117.5	495	200	220	180	158

Краны шаровые DN.ru BV3131P(3pc)-FP-F-ISO-H Ду65-100 Ру16-25, трехсоставные полнопроходные фланцевые, нержавеющая сталь SS304, PTFE, с пневмоприводом PA-DA-105-1 двойного действия и электропневматическим поворотным позиционером YT-1000RSN с обратн. связью

Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN with feedback:

№	Part name	Material	Quantity
1	Body	Steel SS304 / SS316	1
2	Ball	Steel S304 / S316	1
3	Bolt	Steel S201 / S304	4~6
4	Nut	Steel S201 / S304	6~12
5	Seal	PTFE	1
6	Stem	Steel SS304 / SS316	1
7	Gland	Steel S201 / S304	1
8	Cover	Steel WCB/CF8/CF8M	2
9	Seat rings	PTFE	2
10	Thrust washer	PTFE	1

Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator	double-acting
Control pressure, bar	2 ÷ 8
Operating temperature, °C	-20 to +80
Visual position indicator	open / closed
Manual control	handwheel
Swivel angle, °	90 ± 5
Top connection standard	NAMUR
Air connection standard	NAMUR
Air supply connection thread	G 1/4"
ISO flange type	F07/F10
Stem square, mm	22x22
Weight, kg	9
Average life, cycles closed/open	300 000

Pneumatic actuator PA-DA-105-1

Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm	495
A1, mm	461.5
B, mm	133
C, mm	109.5
D, mm	153
E, mm	57.5
F, mm	64
G, mm	26
H, mm	80
I, mm	30
N, mm	22
W, mm	200
J, mm	102
K, mm	70
L, mm	M10x16
M, mm	M8x13
O, mm	4
P, mm	4
S, mm	M6
T, mm	24
U, mm	32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1

PA-DA-105-1 air actuator parts and materials table:

№	Part name	Material
1	Indicator screw	ABS (plastic)
2	Position indicator	ABS (plastic)
3	Spring clip	Stainless steel 304
4	Washer	Stainless steel 304
5	External washer	Engineering plastic
6	Adjustment screw	Stainless steel 304
7	Nut	Stainless steel 304
8	Washer	Stainless steel 304
9	Body	Extruded aluminum alloy
10	Piston	Die cast aluminum alloy
11	Piston O-ring	NBR
12	Bearing group	Engineering plastic
13	End cap O-ring	NBR
14	End cap	Die cast aluminum alloy coated with polyester paint
15	Fixing screw	Stainless steel 304
16	Internal washer	Engineering plastic
17	Sealing ring	NBR
18	Bearing	Engineering plastic
19	Retainer	Alloy steel
20	Gear	Alloy steel
21	Bearing	Engineering plastic
22	Sealing ring	NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator

Technical parameters of electropneumatic rotary positioners DNOVA YT-1000RSN

Parameter	Value
Model of electro-pneumatic positioner	YT-1000RSN
Control input signal, mA	4 ~ 20
Internal resistance, Ohm	250(±15)
Input pressure, bar	1.4~7
Lever travel angle	0~90°
Air connection thread	1/4″
Pressure gauge connection thread	1/8″
Cable gland	G1/2″
Protection rating	IP66
Compressed air consumption, l/min	3
Air output flow, l/min	80
Body material	Aluminum casting

Dimensions and sizes of DNOVA YT-1000RSN electropneumatic rotary positioners:

Model positioner	YT-1000RSN
A, mm	224.3
B, mm	166.5
C, mm	117.5
D, mm	132.3
E, mm	6
F, mm	122
G, mm	45
H, mm	45
I, mm	23
J, mm	27
K, mm	32.5
L, mm	35.5
M, mm	91.8
N, mm	37.2
O, mm	43.5
P, mm	26.5
Q, mm	33
R, mm	80.25
S, mm	62.5
T, mm	8
U1, mm	70
U2, mm	93
V1, mm	40
V2, mm	63
W, mm	26
X, mm	32
Y, mm	9
Z, mm	24

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

Port opening: full bore
Body material: Stainless steel AISI 304
Maximum allowable temperature: 180 °C
Connection type: Flanged
Control type: Pneumatically actuated
Operating environment: Water, Steam, Oil Products, Liquid Media, Neutral Media, and Gaseous Media
Type of seal: PTFE
Explosion-proof: No
Torque: 85 Nm
Limit switches: No
Type of pneumatic actuator: double action
Country of origin: China
