Construction
Parts and materials
Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Double-acting pneumatic rotary actuators and pneumatic rotary actuators with return springs are designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Limit switch unit is designed for visual and electrical signaling of valve end positions. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalize the end positions. Visual indication of the position can be observed on the body of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.

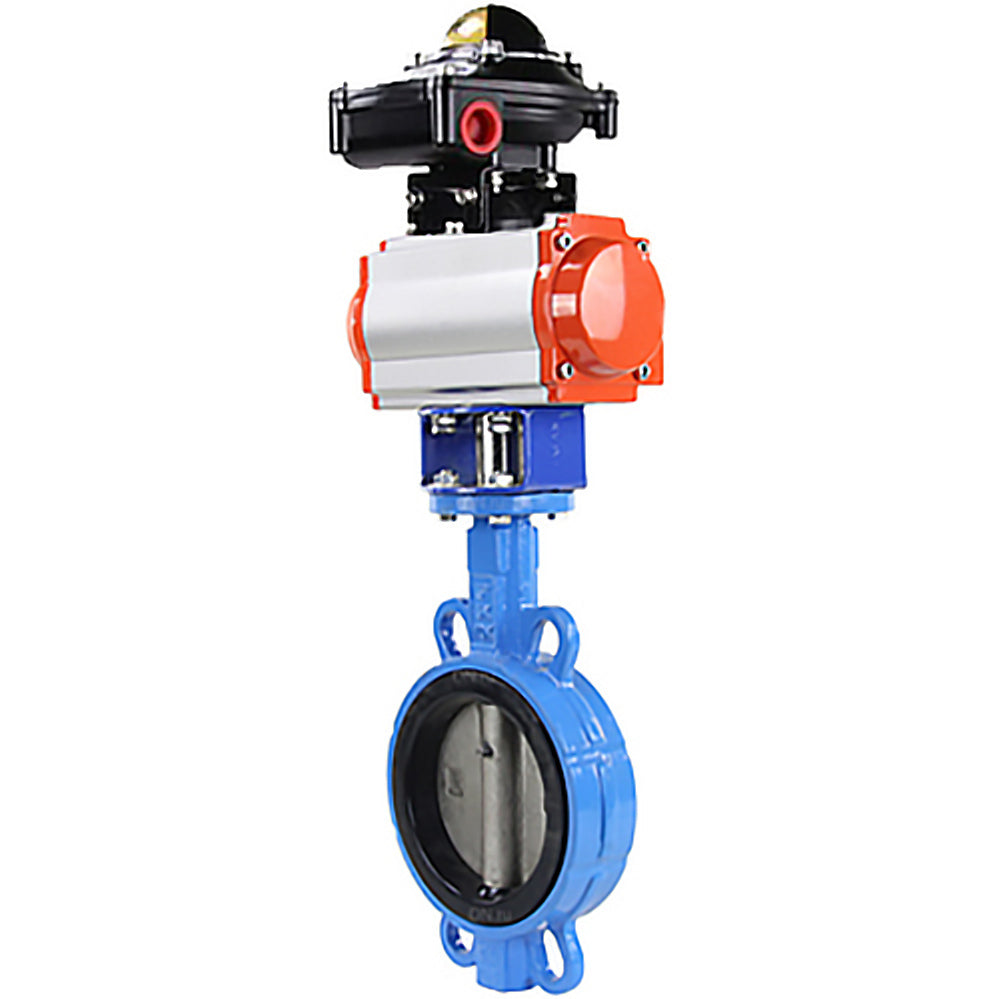

Technical parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA and limit switch block APL-210N:
| Nominal diameter DN, mm | 40 - 300 |
| Working pressure PN, bar | 16 |
| Working medium temperature t, °C | from -20 to +120 |
| Operating medium | water, mineral oils, hydrocarbons, oils, fats |
| Flow direction | two-way |
| Control type | handle |
| Pipeline connection | interflanged |
| Body material | cast iron GGG50 |
| Service life, years | 10 |
Overall and installation dimensions of the gate valve DNOVA WBV1332N-2W-Fb-H DN40
| DN | A | B | C | E | L | ØD | Ød | 4-Ødo | HxH | bore diameter |
| 40 | 114 | 66 | 26 | 34 | 210 | 65 | 50 | 4-7 | 9x9 | 50 |
Sketch Butterfly valves WBV1332N-2W-Fb-H DN40
Dimensional parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA and limit switch block APL-210N:
| DN |
Model electric actuator |
Dimensions | ||||
| E, mm | L1, mm | A, mm | C, mm | K, mm | ||
| 40 | DNOVA DA-052 | 34 | 153 | 114 | 98 | 77 |
| 50 | DNOVA DA-065 | 43 | 174 | 131 | 115 | 77 |
| 65 | DNOVA DA-065 | 46 | 174 | 140 | 115 | 77 |
| 80 | DNOVA DA-083 | 46 | 216 | 150 | 135 | 77 |
| 100 | DNOVA DA-083 | 52 | 216 | 163 | 135 | 77 |
| 125 | DNOVA DA-105 | 56 | 279 | 178 | 160 | 77 |
| 150 | DNOVA DA-105 | 56 | 279 | 191 | 160 | 77 |
| 200 | DNOVA DA-130 | 60 | 308 | 238 | 193 | 77 |
| 250 | DNOVA DA-140 | 68 | 405 | 285 | 210 | 77 |
| 300 | DNOVA DA-160 | 78 | 465 | 315 | 237 | 77 |
Materials of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA and limit switch block APL-210N:
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Stem | stainless steel AISI 416 |
| 5 | Pin | stainless steel AISI 420 |
| 6 | Bushing | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
Main technical characteristics of pneumatic actuators:
| Design | Double-acting | |
| Nominal pressure PN, bar | 12 | |
| Operating pressure, bar | 2…8 | |
| Operating medium | Filtered compressed air or non-aggressive gases, oils | |
| Maximum particle diameter | less than 30 µm2 | |
| Operating temperature t, °C | • from -20 to +80 • from -40 to +80 (low-temperature version) • from -20 to +160 (in dry air) |
|
| Adjustment range | ± 5° for rotation at 0° and 90° | |
| Manual duplication | yes | |
| Position indicator | open/closed | |
| Operating environment | indoors and outdoors. (All internal and external parts have an anti-corrosion coating) | |
Pneumatic actuator component materials DNOVA DA:
| № | Name | Quantity | Material | Coating |
| 1 | Body | 1 | extruded aluminum | hard anodized |
| 2 | Side caps | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/ galvanized zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clip | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator body | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/ galvanized galvanizing |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | O-ring | 2 | NBR | |
| 23 | O-ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjustment nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Bushing | 2 | aluminum |
Main technical characteristics of DNOVA APL-210N limit switch unit:
| Value | Execution | Option |
| Protection | All-weather IP65 | IP67 |
| Environmental temperature | From -40°C to +80°C | From -50°C to +80°C |
| Cable gland threads | 2 x NPT1/2" | PF1/2′′， P1/2′′M20x15, PG13.5 |
| Terminal block | 8 cells 0.08-2.6mm² | |
| Voltage | 12V, 24V, 38V, 48V, 110V, 220V, 250V | |
| Indicator position | CLOSED: red OPEN: green | CLOSED: red OPEN: yellow |
| Sensor | 2 SPDT electromechanical microswitches OMRON V151-1C25 | 2 NPN inductive sensors, 2 NAMUR proximity switches |
| External coating | Polyester coating (black) | red, green, yellow, blue colors |
| Shaft | Standard shaft (17mm) | Long shaft |
Materials of DNOVA-APL-210N limit switch unit:
| № | Name | Material |
| 1 | Body | Cast aluminum |
| 2 | Indicator cap | Polyester plastic |
| 3 | 3D-indicator | ABC-plastic |
| 4 | Cam | Polyester plastic |
| 5 | Spring | Stainless steel |
| 6 | Screws | Stainless steel |
| 7 | O-rings | NBR |
| 8 | Bushing | Bronze |
| 9 | Grounding terminal | Stainless steel |
| 10 | Shaft | Stainless steel |
- Body material
- Cast iron GGG50/EN-GJS-500-7
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Nominal pressure
- 16 bar
- Type of seal
- NBR
- Disc material
- Stainless steel AISI 316L/1.4404
- Valve feedback
- Limit switches
- Explosion-proof
- No
- Torque
- 67 Nm
- Pneumatic actuator
- No
- Manual override
- No
- Limit switches
- Yes
- Country of origin
- China
