Description
Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Double-acting pneumatic rotary actuators and pneumatic rotary actuators with return springs are designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Limit switch unit is designed for visual and electrical signaling of valve end positions. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalize the end positions. The visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.
The HDM worm gear manual doubleturn actuator with reduction gearbox allows the manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

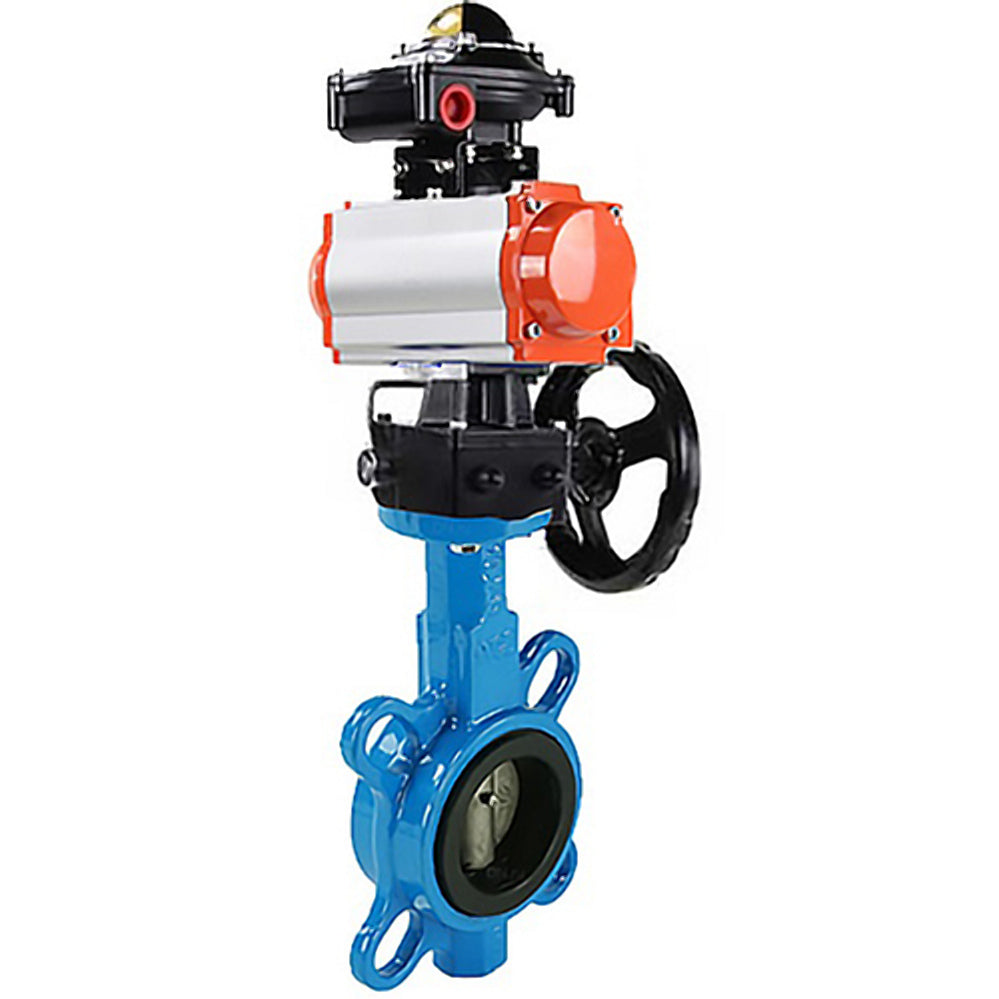

Technical parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-210N and manual duplicator HDM:
| Nominal diameter DN, mm | 40 - 300 |
| Working pressure PN, bar | 16 |
| Working medium temperature t, ⁰C | from -20 to +120 |
| Operating medium | water, mineral oils, hydrocarbons, oils, fats |
| Flow direction | two-way |
| Control type | handle |
| Pipeline connection | interflanged |
| Body material | cast iron GGG50 |
| Service life, years | 10 |
Overall and installation dimensions of the gate valve DNOVA WBV1332N-2W-Fb-H DN40
| DN | A | B | C | E | L | ØD | Ød | 4-Ødo | HxH | bore diameter |
| 40 | 114 | 66 | 26 | 34 | 210 | 65 | 50 | 4-7 | 9х9 | 50 |
Sketch Butterfly valves WBV1332N-2W-Fb-H DN40
Dimensional parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-210N and manual duplicator HDM:
| DN |
Model electric actuator |
Dimensions | ||||
| E, mm | L1, mm | A, mm | C, mm | K, mm | ||
| 40 | DNOVA DA-052 | 34 | 153 | 114 | 98 | 77 |
| 50 | DNOVA DA-065 | 43 | 174 | 131 | 115 | 77 |
| 65 | DNOVA DA-065 | 46 | 174 | 140 | 115 | 77 |
| 80 | DNOVA DA-083 | 46 | 216 | 150 | 135 | 77 |
| 100 | DNOVA DA-083 | 52 | 216 | 163 | 135 | 77 |
| 125 | DNOVA DA-105 | 56 | 279 | 178 | 160 | 77 |
| 150 | DNOVA DA-105 | 56 | 279 | 191 | 160 | 77 |
| 200 | DNOVA DA-130 | 60 | 308 | 238 | 193 | 77 |
| 250 | DNOVA DA-140 | 68 | 405 | 285 | 210 | 77 |
| 300 | DNOVA DA-160 | 78 | 465 | 315 | 237 | 77 |
Materials of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-210N and manual duplicator HDM:
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Stem | stainless steel AISI 416 |
| 5 | Pin | stainless steel AISI 420 |
| 6 | Bushing | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
Main technical characteristics of pneumatic actuators:
| Design | Double-acting | |
| Nominal pressure PN, bar | 12 | |
| Operating pressure, bar | 2…8 | |
| Operating medium | Filtered compressed air or non-aggressive gases, oils | |
| Maximum particle diameter | less than 30 µm2 | |
| Operating temperature t, ⁰C | • from -20 to +80 • from -40 to +80 (low-temperature version) • from -20 to +160 (in dry air) |
|
| Adjustment range | ± 5° for rotation at 0° and 90° | |
| Manual duplication | yes | |
| Position indicator | open/closed | |
| Operating environment | indoors and outdoors. (All internal and external parts have an anti-corrosion coating) | |
Pneumatic actuator component materials DNOVA DA:
| № | Name | Quantity | Material | Coating |
| 1 | Body | 1 | extruded aluminum | hard anodized |
| 2 | Side caps | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/ galvanized zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clip | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator body | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/ galvanized galvanizing |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | O-ring | 2 | NBR | |
| 23 | O-ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjustment nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Bushing | 2 | aluminum |
Main technical characteristics of DNOVA APL-210N limit switch unit:
| Value | Execution | Option |
| Protection | All-weather IP65 | IP67 |
| Environmental temperature | From -40°C to +80°C | From -50°C to +80°C |
| Cable gland threads | 2 x NPT1/2" | PF1/2′′， P1/2′′M20x15, PG13.5 |
| Terminal block | 8 cells 0.08-2.6mm² | |
| Voltage | 12V, 24V, 38V, 48V, 110V, 220V, 250V | |
| Indicator position | CLOSED: red OPEN: green | CLOSED: red OPEN: yellow |
| Sensor | 2 SPDT electromechanical microswitches OMRON V151-1C25 | 2 NPN inductive sensors, 2 NAMUR proximity switches |
| External coating | Polyester coating (black) | red, green, yellow, blue colors |
| Shaft | Standard shaft (17mm) | Long shaft |
Materials of DNOVA-APL-210N limit switch unit:
| № | Name | Material |
| 1 | Body | Cast aluminum |
| 2 | Indicator cap | Polyester plastic |
| 3 | 3D-indicator | ABC-plastic |
| 4 | Cam | Polyester plastic |
| 5 | Spring | Stainless steel |
| 6 | Screws | Stainless steel |
| 7 | O-rings | NBR |
| 8 | Bushing | Bronze |
| 9 | Grounding terminal | Stainless steel |
| 10 | Shaft | Stainless steel |
Main technical characteristics of the DNOVA manual doubler:
| Operating mode | Repetitive-short-term, reversible |
| Operating temperature t, ⁰C | from -20 to +80 from -40 to +80 (low-temperature version) from -20 to +160 (in dry air) |
| Operating medium | Filtered compressed air or non-aggressive gases, oils |
| Degree of protection | IP67 |
| Connection type | ISO 5211 |
| Application | water supply, heating, fire extinguishing, heating stations |
| Mounting | horizontal/vertical |
| Stroke | mechanical limit 0-90° |
| Operating environment | indoors and outdoors |
| Installation location | between pneumatic actuator and ball valve or gate valve |
| Shaft rotation angle | 90° ± 5° |
Materials of DNOVA-HDM manual doubler:
| № | Name | Material |
| 1 | Stem for pneumatic actuator mounting | Steel |
| 2 | O-ring | EPDM |
| 3 | Locking spring | Spring steel |
| 4 | Upper end cover | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Locking bracket (main link) | Steel 304 |
| 7 | Body | Aluminum alloy |
| 8 | O-ring | EPDM |
| 9 | Gearbox | Cast iron |
| 10 | Transition coupling | Cast iron |
| 11 | Gear stem | Cast iron |
