Description
Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
DNOVA gearbox allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators.

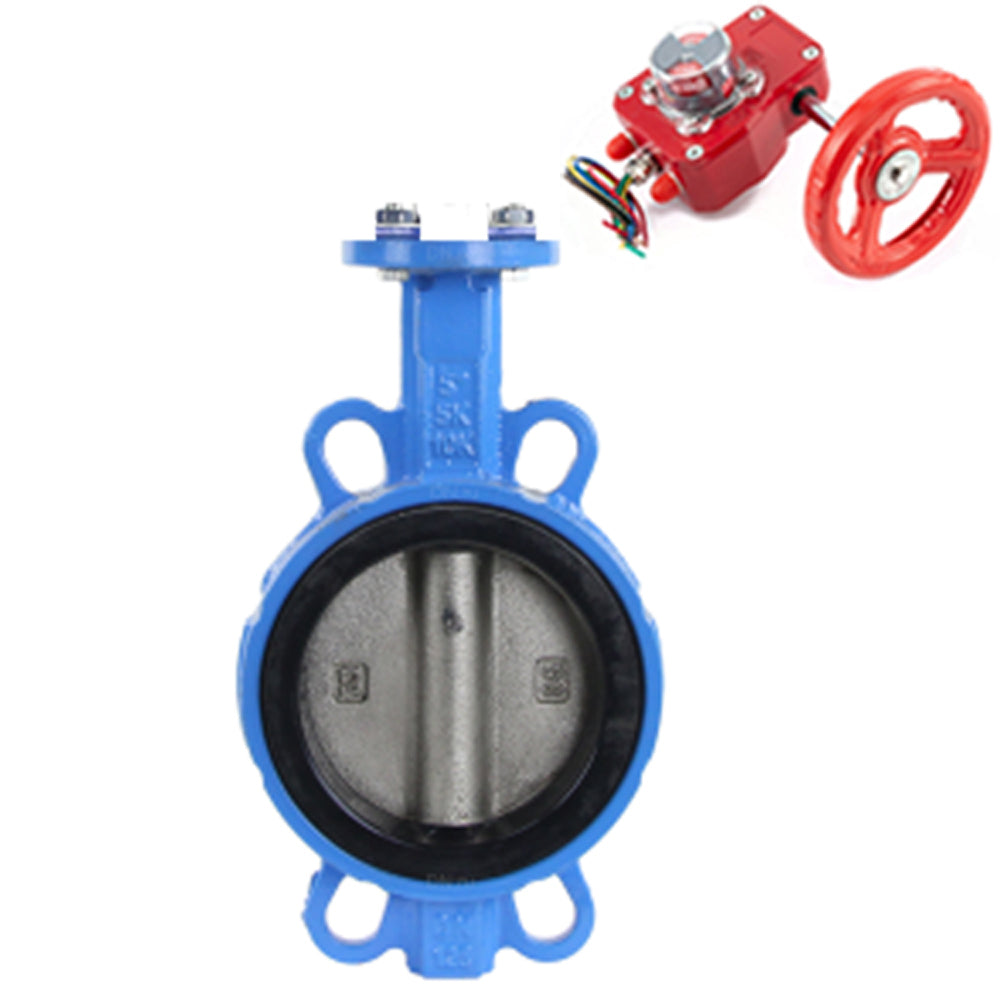

Technical parameters water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear DNOVA HGBF, position indicator and feedback sensor:
| Nominal diameter DN, mm | 40 - 300 |
| Working pressure PN, bar | 16 |
| Temperature of working environment t, ⁰C | from -20 to +120 |
| Working environment | water, mineral oils, hydrocarbons, oils, fats |
| Direction of flow | bilateral |
| Control type | lever |
| Connection to the pipeline | interflange |
| Body material | cast iron GGG50 |
| Service life, years | 10 |
Overall and installation dimensions of the gate valve DNOVA WBV1332N-2W-Fb-H DN40
| DN | A | B | C | E | L | ØD | Ød | 4-Ødo | HxH | bore diameter |
| 40 | 114 | 66 | 26 | 34 | 210 | 65 | 50 | 4-7 | 9х9 | 50 |
Sketch Butterfly valves WBV1332N-2W-Fb-H DN40
Dimensional parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear DNOVA HGBF, position indicator and feedback sensor:
| DN | Dimensions | ||||||
| A, mm | B, mm | D1, mm | L, mm | I, mm | R, mm | D, mm | |
| 40 | 105 | 55 | 75 | 33 | 48 | 140 | 80 |
| 50 | 161 | 80 | 84.5 | 43 | 48 | 140 | 80 |
| 65 | 175 | 89 | 104.5 | 45 | 48 | 140 | 80 |
| 80 | 181 | 95 | 123.5 | 45 | 48 | 140 | 80 |
| 100 | 200 | 114 | 139.5 | 52 | 48 | 140 | 80 |
| 125 | 213 | 127 | 169.5 | 55 | 48 | 140 | 80 |
| 150 | 226 | 139 | 196 | 55 | 48 | 140 | 80 |
| 200 | 260 | 175 | 247 | 60 | 58 | 250 | 100 |
| 250 | 292 | 203 | 304 | 68 | 58 | 250 | 100 |
| 300 | 337 | 242 | 358 | 78 | 58 | 250 | 100 |
Materials of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear DNOVA HGBF, position indicator and feedback sensor:
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Stem | stainless steel AISI 416 |
| 5 | Pin | stainless steel AISI 420 |
| 6 | Bushing | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
Main technical characteristics of DNOVA HGBF gearboxes:
| Operating temperature t, ⁰C | 30 to +120 °C |
| Operating medium | filtered compressed air or non-aggressive gases, oils |
| Degree of protection | IP67 |
| Application | water supply, heating, ventilation, energy, air conditioning |
| Mounting | horizontal/vertical |
| Stroke adjustment | 0 - 90° (changeable ±5°) |
| Body material | aluminium alloy ADC 12 |
| Feedback sensor | yes |
Overall dimensions of DNOVA gearboxes:
| Model | HGB-1 | HGB-3 |
| Standard output flange | F05/F07 | F07/F10/F12 |
| D2, mm | 81 | 125 |
| D3, mm | 50/70 | 70/102/125 |
| Threaded holes | 4-M6/4-M8 | 4-M8/4-M10/ 4-M12 |
| Standard stem (optional) | 12.8/15.9 | 22.2/28.6 |
| Standard stem | 11x11(optional)/14x14 | 22x22 |
| d1, mm | 35 | 55 |
| Output torque, Nm | 180 | 680 |
| Weight, kg | 1.3 | 3.9 |
| Handwheel diameter, mm | 120 | 250 |
| A | 165 | 250 |
| B | 127 | 190 |
| C | 84 | 140 |
| D | 66 | 112 |
| E | 12 | 16 |
| F | 47 | 68 |
| H | 73 | 108 |
Materials of DNOVA HGBF gearboxes:
| No. | Name | Material |
| 1 | Transparent indicator cover | PC Plycarton resin |
| 2 | Screw | steel 304 |
| 3 | Screw | steel 304 |
| 4 | Lid | aluminum ADC 12 |
| 5 | Worm gear reducer | cast iron QT450 |
| 6 | Adjusting screw | steel 304 |
| 7 | Rack | steel 45 |
| 8 | Case | butadiene-acrylonityl rubber |
| 9 | Sleeve | PZ2175 based on ketones |
| 10 | Bearing | alloy steel |
| 11 | Frame | aluminium alloy ADC 12 |
| 12 | Bearing | alloy steel |
| 13 | Seal | rubber |
| 14 | Washer | steel 304 |
| 15 | Screw | steel 304 |
| 16 | Axis | steel 45 |
| 17 | Limit switch | - |
| 18 | Sealing ring | butadiene-acrylonityl rubber |
| - | Hermetic seal | Material: enameled wire standard GB6109. Quantity: 6 wires. Dimensions: wire length 15cm, core diameter 0.5mm, copper wire. |
