Description
Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
DNOVA gearbox allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators.

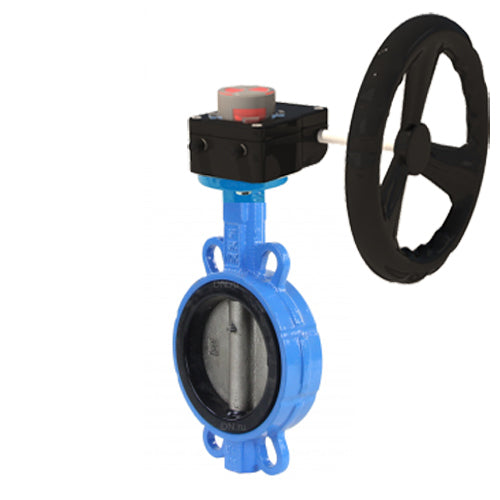

Technical parameters water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear DNOVA HGB, position indicator:
| Nominal diameter DN, mm | 40 - 300 |
| Working pressure PN, bar | 16 |
| Working medium temperature t, ⁰C | from -20 to +120 |
| Operating medium | water, mineral oils, hydrocarbons, oils, fats |
| Flow direction | two-way |
| Control type | handle |
| Pipeline connection | interflanged |
| Body material | cast iron GGG50 |
| Service life, years | 10 |
Overall and installation dimensions of the gate valve DNOVA WBV1332N-2W-Fb-H DN40
| DN | A | B | C | E | L | ØD | Ød | 4-Ødo | HxH | bore diameter |
| 40 | 114 | 66 | 26 | 34 | 210 | 65 | 50 | 4-7 | 9х9 | 50 |
Sketch Butterfly valves WBV1332N-2W-Fb-H DN40
Dimensional parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear DNOVA HGB, position indicator:
| DN | Dimensions | ||||||
| A, mm | B, mm | D1, mm | L, mm | I, mm | R, mm | D, mm | |
| 40 | 105 | 55 | 75 | 33 | 48 | 140 | 80 |
| 50 | 161 | 80 | 84.5 | 43 | 48 | 140 | 80 |
| 65 | 175 | 89 | 104.5 | 45 | 48 | 140 | 80 |
| 80 | 181 | 95 | 123.5 | 45 | 48 | 140 | 80 |
| 100 | 200 | 114 | 139.5 | 52 | 48 | 140 | 80 |
| 125 | 213 | 127 | 169.5 | 55 | 48 | 140 | 80 |
| 150 | 226 | 139 | 196 | 55 | 48 | 140 | 80 |
| 200 | 260 | 175 | 247 | 60 | 58 | 250 | 100 |
| 250 | 292 | 203 | 304 | 68 | 58 | 250 | 100 |
| 300 | 337 | 242 | 358 | 78 | 58 | 250 | 100 |
Materials of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear DNOVA HGB, position indicator:
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Stem | stainless steel AISI 416 |
| 5 | Pin | stainless steel AISI 420 |
| 6 | Bushing | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
Main technical characteristics of DNOVA HGBF gearboxes:
| Operating temperature t, ⁰C | 30 to +120 °C |
| Operating medium | filtered compressed air or non-aggressive gases, oils |
| Degree of protection | IP67 |
| Application | water supply, heating, ventilation, energy, air conditioning |
| Mounting | horizontal/vertical |
| Stroke adjustment | 0 - 90° (changeable ±5°) |
| Body material | aluminium alloy ADC 12 |
Overall dimensions of DNOVA gearboxes:
| Model | HGB-1 | HGB-3 |
| Standard output flange | F05/F07 | F07/F10/F12 |
| D2, mm | 81 | 125 |
| D3, mm | 50/70 | 70/102/125 |
| Threaded holes | 4-M6/4-M8 | 4-M8/4-M10/ 4-M12 |
| Standard stem (optional) | 12.8/15.9 | 22.2/28.6 |
| Standard stem | 11x11(optional)/14x14 | 22x22 |
| d1, mm | 35 | 55 |
| Output torque, Nm | 180 | 680 |
| Weight, kg | 1.3 | 3.9 |
| Handwheel diameter, mm | 120 | 250 |
| A | 165 | 250 |
| B | 127 | 190 |
| C | 84 | 140 |
| D | 66 | 112 |
| E | 12 | 16 |
| F | 47 | 68 |
| H | 73 | 108 |
Materials of DNOVA HGBF gearboxes:
| № | Name | Material |
| 1 | Transparent indicator cover | resin PC Pllycarton |
| 2 | Screw | steel 304 |
| 3 | Screw | steel 304 |
| 4 | Cover | aluminum ADC 12 |
| 5 | Worm gearbox | cast iron QT450 |
| 6 | Adjusting screw | steel 304 |
| 7 | Rack | steel |
| 8 | Cover | butadiene-acrylonitrile rubber |
| 9 | Bushing | PZ2175, ketone-based |
| 10 | Bearing | alloy steel |
| 11 | Body | aluminium alloy ADC 12 |
| 12 | Bearing | alloy steel |
| 13 | Gland | rubber |
| 14 | Washer | steel 304 |
| 15 | Screw | steel 304 |
| 16 | Axle | steel 45 |
| 17 | Limit switch | - |
| 18 | O-ring | butadiene-acrylonitrile rubber |
