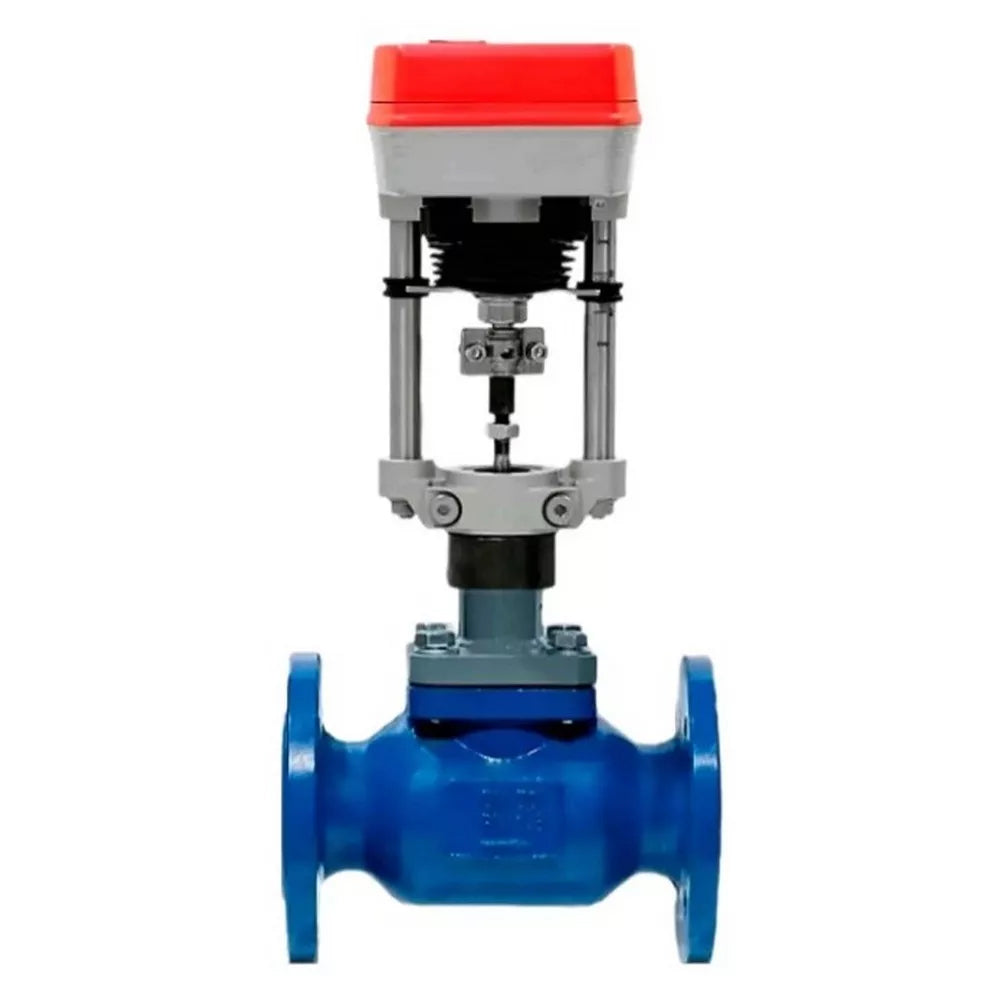

Two-way shut-off and regulating valve DNOVA VSR1-21MP-LED-F , body material - Carbon steel 20L cladding GS-C25, locking body material - 40X13 steel, seal - PTFE, with electric drive DAV-2500-44-1-220V-IP54-01 220V

From $930.38 USD
From $930.38 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The control valve is designed for hermetically sealing or changing the flow rate of the medium in the pipeline. The valve is controlled by means of an electric actuator (electric actuator (EIM)). The force developed by the actuator is transmitted through the stem to the plug, which, moving up or down, changes the cross-sectional area in the gate and regulates the flow rate of the medium.





General technical characteristics of DNOVA VSR1-21MP-LED-F two-way shut-off and control valves, body material - Carbon steel 20L, GS-C25 lining, body material - steel 40X13, seal - PTFE, with electric actuator DAV-2500-44-1-220V-IP54-01 220V:

Name Value
Nominal pressure, bar 40
Connection type flanged
Maximum temperature, °C 150
Working medium temperature, °C 5 to 150
Medium water, ethylene glycol, neutral media, propylene glycol, gaseous media
Valve operating principle Stop and control
Control type actuator
Valve type Stop and control
Valve control type automatic
Type of control valve two-way
Supply voltage 220 V
Application Water supply, Heating systems, Ventilation
Type of control valve two-way
Actuator model DAV-2500
Manufacturer's country China

Two-way shut-off and regulating valves VSR1-21MP-LED-F , body material - Carbon steel 20L cladding GS-C25, locking body material - 40X13 steel, seal - PTFE, with electric drive DAV-2500-44-1-220V-IP54-01 220V




Dimensions and dimensions of DNOVA VSR1-21MP-LED-F two-way shut-off and control valves, body material - carbon steel 20L, GS-C25 lining, body material - steel 40X13, seal - PTFE, with electric actuator DAV-2500-44-1-220V-IP54-01 220V:

DN L, mm H, mm H1, mm Ød, mm
25 160 488 430 14
32 180 510 440 18
40 200 530 455 18
50 230 543 460 18
65 290 573 480 18
80 310 585 485 18
100 350 633 515 22

Sketch of dimensions and dimensions of valves shut-off and control two-way VSR1-21MP-LED-F , body material - Carbon steel 20L cladding GS-C25, locking body material - 40X13 steel, seal - PTFE, with electric drive DAV-2500-44-1-220V-IP54-01 220V

Specifications

Country of origin
China
Body material
Carbon steel 20L cladding GS-C25
Maximum allowable temperature
150 °C
Connection type
Flanged
Control type
electric drive
Operating environment
Water, Ethylene Glycol, Neutral Media, Propylene Glycol, Gaseous Media
Applications
Water Supply, Heating Systems, Ventilation
Nominal pressure
40 bar
Type of seal
PTFE
Locking material
40X13 steel
Supply voltage
220 V
Type of control valve
two-way

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN100 63 m3/h / 40 barD090-02531
DN100 63 m3/h / 40 barD090-02531
$930.38/ea		 $0.00
$930.38/ea $0.00
DN100 80 m3/h / 40 barD090-02532
DN100 80 m3/h / 40 barD090-02532
$930.38/ea		 $0.00
$930.38/ea $0.00
DN100 100 m3/h / 40 barD090-02533
DN100 100 m3/h / 40 barD090-02533
$930.38/ea		 $0.00
$930.38/ea $0.00
DN100 125 m3/h / 40 barD090-02534
DN100 125 m3/h / 40 barD090-02534
$930.38/ea		 $0.00
$930.38/ea $0.00
DN100 160 m3/h / 40 barD090-02535
DN100 160 m3/h / 40 barD090-02535
$930.38/ea		 $0.00
$930.38/ea $0.00
DN25 1.6 m3/h / 40 barD090-02404
DN25 1.6 m3/h / 40 barD090-02404
$567.01/ea		 $0.00
$567.01/ea $0.00
DN25 2.5 m3/h / 40 barD090-02405
DN25 2.5 m3/h / 40 barD090-02405
$567.01/ea		 $0.00
$567.01/ea $0.00
DN25 4 m3/h / 40 barD090-02406
DN25 4 m3/h / 40 barD090-02406
$567.01/ea		 $0.00
$567.01/ea $0.00
DN25 6.3 m3/h / 40 barD090-02407
DN25 6.3 m3/h / 40 barD090-02407
$567.01/ea		 $0.00
$567.01/ea $0.00
DN25 10 m3/h / 40 barD090-02408
DN25 10 m3/h / 40 barD090-02408
$567.01/ea		 $0.00
$567.01/ea $0.00
DN32 6.3 m3/h / 40 barD090-02436
DN32 6.3 m3/h / 40 barD090-02436
$616.59/ea		 $0.00
$616.59/ea $0.00
DN32 10 m3/h / 40 barD090-02437
DN32 10 m3/h / 40 barD090-02437
$616.59/ea		 $0.00
$616.59/ea $0.00
DN32 16 m3/h / 40 barD090-02438
DN32 16 m3/h / 40 barD090-02438
$616.59/ea		 $0.00
$616.59/ea $0.00
DN40 10 m3/h / 40 barD090-02454
DN40 10 m3/h / 40 barD090-02454
$630.17/ea		 $0.00
$630.17/ea $0.00
DN40 16 m3/h / 40 barD090-02455
DN40 16 m3/h / 40 barD090-02455
$630.17/ea		 $0.00
$630.17/ea $0.00
DN40 25 m3/h / 40 barD090-02456
DN40 25 m3/h / 40 barD090-02456
$630.17/ea		 $0.00
$630.17/ea $0.00
DN50 10 m3/h / 40 barD090-02480
DN50 10 m3/h / 40 barD090-02480
$641.72/ea		 $0.00
$641.72/ea $0.00
DN50 16 m3/h / 40 barD090-02481
DN50 16 m3/h / 40 barD090-02481
$641.72/ea		 $0.00
$641.72/ea $0.00
DN50 25 m3/h / 40 barD090-02482
DN50 25 m3/h / 40 barD090-02482
$641.72/ea		 $0.00
$641.72/ea $0.00
DN50 32 m3/h / 40 barD090-02483
DN50 32 m3/h / 40 barD090-02483
$641.72/ea		 $0.00
$641.72/ea $0.00
DN50 40 m3/h / 40 barD090-02484
DN50 40 m3/h / 40 barD090-02484
$641.72/ea		 $0.00
$641.72/ea $0.00
DN65 16 m3/h / 40 barD090-02500
DN65 16 m3/h / 40 barD090-02500
$768.05/ea		 $0.00
$768.05/ea $0.00
DN65 25 m3/h / 40 barD090-02501
DN65 25 m3/h / 40 barD090-02501
$768.05/ea		 $0.00
$768.05/ea $0.00
DN65 32 m3/h / 40 barD090-02502
DN65 32 m3/h / 40 barD090-02502
$768.05/ea		 $0.00
$768.05/ea $0.00
DN65 40 m3/h / 40 barD090-02503
DN65 40 m3/h / 40 barD090-02503
$768.05/ea		 $0.00
$768.05/ea $0.00
DN65 63 m3/h / 40 barD090-02504
DN65 63 m3/h / 40 barD090-02504
$768.05/ea		 $0.00
$768.05/ea $0.00
DN80 40 m3/h / 40 barD090-02518
DN80 40 m3/h / 40 barD090-02518
$802.01/ea		 $0.00
$802.01/ea $0.00
DN80 63 m3/h / 40 barD090-02519
DN80 63 m3/h / 40 barD090-02519
$802.01/ea		 $0.00
$802.01/ea $0.00
DN80 80 m3/h / 40 barD090-02520
DN80 80 m3/h / 40 barD090-02520
$802.01/ea		 $0.00
$802.01/ea $0.00
DN80 100 m3/h / 40 barD090-02521
DN80 100 m3/h / 40 barD090-02521
$802.01/ea		 $0.00
$802.01/ea $0.00
