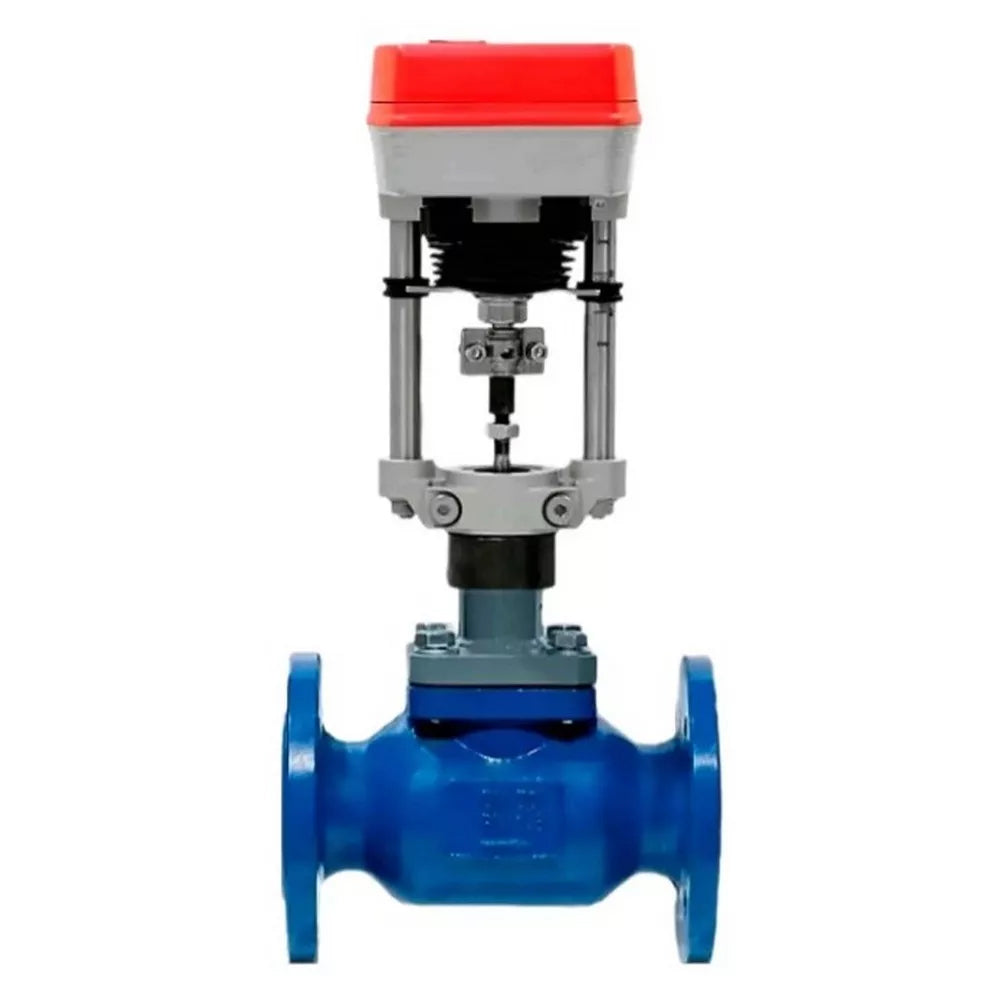

Two-way shut-off and regulating valve DNOVA VSR1-21MP-LED-F , body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive DAV-1500-22-3-3-24V-IP54 24V

From $392.77 USD
From $392.77 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The control valve is designed for hermetically sealing or changing the flow rate of the medium in the pipeline. The valve is controlled by means of an electric actuator (electric actuator (EIM)). The force developed by the actuator is transmitted through the stem to the plug, which, moving up or down, changes the cross-sectional area in the gate and regulates the flow rate of the medium.





General technical data of DNOVA VSR1-21MP-LED-F two-way shut-off and control valves, body material - Carbon steel 25L, coating X20Cr13, body material - steel 40X13, seal - PTFE, with electric actuator DAV-1500-22-22-3-3-3-24V-IP54 24V:

Name Value
Nominal pressure, bar 40
Connection type flanged
Maximum temperature, °C 150
Working medium temperature, °C 5 to 150
Medium water, ethylene glycol, neutral media, propylene glycol, gaseous media
Valve operating principle Stop and control
Control type actuator
Valve type Stop and control
Valve control type automatic
Type of control valve two-way
Supply voltage 24 V
Application Water supply, Heating systems, Ventilation
Type of control valve two-way
Actuator model DAV-1500
Manufacturer's country China

Two-way shut-off and regulating valves VSR1-21MP-LED-F , body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive DAV-1500-22-3-3-24V-IP54 24V


Dimensions and dimensions of DNOVA VSR1-21MP-LED-F two-way shut-off and control valves, body material - Carbon steel 25L, coating X20Cr13, body material - steel 40X13, seal - PTFE, with electric actuator DAV-1500-22-22-3-3-3-24V-IP54 24V:

DN L, mm H, mm H1, mm Ød, mm
15 130 390 342 14
20 150 400 347 14
25 160 410 352 14
32 180 432 362 18
40 200 452 377 18
50 230 465 382 18

Sketch of dimensions and dimensions of valves shut-off and control two-way VSR1-21MP-LED-F , body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive DAV-1500-22-3-3-24V-IP54 24V

Specifications

Country of origin
China
Body material
Carbon steel 25L cladding X20Cr13
Maximum allowable temperature
150 °C
Connection type
Flanged
Control type
electric drive
Operating environment
Water, Ethylene Glycol, Neutral Media, Propylene Glycol, Gaseous Media
Applications
Water Supply, Heating Systems, Ventilation
Nominal pressure
40 bar
Type of seal
PTFE
Locking material
40X13 steel
Supply voltage
24 V
Type of control valve
two-way

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 0.16 m3/h / 40 barD090-02347
DN15 0.16 m3/h / 40 barD090-02347
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 0.25 m3/h / 40 barD090-02348
DN15 0.25 m3/h / 40 barD090-02348
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 0.4 m3/h / 40 barD090-02349
DN15 0.4 m3/h / 40 barD090-02349
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 0.63 m3/h / 40 barD090-02350
DN15 0.63 m3/h / 40 barD090-02350
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 1 m3/h / 40 barD090-02351
DN15 1 m3/h / 40 barD090-02351
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 1.6 m3/h / 40 barD090-02352
DN15 1.6 m3/h / 40 barD090-02352
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 2.5 m3/h / 40 barD090-02353
DN15 2.5 m3/h / 40 barD090-02353
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 3.2 m3/h / 40 barD090-02354
DN15 3.2 m3/h / 40 barD090-02354
$392.77/ea		 $0.00
$392.77/ea $0.00
DN15 4 m3/h / 40 barD090-02355
DN15 4 m3/h / 40 barD090-02355
$392.77/ea		 $0.00
$392.77/ea $0.00
DN20 1.6 m3/h / 40 barD090-02379
DN20 1.6 m3/h / 40 barD090-02379
$400.92/ea		 $0.00
$400.92/ea $0.00
DN20 2.5 m3/h / 40 barD090-02380
DN20 2.5 m3/h / 40 barD090-02380
$400.92/ea		 $0.00
$400.92/ea $0.00
DN20 4 m3/h / 40 barD090-02381
DN20 4 m3/h / 40 barD090-02381
$400.92/ea		 $0.00
$400.92/ea $0.00
DN20 6.3 m3/h / 40 barD090-02382
DN20 6.3 m3/h / 40 barD090-02382
$400.92/ea		 $0.00
$400.92/ea $0.00
DN20 10 m3/h / 40 barD090-02383
DN20 10 m3/h / 40 barD090-02383
$400.92/ea		 $0.00
$400.92/ea $0.00
DN25 1.6 m3/h / 40 barD090-02399
DN25 1.6 m3/h / 40 barD090-02399
$443.71/ea		 $0.00
$443.71/ea $0.00
DN25 2.5 m3/h / 40 barD090-02400
DN25 2.5 m3/h / 40 barD090-02400
$443.71/ea		 $0.00
$443.71/ea $0.00
DN25 4 m3/h / 40 barD090-02401
DN25 4 m3/h / 40 barD090-02401
$443.71/ea		 $0.00
$443.71/ea $0.00
DN25 6.3 m3/h / 40 barD090-02402
DN25 6.3 m3/h / 40 barD090-02402
$443.71/ea		 $0.00
$443.71/ea $0.00
DN25 10 m3/h / 40 barD090-02403
DN25 10 m3/h / 40 barD090-02403
$443.71/ea		 $0.00
$443.71/ea $0.00
DN32 6.3 m3/h / 40 barD090-02427
DN32 6.3 m3/h / 40 barD090-02427
$493.29/ea		 $0.00
$493.29/ea $0.00
DN32 10 m3/h / 40 barD090-02428
DN32 10 m3/h / 40 barD090-02428
$493.29/ea		 $0.00
$493.29/ea $0.00
DN32 16 m3/h / 40 barD090-02429
DN32 16 m3/h / 40 barD090-02429
$493.29/ea		 $0.00
$493.29/ea $0.00
DN40 10 m3/h / 40 barD090-02445
DN40 10 m3/h / 40 barD090-02445
$506.87/ea		 $0.00
$506.87/ea $0.00
DN40 16 m3/h / 40 barD090-02446
DN40 16 m3/h / 40 barD090-02446
$506.87/ea		 $0.00
$506.87/ea $0.00
DN40 25 m3/h / 40 barD090-02447
DN40 25 m3/h / 40 barD090-02447
$506.87/ea		 $0.00
$506.87/ea $0.00
DN50 10 m3/h / 40 barD090-02465
DN50 10 m3/h / 40 barD090-02465
$518.42/ea		 $0.00
$518.42/ea $0.00
DN50 16 m3/h / 40 barD090-02466
DN50 16 m3/h / 40 barD090-02466
$518.42/ea		 $0.00
$518.42/ea $0.00
DN50 25 m3/h / 40 barD090-02467
DN50 25 m3/h / 40 barD090-02467
$518.42/ea		 $0.00
$518.42/ea $0.00
DN50 32 m3/h / 40 barD090-02468
DN50 32 m3/h / 40 barD090-02468
$518.42/ea		 $0.00
$518.42/ea $0.00
DN50 40 m3/h / 40 barD090-02469
DN50 40 m3/h / 40 barD090-02469
$518.42/ea		 $0.00
$518.42/ea $0.00
