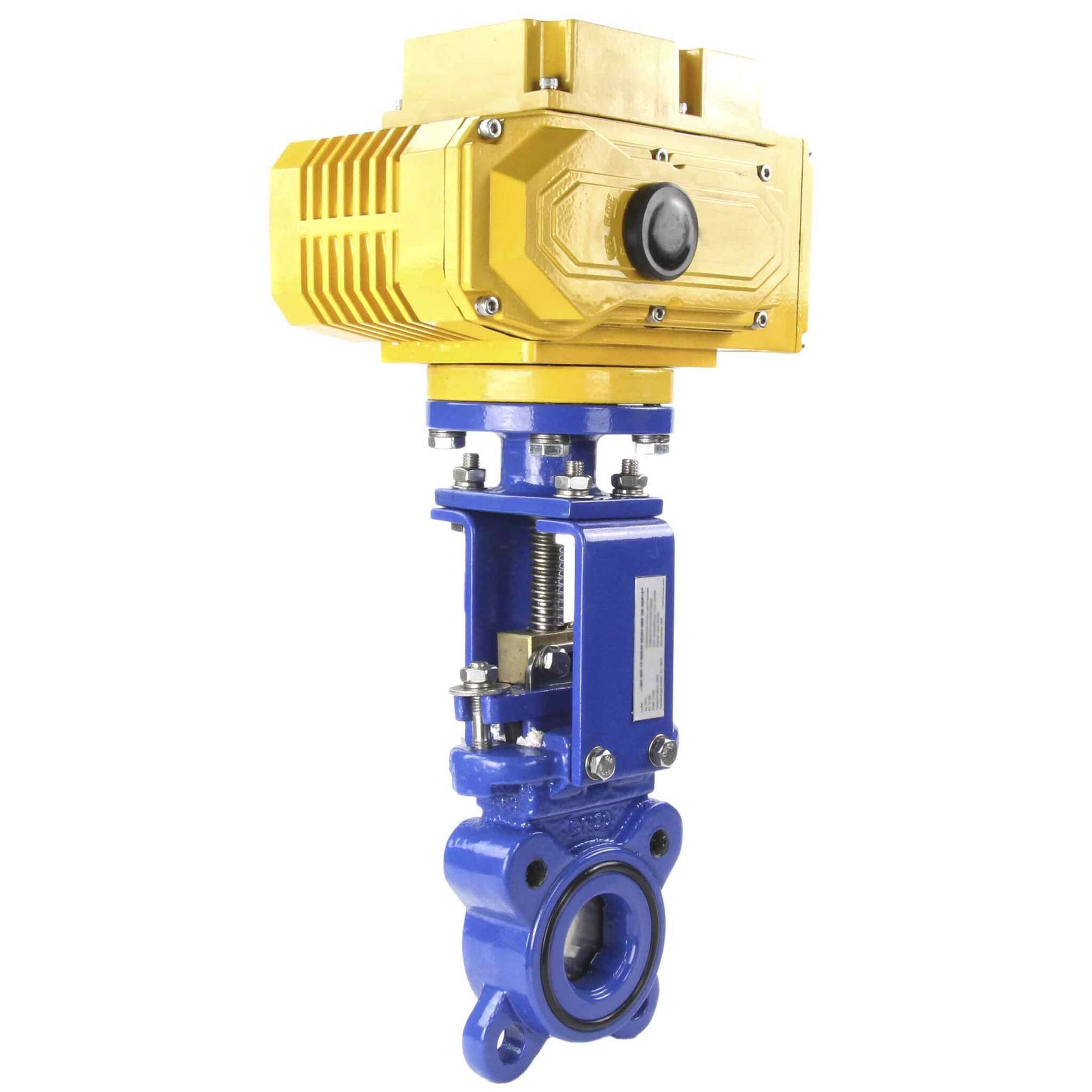

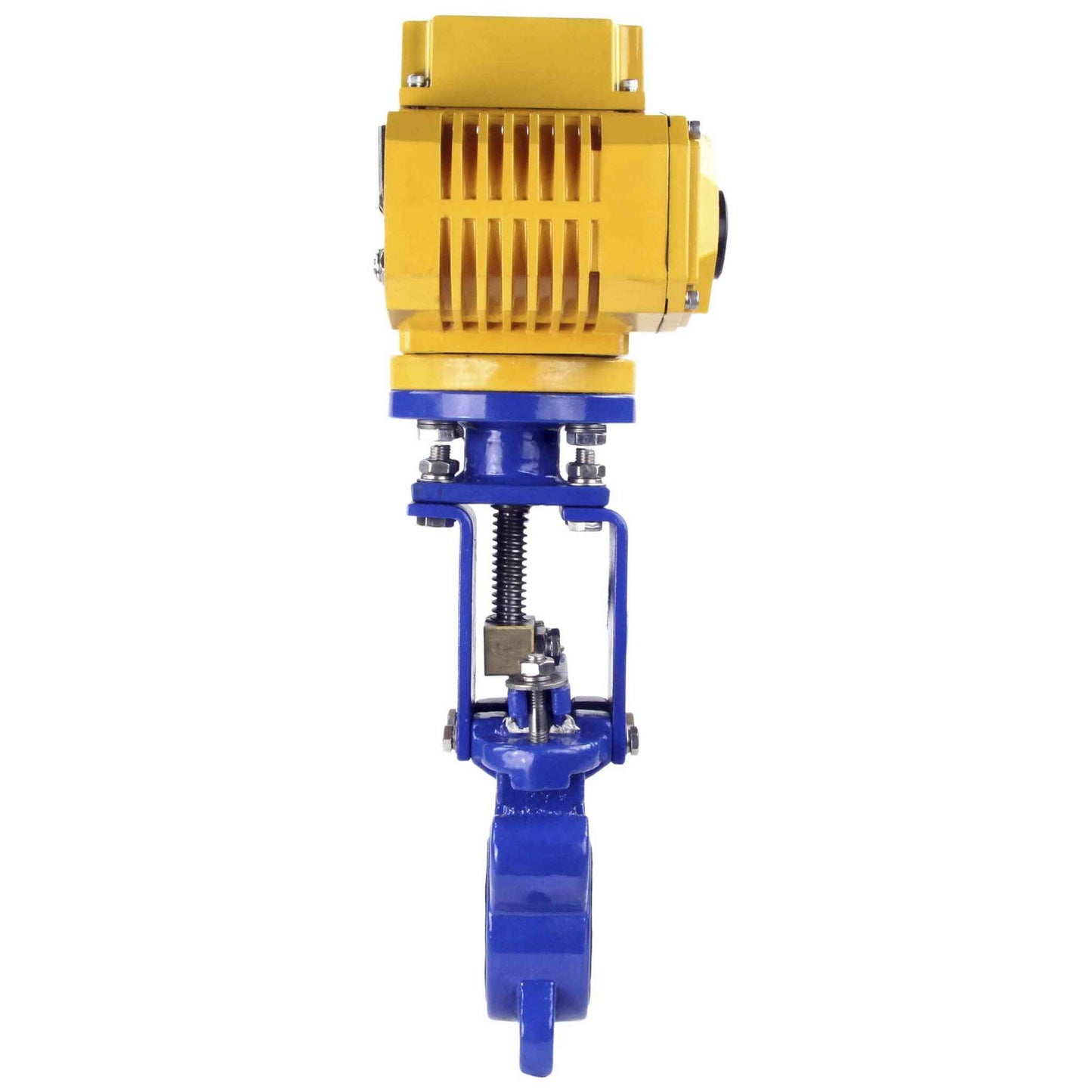

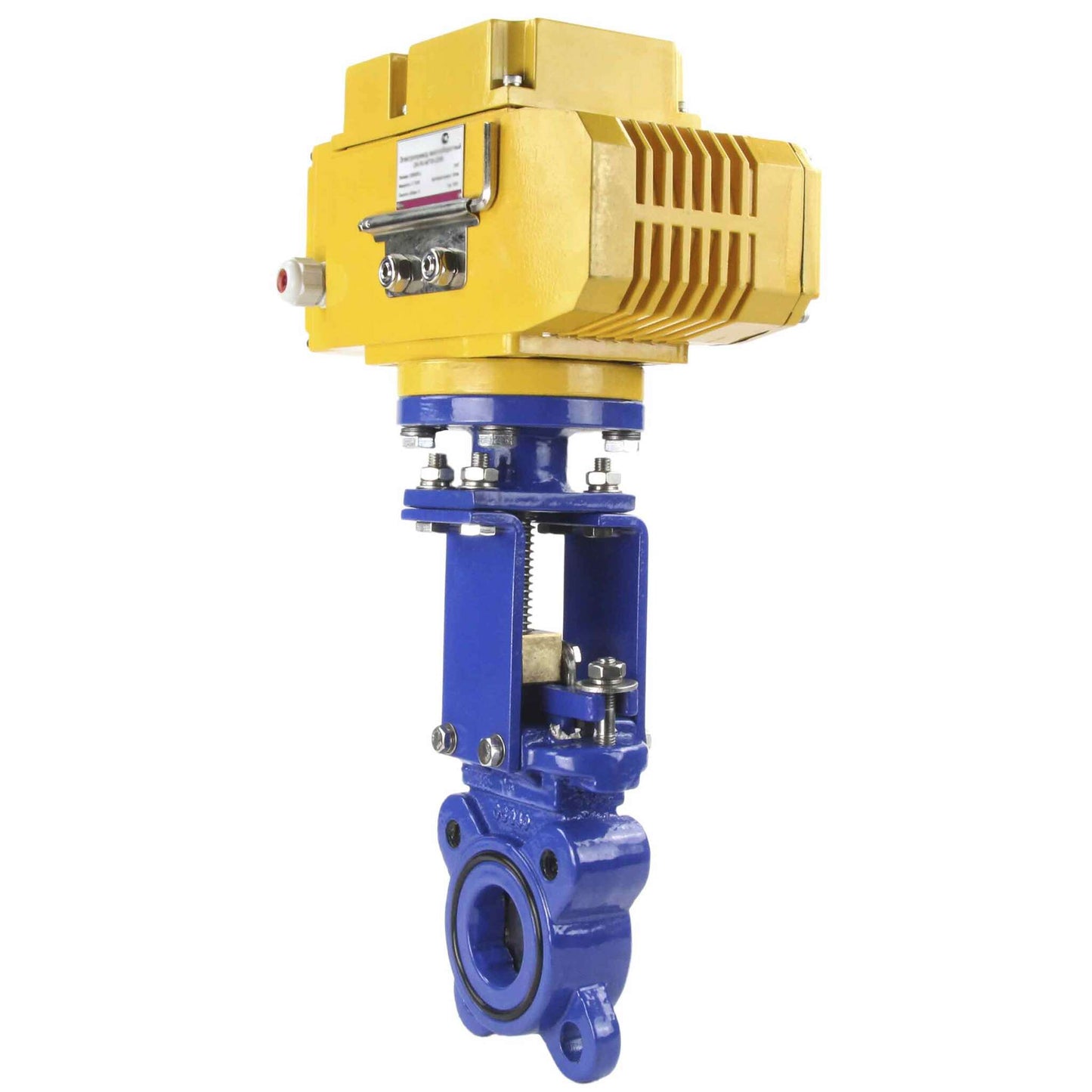

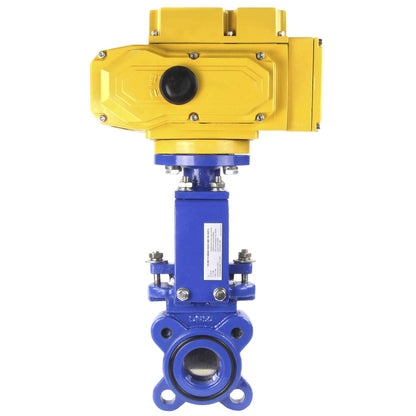

Knife Gate Valve DNOVA GVKN1331N-2W-Fb-ISO Class 125 NBR Wafer type, Cast Iron, Bidirectional, with DNOVA-MT-50 110/220V electric actuator

From $247.70 USD
From $247.70 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Knife Gate Valve DNOVA GVKN1331N-2W-Fb-ISO Class 125 NBR Wafer type, Cast Iron, Bidirectional, with DNOVA-MT-50 220V electric actuator belong to shut-off pipeline valves for industrial use. DNOVA valves can be used to work with such working media as drinking water, waste water, pulp, viscous, powder and crystallized media, and can be installed at industrial and civil heat and water supply facilities, wastewater treatment plants, and production lines. Hydraulic tests of the housing are carried out at a pressure exceeding the operating pressure by 1.5 times. Hydraulic tests of the gland seal and seat seal are carried out at a pressure exceeding the operating pressure by 1.1 times.

Specifications

Country of origin
China
Body material
Cast iron GGG40/EN-GJS-400-15
Stopper Material
Stainless steel AISI 304/1.4301
Maximum allowable temperature
90 °C
Connection type
Compact flanged
Control type
Electric actuator
Operating environment
Viscous Media, Waste Water, Water, Liquid Media, Powder And Crystallized Media
Gate valve type
Knife Gate Valve
Nominal pressure
16 bar
Type of seal
NBR
Coating type
Epoxy powder
Explosion-proof
No
Torque
50 Nm
Type of electric actuator
Multi-turn
Shaft shape square
16х16 mm
ISO - flange type
F10,F12
Supply voltage
110/220 V
Telescopic rod
No
Control column
No
Actuator model
MT-50-220

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN50 / 16 barD040-07554
DN50 / 16 barD040-07554
$247.70/ea		 $0.00
$247.70/ea $0.00
DN65 / 16 barD040-07562
DN65 / 16 barD040-07562
$249.64/ea		 $0.00
$249.64/ea $0.00
DN80 / 16 barD040-07553
DN80 / 16 barD040-07553
$263.81/ea		 $0.00
$263.81/ea $0.00
DN100 / 16 barD040-07561
DN100 / 16 barD040-07561
$300.60/ea		 $0.00
$300.60/ea $0.00
DN125 / 16 barD040-07552
DN125 / 16 barD040-07552
$316.00/ea		 $0.00
$316.00/ea $0.00
DN150 / 16 barD040-07560
DN150 / 16 barD040-07560
$348.18/ea		 $0.00
$348.18/ea $0.00
DN200 / 16 barD040-07551
DN200 / 16 barD040-07551
$417.01/ea		 $0.00
$417.01/ea $0.00
DN250 / 16 barD040-07559
DN250 / 16 barD040-07559
$0.00/ea		 $0.00
Sold out
$0.00/ea $0.00
DN300 / 16 barD040-07550
DN300 / 16 barD040-07550
$0.00/ea		 $0.00
Sold out
$0.00/ea $0.00
