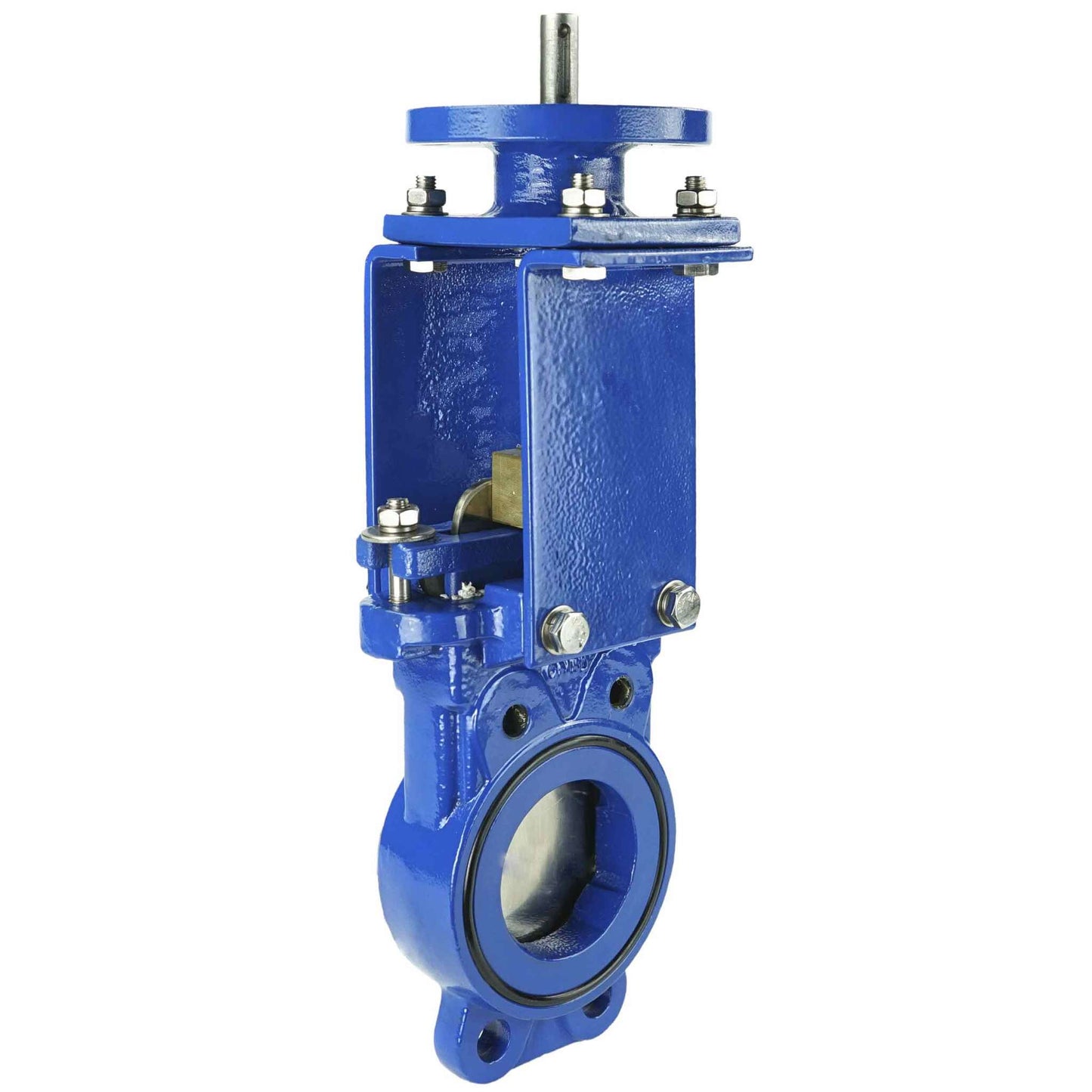

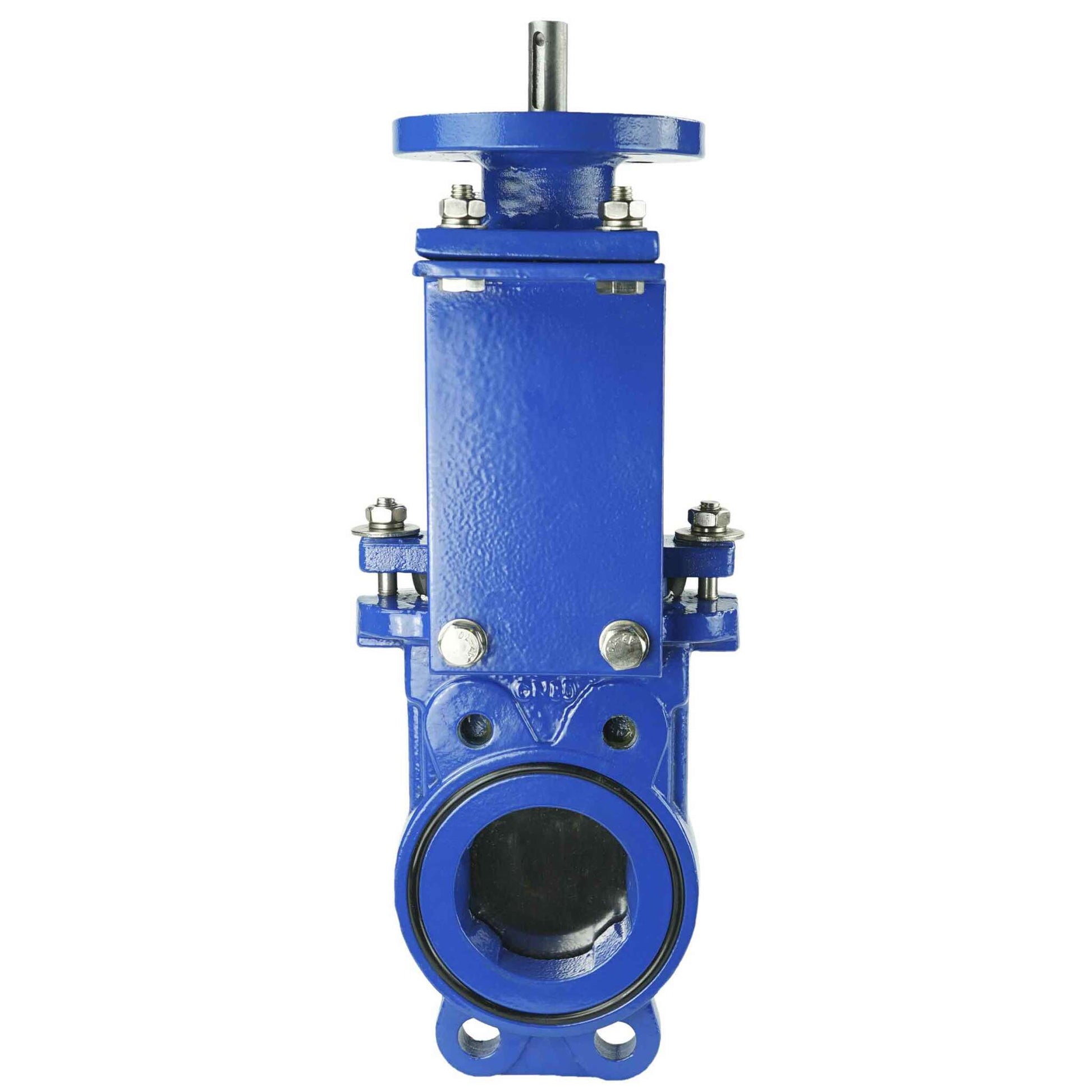

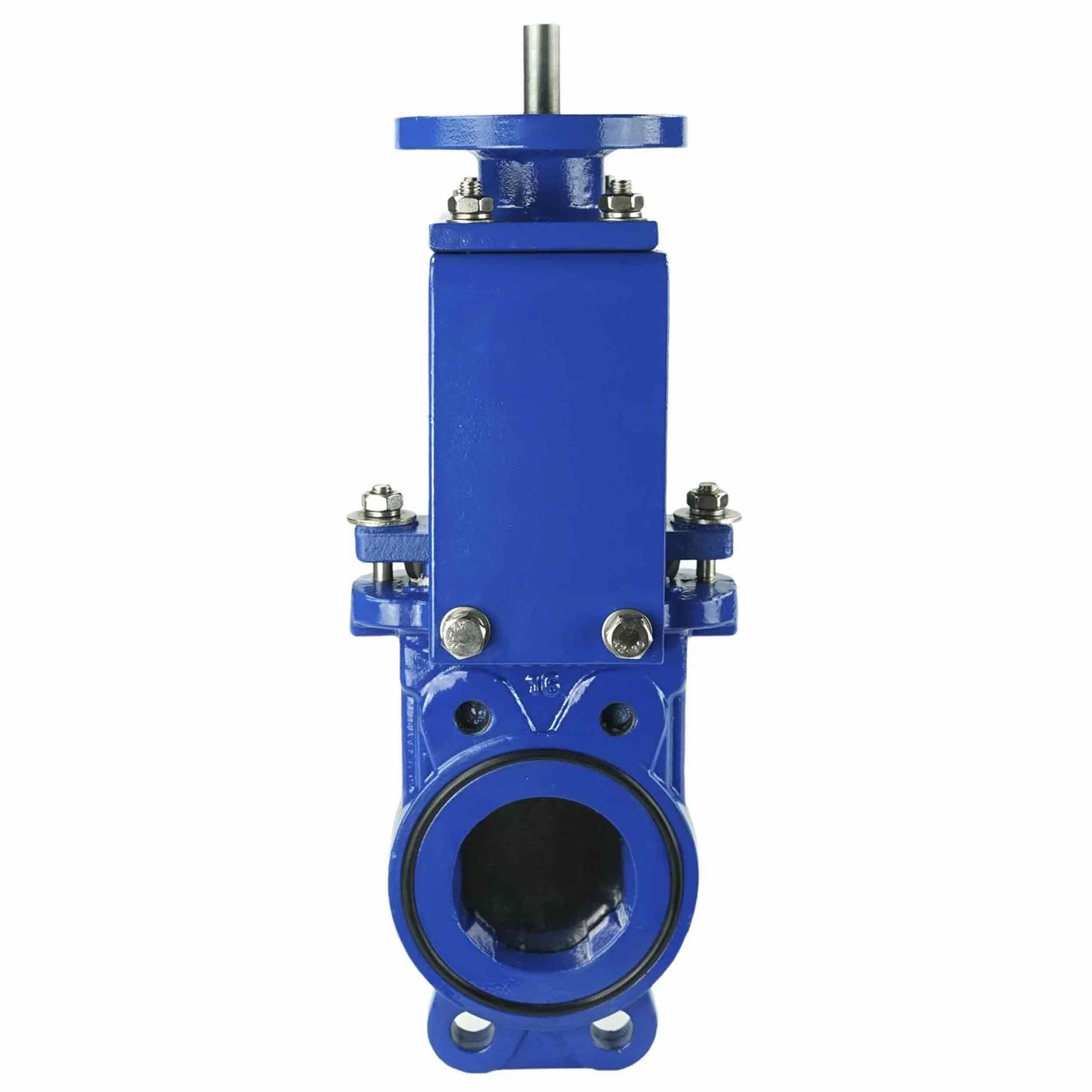

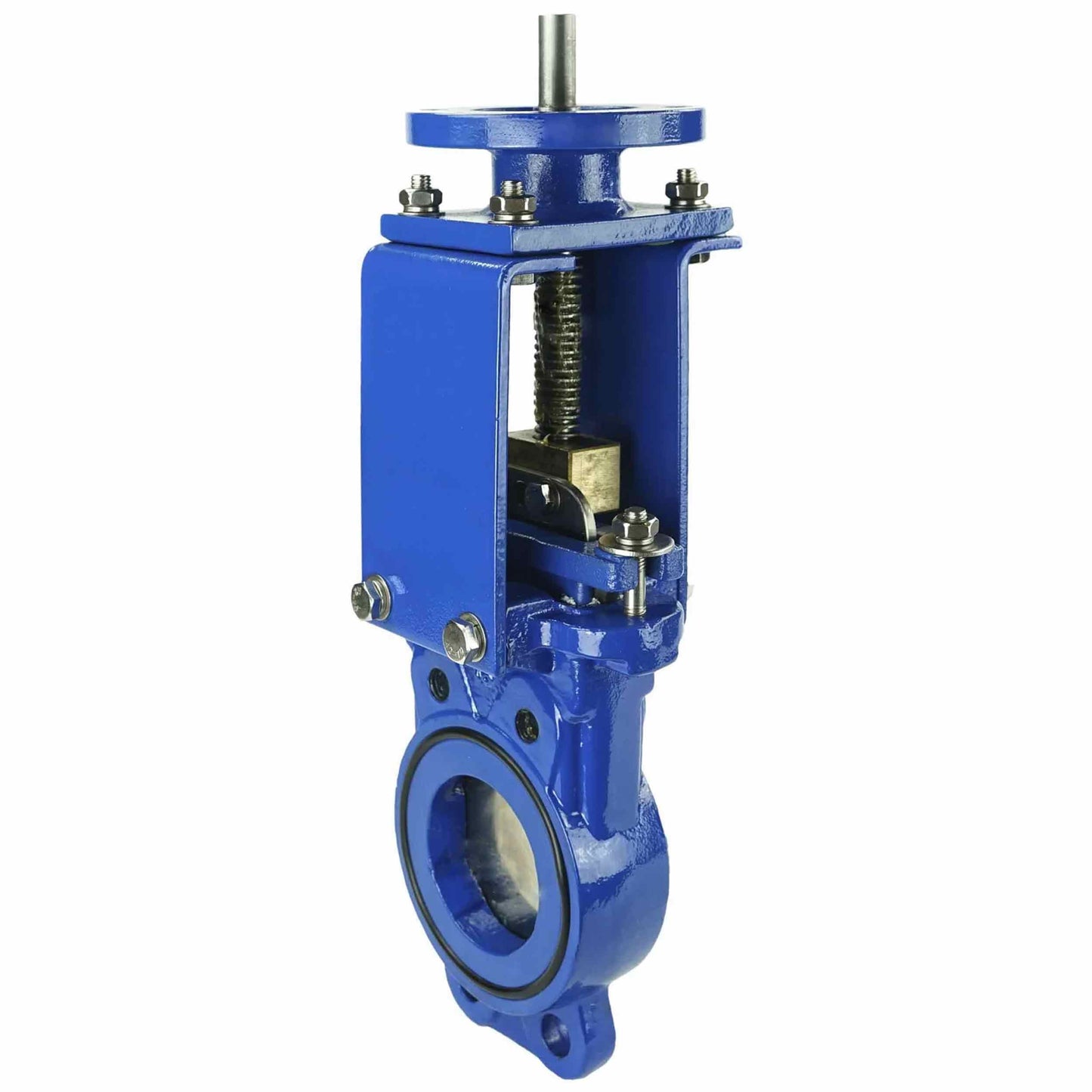

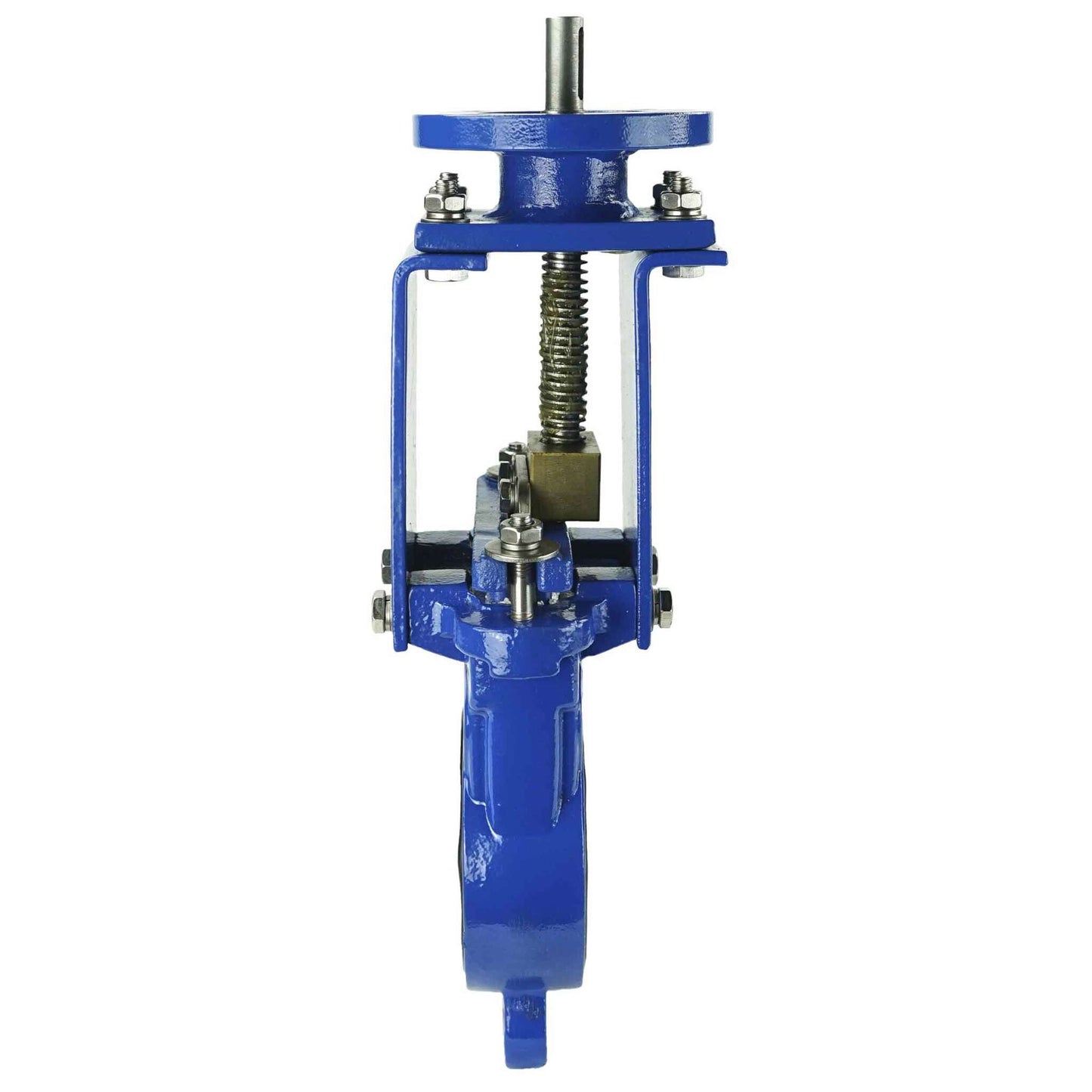

Knife gate valve DNOVA GVKN1331N-2W-Fb-ISO body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

From $54.12 USD
From $54.12 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Knife gate valves are a specific type of gate valve that are typically used in industries for handling tough solids and slurries. Named for their shape, knife gate valves have a sharp, knife-like gate that can cut through viscous or solid material in the flow. They are commonly used in wastewater treatment plants, paper mills, mining operations, and food industries, among others. Their primary function is to start or sop a flow or adjust its volume, but they do not control the pressure or flow rate.

Overall and installation dimensions of the gate valve DNOVA GVKN1331N-2W-Fb-ISO body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

Valve sketch DNOVA GVKN1331N-2W-Fb-ISO body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

DN PN L D D1 D2 N-Th d H stem Weight ISO 5210
50 16 50 165 125 99 4-M16 Ø18 595 Ø16 7 F10
65 16 50 185 145 118 4-M16 Ø18 625 Ø16 8 F10
80 16 50 200 160 132 8-M16 Ø18 645 Ø16 10 F10
100 16 52 220 180 156 8-M16 Ø18 685 Ø18 13 F10
125 16 58 250 210 184 8-M16 Ø18 735 Ø18 18 F10
150 16 60 285 240 211 8-M20 Ø23 780 Ø18 23 F10
200 16 72 340 295 266 12-M20 Ø23 905 Ø22 31 F10
250 16 72 405 355 319 12-M24 Ø27 965 Ø22 52 F14
300 6 80 460 400 370 12-M24 Ø27 1095 Ø22 64 F14

Construction and materials of the gate DNOVA GVKN1331N-2W-Fb-ISO body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

Material sketch of valve parts DNOVA GVKN1331N-2W-Fb-ISO body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

№ Part name Material
1 Body Cast iron GGG40
2 Seat seal NBR nitrile
3 Knife Steel AISI304
4 Gland packing PTFE
5 gland Carbon steel WCB
6, 7,
10, 13		 Bolt Steel AISI201
8, 16 Nut Steel AISI201
9 Nut Cast iron
11 Support plates Steel A3
12 Stem Steel 2Cr13
14 Bearing cover Steel A3
15 Bearing ZChSnSb10-6
17 Gasket NBR nitrile

Specifications

Country of origin
China
Body material
Cast iron GGG40/EN-GJS-400-15
Stopper Material
Stainless steel AISI 304/1.4301
Maximum allowable temperature
90 °C
Connection type
Compact flanged
Control type
Stem only
Gate valve type
Knife Gate Valve
Nominal pressure
16 bar
Type of seal
NBR
Coating type
Epoxy powder
