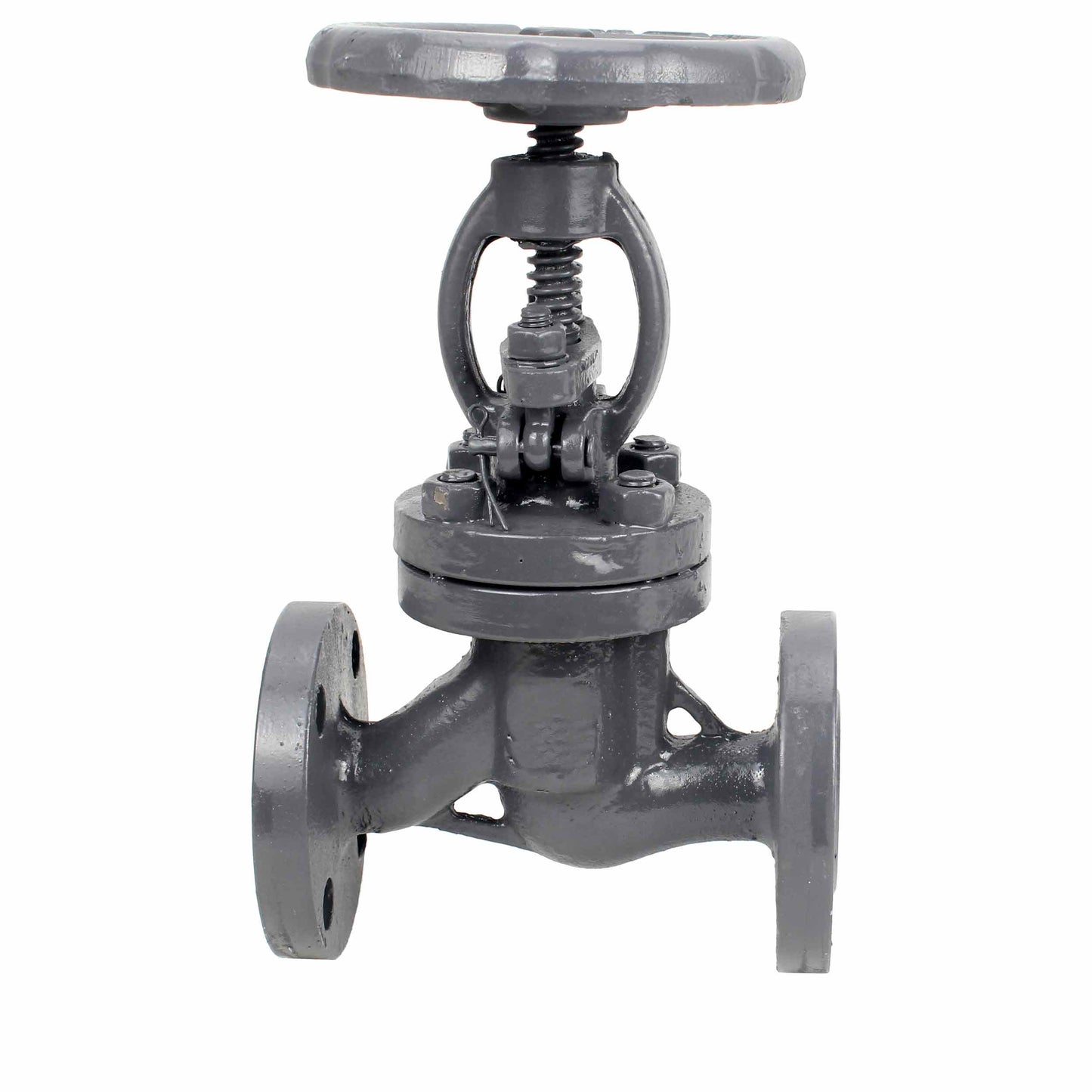

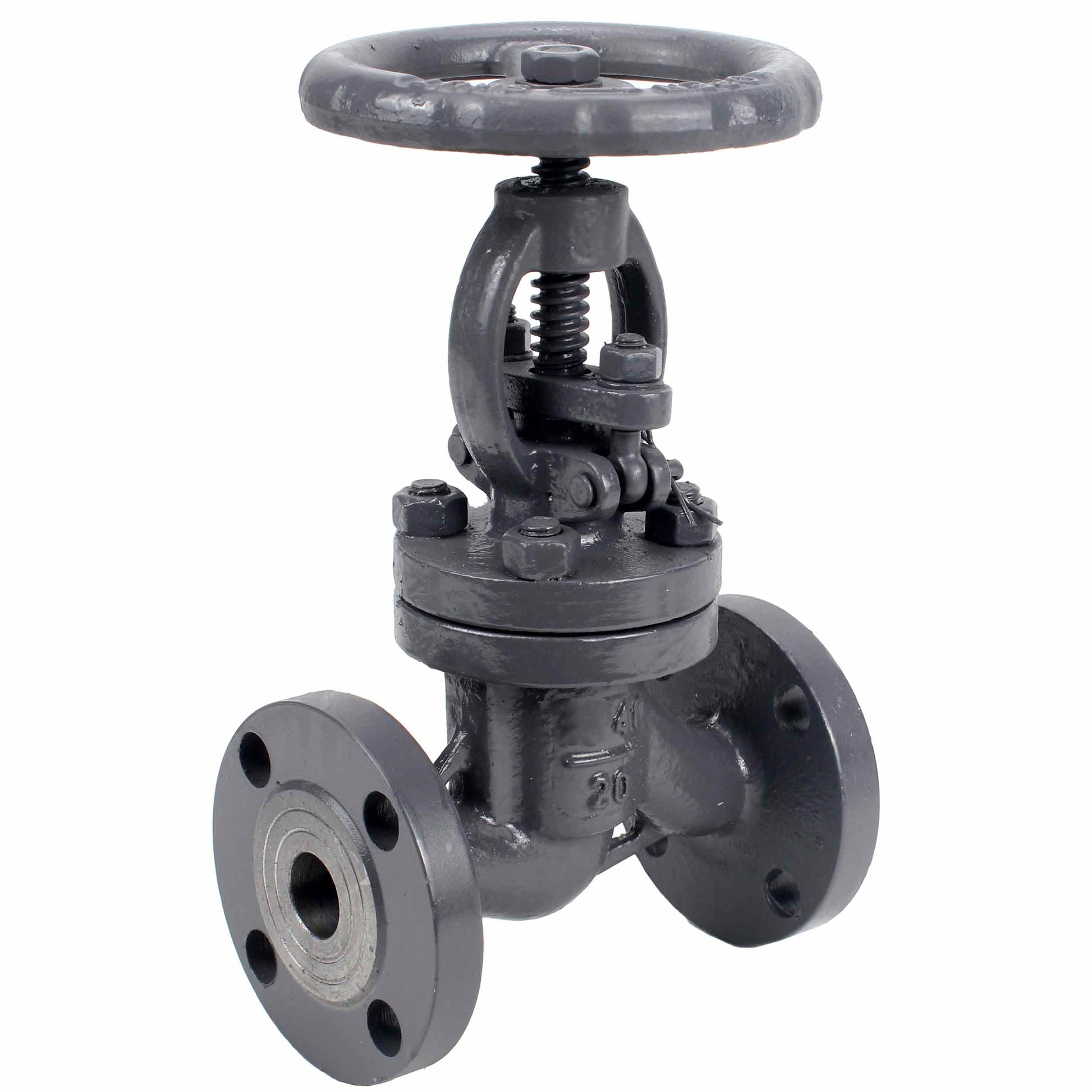

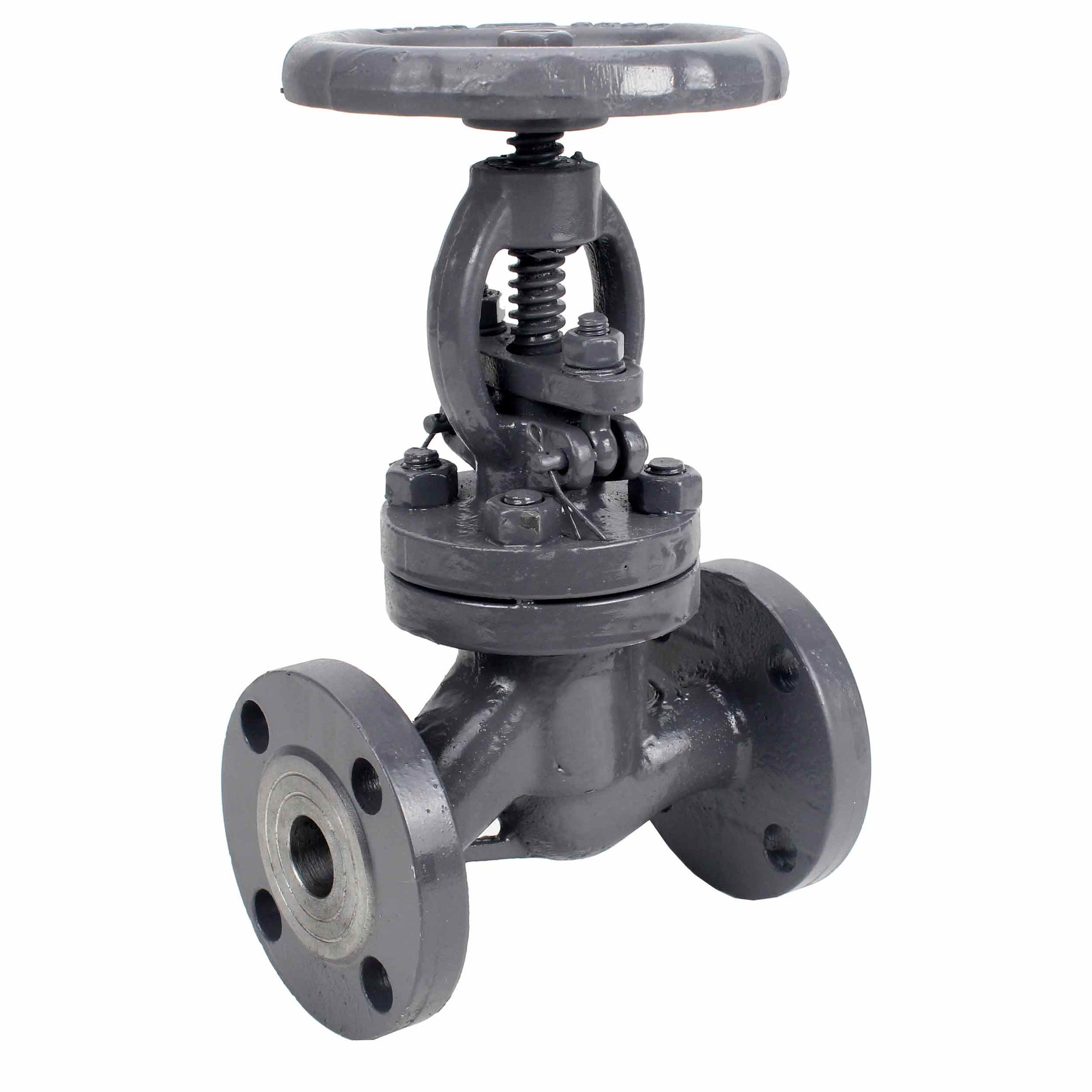

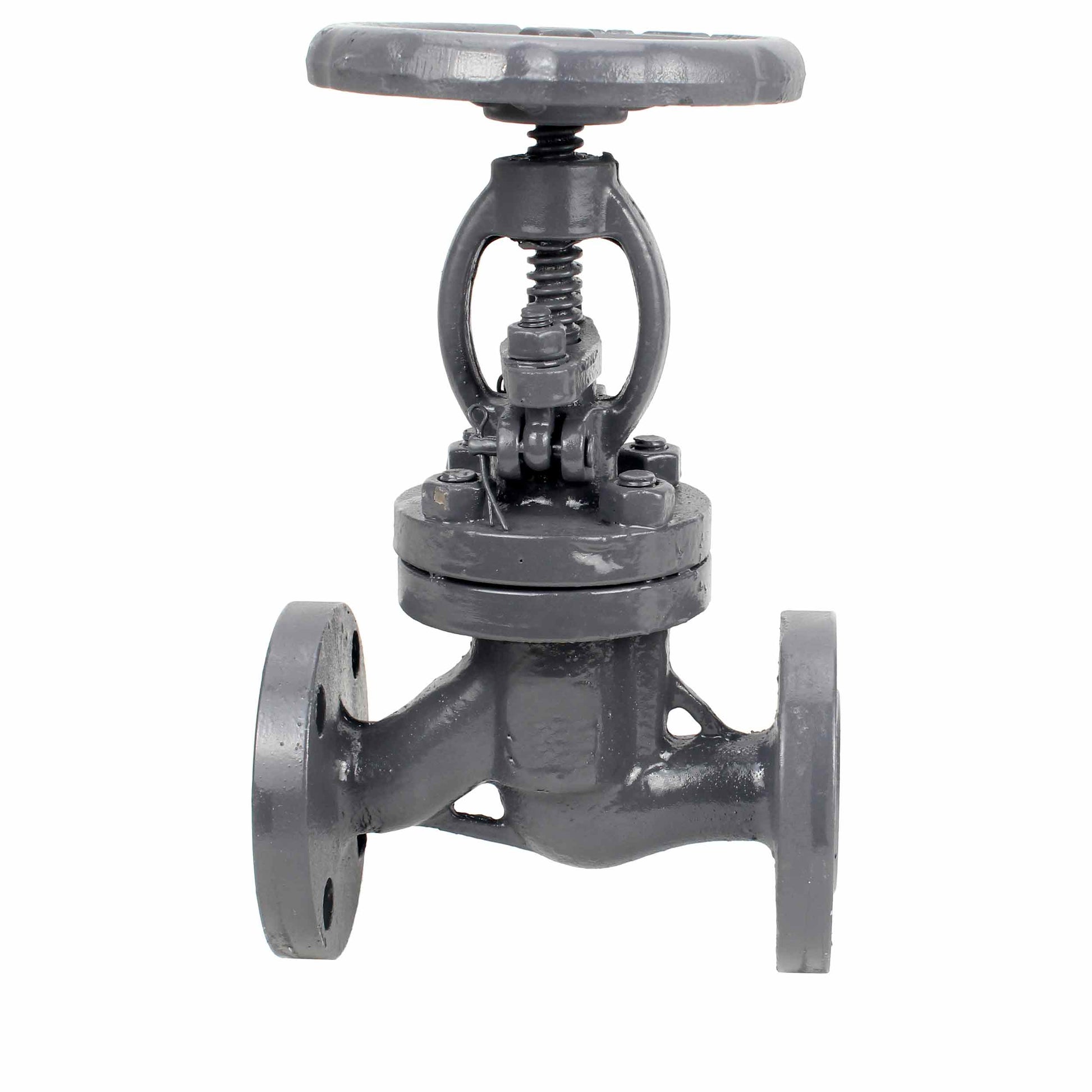

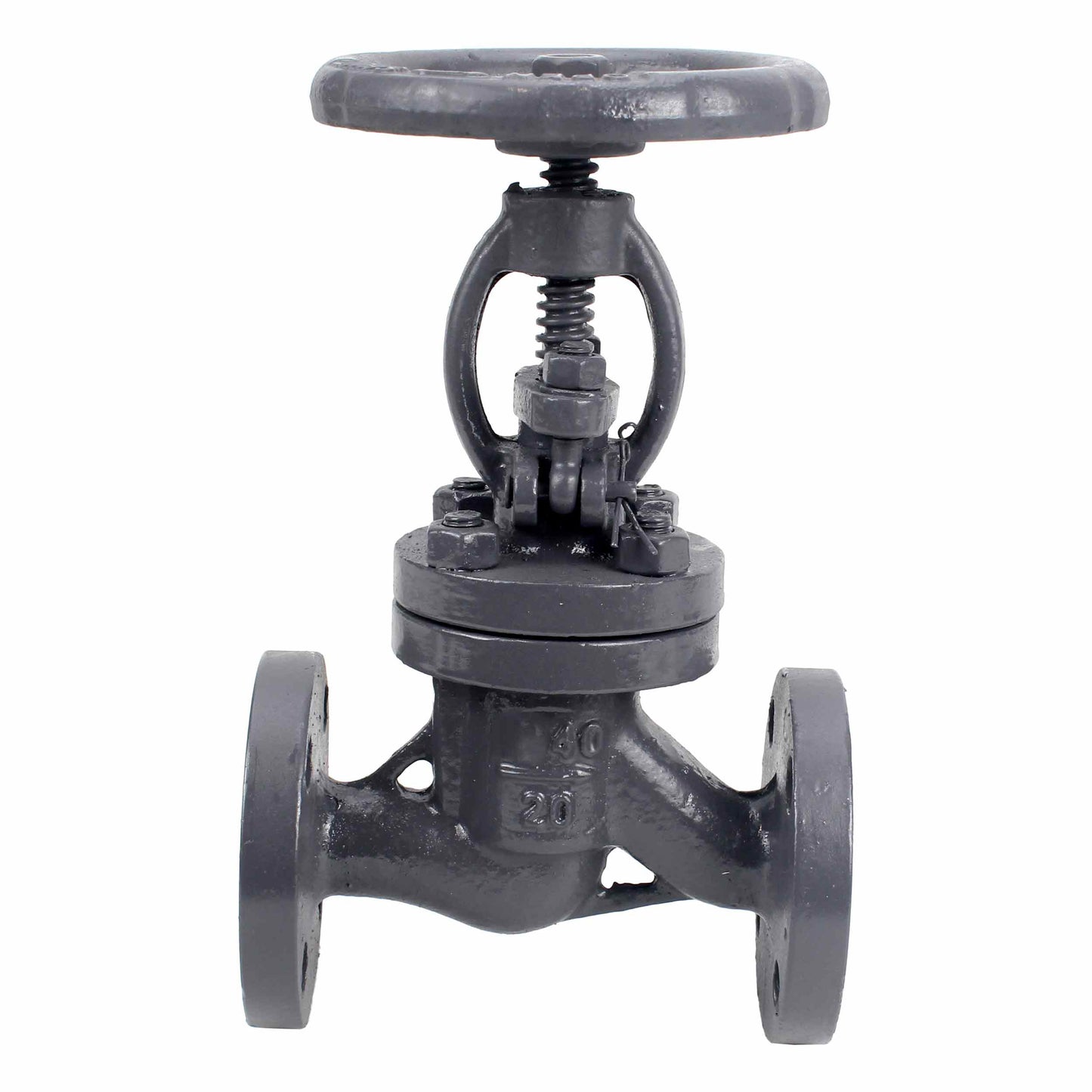

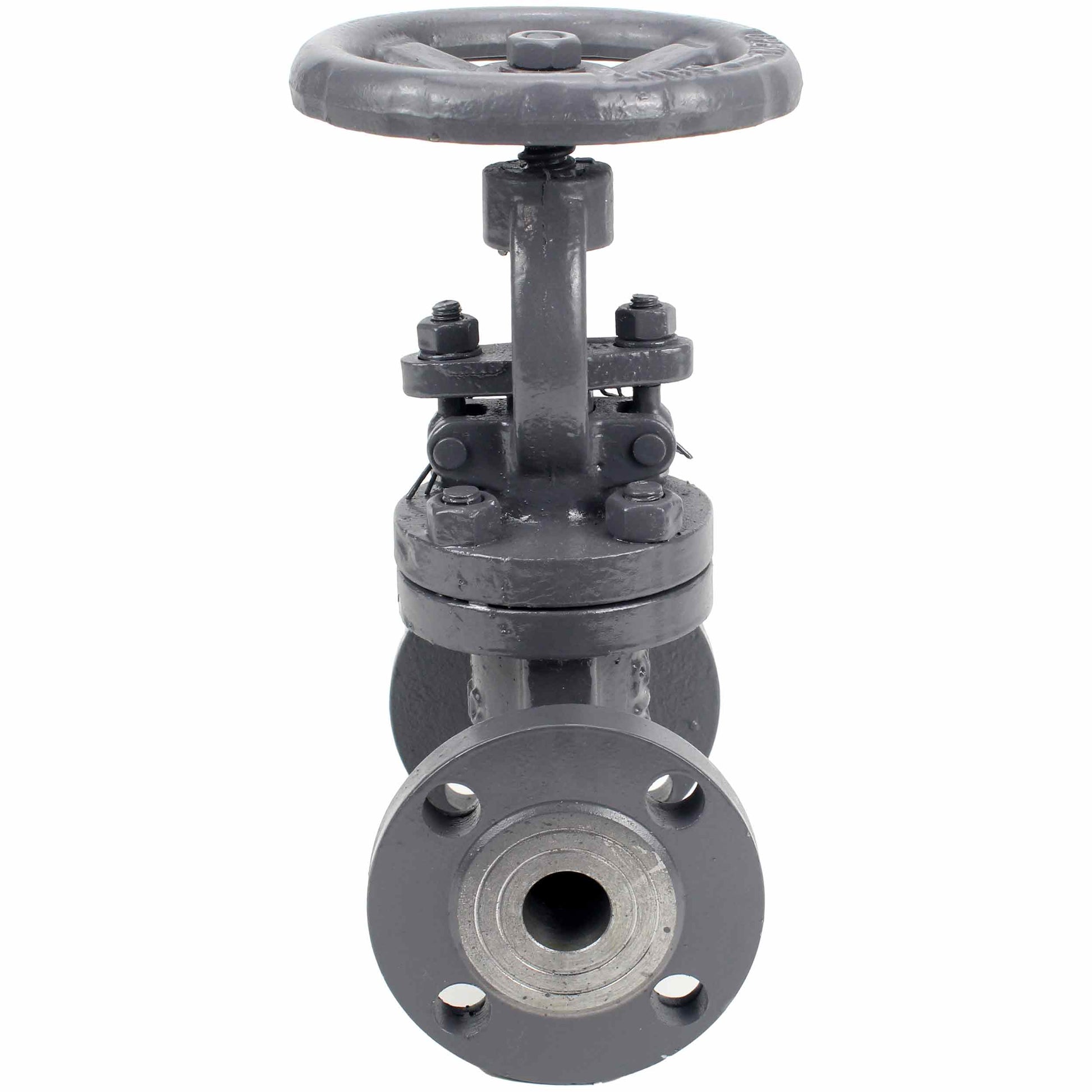

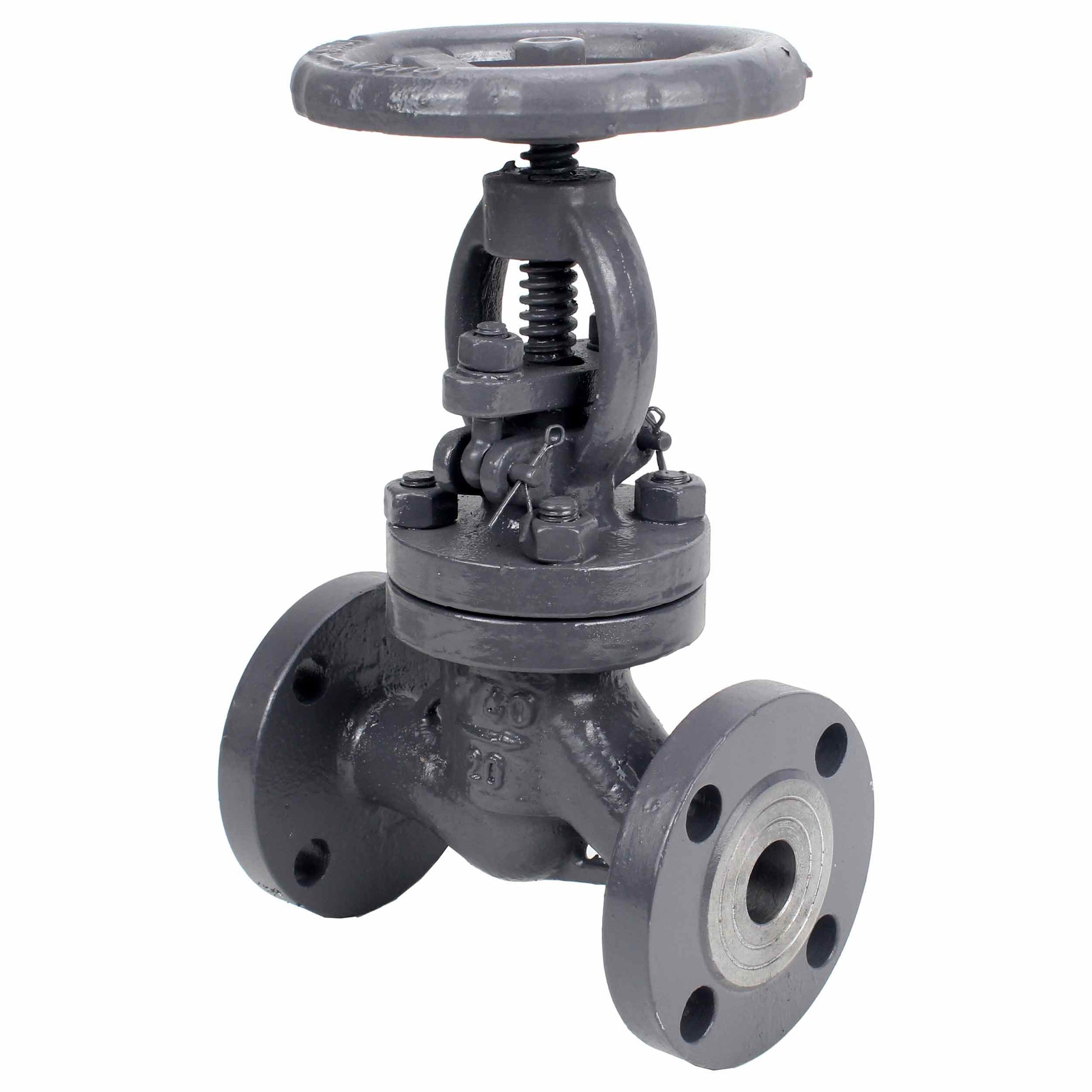

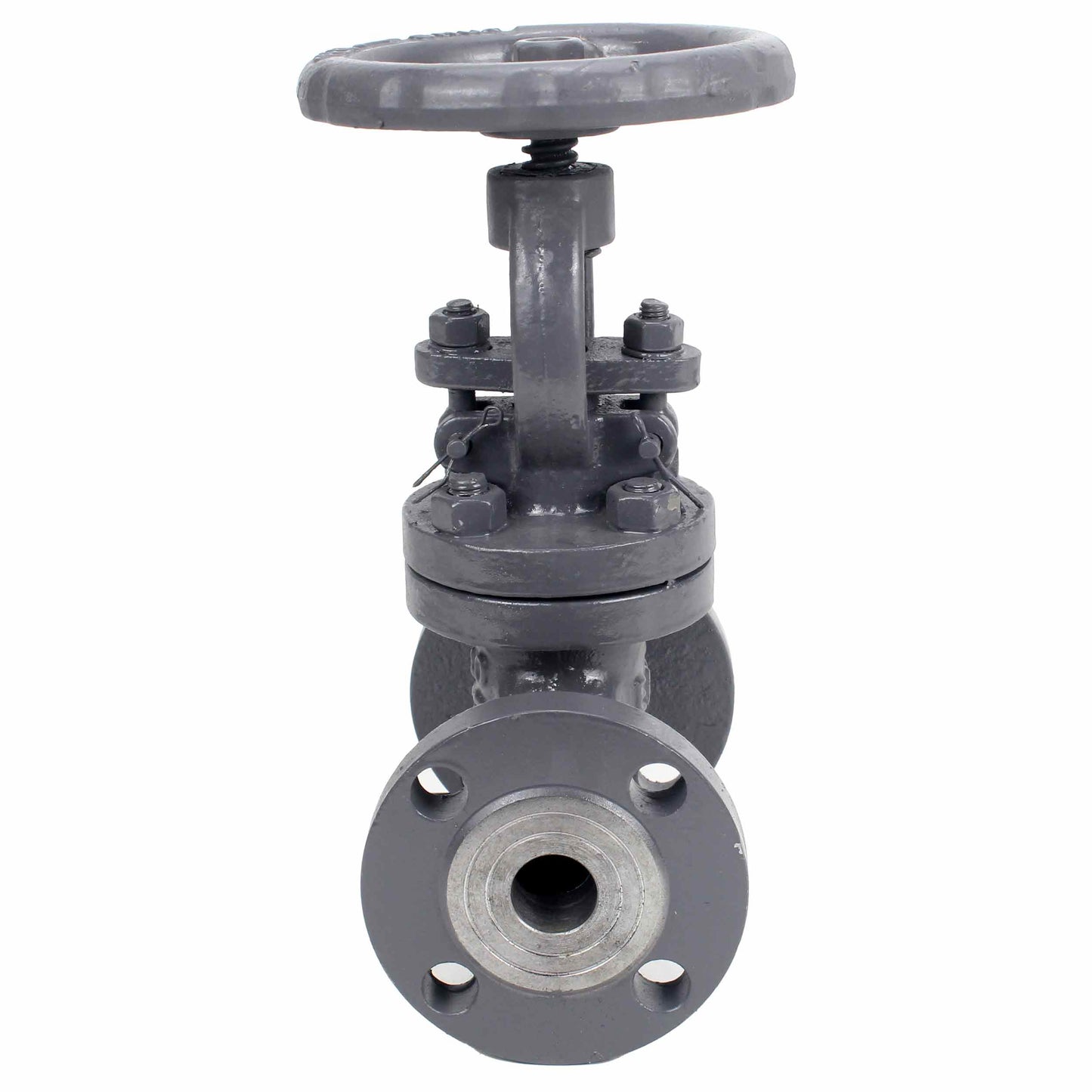

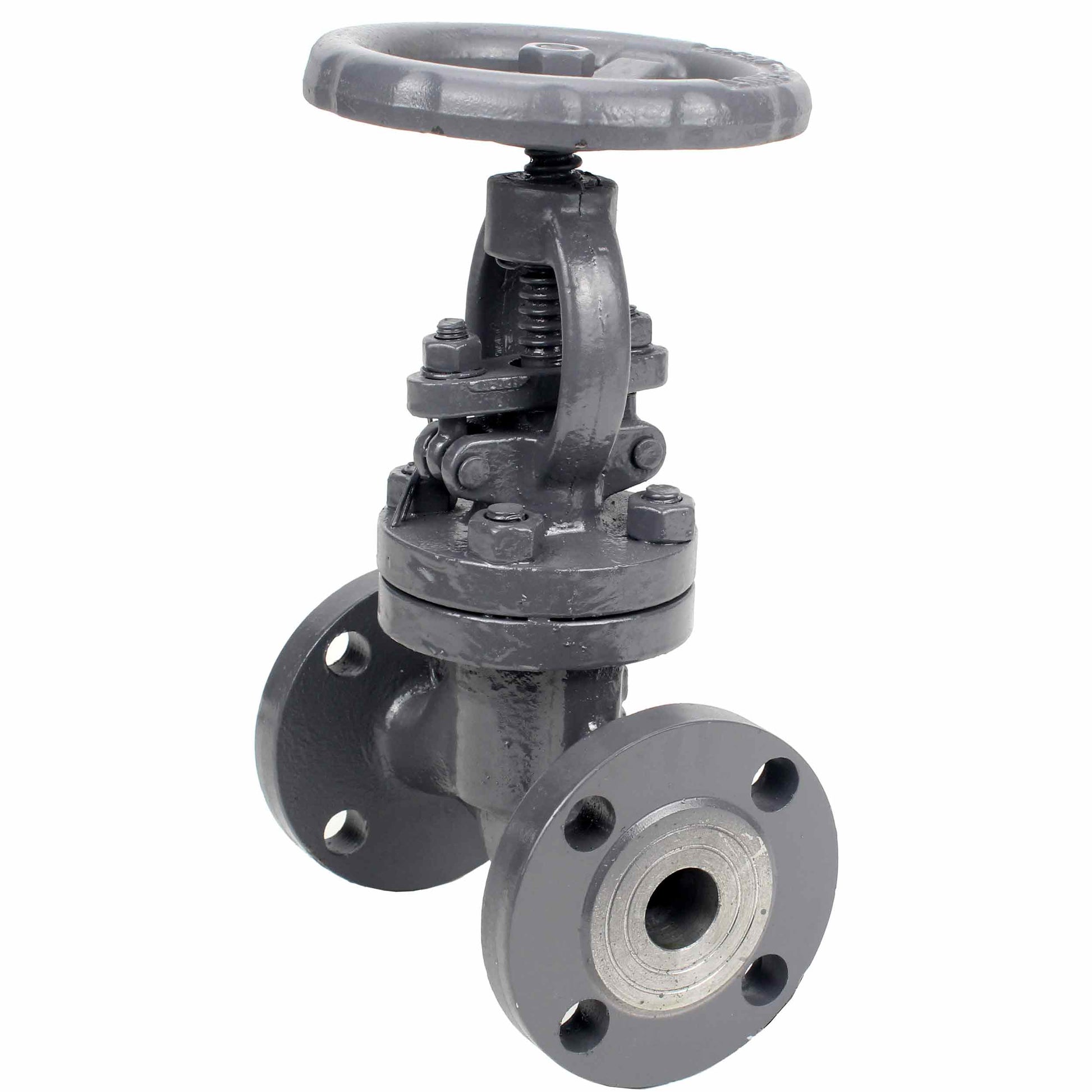

Gland Stop Valve DNOVA VSO3434M-F-S 40 bar, body material - carbon steel, disk material - carbon steel, seal - metal, flanged

From $12.75 USD
From $12.75 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The 15c22nj VSO3434M-F-S gland shut-off valve is designed for complete shut-off of the working medium flow in the pipeline. When turning the hand wheel clockwise or counterclockwise, the rotary motion is transmitted to the spindle, and the disk fixed on it closes or tears off the passage hole in the body.





Dimensions and installation dimensions DNOVA VSO3434M-FS 40 bar, body material - carbon steel, disk material - carbon steel, seal - metal, flanged:

DN L, mm D1, mm D, mm H, mm T, mm f, mm n-Ød
15 130 65 90 195 16 2 4 - Ø14
20 150 75 96 200 16.5 2 4 - Ø14
25 160 85 110 210 16.5 2 4 - Ø14
32 180 100 132 234 18.5 2 4 - Ø18
40 200 110 141 255 20 2 4 - Ø18
50 230 125 155 290 20 2 4 - Ø18
65 290 145 180 330 22 2 8 - Ø18
80 310 160 195 352 24 2 8 - Ø18
100 350 190 228 390 25 2 8 - Ø22
125 400 220 270 440 27 2.5 8 - Ø26
150 480 250 300 550 29 2.5 8 - Ø26
200 600 320 375 562 32 2.5 12 - Ø30



Materials DNOVA VSO3434M-FS 40 bar gland stop valves, body material - carbon steel, disk material - carbon steel, seal - metal, flanged:

№ Part name Material
1 Body WCB steel
2 Cover WCB steel
3 Locking element stainless steel
4 Stem steel 45
5 Disk WCB steel
6 Sleeve cast iron QT450
7 Gland graphite
8 Gasket asbestos
9 Bolt A3 steel
10 Nut A3 steel
11 Handwheel steel Q235



Specifications

Country of origin
China
Body material
carbon steel
Connection type
flanged
Operating environment
Water, Steam, Gas, Petroleum Products
Applications
Heat Supply System, Water Supply System, Compressed Air Pipelines, Steam Plants, Industrial Pipelines
Nominal pressure
40 bar
Type of seal
Metal
Locking material
carbon steel
Stop valve type
gland
