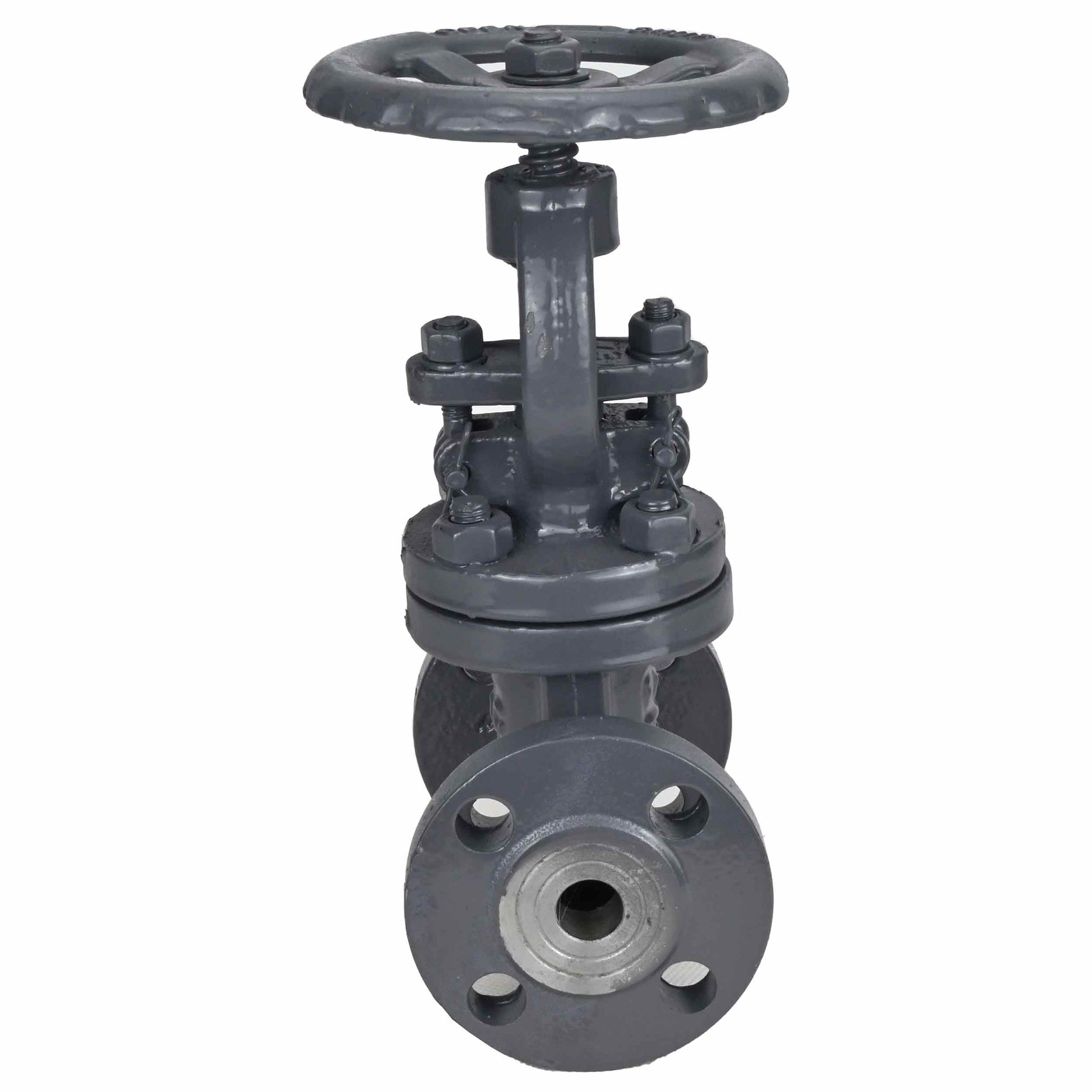

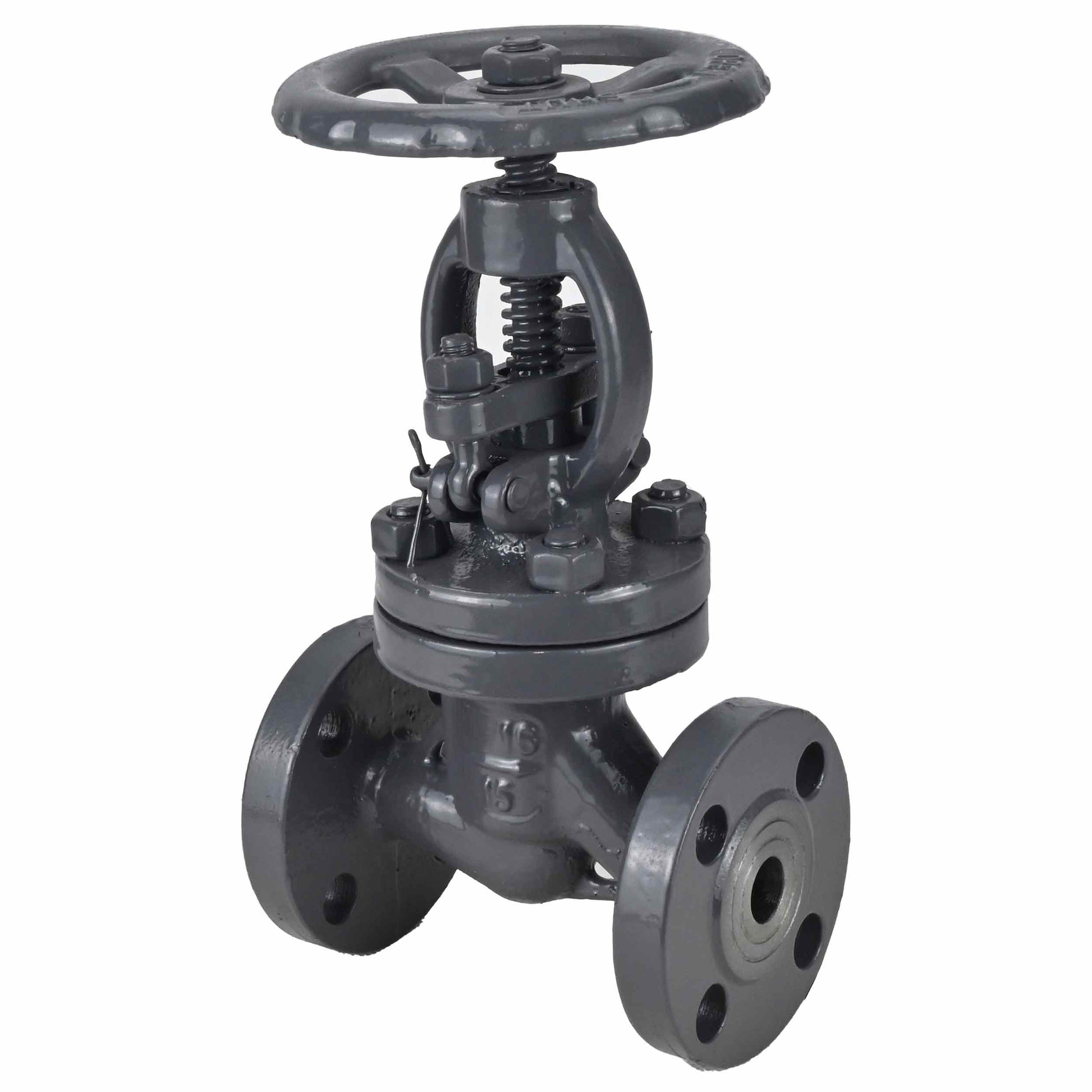

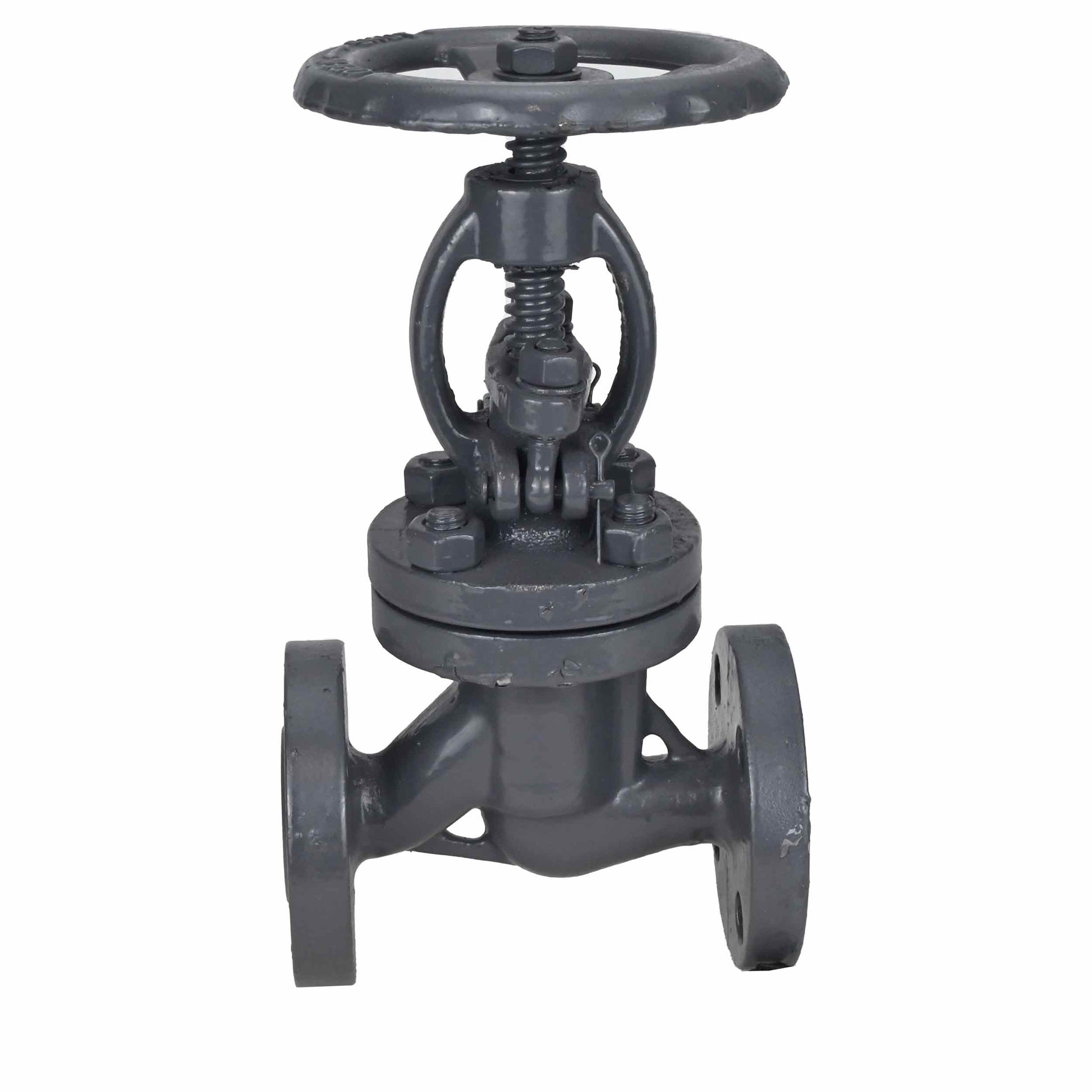

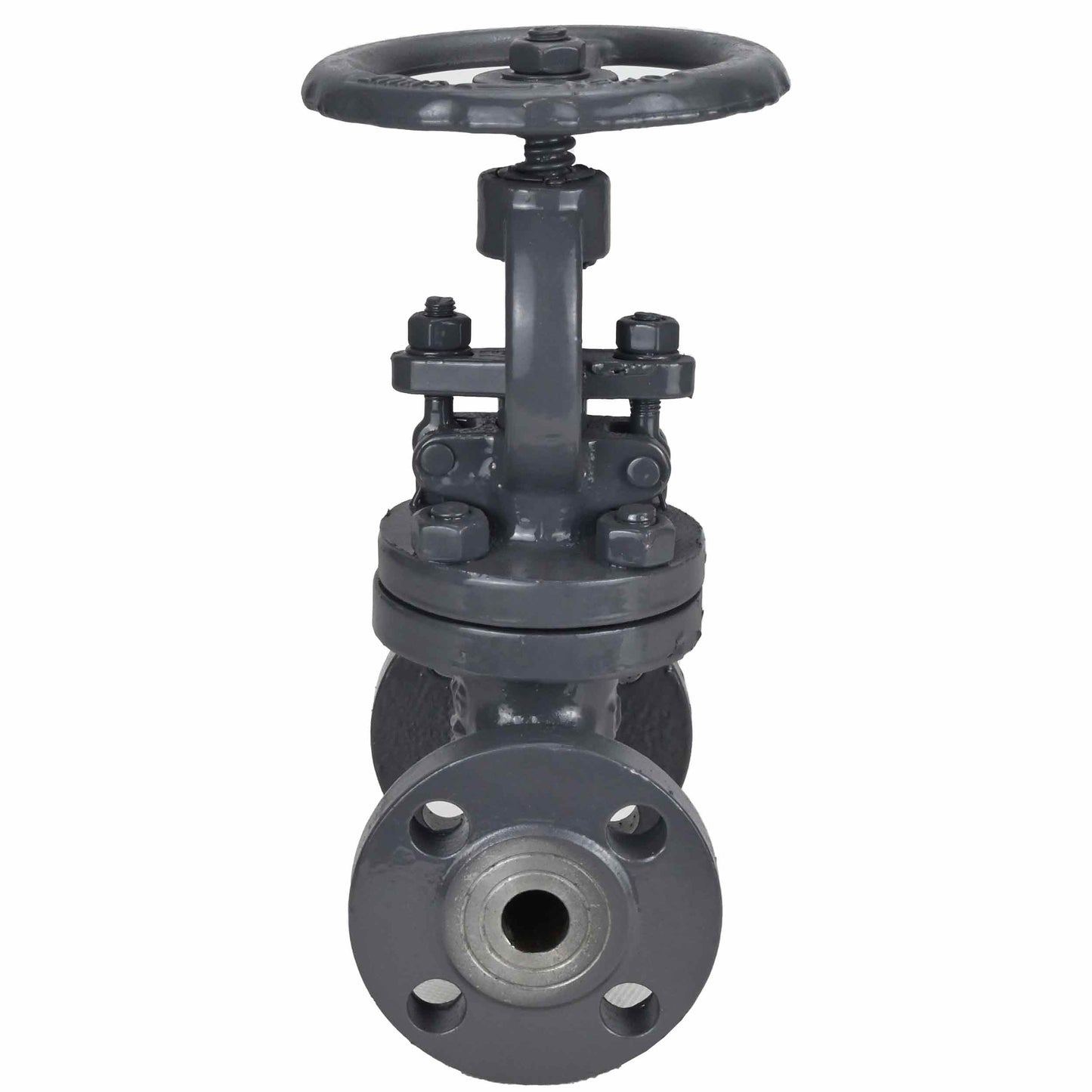

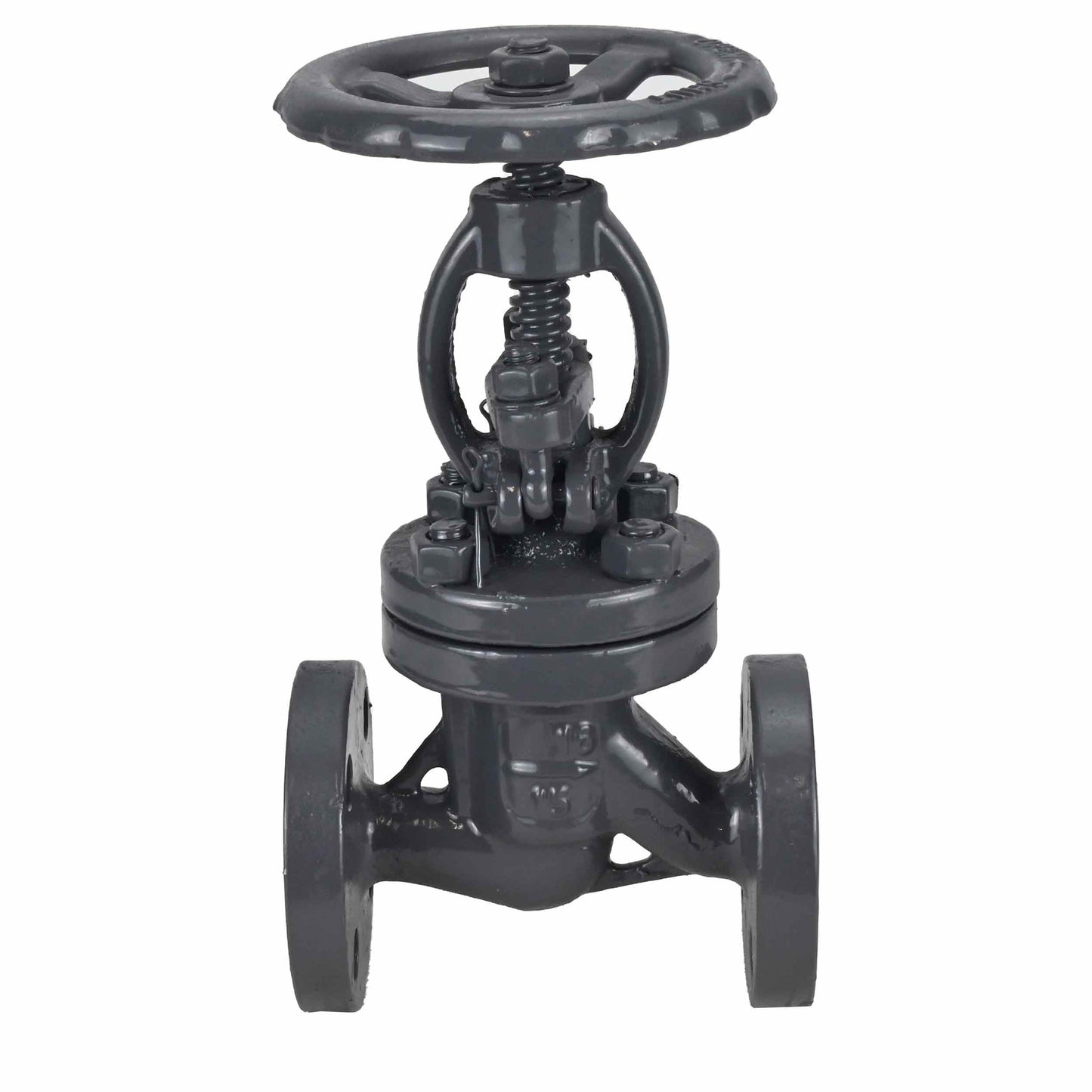

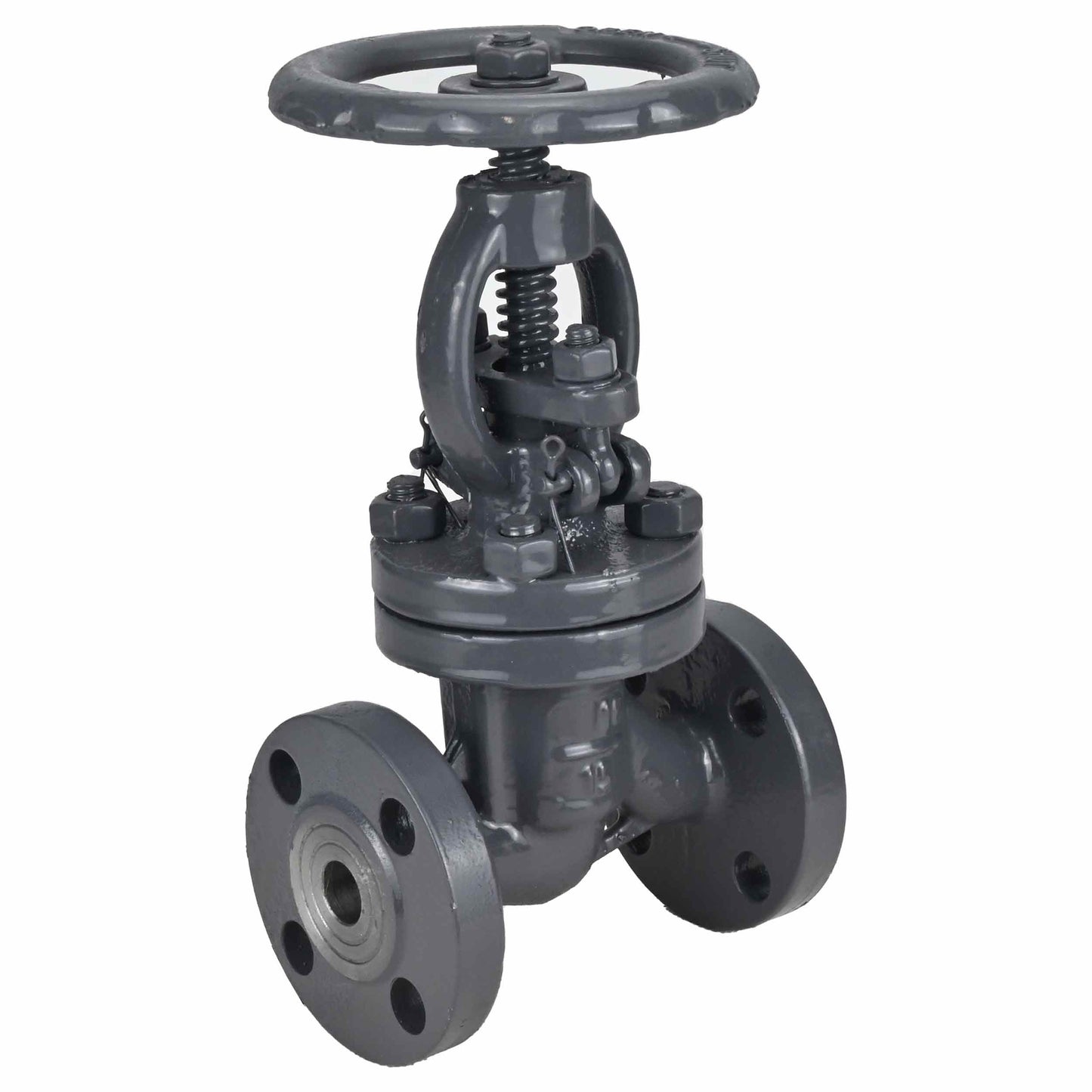

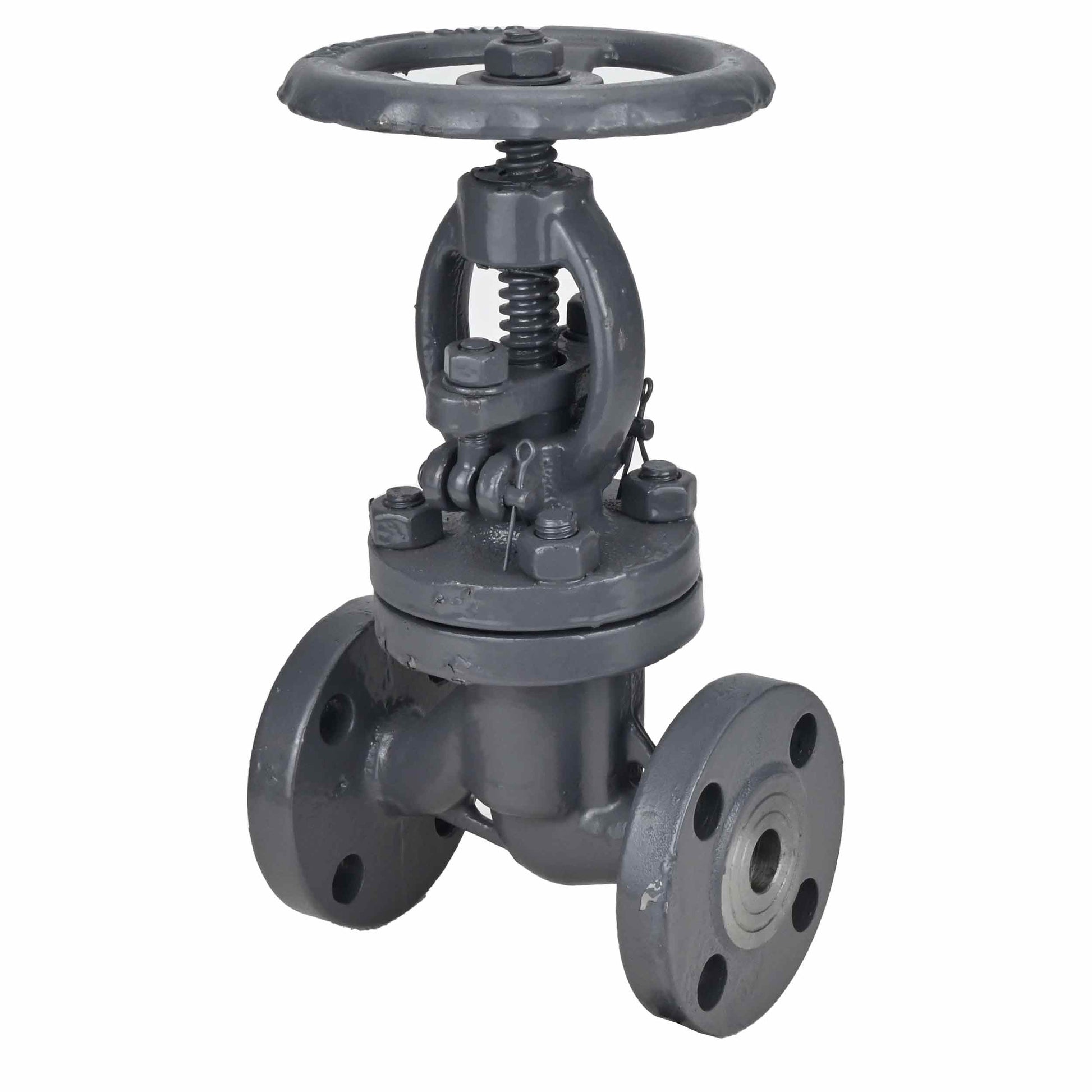

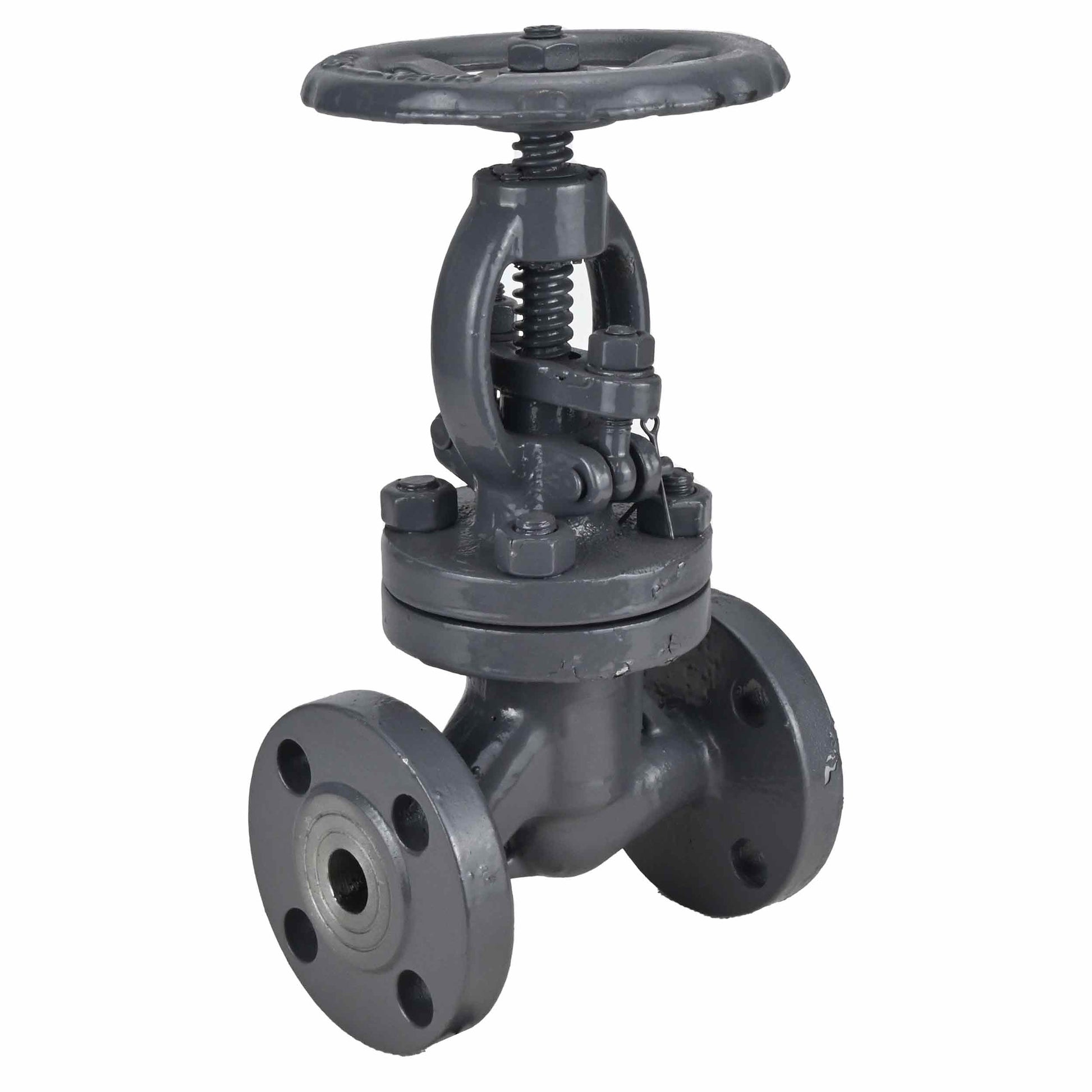

Gland Stop Valve DNOVA VSO3434M-F-S 16 bar, body material - carbon steel, disk material - carbon steel, seal - metal, flanged

From $11.93 USD
From $11.93 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The shut-off valve is designed for complete shut-off of the working medium flow in the pipeline. When turning the hand wheel clockwise or counterclockwise, the rotary motion is transmitted to the spindle, and the disk fixed on it closes or tears off the passage hole in the body.



Dimensions and installation dimensions DNOVA VSO3434M-FS 16 bar gland shut-off valves, body material - carbon steel, disk material - carbon steel, seal - metal, flanged:

DN L, mm D1, mm D, mm H, mm T, mm f, mm n-Ød
15 130 65 90 195 14 2 4 - Ø14
20 150 75 97 200 15 2 4 - Ø14
25 160 85 110 210 16 2 4 - Ø14
32 180 100 132 234 17 2 4 - Ø18
40 200 110 140 255 18 2 4 - Ø18
50 230 125 152 285 19.5 2 4 - Ø18
65 290 145 175 322 19.5 2 4 - Ø18
80 310 160 192 339 21 2 8 - Ø18
100 350 180 215 392 21.5 2 8 - Ø18
125 400 210 240 435 25 2.5 8 - Ø18
150 480 240 272 475 25 2.5 8 - Ø23
200 600 295 335 562 25 2.5 12 - Ø23







Materials DNOVA VSO3434M-FS 16 bar, body material - carbon steel, disk material - carbon steel, seal - metal, flanged:

№ Part name Material
1 Body WCB steel
2 Cover WCB steel
3 Locking element stainless steel
4 Stem steel 45
5 Disk WCB steel
6 Sleeve cast iron QT450
7 Gland graphite
8 Gasket asbestos
9 Bolt A3 steel
10 Nut A3 steel
11 Handwheel steel Q235



Specifications

Country of origin
China
Body material
carbon steel
Connection type
flanged
Operating environment
Water, Steam, Gas, Petroleum Products
Applications
Heat Supply System, Water Supply System, Compressed Air Pipelines, Steam Plants, Industrial Pipelines
Nominal pressure
16 bar
Type of seal
Metal
Locking material
carbon steel
Stop valve type
gland

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 / 16 barD090-02089
DN15 / 16 barD090-02089
$11.93/ea		 $0.00
$11.93/ea $0.00
DN20 / 16 barD090-02090
DN20 / 16 barD090-02090
$12.25/ea		 $0.00
$12.25/ea $0.00
DN25 / 16 barD090-02091
DN25 / 16 barD090-02091
$13.07/ea		 $0.00
$13.07/ea $0.00
DN32 / 16 barD090-02092
DN32 / 16 barD090-02092
$16.34/ea		 $0.00
$16.34/ea $0.00
DN40 / 16 barD090-02093
DN40 / 16 barD090-02093
$21.24/ea		 $0.00
$21.24/ea $0.00
DN50 / 16 barD090-02094
DN50 / 16 barD090-02094
$25.33/ea		 $0.00
$25.33/ea $0.00
DN65 / 16 barD090-02095
DN65 / 16 barD090-02095
$37.58/ea		 $0.00
$37.58/ea $0.00
DN80 / 16 barD090-02096
DN80 / 16 barD090-02096
$44.12/ea		 $0.00
$44.12/ea $0.00
DN100 / 16 barD090-02097
DN100 / 16 barD090-02097
$57.19/ea		 $0.00
$57.19/ea $0.00
DN125 / 16 barD090-02098
DN125 / 16 barD090-02098
$78.43/ea		 $0.00
$78.43/ea $0.00
DN150 / 16 barD090-02099
DN150 / 16 barD090-02099
$106.21/ea		 $0.00
$106.21/ea $0.00
DN200 / 16 barD090-02100
DN200 / 16 barD090-02100
$160.13/ea		 $0.00
$160.13/ea $0.00
