Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), not aggressive to the materials of the valve.
The working flow is shut off by means of a locking element, which is a ball with a through cylindrical hole. With the help of a handle mounted on the body, the ball is rotated around the axis. It is sufficient to turn it by 90 degrees to completely shut off the flow.
Electric quarter-turn actuators are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgical, food industry, housing and communal services, etc.

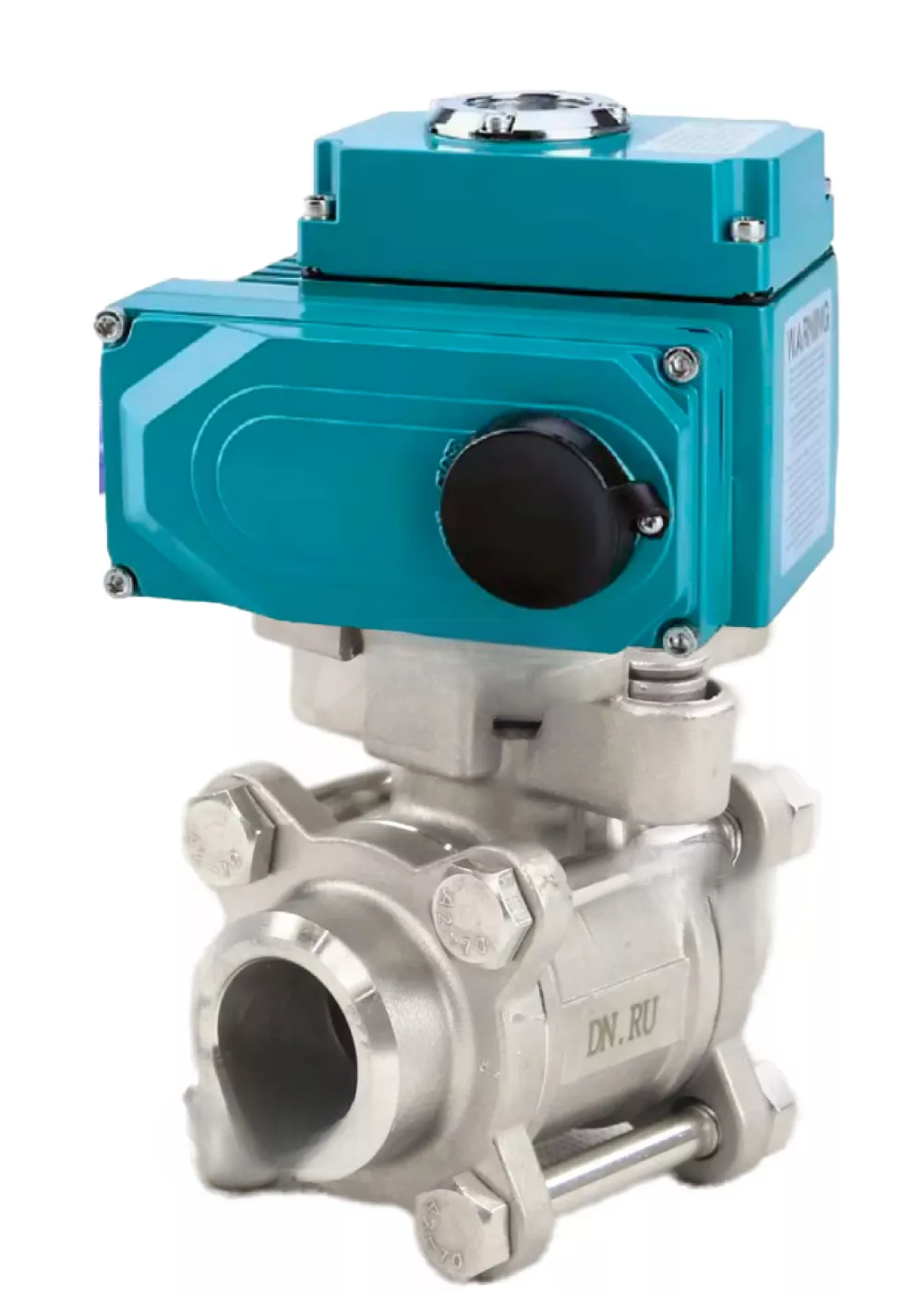

Technical characteristics of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H full bore, welded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-380VAC-U1 380V HARK:
|
Parameter |
Value |
|
Nominal diameter DN, mm |
10–100 |
|
Nominal pressure PN, bar |
DN10–50 – 63 |
|
Working medium temperature t, °C |
From -20 to +200 |
|
Working medium |
Water, steam, oil products, and other liquid or gaseous media neutral to the valve materials |
|
Connection to pipeline |
Welding/Welding |
|
Type of flow cross-section |
Full-bore |
|
Tightness class of ball valve |
Class «A» |
|
Additional option |
Electric or pneumatic actuator installation possible (ISO 5211-2001) |
|
Average service life, years |
10 |
|
Average operating cycles, close/open |
40 000 - 60 000 |
Dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H full bore, welded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-380VAC-U1 380V HARK:
|
DN |
Model |
Size, mm |
||||
|
D |
H2 |
L |
E |
Y |
||
|
10 |
QT-N-020EMT |
10 |
38.9 |
63 |
17.2 |
241.8 |
|
15 |
15 |
40 |
65 |
21.3 |
241.8 |
|
|
20 |
20 |
43.9 |
75 |
26.7 |
241.8 |
|
|
25 |
25 |
53 |
83 |
33.5 |
241.8 |
|
|
32 |
32 |
56 |
98 |
42.2 |
241.8 |
|
|
40 |
40 |
60 |
112 |
48.3 |
241.8 |
|
|
50 |
50 |
75 |
135 |
60.5 |
241.8 |
|
|
65 |
65 |
97 |
175 |
73.2 |
241.8 |
|
|
80 |
80 |
112 |
198 |
88.9 |
241.8 |
|
|
100 |
100 |
122 |
246 |
114.3 |
241.8 |
|
Materials of details of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H full bore, welded, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-380VAC-U1 380V HARK:
|
№ |
Part name |
Material |
Quantity |
|
1 |
Body |
SS316 |
1 |
|
2 |
Ball |
S304/S316 |
1 |
|
3 |
Bolt |
S201/S304 |
4~6 |
|
4 |
Nut |
S201/S304 |
4~6 |
|
5 |
Seal |
PTFE |
1 |
|
6 |
Stem |
SS304/SS316 |
1 |
|
7 |
Gland |
S201/S304 |
1 |
|
8 |
Nut |
S201/S304 |
1 |
|
9 |
Cover |
WCB/CF8/CF8M |
2 |
|
10 |
Seat rings |
PPL |
2 |
|
11 |
Thrust washer |
PTFE |
1 |
|
15 |
Sealing ring |
VITON |
1 |
Technical characteristics of electric actuators DNOVA:
|
Parameter |
Value |
|
Type of electric actuator |
Quarter-turn |
|
Type of motor |
Asynchronous |
|
Angle of rotation, ° |
90±5 |
|
Body material |
Aluminum alloy with epoxy powder coating |
|
Shaft material |
Alloy steel |
|
Supply voltage |
380V/AC, 50Hz |
|
Cable entry |
Sealed gland 2xM18 |
|
Type of connection |
ISO 5211 |
|
Self-locking mechanism |
Worm and worm gear self-locking |
|
Automatic shut-off |
2 limit switches (open/closed positions and in case of jamming) |
|
Thermal protection |
Activation at 120°C ±5°C |
|
Insulation class |
F |
|
Mechanical output shaft rotation limit |
2 external adjustable stops |
|
Protection rating |
IP67 |
|
Noise level, dB |
≤ 50 |
|
Heater power, W |
5 |
|
Ambient temperature, °C |
From -20 to +70 |
|
Ambient humidity |
≤ 95% (at 25°C) |
|
Explosion-proof protection |
No |
Dimensions and sizes of electric actuators DNOVA:
| Size, mm | ISO 5211 | ||||||
| L | H | A | B | C | D | Stem size, square | |
| 241,8 | 157,5 | 119 | 118 | 112,3 | 26 | 22x22 | F07/F10 |
Device diagram of actuators DNOVA QT-N-020EM-O1-380VAC-U1 380V HARK:
|
№ |
Name |
|
1 |
Position indicator |
|
2 |
Upper cover |
|
3 |
Control board |
|
4 |
Capacitor |
|
5 |
Actuating cam followers |
|
6 |
Output shaft with worm gear |
|
7 |
Body |
|
8 |
Output shaft travel limiters |
|
9 |
Worm shaft |
|
10 |
Electric motor |
|
11 |
Gearbox |
|
12 |
Gearbox cover |
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- #ИМЯ?
- Connection type
- For welding
- Control type
- Electrically driven
- Operating environment
- Water, Steam, Petroleum Products, and Neutral Media
- Applications
- Water Supply
- Type of seal
- PTFE
- Voltage
- 380 V
- Explosion-proof
- No
- Torque
- 8 Nm
- Limit switches
- Yes
- Actuator model
- QT-N-020EM-O1-380VAC-U1 HARK
- Country of origin
- China
