• Ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H for welding, full bore, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052- 083 pneumatic distributor 4V320-10 MON gearbox BPV AFC2000 BKV APL-510N-EX
1 1

Parts

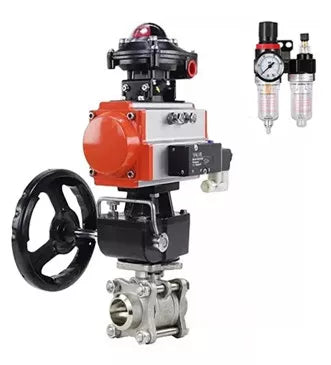

Ball valve BV3232P(3pc)-FP-W-ISO-H with pneumatic double-acting actuator

PA-DA-052-083 · APL-510N EX limit switch · 4V320-10 pilot · manual override · filter-regulator · weld-end · full bore · AISI 316 body

Model BV3232P(3pc)-FP-W-ISO-H SKU D160-49941
$156.94 USD
$156.94 USD
Sale Sold out
Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.
Request a quote
View full details

How it works

Double-acting rotary actuator

Double-acting rotary actuator: Air to one port
Air to one portAir turns the shaft one way.
Double-acting rotary actuator: Air to the other port
Air to the other portAir to the other port turns it back.

Two-way ball valve

Two-way ball valve: Closed
ClosedThe ball bore stands across the pipe.
Two-way ball valve: Open
OpenThe bore lines up with the pipe.

5/2 double-solenoid pilot

5/2 double-solenoid pilot: Coil 14 pulse
Coil 14 pulseSupply 1 feeds port 4; port 2 exhausts through 3.
5/2 double-solenoid pilot: Coil 12 pulse
Coil 12 pulseSupply 1 feeds port 2; port 4 exhausts through 5.
5/2 double-solenoid pilot: Both coils off
Both coils offThe spool keeps its last position; the drawing retains the coil-14 example.

Limit-switch box

Limit-switch box: Closed
ClosedThe closed-position contact is made.
Limit-switch box: Open
OpenThe open-position contact is made.

The number that matters

Max. medium temperature

200°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

  • Water
  • Steam
  • Oil Products
  • Liquid Media
  • Neutral Media
  • Gaseous Media

Kit. Ball valves

Port opening
full bore
Body material
Stainless steel AISI 316
Maximum allowable temperature
200 °C
Connection type
For welding
Control type
Pneumatically actuated
Operating environment
Water, Steam, Oil Products, Liquid Media, Neutral Media, and Gaseous Media
Type of seal
PTFE
Voltage
220V
Explosion-proof
have
Torque
3 Nm
Limit switches
have
Type of pneumatic actuator
double action
Country of origin
China

Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.

Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.

To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.

Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
