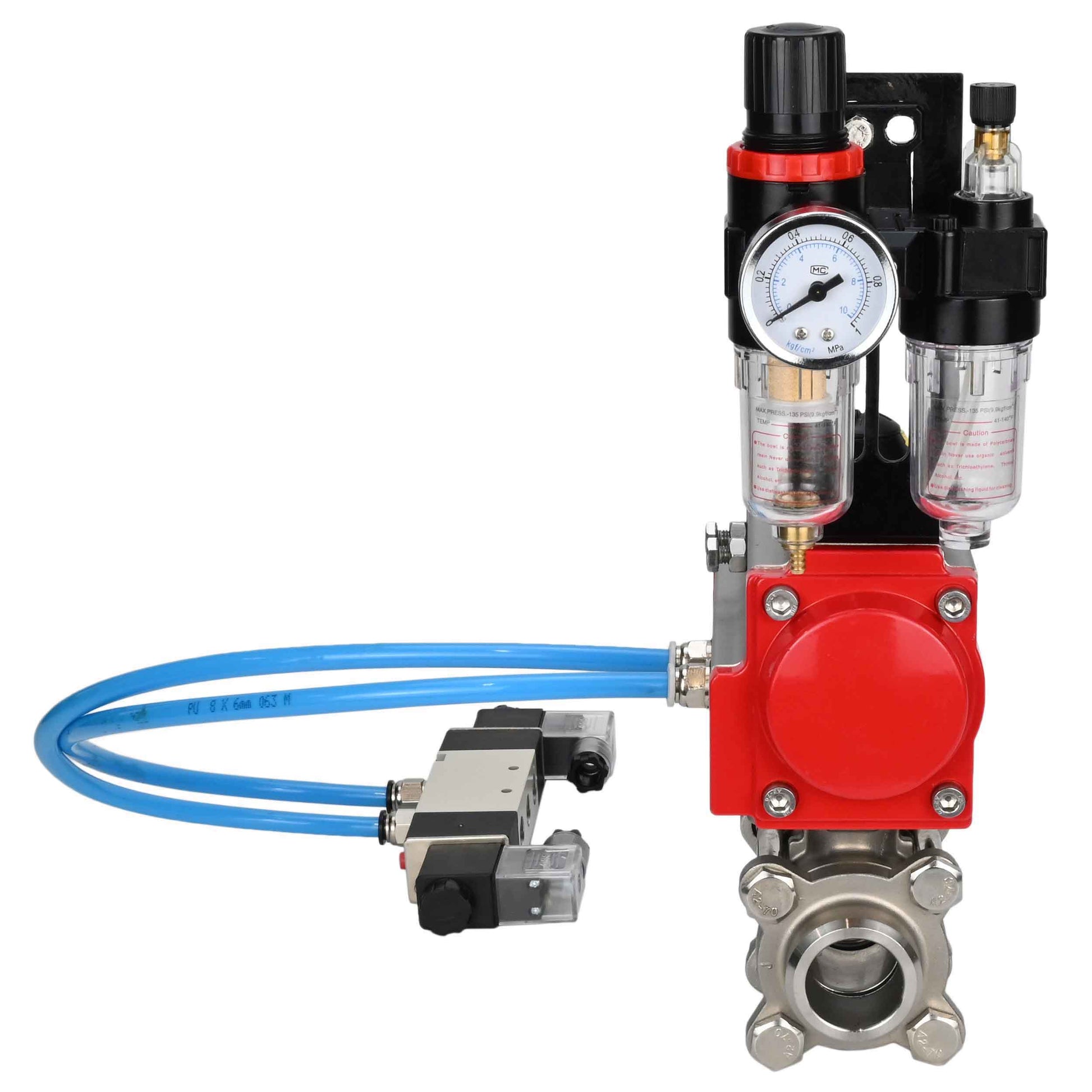

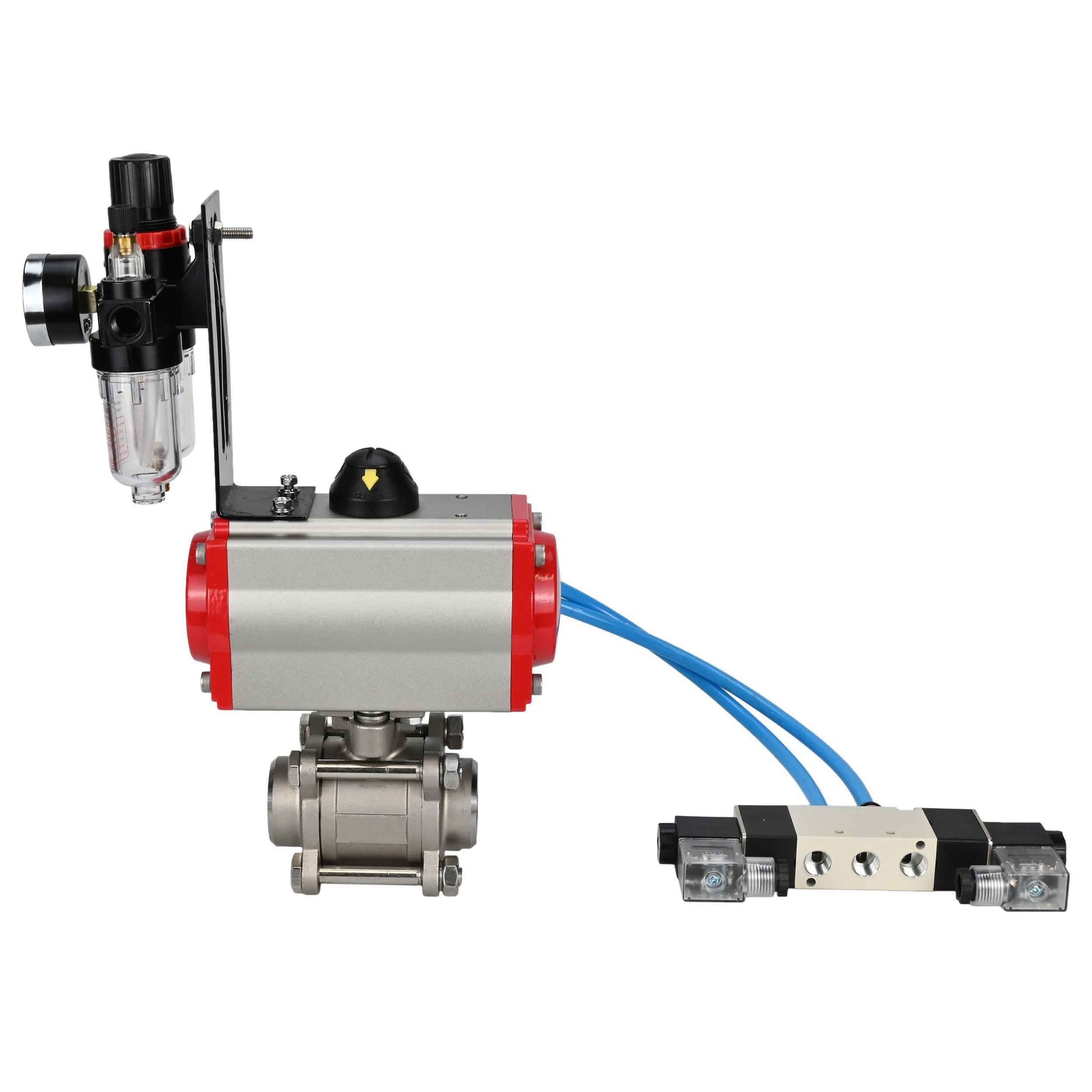

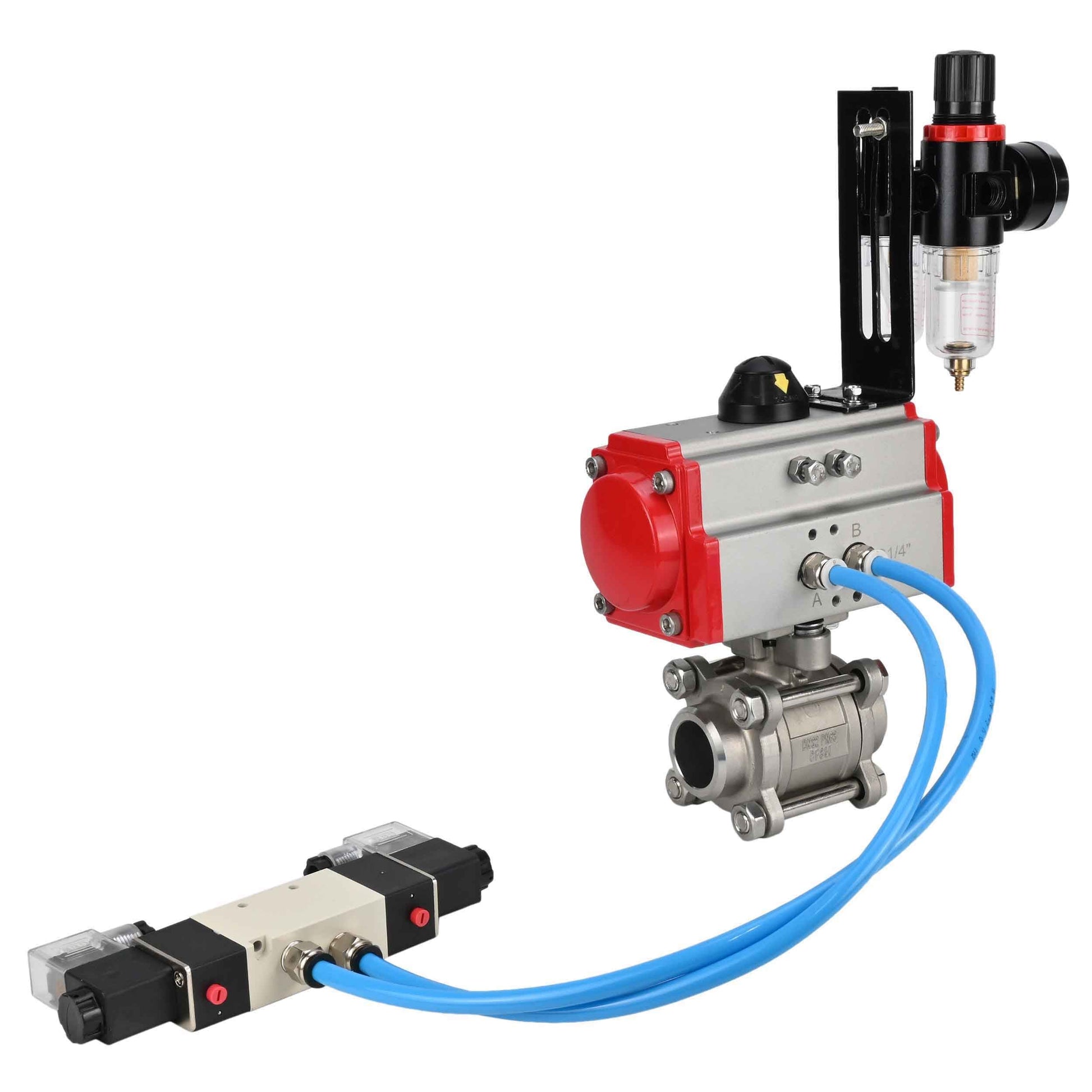

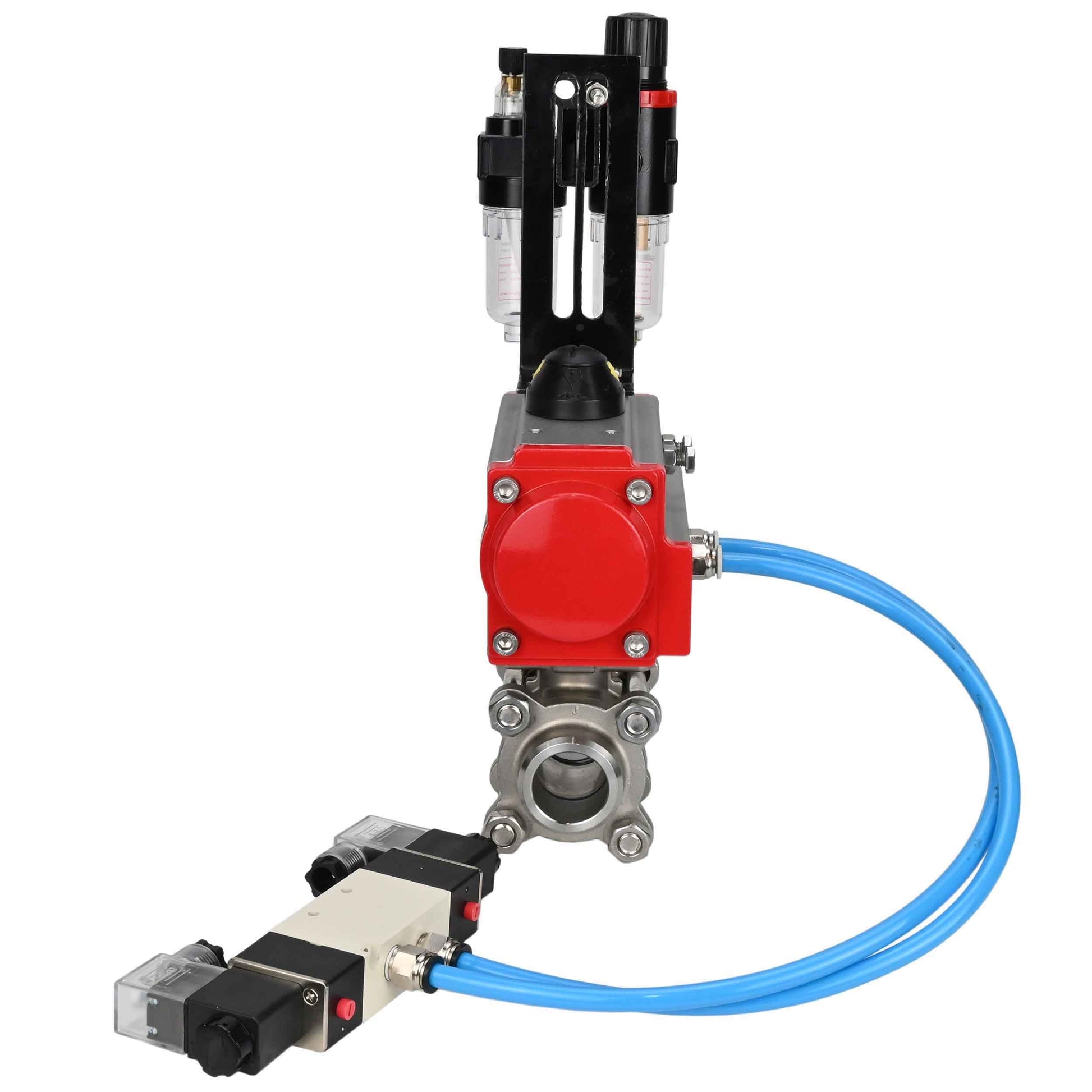

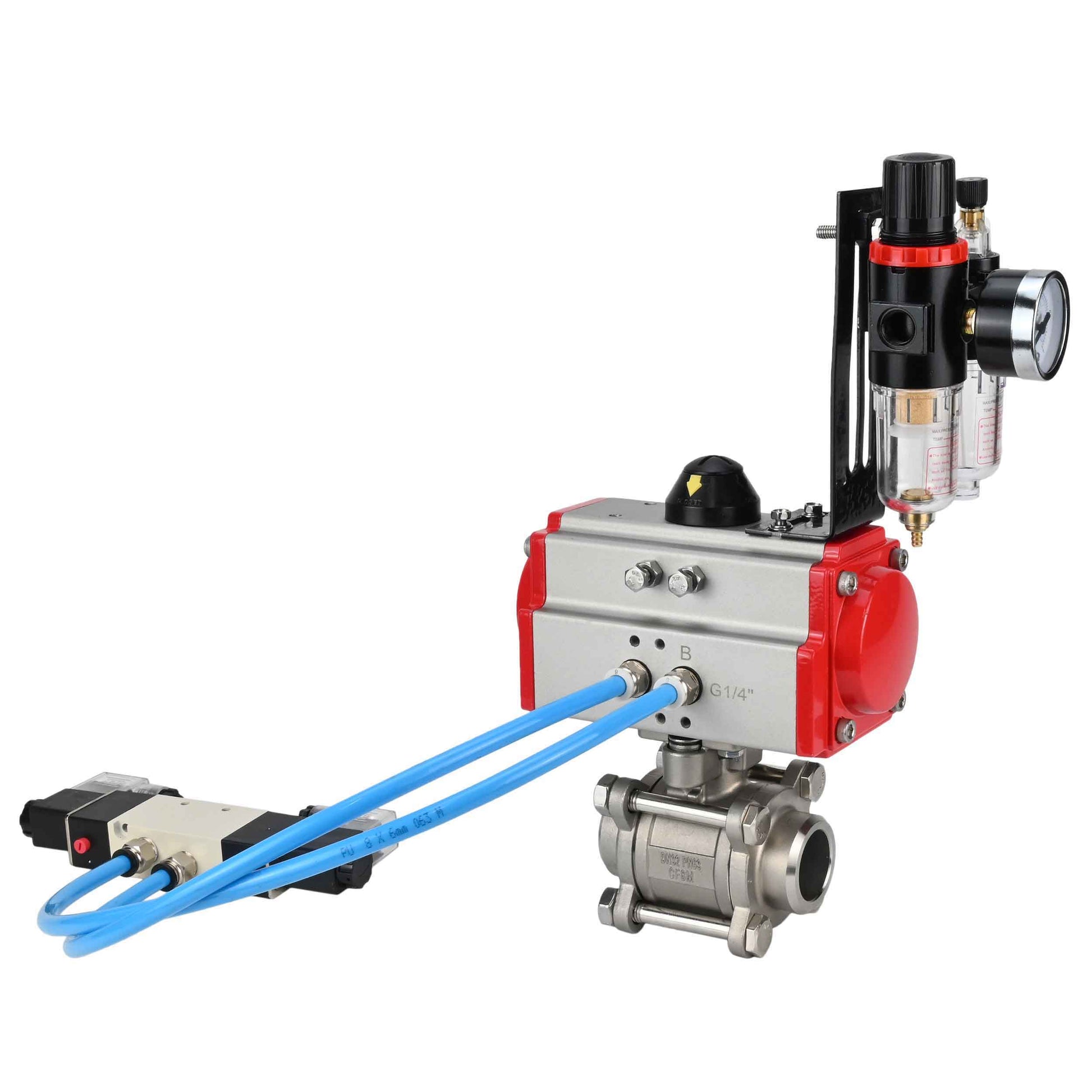

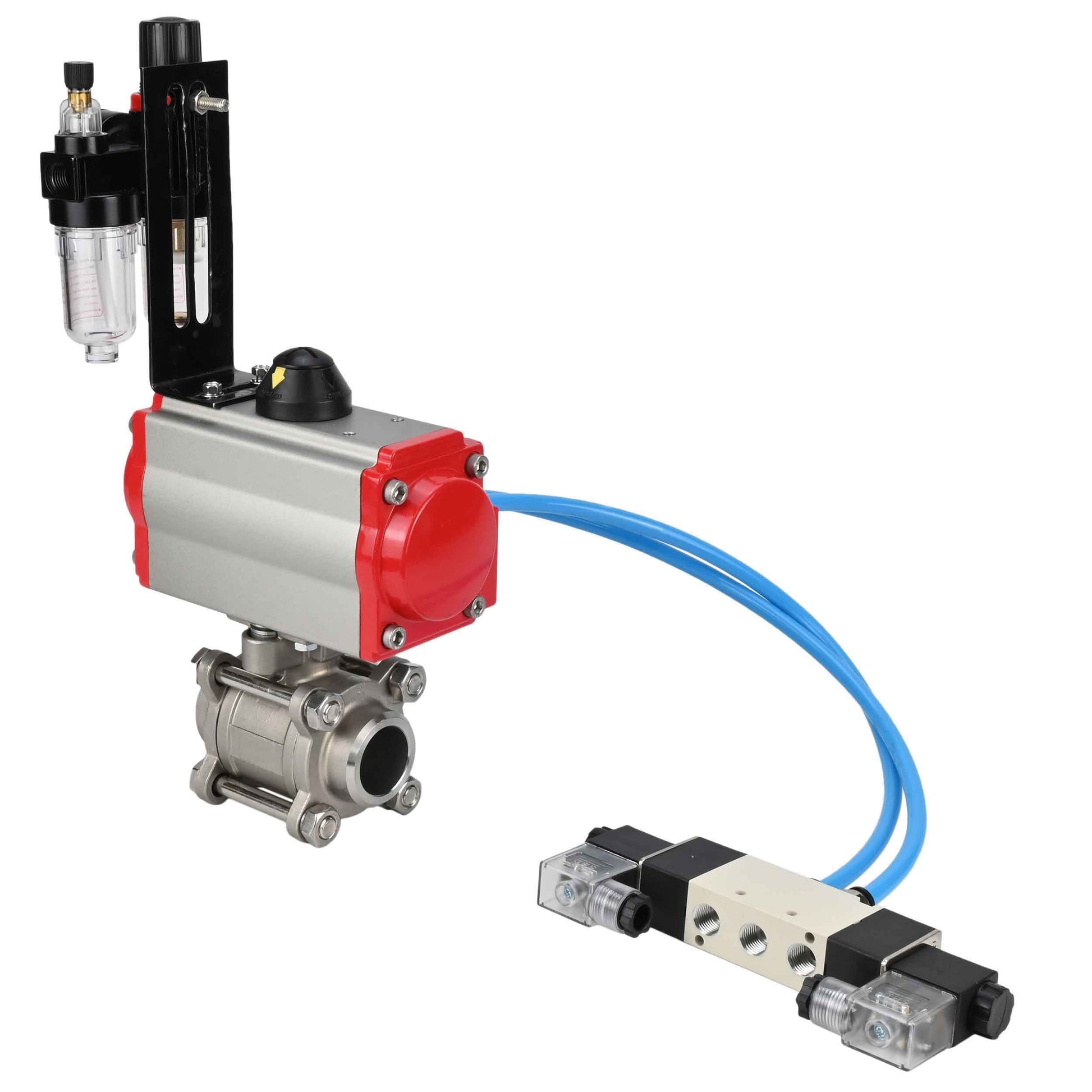

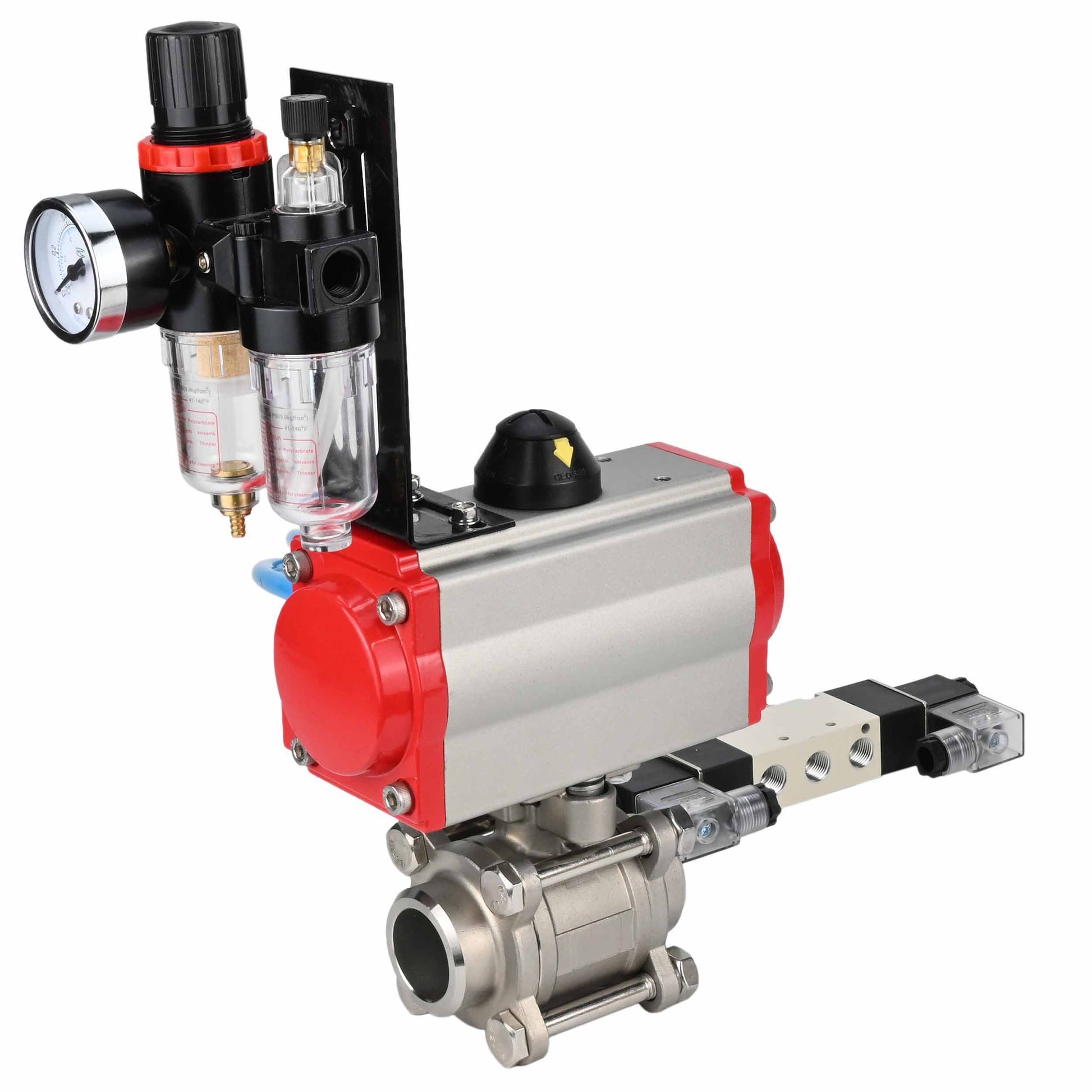

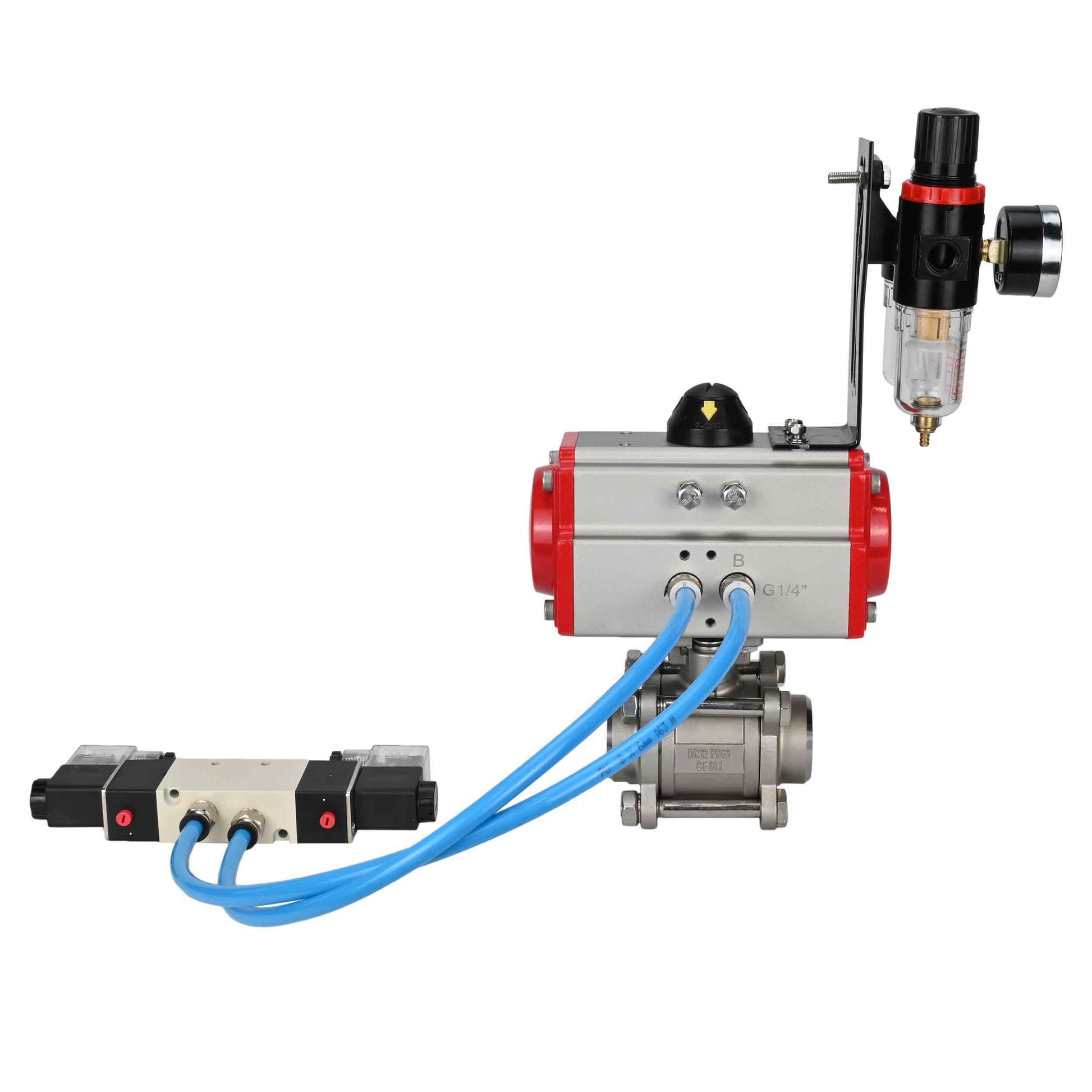

Ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H 16 bar/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-10 220V, with ATU AFC2000

From $32.24 USD
From $32.24 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The DNOVA ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

DNOVA double-acting rotary pneumatic actuators PA-DA and PA-SA rotary pneumatic actuators with return spring are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The pneumatic distributor is used to change the direction, start, and stop the flow of compressed air in a pneumatic system depending on the external control action.

The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant.

Technical parameters of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, with ATU AFC2000:

Name Meaning
Working environment temperature, °C from -20 to 200
Application water supply, heat supply, steam supply
Working environment water, steam, petroleum products, neutral media
Connection to the pipeline for welding
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining for welding
Control double acting pneumatic actuator
Availability of limit switches No
Availability of pneumatic distributor There is
Warranty, g. 1

Sketch Ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, with ATU AFC2000


Dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, with ATU AFC2000:

Size D, mm L, mm B1, mm E, mm B, mm H2, mm X, mm Y, mm
DN10 10 63 153 72 17.2 38.9 162 139
DN15 15 65 153 72 21.3 40 162 139
DN20 20 75 153 72 26.7 43.9 162 139
DN25 25 83 153 72 33.5 53 162 139
DN32 32 98 153 72 42.2 56 162 139
DN40 40 112 174 89 48.3 60 162 139
DN50 50 135 174 89 60.5 75 162 139
DN65 65 175 216 109 73.2 97 162 139
DN80 80 198 216 109 88.9 112 162 139
DN100 100 246 216 109 114.3 122 162 139


Table of parts and materials Ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, with ATU AFC2000:

No. Part Name Material
1 Cover Stainless Steel AISI 316
2 Seat Seal PTFE
3 Ball Stainless Steel AISI 316
4 Stem Stainless Steel AISI 316
5 O-Ring PTFE
6 Body Stainless Steel AISI 316
7 Seal PTFE
8 Gland Stainless Steel AISI 304
9 Handle Stainless Steel SS 201
10 Nut Stainless Steel AISI 304
11 Screw Stainless Steel AISI 304
12 Nut Stainless Steel AISI 304

Sketch of parts and materials Ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H DN10-100 PN63/25, full bore for welding, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, with ATU AFC2000

Pneumatic drive DNOVA

Technical parameters of the pneumatic drive DNOVA

Name Meaning
Design with return springs
Working pressure, bar 6
Working environment filtered compressed air or non-aggressive gases, oils
Availability of manual backup No

Sketch of the dimensions and sizes of the pneumatic drive DNOVA

Dimensions and sizes of the pneumatic drive DNOVA:

Drive model DA-052 DA-065 DA-083
G, mm 15 15 15
Mmm 80 80 80
N, mm 30 30 30
F0, mm 34 34 34
R, mm 20 20 20
B1, mm 153 174 216
C, mm 30 36 46
E, mm 72 89 109
J 4-M5x8 4-M6x10 4-M6x10
TO 4-M6x10 4-M8x12 4-M8x12
F, mm 26 26 26
A1, mm 108 125 152
D, mm 41 46 55
L 11x11 14x14 17x17
H F03 F05 F05
I F05 F07 F07

Sketch of parts and materials of pneumatic drive DNOVA

Table of parts and materials of pneumatic drive DNOVA:

No. Name Quantity Material Coating
1 Frame 1 extruded aluminum hard anodized
2 Side plugs 2 cast aluminum
3 Gear 1 stainless steel nickel plated
4 Piston 2 steel/aluminum oxidation/galvanic zinc plating
5 Plugs 8 stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 spring steel epoxy coating
8 Piston bearing 2 engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Thrust ring 2 engineering plastic
12 Ring 1 engineering plastic
13 Washer 1 stainless steel
14 Spring clamp 2 stainless steel
15 Indicator 1 plastic
16 Indicator housing 1 plastic
17 Bearing 1 engineering plastic
18 Cam 1 steel oxidation/galvanic zinc plating
19 Bearing 1 NBR
20 Bearing 1 engineering plastic
21 Bearing 1 engineering plastic
22 Sealing ring 2 NBR
23 Sealing ring 2 NBR
24 Bearing 2 stainless steel
25 Adjusting nut 2 stainless steel
26 Adjustment screw 2 stainless steel
27 Sleeve 2 aluminum

Pneumatic distributor DNOVA

Technical parameters of the pneumatic distributor DNOVA

Name Meaning
Type of pneumatic distributor spool valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220V
Full power, Va 4.5
Control two-way electromagnetic
Response frequency, cycles/sec 5

Sketch of the dimensions and sizes of the pneumatic distributor DNOVA

Dimensions and sizes of the pneumatic distributor DNOVA:

Model of pneumatic distributor 4V320-10
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 22
S, mm 20
T, mm 6.5
U, mm 2.4
H, mm 82.4

Air preparation unit DNOVA AFC2000

Technical parameters of the air preparation unit DNOVA AFC2000

Name Meaning
Working pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Size of filtered particles, µm 40 microns
Weight, kg 0.395

Sketch of the dimensions and sizes of the air preparation unit DNOVA AFC2000

Dimensions and sizes of the air preparation unit DNOVA AFC2000:

Model ATU AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

Specifications

Country of origin
China
Port opening
full bore
Body material
Stainless steel AISI 316
Maximum allowable temperature
200 °C
Connection type
For welding
Control type
Pneumatically actuated
Operating environment
Water, Steam, Oil Products, Neutral Media
Type of seal
PTFE
Voltage
220V
Explosion-proof
no
Torque
3 Nm
Limit switches
no
Type of pneumatic actuator
double action
