How it works

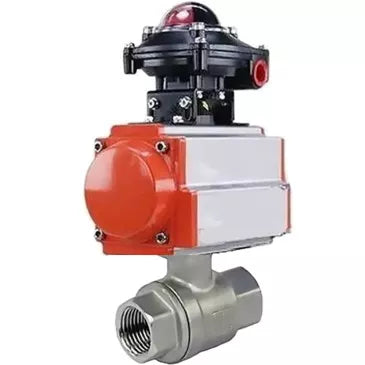

Double-acting rotary actuator
Two-way ball valve
Limit-switch box
The number that matters
Max. medium temperature
230°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Oil Products
- Liquid Media
- Neutral Media
- Gaseous Media
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Pneumatic actuators PA-DA are designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Pneumatic actuators DNOVA are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.
The DNOVA APL-510N-EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. As a rule, a sealed box contains two mechanical switches rated for up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.
Detail sketch of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H PA-DA APL-510N Ex
Materials of parts of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H PA-DA APL-510N Ex
| No. | Detail | Material |
| 1.6 | Frame | Stainless steel SS316 |
| 2.4 | Ball seal | PTFE |
| 3 | Ball | Stainless steel SS316 |
| 5 | Sealing ring | PTFE |
| 7 | Stock | Stainless steel SS316 |
| 8 | Rod seal | VITON |
| 9 | Stem nut | Stainless steel SS316 |
Sketch of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H PA-DA APL-510N Ex
Overall and installation dimensions of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H PA-DA APL-510N Ex
| D.N. | D | L | H2 | L1 | H |
| 10 | 10 | 63 | 34 | 153 | 98 |
| 15 | 15 | 58 | 37 | 153 | 98 |
| 20 | 20 | 66 | 40 | 153 | 98 |
| 25 | 24 | 72 | 54 | 153 | 98 |
| 32 | 32 | 83 | 60 | 153 | 98 |
| 40 | 38 | 95 | 70 | 216 | 135 |
| 50 | 49 | 110 | 68 | 216 | 135 |
| 65 | 64 | 147 | 94.5 | 216 | 135 |
| 80 | 76 | 169 | 103.5 | 279 | 160 |
| 100 | 98 | 204 | 122 | 279 | 160 |
Technical characteristics of PA-SA pneumatic actuators
| Design | Double action |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2…8 |
| Working environment | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, °C | • from –20 to +80 • from –40 to +80 (low-temperature version) • from –20 to +160 (with dry air) |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Manual duplication | There is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts have anti-corrosion coating) |
PA-SA pneumatic actuator materials sketch
PA-SA pneumatic actuator parts materials
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Characteristics of the APL-510N-EX limit switch unit
| Parameter | Meaning |
| Frame |
Weatherproof IP67/ NEMA4 4X,7,9 Explosion Proof E EX d IIC T6 |
| Compatible devices |
- quarter-turn pneumatic actuators; - any actuators with a shaft rotation of 90° |
| Full rotation angle | 90° |
| Cable entries | 2 x NPT 3/4” |
| Electrical connection | screw clamp terminals 8 points (0.08 – 2.5) mm2 |
| Cable entry thread | 2 x NPT 3/4” |
| Visual indicator type | two-color hemisphere: OPEN - yellow CLOSED - red |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Nominal current, A | 16 |
| Permissible ambient temperature, °C | from -20 to +66 |
| Average resource, cycles | 10,000,000 |
| Weight, kg | 1.8 |
- Port opening
- full bore
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 230 °C
- Connection type
- Threaded
- Control type
- Pneumatically actuated
- Operating environment
- Water, Steam, Oil Products, Liquid Media, Neutral Media, and Gaseous Media
- Type of seal
- PTFE
- Explosion-proof
- have
- Torque
- 4 Nm
- Limit switches
- have
- Type of pneumatic actuator
- double action
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
