• Ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H 16 bar, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with BKV APL -410N EX
1 1

Parts

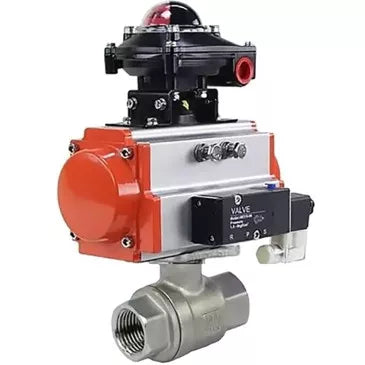

Ball valve BV3232P(2pc)-FP-T-ISO-H with pneumatic double-acting actuator

Double-acting · APL-410N EX limit switch · 4V320-08 220 V pilot · threaded · full bore · AISI 316 body · PTFE seal

Model BV3232P(2pc)-FP-T-ISO-H SKU D160-46633
$37.18 USD
$37.18 USD
Sale Sold out
Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.
Request a quote
View full details

How it works

Double-acting rotary actuator

Double-acting rotary actuator: Air to one port
Air to one portAir turns the shaft one way.
Double-acting rotary actuator: Air to the other port
Air to the other portAir to the other port turns it back.

Two-way ball valve

Two-way ball valve: Closed
ClosedThe ball bore stands across the pipe.
Two-way ball valve: Open
OpenThe bore lines up with the pipe.

5/2 double-solenoid pilot

5/2 double-solenoid pilot: Coil 14 pulse
Coil 14 pulseSupply 1 feeds port 4; port 2 exhausts through 3.
5/2 double-solenoid pilot: Coil 12 pulse
Coil 12 pulseSupply 1 feeds port 2; port 4 exhausts through 5.
5/2 double-solenoid pilot: Both coils off
Both coils offThe spool keeps its last position; the drawing retains the coil-14 example.

Limit-switch box

Limit-switch box: Closed
ClosedThe closed-position contact is made.
Limit-switch box: Open
OpenThe open-position contact is made.

The number that matters

Max. medium temperature

230°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

  • Water
  • Air
  • Steam
  • Mildly Aggressive Media
  • Oils
  • Industrial Water
  • Water-Glycol Solutions
  • Petroleum Products

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials. The use of ball valves as control valves is not allowed.

DNOVA double-acting rotary pneumatic actuators PA-DA and PA-SA rotary pneumatic actuators with return spring are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The pneumatic distributor is used to change the direction, start, and stop the flow of compressed air in a pneumatic system depending on the external control action.

The limit switch block is designed for visual and electrical signaling of the end positions of the shut-off element of pipeline valves.

Technical parameters of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H DN10-100 PN63/40, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX:

Name Meaning
Working environment temperature, °C from -20 to 200
Application heat supply
Working environment water, air, steam, slightly aggressive environment, oils, industrial water, water-glycol solutions, petroleum products
Connection to the pipeline coupling (threaded)
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining Internal thread
Control double acting pneumatic actuator
Availability of limit switches There is
Availability of pneumatic distributor There is

Sketch Ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H DN10-100 PN63/40, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX

Dimensions and sizes of ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H DN10-100 PN63/40, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX:

Size D mm L mm B1 mm E mm H2 mm N mm
DN10 10 63 153 72 34 174
DN15 15 58 153 72 37 174
DN20 20 66 153 72 40 174
DN25 25 72 153 72 54 174
DN32 32 83 153 72 60 174
DN40 40 95 174 89 70 174
DN50 50 95 174 89 70 174
DN65 65 147 216 109 94.5 174
DN100 100 204 279 134 122 174

Table of parts and materials Ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H DN10-100 PN63/40, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX:

№ Part name Material
1, 6 Body steel 316
2, 4 Ball seal PTFE
3 Char steel 316
5 O-ring PTFE
7 Stem steel 316
8 Stem seal PTFE
9 Stem nut steel 316
10 Handle stainless steel

Sketch of parts and materials Ball valves DNOVA BV3232P(2pc)-FP-T-ISO-H DN10-100 PN63/40, full bore coupling, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX

Technical parameters of the pneumatic drive DNOVA

Name Meaning
Design double acting
Working pressure, bar 6
Working environment filtered compressed air or non-aggressive gases, oils
Availability of manual backup No

Sketch of the dimensions and sizes of the pneumatic drive DNOVA

Dimensions and sizes of the pneumatic drive DNOVA:

Drive model DA-052 DA-065 DA-083 DA-105
G, mm 15 15 15 25
Mmm 80 80 80 80
N, mm 30 30 30 30
F0, mm 34 34 34 41
R, mm 20 20 20 20
B1, mm 153 174 216 279
C, mm 30 36 46 55
E, mm 72 89 109 134
J 4-M5x8 4-M6x10 4-M6x10 4-M8x12
TO 4-M6x10 4-M8x12 4-M8x12 4-M10x16
F, mm 26 26 26 26
A1, mm 108 125 152 189
D, mm 41 46 55 64
L, mm 11x11 14x14 17x17 22x22
H F03 F05 F05 F07
I F05 F07 F07 F10

Sketch of parts and materials of pneumatic drive DNOVA

Table of parts and materials of pneumatic drive DNOVA:

No. Name Quantity Material Coating
1 Frame 1 extruded aluminum hard anodized
2 Side plugs 2 cast aluminum
3 Gear 1 stainless steel nickel plated
4 Piston 2 steel/aluminum oxidation/galvanic zinc plating
5 Plugs 8 stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 spring steel epoxy coating
8 Piston bearing 2 engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Thrust ring 2 engineering plastic
12 Ring 1 engineering plastic
13 Washer 1 stainless steel
14 Spring clamp 2 stainless steel
15 Indicator 1 plastic
16 Indicator housing 1 plastic
17 Bearing 1 engineering plastic
18 Cam 1 steel oxidation/galvanic zinc plating
19 Bearing 1 NBR
20 Bearing 1 engineering plastic
21 Bearing 1 engineering plastic
22 Sealing ring 2 NBR
23 Sealing ring 2 NBR
24 Bearing 2 stainless steel
25 Adjusting nut 2 stainless steel
26 Adjustment screw 2 stainless steel
27 Sleeve 2 aluminum

Pneumatic distributor DNOVA

Technical parameters of the pneumatic distributor DNOVA

Name Meaning
Type of pneumatic distributor spool valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Full power, Va 4.5
Control two-way electromagnetic
Response frequency, cycles/sec 5

Sketch of the dimensions and sizes of the pneumatic distributor DNOVA

Dimensions and sizes of the pneumatic distributor DNOVA:

Model of pneumatic distributor 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Limit Switch Block DNOVA

Technical parameters of the limit switch block DNOVA

Name Meaning
Maximum limit switch voltage, V 250
Enclosure protection rating, IP 65
Working environment temperature, °C from -40 to +80
Service life, years 10

Sketch of the dimensions and sizes of the limit switch block DNOVA

Dimensions and sizes of the DNOVA limit switch block:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8
