Description
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.

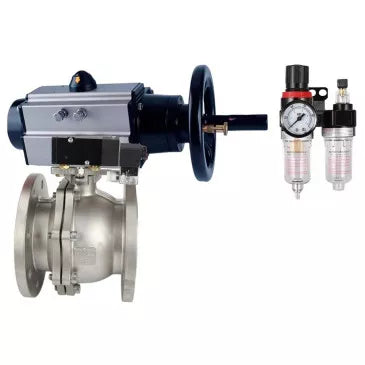

Technical parameters Ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE
| Name | Value |
|---|---|
| Nominal Pressure PN, bar | 16 |
| Operating Temperature, °C | -50 to 200 |
| Valve Type | Two-way |
| Application | Heat supply |
| Working Medium | Water, air, steam, technical water, oil, petroleum products |
| Pipeline Connection Type | Flanged |
| Water-dispensing | No |
| Bore Type | Full bore |
| Tightness Class | A |
| Control Type | Pneumatic actuator |
| Connection Type | Flanged |
| Actuation | Double-acting pneumatic actuator |
| Limit Switches | Yes |
| Pneumatic Distributor | Yes |
| Electro-pneumatic Positioner | No |
| Warranty, years | 1 |
| Country of Origin | China |
Dimensions and dimensions Ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE
| Size | ØD | ØD1 | ØD2 | L | H | A | E | I | B | C |
| 80 | 220 | 160 | 127 | 180 | 220 | 495 | 200 | 162 | 88 | 139 |
| 100 | 221 | 180 | 157 | 190 | 221 | 495 | 200 | 162 | 88 | 139 |
Sketch dimensions and dimensions Ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE
Parts and materials table Ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE
| № | Part | Material |
|---|---|---|
| 1 | Body | Steel 316 |
| 2 | Ball Seal | RPTFE |
| 3 | Ball | Steel 316 |
| 4,6,12 | Bolt, Nut | Steel 304 |
| 5,10 | Seal | PTFE |
| 7 | Pipe | Steel 316 |
| 8 | Stem | Steel 316 |
| 9 | Packing | PTFE |
| 11 | Packing | Steel 304 |
Parts and materials sketch Ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve DNOVA
| Parameter | Value |
|---|---|
| Type of Pneumatic Distributor | Spool |
| Operating Pressure, bar | 1.5 ÷ 8 |
| Supply Voltage, V | 220V |
| Actuation Frequency, cycles/sec | 5 |
Dimensions and dimensions of DNOVA 4V320-08 220V pneumatic directional control valve
| Parameter | Value (mm) |
|---|---|
| A | 71.9 |
| B | 45 |
| C | 94.4 |
| D | 27 |
| E | 69 |
| F | 40 |
| I | 24 |
| K | 40 |
| L | 188.8 |
| M | 69.4 |
| N | 50 |
| O | 83.4 |
| P | 22 |
| S | 20 |
| T | 6.5 |
| U | 2.4 |
| H | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve DNOVA 4V320-08 220V
Technical parameters of limit switch units DNOVA APL-510N EX
| Parameter | Value |
|---|---|
| Model of limit switch block | APL-510N EX |
| Ambient temperature, °C | from -20 to 66 |
| Service life, years | 10 |
Dimensions and dimensions of DNOVA APL-510N EX limit switch units
| Parameter | Value |
|---|---|
| Model of limit switch block | APL-510N EX |
| A, mm | 118 |
| B, mm | 118 |
| C, mm | 138.4 |
| D, mm | 17 |
| E, mm | 19 |
| F, mm | 7 |
| G, mm | 3 |
| H, mm | 4 |
| I, mm | 59 |
| J, mm | 59 |
| K, mm | 59 |
| L, mm | 59 |
| M, mm | 121.4 |
| Ød1, mm | 50 |
| Ød2, mm | 5 |
Technical parameters of DNOVA AFC2000 air treatment unit
| Parameter | Value |
|---|---|
| Operating pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Filtered particle size, µm | 40 µm |
| Weight, kg | 0.395 |
Dimensions and dimensions of DNOVA AFC2000 air treatment unit
| Parameter | Value |
|---|---|
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Sketch of dimensions and dimensions of DNOVA AFC2000 air treatment unit
Passports and certificates
Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs
Specifications
