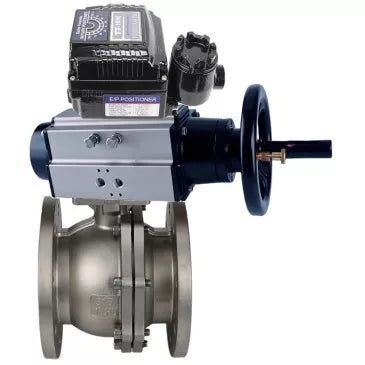

Ball valve BV3232P(2pc)-FP-F-ISO-H with pneumatic double-acting actuator

PA-DA-105-1 · YT-1000RSN with feedback positioner · flanged, AISI 316 body, PTFE seal

Model BV3232P(2pc)-FP-F-ISO-H SKU D160-49302

$285.81 USD

Sale Sold out

Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.

View full details

How it works

Double-acting rotary actuator

Two-way ball valve

Rotary positioner

Rotary positioner: Signal high — **Signal high**The drive holds the other end position.

The number that matters

Max. medium temperature

200°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

Water
Air
Steam
Industrial Water
Oil
Petroleum Products

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. Ball valves are not allowed to be used as regulating valves.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Electropneumatic rotary positioner is used to control pneumatic rotary actuators by means of electric controller or control system with analog DC output signal range from 4 to 20 mA.

Technical parameters of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN with feedback:

Parameter	Value
Nominal pressure PN, bar	16
Working medium temperature, °C	From -50 to 200
Type of valve device	Two-way
Application	Heat supply
Working medium	Water, air, steam, technical water, oil, oil products
Connection to pipeline	Flanged
Type of flow cross-section	Full-bore
Tightness class	A
Type of control	With pneumatic actuator
Connection	Flanged
Control	Double-acting pneumatic actuator
Presence of limit switches	No
Presence of pneumatic distributor	No
Presence of electro-pneumatic positioner	Yes
Warranty, years	1
Country of manufacture	China

Dimensions and sizes of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN with feedback:

Model	L, mm	S, mm	C, mm	H, mm	A, mm	E, mm	ØD, mm	ØD1, mm	ØD2, mm
DN80	180	62.5	117.5	115	495	200	200	168	138
DN100	190	62.5	117.5	221	495	200	221	180	157

Table of parts and materials of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN with feedback:

№	Part name	Material
1	Body	Steel 316
2	Ball seal	RPTFE
3	Ball	Steel 316
4, 6, 12	Bolt, nut	Steel 304
5, 10	Seal	PTFE
7	Spigot	Steel 316
8	Stem	Steel 316
9	Gland	PTFE
11	Gland component	Steel 304

Technical parameters of pneumatic actuators DNOVA:

Name	Value
Construction	Double-acting
Control pressure, bar	2 ÷ 8
Availability of manual doubler	No

Dimensions and sizes of pneumatic actuators DNOVA:

Model of pneumatic actuator	PA-DA-105-1
A, mm	495
A1, mm	461.5
B, mm	133
C, mm	109.5
D, mm	153
E, mm	57.5
F, mm	64
G, mm	26
H, mm	80
I, mm	30
N, mm	22
W, mm	200
J, mm	102
K, mm	70
L, mm	M10x16
M, mm	M8x13
O, mm	4
P, mm	4
S, mm	M6
T, mm	24
U, mm	32

Parts and materials table for pneumatic actuators DNOVA:

№	Part name	Material
1	Indicator screw	ABS (plastic)
2	Position indicator	ABS (plastic)
3	Spring clip	Stainless steel 304
4	Washer	Stainless steel 304
5	External washer	Engineering plastic
6	Adjustment screw	Stainless steel 304
7	Nut	Stainless steel 304
8	Washer	Stainless steel 304
9	Body	Extruded aluminum alloy
10	Piston	Die cast aluminum alloy
11	Piston O-ring	NBR
12	Bearing group	Engineering plastic
13	End cap O-ring	NBR
14	End cap	Die cast aluminum alloy coated with polyester paint
15	Fixing screw	Stainless steel 304
16	Internal washer	Engineering plastic
17	Sealing ring	NBR
18	Bearing	Engineering plastic
19	Retainer	Alloy steel
20	Gear	Alloy steel
21	Bearing	Engineering plastic
22	Sealing ring	NBR

Technical parameters of electropneumatic rotary positioners DNOVA YT-1000RSN

Name	Value
Model of electropneumatic positioner	YT-1000RSN
Control input signal, mA	4 ~ 20
Internal resistance, Ohm	250(±15)
Inlet pressure, bar	1,4~7
Lever travel angle	0~90°
Compressed air connection thread	1/4″
Pressure gauge connection thread	1/8″
Cable gland	G1/2″
Protection type	IP66
Compressed air flow rate, l/min	3
Outlet air flow rate, l/min	80
Body material	aluminum casting

Dimensions and sizes of electropneumatic rotary positioners DNOVA YT-1000RSN:

Positioner model	YT-1000RSI
A, mm	224.3
B, mm	166.5
C, mm	117.5
D, mm	132.3
E, mm	6
F, mm	122
G, mm	45
H, mm	45
I, mm	23
J, mm	27
K, mm	32.5
L, mm	35.5
M, mm	91.8
N, mm	37.2
O, mm	43.5
P, mm	26.5
Q, mm	33
R, mm	80.25
S, mm	62.5
T, mm	8
U1, mm	70
U2, mm	93
V1, mm	40
V2, mm	63
W, mm	26
X, mm	32
Y, mm	9
Z, mm	24

Port opening: full bore
Body material: Stainless steel AISI 316
Maximum allowable temperature: 200 °C
Connection type: Flanged
Control type: Pneumatically actuated
Operating environment: Water, Air, Steam, Industrial Water, Oil, and Petroleum Products
Type of seal: PTFE
Explosion-proof: No
Torque: 176 Nm
Limit switches: No
Type of pneumatic actuator: double action
Country of origin: China
