How it works
Double-acting rotary actuator
Two-way ball valve
5/2 double-solenoid pilot
The number that matters
Nominal pressure
25bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Petroleum Products
- Neutral Media
- Gaseous Media
- Water Supply
- Heating
- Industry
Ball valve DNOVA BV3131P(3pc)-FP-W-ISO-H LONG is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3131P(3pc)-FP-W-ISO-H LONG series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic actuator DNOVA PA-DA-105-1 of double action is designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valve DNOVA 4V320-08 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.

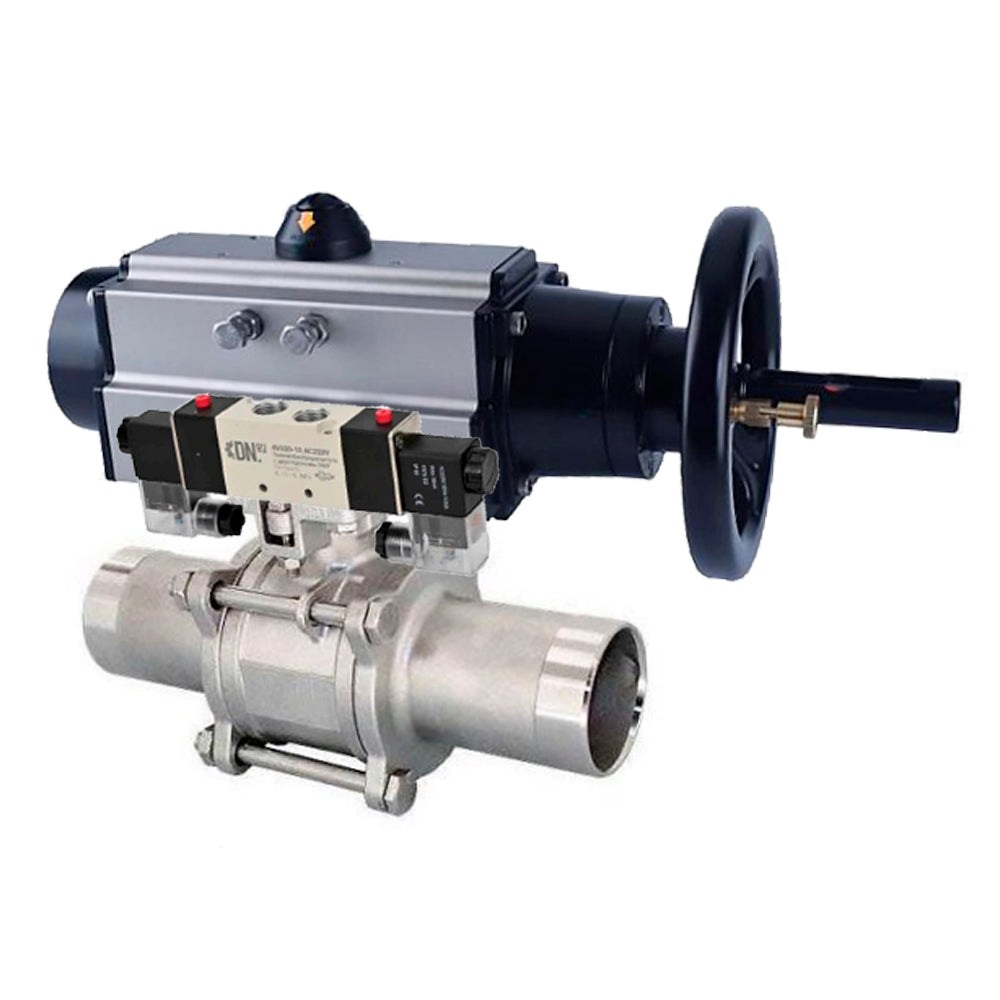

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG with double-acting pneumatic actuator PA-DA-105-1, pneumatic valve 4V320-08 220V:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 180 |
| Type of crane device | two-way |
| Application | water supply, heat supply, industry |
| Working environment | water, steam, petroleum products, neutral media, gaseous media |
| Connection to the pipeline | for welding |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | for welding |
| Control | double acting pneumatic actuator |
| Availability of pneumatic distributor | There is |
Sketch of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG with double-acting pneumatic actuator PA-DA-105-1, pneumatic valve 4V320-08 220V
Dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG c pneumatic actuator PA-DA-105-1 double-acting, pneumatic valve 4V320-08 220V:
| DN, mm | L, mm | D, mm | F, mm | L1, mm |
| 80 | 302 | 89 | 153 | 495 |
| 100 | 326 | 114 | 153 | 495 |
Detail and material sketch of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG
Table of parts and materials for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG:
| Item No. | Part name | Material |
| 1 | Frame | stainless steel 304 |
| 2 | Side element (2 pcs) | stainless steel 304 |
| 3 | Ball | stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | stainless steel 304 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4" |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of the DNOVA 4V320-08 220V pneumatic valve
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V320-08 220V |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Response frequency, cycles/sec | 5 |
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- 180 °C
- Connection type
- For welding
- Control type
- Pneumatic actuator
- Operating environment
- Water, Steam, Petroleum Products, Neutral Media, and Gaseous Media
- Applications
- Water Supply, Heating, and Industry
- Nominal pressure
- 25 bar
- Type of seal
- PTFE / PTFE / Teflon
- Locking material
- Stainless steel AISI 304
- Type of pneumatic actuator
- double action
- Angle of rotation
- 90°
- Country of origin
- China
