Description
Butterfly valve WBV1132N-2W-Fb PA-SA APL-510N-EX is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
SA pneumatic actuators are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
APL-510N-EX limit switch unit is an electrotechnical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of fault detection.
Technical parameters of DNOVA WBV1132N-2W-Fb-H water disc gate valves, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX:
| Nominal diameter DN, mm | 40-200 |
| Working pressure PN, bar | 16 |
| Working medium temperature t, ⁰C | -20 to +120 |
| Working medium | cold and hot water, air without oil and grease impurities, other media neutral to the material |
| Flow direction | double-sided |
| Body material | cast iron GG25 |
| Control type | manual (handle) |
| Supplement | electric or pneumatic actuator possible (ISO 5211-2001) |

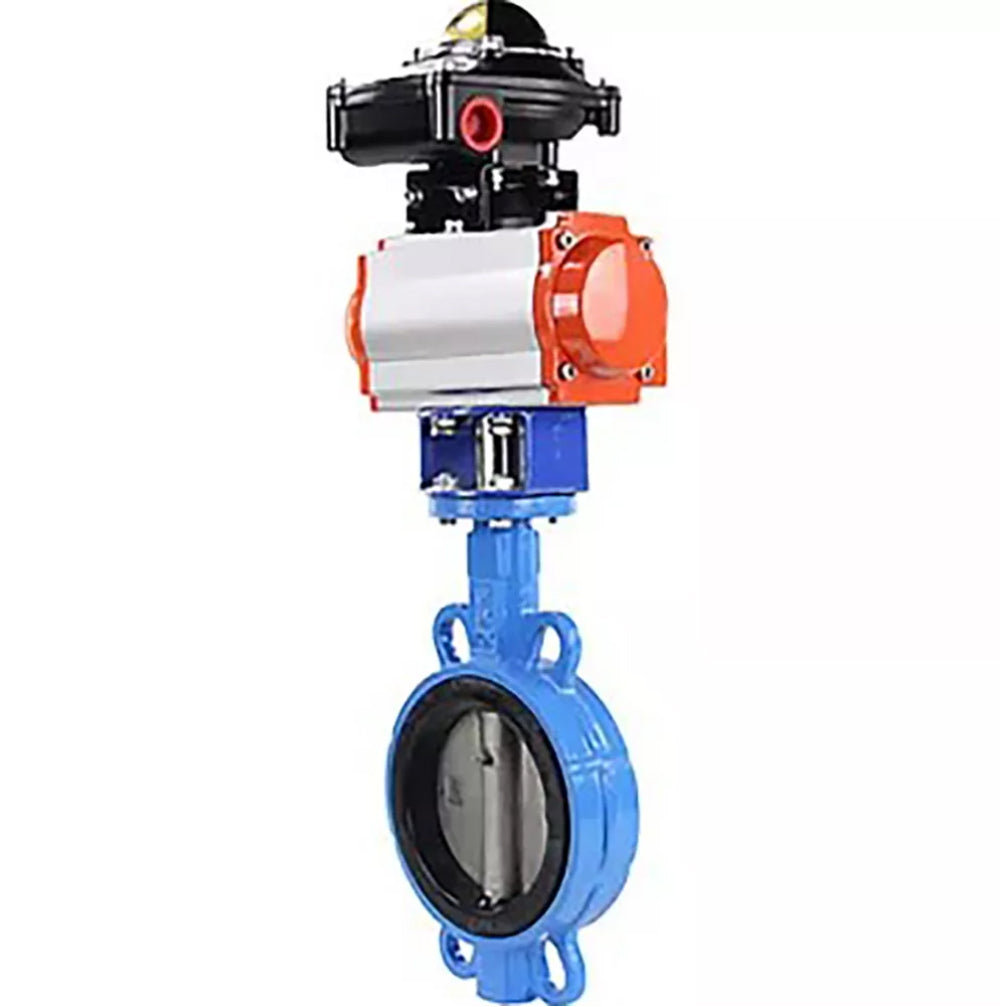

Gate WBV1132N-2W-Fb PA-SA APL-510N-EX
Dimensions and dimensions of the Water Disc ValvesDNOVA WBV1132N-2W-Fb-H, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX:
| DN | A, mm | C, mm | K, mm | L1, mm | E, mm |
| 40 | 114 | 109 | 121.4 | 153 | 34 |
| 50 | 131 | 109 | 121.4 | 153 | 43 |
| 65 | 140 | 134 | 121.4 | 279 | 46 |
| 80 | 150 | 134 | 121.4 | 279 | 46 |
| 100 | 163 | 134 | 121.4 | 279 | 52 |
| 125 | 178 | 174 | 121.4 | 405 | 56 |
| 150 | 191 | 174 | 121.4 | 405 | 56 |
| 200 | 238 | 199 | 121.4 | 465 | 60 |
| 250 | 285 | 257 | 121.4 | 542 | 68 |
| 300 | 315 | 257 | 121.4 | 542 | 78 |
Sketch of gates WBV1132N-2W-Fb PA-SA APL-510N-EX
Materials DNOVA WBV1132N-2W-Fb-H water disc gate valve, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX:
| № | Part name | Material |
| 1 | Body | cast iron GG25 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Rod | SS AISI 416 |
| 5 | Pin | SS AISI 420 |
| 6 | Sleeve | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
| 9 | Handle | ductile iron |
Detail sketch of gate valve WBV1132N-2W-Fb PA-SA APL-510N-EX
Technical data of SA pneumatic actuators
| Design | with return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, ⁰C | - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air) |
| Adjustment range | ± 5 ° for rotation at 0 ° and 90 ° |
| Manual override | is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts are anti-corrosion coated) |
Materials of SA pneumatic actuator parts:
| № | Name | Material |
| 1 | Enclosure | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Material sketch of SA pneumatic actuator
Characteristics of limit switch unit APL-510N-EX:
| Parameter | Significance |
| Enclosure | all-weather IP67/ NEMA4 4X,7,9 explosion-proof E EX d IIC T6 |
| Compatible devices | quarter-turn pneumatic actuators; - any actuators with shaft rotation by 90 |
| Full rotation angle | 90° |
| Cable glands | 2 x NPT 3/4” |
| Electrical connection | screw terminals 8 points (0.08 - 2.5) mm2 |
| Cable gland thread | 2 x NPT 3/4” |
| Type of visual indicator | two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red |
| Switches/sensors | two mechanical switches two proximity sensors |
| Rated voltage, V | 250 |
| Rated current, A | 16 |
| Permissible ambient temperature, °C | -20 to +66 |
| Average life, cycles | 10 000 000 |
| Weight, kg | 1.8 |
Wiring diagram of limit switch unit APL-510N-EX
