How it works
Double-acting rotary actuator
Butterfly disc
5/2 double-solenoid pilot
Limit-switch box
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
The butterfly valve is designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
PA-DA-105-1 double-acting pneumatic rotary actuators are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off device: valve, crane or disk gate. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors, which monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. Visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.
The air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at the preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.
Technical parameters of DNOVA WBV1132N-2W-Fb-H butterfly valves, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with double-acting pneumatic actuator PA-DA-105-1, 4V320-08 220V, LSU APL-210N, ATU AFC2000:
| Name | Significance |
| Working pressure, bar | 16 |
| Application | water supply, heating |
| Connection to pipeline | interflanged |
| Gate type | swivel disk |
| Control type | pneumatic actuator |
| Manufacturer's country | China |

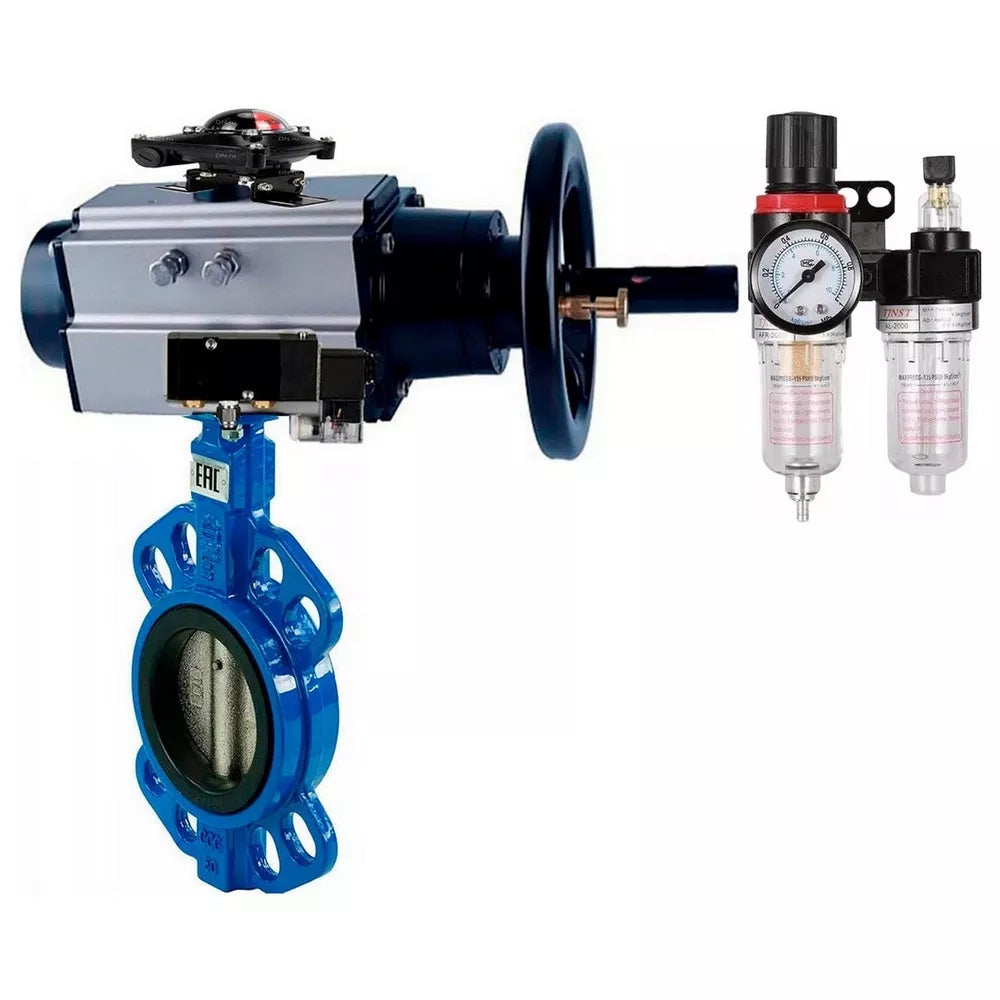

Butterfly valves WBV1132N-2W-Fb-H, body material - grey cast iron GG25, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-210N, ATU AFC2000
Dimensions and dimensions of butterfly valves DNOVA WBV1132N-2W-Fb-H, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with double-acting pneumatic actuator PA-DA-105-1, 4V320-08 220V, LSU APL-210N, ATU AFC2000:
| DN | A, mm | B, mm | A1, mm | W, mm | I, mm | C, mm |
| 125 | 178 | 125 | 495 | 200 | 162 | 139 |
| 150 | 191 | 140 | 495 | 200 | 162 | 139 |
Sketch Butterfly valves WBV1132N-2W-Fb-H, body material - grey cast iron GG25, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-210N, ATU AFC2000
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4" |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve 4V320-08 220V:
| Name | meaning |
| Type of pneumatic valve | slide valve |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Total power, Va | 4.5 |
| Control | double-sided electromagnetic |
| Frequency of operation, cycle/sec | 5 |
Pneumatic valve 4V320-08 220V
Dimensions and dimensions of pneumatic valve 4V320-08 220V:
| Pneumatic valve model | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V
Technical parameters of limit switch unit APL-210N:
| Name | Value |
| Model of limit switch unit | APL-210N |
| Maximum voltage of limit switch, V | 250 |
| Working environment temperature, °C | -40 to +80 |
| Service life, years | 10 |
Limit switch unit APL-210N
Dimensions and dimensions of the APL-210N limit switch unit:
| Model | H, mm | L, mm | B, mm | D, mm | D1, mm | M |
| APL-210N | 77 | 112 | 88 | 10 | 5 | 20x1.5 |
Sketch of dimensions and dimensions of limit switch unit APL-210N
Main parameters of the AFC2000 air treatment unit:
| Operating pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0,5 ÷ 9 |
| Breaking pressure, bar | 15 |
| Air connection | 1/4” |
| Operating temperature, C | -5 to +60 |
| Filter particle size, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0,395 |
| Set composition | filter-moisture separator, pressure regulator, lubricator, bracket |
Air treatment unit AFC2000
- Body material
- Grey cast iron GG25
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Nominal pressure
- 16 bar
- Type of seal
- NBR
- Coating type
- uncoated
- Disc material
- Stainless steel AISI 316L
- Explosion-proof
- No
- Manual override
- Handwheel
- Limit switches
- Yes
- Feedback sensor
- Limit switches
- Supply voltage
- 220 V
- Type of pneumatic actuator
- double action
- Angle of rotation
- 90°
- Country of origin
- China
