Description
A solenoid valve is a specialized device designed to conveniently control the flow of a working fluid. This process occurs in a pipeline under pressure.
In a normally open solenoid valve, until control voltage is applied, the valve is open and the working fluid flows unimpeded. When voltage is applied to the coil, the valve closes.

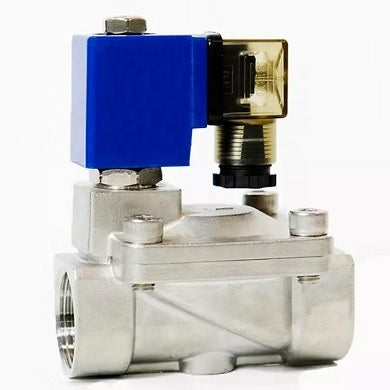

Overall and installation dimensions of electromagnetic valves DNOVA DHD31-NO-S EPDM G 0543 24V, body material - stainless steel AISI 316, seal - EPDM
| DN | Passage diameter, inch | Hole diameter, mm | A | B | C | H1 | L1 | K | coil rod diameter, mm | Weight of brass, kg | Weight of steel, kg |
| 10 | 3/8" | 13 | 66 | 48 | 124 | 42.3 | 39 | 30 | 15 | 1.22 | 1.22 |
| 15 | 1/2" | 13 | 66 | 48 | 124 | 42.3 | 39 | 30 | 15 | 1.20 | 1.20 |
| 20 | 3/4" | 20 | 75 | 58 | 130 | 42.3 | 39 | 30 | 15 | 1.35 | 1.35 |
| 25 | 1" | 25 | 96 | 70 | 143 | 42.3 | 39 | 30 | 15 | 1.60 | 1.50 |
| 32 | 1 1/4" | 32 | 131 | 96 | 158 | 42.3 | 39 | 30 | 15 | 2.95 | 2.85 |
| 40 | 1 1/2" | 40 | 131 | 96 | 158 | 42.3 | 39 | 30 | 15 | 2.85 | 2.75 |
| 50 | 2" | 50 | 165 | 120 | 179 | 42.3 | 39 | 30 | 15 | 4.60 | 4.40 |
Sketch of the electromagnetic valve DNOVA DHD31-NO-S EPDM G 0543 24V, body material - stainless steel AISI 316, seal - EPDM
Specifications
