Normally open solenoid valve
The number that matters
Nominal pressure
13bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Liquid Medium
- Heating Systems
- Irrigation Systems
- Ventilation Systems
A solenoid valve is a specialized device designed to conveniently control the flow of a working fluid. This process occurs in a pipeline under pressure.
In a normally open solenoid valve, until control voltage is applied, the valve is open and the working fluid flows unimpeded. When voltage is applied to the coil, the valve closes.

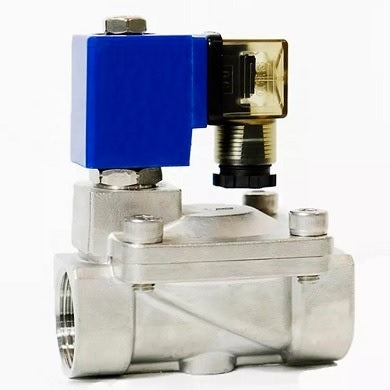

Overall and installation dimensions of electromagnetic valves DNOVA DHD31-NO-S EPDM G 0543 220V, body material - stainless steel AISI 316, seal - EPDM
| DN | Passage diameter, inch | Hole diameter, mm | A | B | C | H1 | L1 | K | coil rod diameter, mm | Weight of brass, kg | Weight of steel, kg |
| 10 | 3/8" | 13 | 66 | 48 | 124 | 42.3 | 39 | 30 | 15 | 1.22 | 1.22 |
| 15 | 1/2" | 13 | 66 | 48 | 124 | 42.3 | 39 | 30 | 15 | 1.20 | 1.20 |
| 20 | 3/4" | 20 | 75 | 58 | 130 | 42.3 | 39 | 30 | 15 | 1.35 | 1.35 |
| 25 | 1" | 25 | 96 | 70 | 143 | 42.3 | 39 | 30 | 15 | 1.60 | 1.50 |
| 32 | 1 1/4" | 32 | 131 | 96 | 158 | 42.3 | 39 | 30 | 15 | 2.95 | 2.85 |
| 40 | 1 1/2" | 40 | 131 | 96 | 158 | 42.3 | 39 | 30 | 15 | 2.85 | 2.75 |
| 50 | 2" | 50 | 165 | 120 | 179 | 42.3 | 39 | 30 | 15 | 4.60 | 4.40 |
Sketch of the electromagnetic valve DNOVA DHD31-NO-S EPDM G 0543 220V, body material - stainless steel AISI 316, seal - EPDM
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 120 °C
- Connection type
- Threaded G (BSPP), ISO 228
- Operating environment
- Water, Air, and Liquid Medium
- Applications
- Heating Systems, Irrigation Systems, and Ventilation Systems
- Nominal pressure
- 13 bar
- Type of seal
- EPDM
- Locking material
- EPDM
- Solenoid valve type
- Normally open
- Solenoid valve working principles
- Indirect acting
- Voltage
- 110/220V AC
