Description

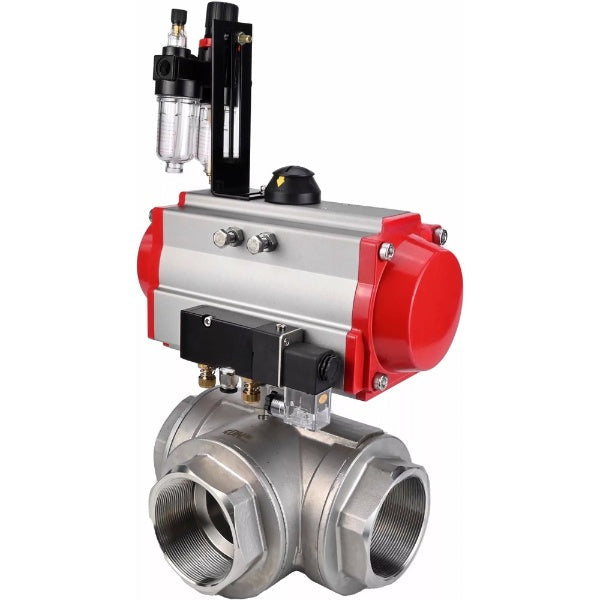

The DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3232P(4pc)-SP-3WL-T-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials.
The pneumatic actuator DNOVA PA-SA with return springs is designed to automate the process of controlling industrial shut-off valves - valves, ball valves. DNOVA pneumatic actuators are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.
Pneumatic distributor DNOVA 4V320-10 220V is used to change the direction, start, stop the flow of compressed air in the pneumatic system depending on the external control action.
The AFC2000 air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the pneumatic system elements with a large range of throughput from 500 liters/minute to 10,000 liters/minute. The lubricator (oil sprayer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic distributors.
Technical parameters of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic valve 4V320-10 220V, ATU AFC2000:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 200 |
| Type of crane device | three-way |
| Three-way valve type | L |
| Application | water supply, heat supply, steam supply |
| Working environment | water, steam, petroleum products, neutral media |
| Connection to the pipeline | coupling (threaded) |
| Water intake | No |
| Type of flow section | standard pass |
| Control type | With pneumatic drive |
| Joining | Internal thread |
| Control | pneumatic actuator with return springs |
| Availability of pneumatic distributor | There is |
Sketch of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic valve 4V320-10 220V, ATU AFC2000
Dimensions and sizes of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-10 220V, ATU AFC2000:
| DN, mm | L, mm | F, mm | L1, mm | X, mm | Y, mm |
| 10 | 71 | 98 | 153 | 88 | 162 |
| 15 | 71 | 98 | 153 | 88 | 162 |
| 20 | 82 | 98 | 153 | 88 | 162 |
| 25 | 98 | 98 | 153 | 88 | 162 |
| 32 | 118 | 115 | 174 | 88 | 162 |
| 40 | 122 | 135 | 216 | 88 | 162 |
| 50 | 150 | 135 | 216 | 88 | 162 |
| 65 | 178 | 160 | 279 | 88 | 162 |
| 80 | 202 | 160 | 279 | 88 | 162 |
| 100 | 231 | 160 | 279 | 88 | 162 |
Sketch of parts and materials of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H
Table of parts and materials of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H:
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |
Technical parameters of the PA-SA pneumatic actuator with return springs:
| Name | Meaning |
| Model | PA-SA |
| Design | with return springs |
| Control pressure, bar | 2 ÷ 8 |
Sketch of parts and materials of the pneumatic drive DNOVA PA-SA with return springs
Table of parts and materials of the pneumatic actuator DNOVA PA-SA with return springs:
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Technical parameters of the pneumatic distributor DNOVA 4V320-10 220V
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V320-10 220V |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Response frequency, cycles/sec | 5 |
Main parameters of the air preparation unit DNOVA AFC2000
| Working pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Destruction pressure, bar | 15 |
| Air connection | 1/4" |
| Operating temperature, C | from -5 to +60 |
| Size of filtered particles, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0.395 |
| Kit composition | filter-moisture separator, pressure regulator, lubricator, bracket |
