Description

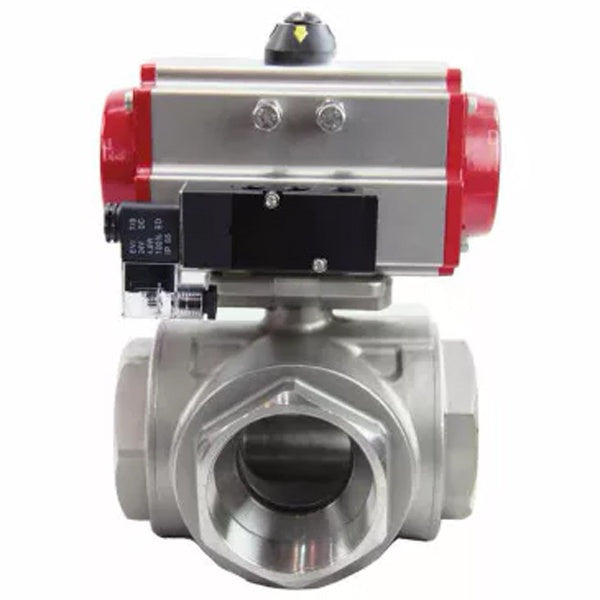

Ball valve DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves series BV3232P(4pc)-SP-3WL-T-ISO-H is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Pneumatic actuator DNOVA PA-SA with return springs is designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valve DNOVA 4V320-10 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
Technical parameters of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic valve 4V320-10 220V:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 200 |
| Type of crane device | three-way |
| Three-way valve type | L |
| Application | water supply, heat supply, steam supply |
| Working environment | water, steam, petroleum products, neutral media |
| Connection to the pipeline | coupling (threaded) |
| Water intake | No |
| Type of flow section | standard pass |
| Control type | With pneumatic drive |
| Joining | Internal thread |
| Control | pneumatic actuator with return springs |
| Availability of pneumatic distributor | There is |
Sketch of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-10 220V
Dimensions and sizes of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-10 220V:
| DN, mm | L, mm | F, mm | L1, mm |
| 10 | 71 | 98 | 153 |
| 15 | 71 | 98 | 153 |
| 20 | 82 | 98 | 153 |
| 25 | 98 | 98 | 153 |
| 32 | 118 | 115 | 174 |
| 40 | 122 | 135 | 216 |
| 50 | 150 | 135 | 216 |
| 65 | 178 | 160 | 279 |
| 80 | 202 | 160 | 279 |
| 100 | 231 | 160 | 279 |
Sketch of parts and materials of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H
Table of parts and materials of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H:
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |
Technical parameters of the PA-SA pneumatic actuator with return springs:
| Name | Meaning |
| Model | PA-SA |
| Design | with return springs |
| Control pressure, bar | 2 ÷ 8 |
Sketch of parts and materials of the pneumatic drive DNOVA PA-SA with return springs
Table of parts and materials of the pneumatic actuator DNOVA PA-SA with return springs:
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Technical parameters of the pneumatic distributor DNOVA 4V320-10 220V
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V320-10 220V |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Response frequency, cycles/sec | 5 |
