Description
Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off valve.
Pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off valve.
Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at the set level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.

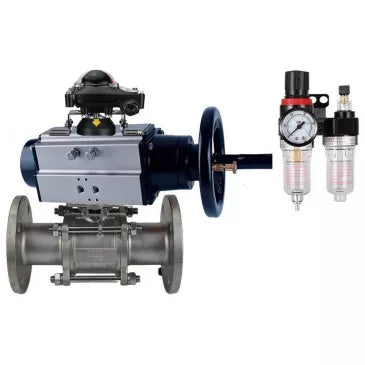

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with LSU APL-210N, with ATU AFC:
|
Parameter |
Value |
|
Nominal pressure PN, bar |
25 |
|
Working medium temperature, °C |
From -20 to 180 |
|
Type of valve device |
Two-way |
|
Application |
Water supply, Heat supply, Pneumatic systems |
|
Working medium |
Water, steam, oil products, liquid media, neutral media, gaseous media |
|
Connection to pipeline |
Flanged |
|
Type of passage section |
Full bore |
|
Control type |
With pneumatic actuator |
|
Connection |
Flanged |
|
Control |
Double-acting pneumatic actuator |
|
Presence of limit switches |
Yes |
|
Presence of pneumatic distributor |
Yes |
|
Presence of electro-pneumatic positioner |
No |
|
Warranty, years |
1 |
Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with LSU APL-210N, with ATU AFC:
| Model | L, mm | ØD, mm | ØD1, mm | ØD2, mm | A, mm | E, mm | I, mm | B, mm | C, mm |
| DN65 | 290 | 184 | 145 | 122 | 495 | 200 | 495 | 133 | 153 |
| DN80 | 310 | 200 | 160 | 138 | 495 | 200 | 495 | 133 | 153 |
Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-10 220V, with LSU APL-210N, with ATU AFC:
|
№ |
Part name |
Material |
Quantity |
|
1 |
Body |
Steel SS304 / SS316 |
1 |
|
2 |
Ball |
Steel S304 / S316 |
1 |
|
3 |
Bolt |
Steel S201 / S304 |
4~6 |
|
4 |
Nut |
Steel S201 / S304 |
6~12 |
|
5 |
Seal |
PTFE |
1 |
|
6 |
Stem |
Steel SS304 / SS316 |
1 |
|
7 |
Gland |
Steel S201 / S304 |
1 |
|
8 |
Cover |
Steel WCB/CF8/CF8M |
2 |
|
9 |
Seat rings |
PTFE |
2 |
|
10 |
Thrust washer |
PTFE |
1 |
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve Elephan 4V320-10
|
Name |
Value |
|
Type of pneumatic valve |
Spool valve |
|
Pneumatic valve model |
4V320-10 |
|
Working pressure, bar |
1.5 ÷ 8 |
|
Supply voltage, V |
220 V |
|
Response frequency, cycle/sec |
5 |
Dimensions and sizes of the pneumatic valve DNOVA 4V320-10
| Model of pneumatic valve | 4V320-10 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 83.4 |
| P, mm | 22 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| H, mm | 82.4 |
Technical parameters of limit switch units DNOVA APL-210N
| Name | Value |
| Model of limit switch unit | APL-210N |
| egree of protection of the housing, IP | 65 |
| Service life, years | 10 |
Dimensions and sizes of limit switch units DNOVA APL-210N:
| Model | H, mm | L, mm | B, mm | D, mm | D1, mm | M |
| APL-210N | 77 | 112 | 88 | 10 | 5 | 20x1.5 |
Table of parts and materials of limit switch unit DNOVA APL-210N:
|
Part |
Material |
|
Body |
Cast aluminum |
|
Indicator cap |
Polyester plastic |
|
3D indicator |
ABS-plastic |
|
Cam |
Polyester plastic |
|
Spring |
Stainless steel |
|
Screws |
Stainless steel |
|
Sealing rings |
NBR |
|
Bushing |
Bronze |
|
Grounding terminal |
Stainless steel |
|
Shaft |
Stainless stee |
Technical parameters of air preparation unit DNOVA AFC2000
| Name | Value |
| Working pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Filterable particle size, µm | 40 µm |
| Weight, kg | 0.395 |
Dimensions and sizes of air treatment unit DNOVA AFC2000:
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Passports and certificates
Data sheet for DNOVA DA/SA-xxx double-acting pneumatic actuator with return springs
