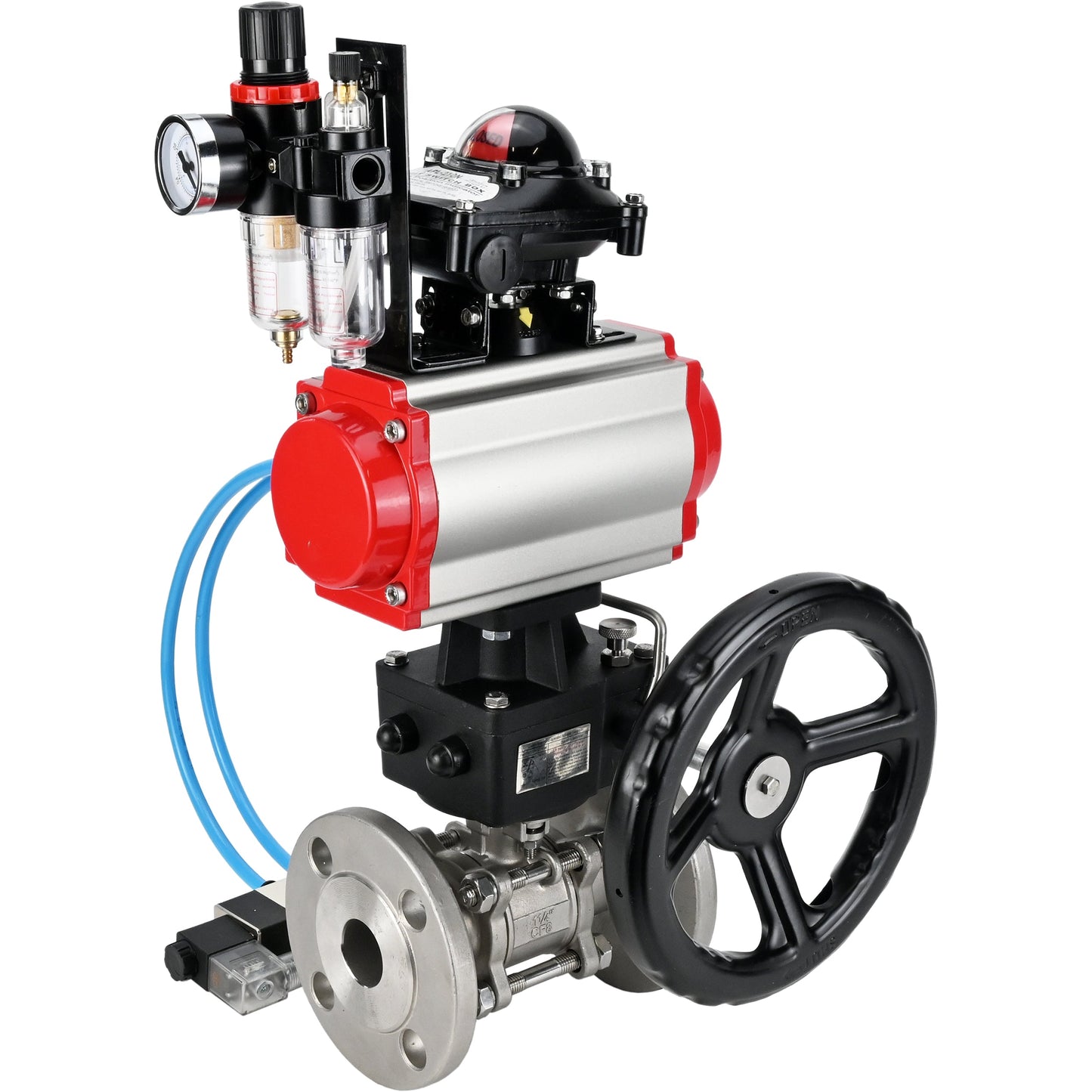

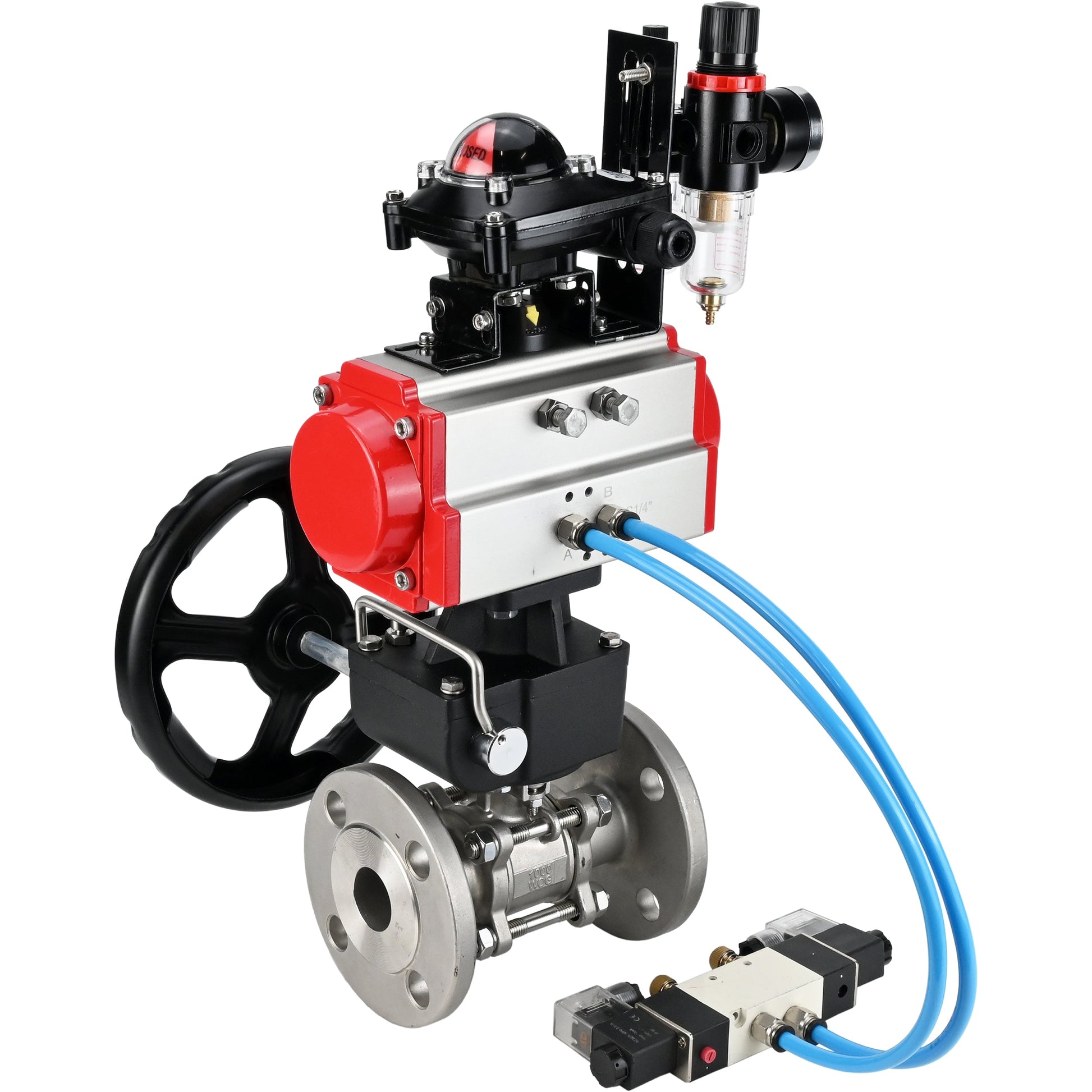

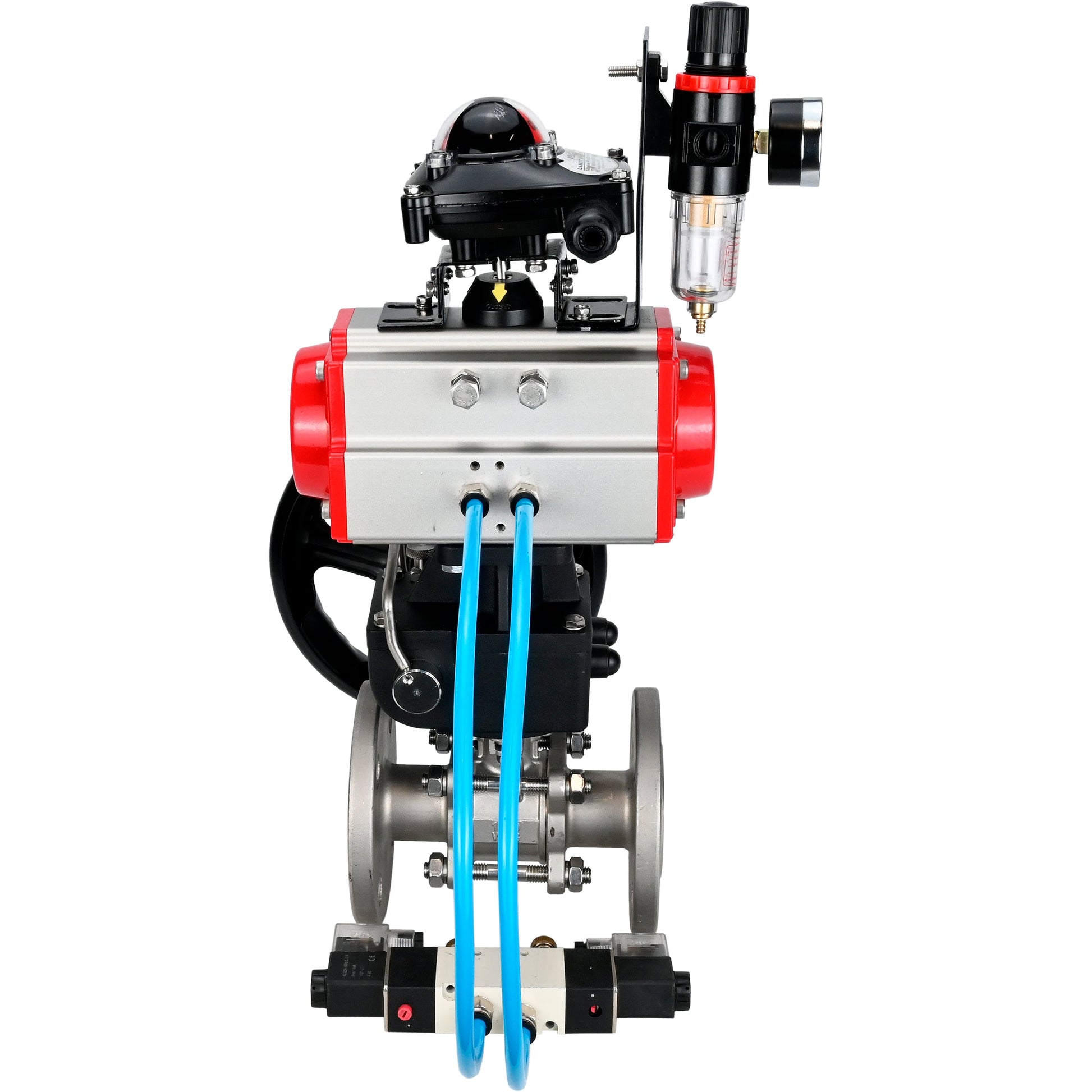

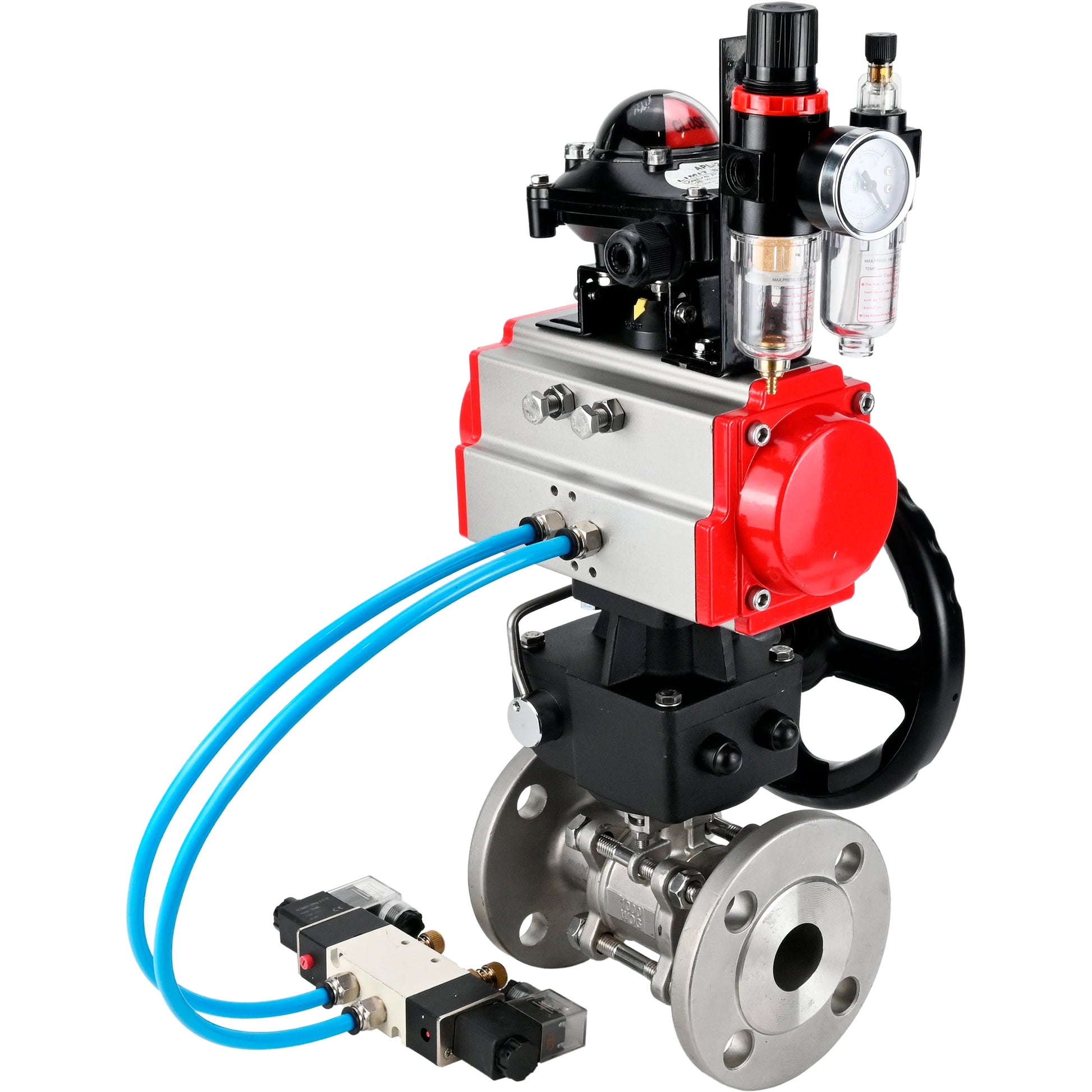

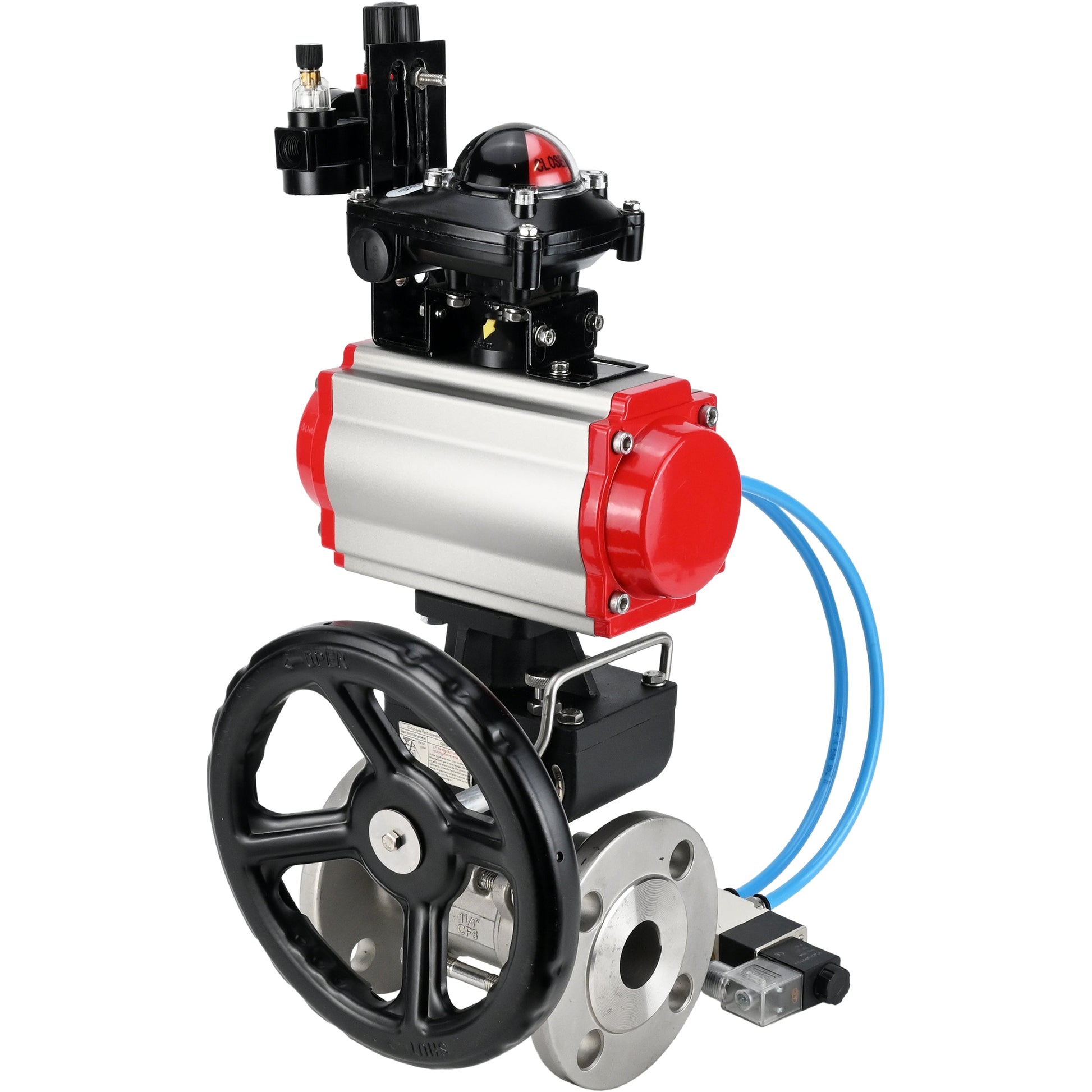

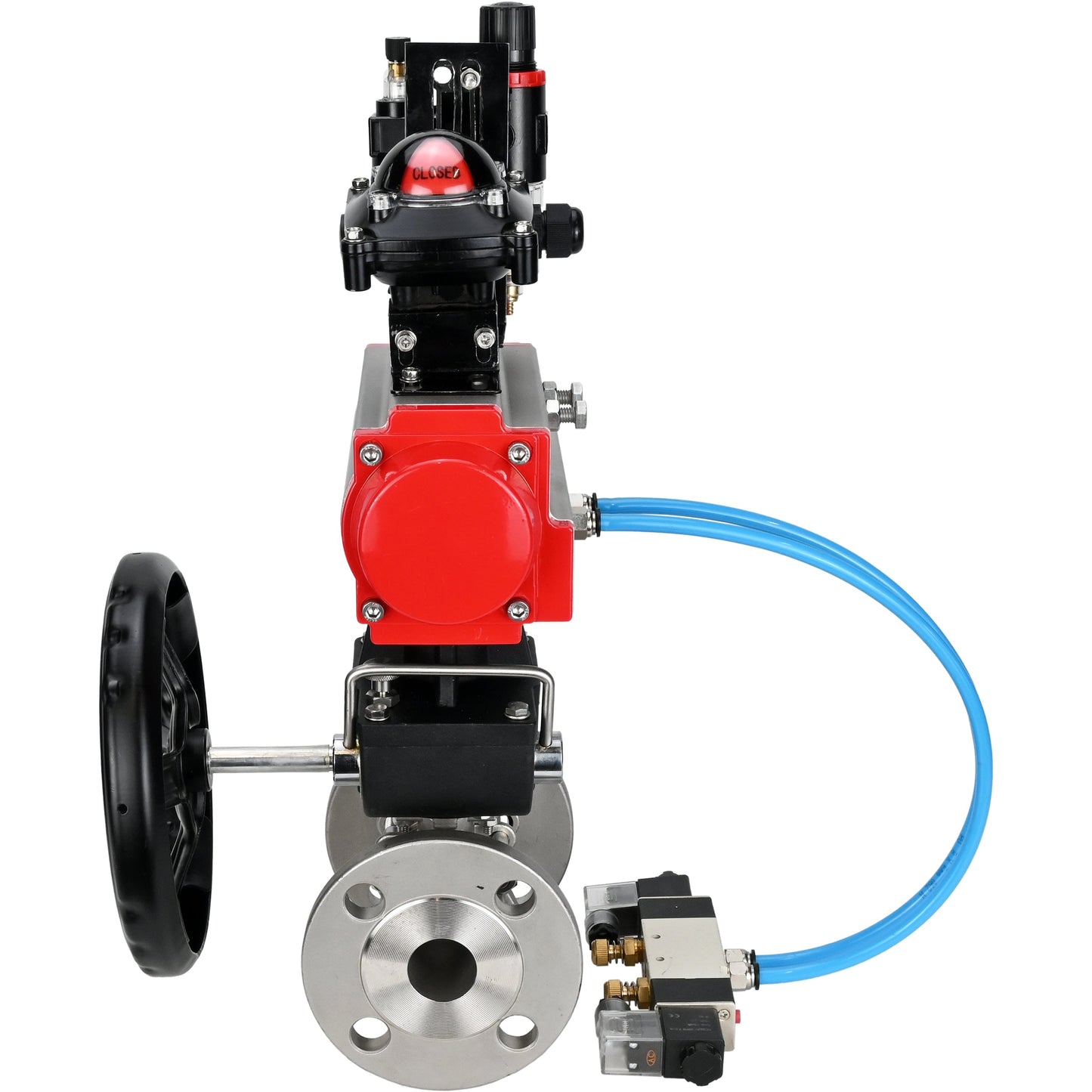

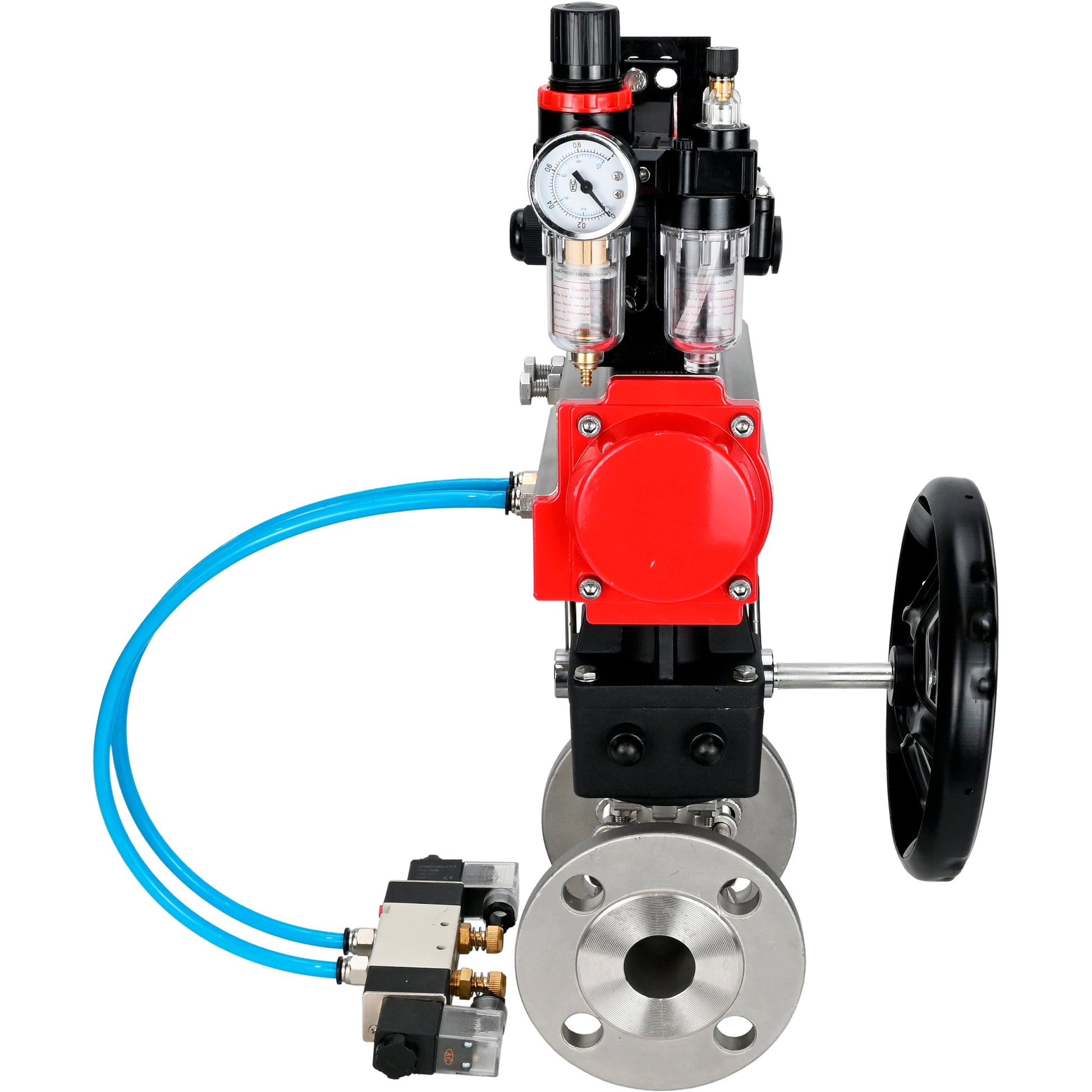

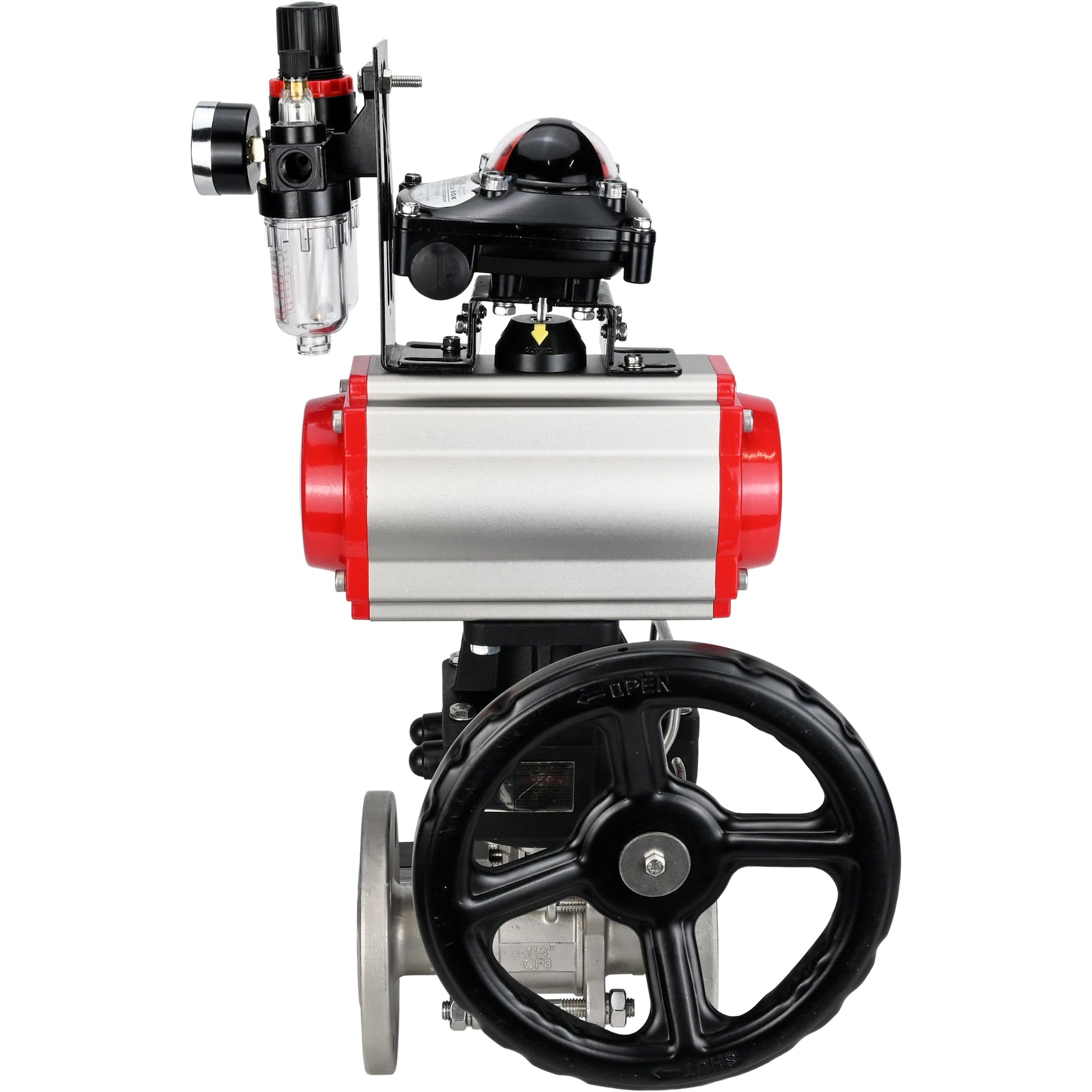

Ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-210N, manual Doubler MON1-250-T26-ISO, with ATU AFC

Regular price From $319.83 USD
Regular price Sale price From $319.83 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Collapsible content

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials.
Pneumatic actuators DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic valves are used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Manual doubler with worm gear and HDM reduction gearbox allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is intended to provide the most effective and efficient solution to the full range of manual override applications.
The limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off body: valve, tap or disc gate. It is mounted on top of the pneumatic actuator surface and is connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors that monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. The visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-210N, manual Doubler MON1-250-T26-ISO, with ATU AFC:

Parameter

Value

Operating pressure, bar

40

Working medium temperature, °C

From -20 to 180

Application

Water supply, heat supply, Pneumatic systems

Working medium

Water, steam, oil products, liquid media, neutral media, gaseous media

Connection to pipeline

Flanged

Type of flow cross-section

Full-bore

Type of control

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

Yes

Presence of pneumatic distributor

Yes

Warranty, years

1

Country of manufacture

China


Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-210N, manual Doubler MON1-250-T26-ISO, with ATU AFC:

DN d, mm ØD, mm L±1.5, mm L1, mm Н, mm I, mm B, mm C, mm
15 15 95 130 147 92 162 88 139
20 20 105 150 147 92 162 88 139
25 25 115 160 147 92 162 88 139
32 32 140 180 147 92 162 88 139
40 40 150 200 168 108 162 88 139
50 50 165 230 204 128.7 162 88 139
65 65 185 290 268 153 162 88 139
80 80 200 310 268 153 162 88 139
100 100 234 350 301 185 162 88 139
100 22х22, F10 100 220 350 268 153 162 88 139

Краны шаровые DN.ru BV3131P(3pc)-FP-F-ISO-H Ду15-100 Ру16-40, трехсоставные полнопроходные фланцевые, нержавеющая сталь SS304, PTFE, с пневмоприводом PA-DA, пневмораспределителем 4V320-08 220В, БКВ APL-210N, ручным дублером MON1-250-T26-ISO, с БПВ AFC2000



Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-210N, manual Doubler MON1-250-T26-ISO, with ATU AFC:

Part name

Material

Quantity

1

Body

Steel SS304 / SS316

1

2

Ball

Steel S304 / S316

1

3

Bolt

Steel S201 / S304

4~6

4

Nut

Steel S201 / S304

6~12

5

Seal

PTFE

1

6

Stem

Steel SS304 / SS316

1

7

Gland

Steel S201 / S304

1

8

Cover

Steel WCB/CF8/CF8M

2

9

Seat rings

PTFE

2

10

Thrust washer

PTFE

1


Technical parameters of pneumatic actuator DNOVA

Parameter

Value

Construction

Double-acting

Working pressure, bar

6

Working medium

Filtered compressed air or non-aggressive gases, oils

Availability of manual doubler

Handwheel


Dimensions and sizes of pneumatic actuator DNOVA:

Actuator model DA-052 DA-065
G, mm 15 15
M, mm 80 80
N, mm 30 30
F0, mm 34 34
P, mm 20 20
B1, mm 153 174
C, mm 30 36
E, mm 72 89
J 4-M5x8 4-M6x10
K 4-M6x10 4-M8x12
F, mm 26 26
A1, mm 108 125
D, mm 41 46
L 11x11 14x14
H F03 F05
I F05 F07

Parts and materials table for the pneumatic actuator DNOVA:

Name

Quantity

Material

Coating

1

Body

1

Extruded aluminum

Hard anodized

2

Side plugs

2

Cast aluminum

-

3

Gear

1

Stainless steel

Nickel-plated

4

Piston

2

Steel/Aluminum

Oxidation/galvanized

5

Plugs

8

Stainless steel

-

6

Piston ring

2

NBR

-

7

Springs

0–12

Spring steel

Epoxy coating

8

Piston bearing

2

Engineering plastic

-

9

Piston ring

2

NBR

-

10

Plug

2

NBR

-

11

Thrust ring

2

Engineering plastic

-

12

Ring

1

Engineering plastic

-

13

Washer

1

Stainless steel

-

14

Spring clip

2

Stainless steel

-

15

Indicator

1

Plastic

-

16

Indicator body

1

Plastic

-

17

Bearing

1

Engineering plastic

-

18

Cam

1

Steel

Oxidation/ galvanized steel

19

Bearing

1

NBR

-

20

Bearing

1

Engineering plastic

-

21

Bearing

1

Engineering plastic

-

22

Sealing ring

2

NBR

-

23

Sealing ring

2

NBR

-

24

Bearing

2

Stainless steel

-

25

Adjustment nut

2

Stainless steel

-

26

Adjustment screw

2

Stainless steel

-

27

Bushing

2

Aluminum

-


Technical parameters of pneumatic valve DNOVA

Name

Value

Type of pneumatic valve

Spool valve

Working pressure, bar

1.5 ÷ 8

Supply voltage, V

220 V

Full power, Va

4.5

Control

Two-way electromagnetic

Response frequency, cycle/sec

5


Dimensions and sizes of pneumatic valve DNOVA:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4


Technical parameters of the manual doubler DNOVA

Parameter

Value

Protection rating, IP

67

Type of connection

ISO 5211


Dimensions and sizes of the manual doubler DNOVA:

Manual doubler model HDM-1
b1, mm 14
N, mm 22
b2, mm 14
M, mm 16
D1, mm 50
D2, mm 70
D3, mm 50
D4, mm 70
ØC, mm 88
C, mm 120
A, mm 90
F, mm 115
Y, mm 145
4-M1 4-M6
4-M2 4-M8
4-Ø1 4-Ø6.5
4-Ø2 4-Ø8.5
E, mm 70x70
B, mm 55
S, mm 53
K, mm 10
T, mm 145


Parts and materials table for manual doubler DNOVA:

Part name

Material

1

Stem for pneumatic actuator mounting

Steel

2, 8

Sealing ring

EPDM

3

Locking spring

Spring steel

4

Upper end cover

Aluminum alloy

5

Screw

Steel 304

6

Locking bracket (main rod)

Steel 304

7

Body

Aluminum alloy

9

Gearbox

Cast iron BCh50

10

Transition coupling

Cast iron BCh40

11

Gearbox stem

Cast iron BCh40



Technical parameters of limit switch unit DNOVA

Name Value
Maximum limit switch voltage, V 250
Degree of protection of the housing, IP 67
Operating medium temperature, °C from -40 to +80
Service life, years 10


Dimensions and sizes of the limit switch unit DNOVA:

Model H, mm L, mm B, mm D, mm D1, mm M
APL-210N 77 112 88 10 5 20x1.5

Technical parameters of air preparation unit DNOVA AFC2000

Name Value
Working pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filterable particle size, µm 40 µm
Weight, kg 0.395


Dimensions and sizes of air treatment unit DNOVA AFC2000:

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5


Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

Specifications

Country of origin
China
Port opening
full bore
Body material
Stainless steel AISI 304
Maximum allowable temperature
180 °C
Connection type
Flanged
Control type
Pneumatically actuated
Operating environment
Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
Type of seal
PTFE
Voltage
220V
Explosion-proof
no
Torque
235 Nm
Limit switches
have
Type of pneumatic actuator
double action

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
