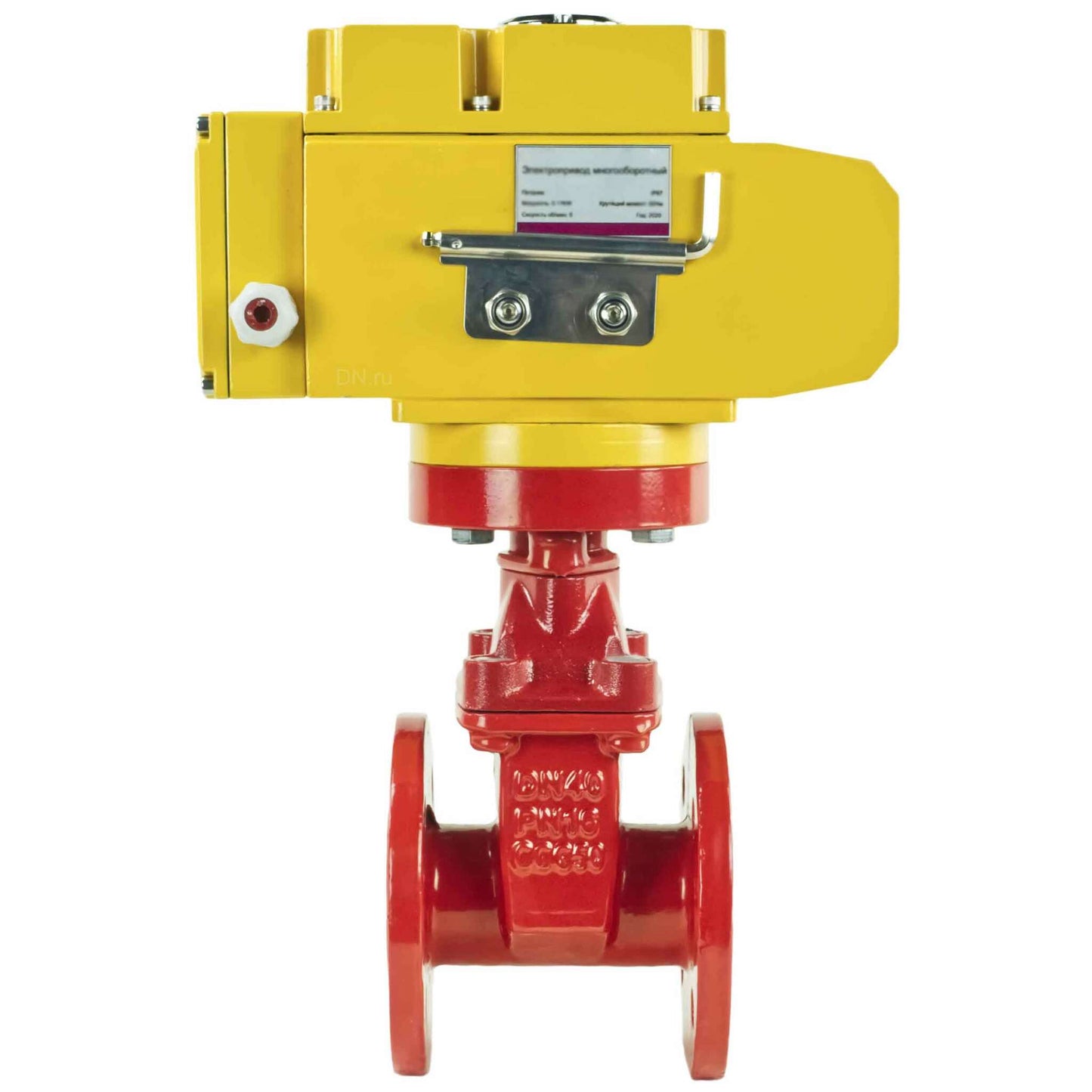

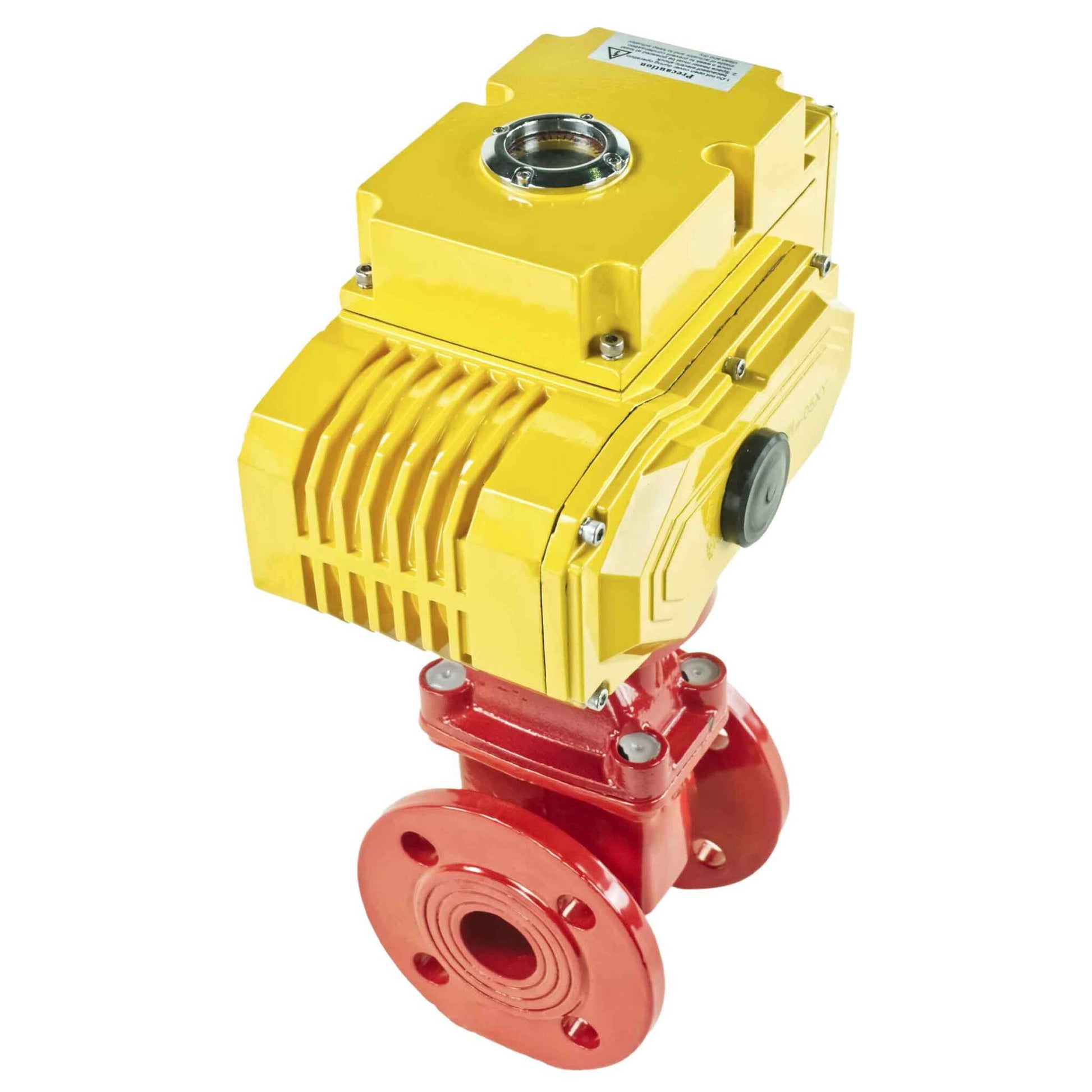

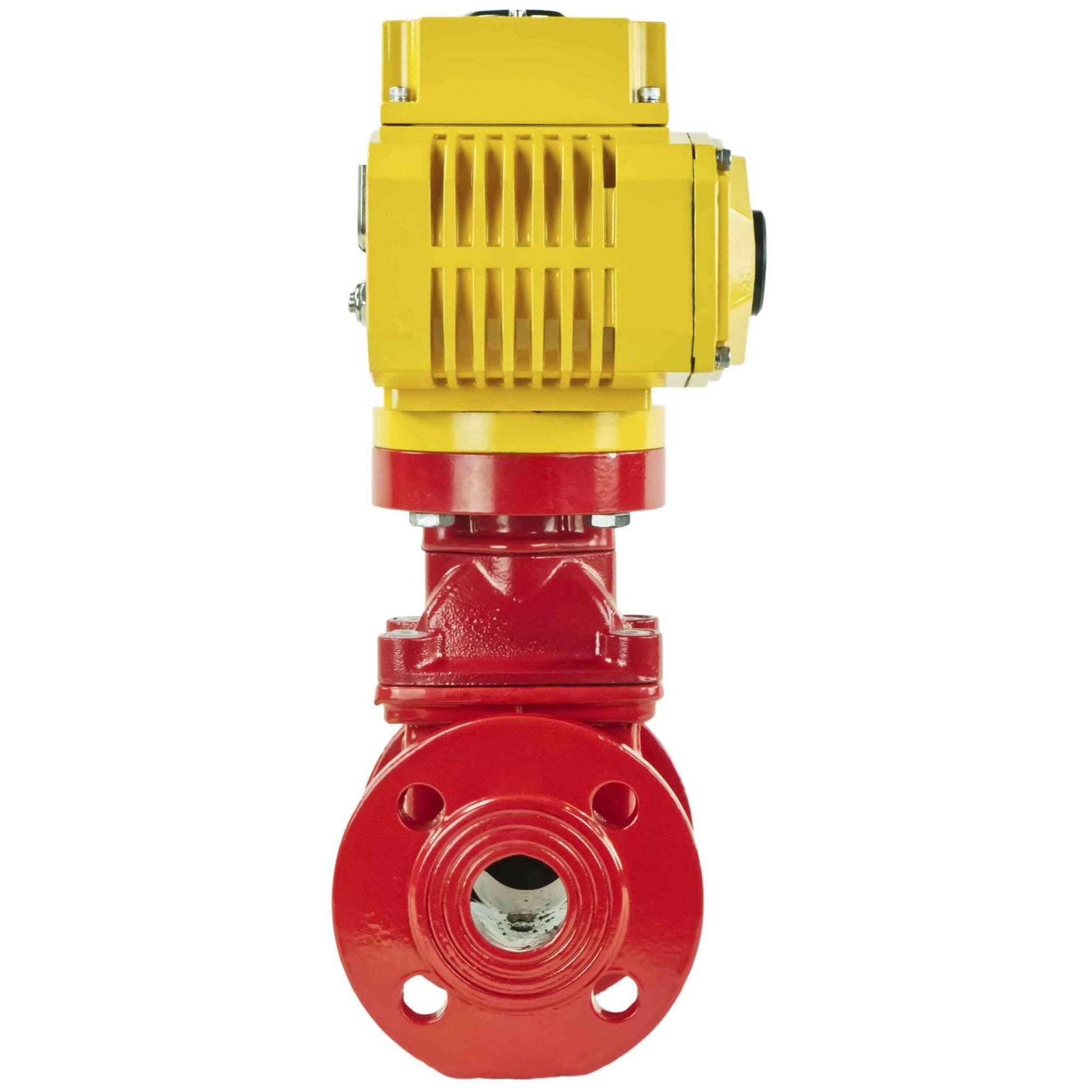

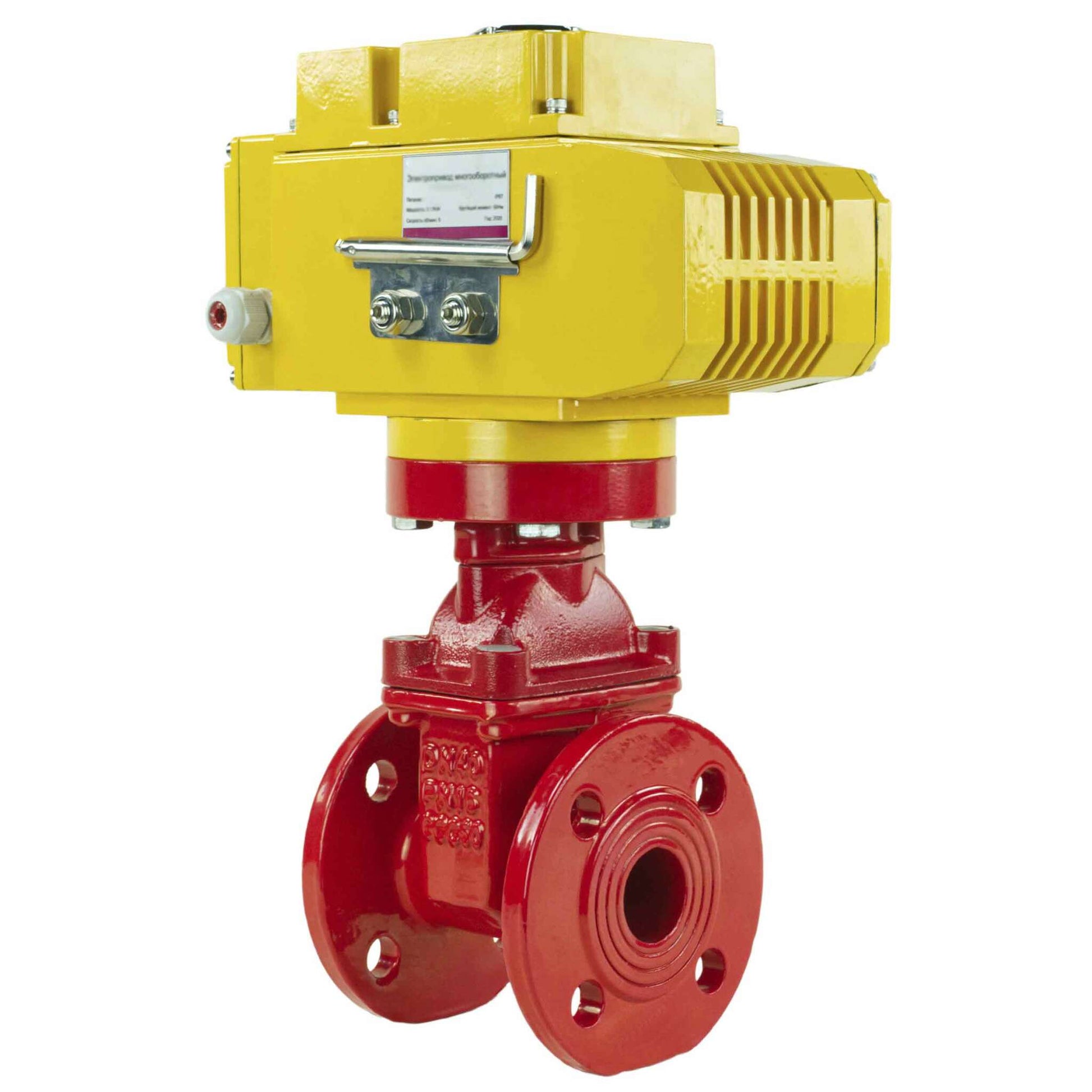

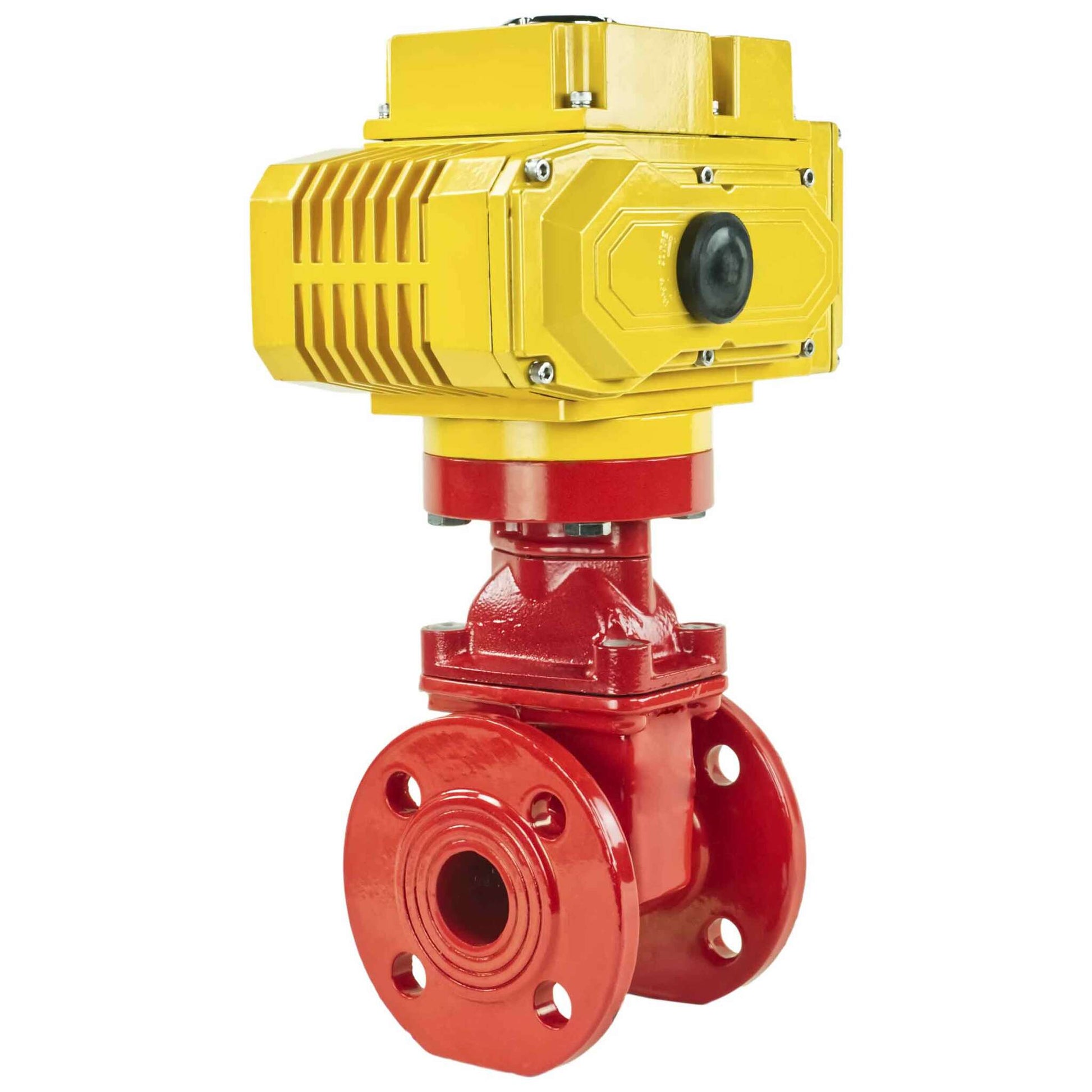

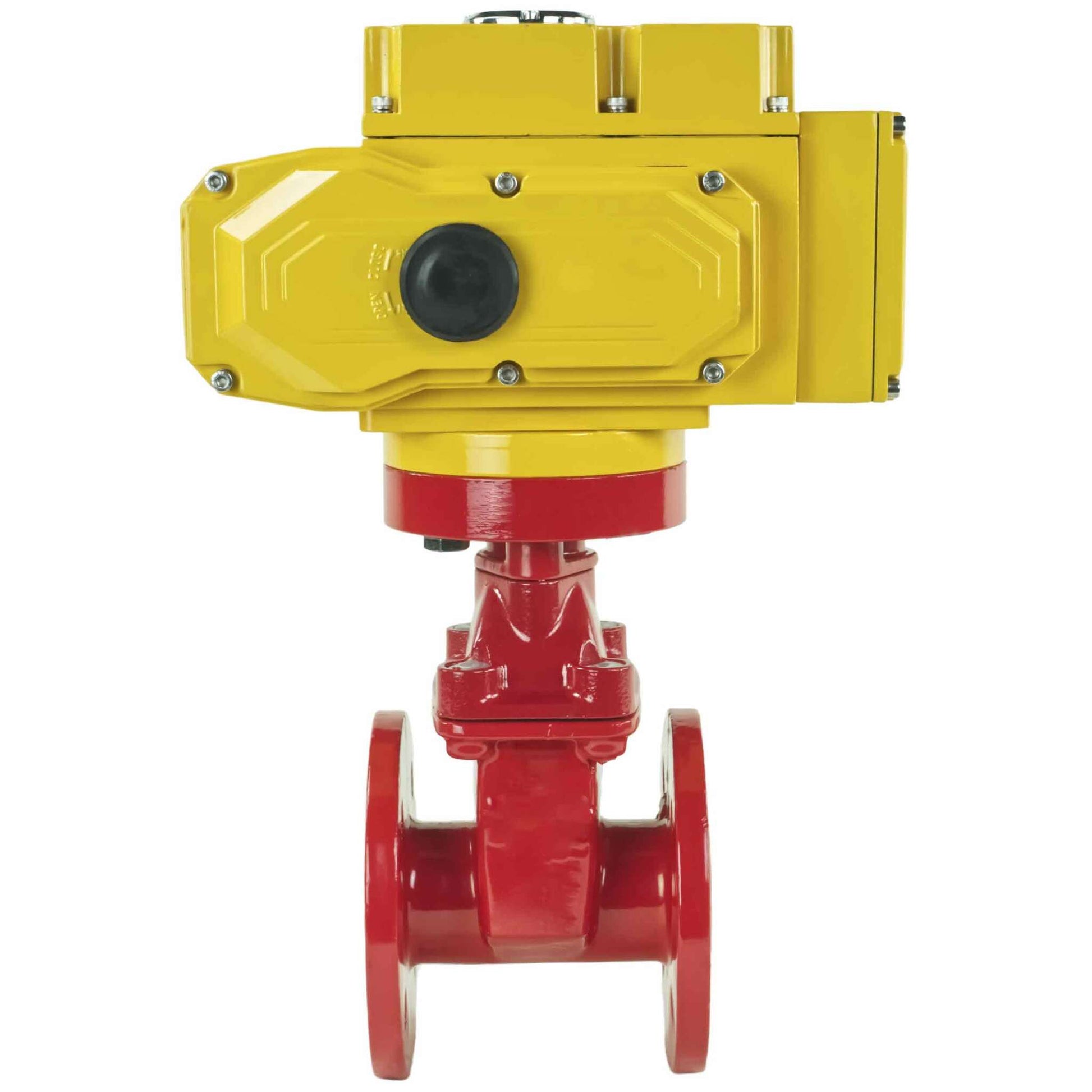

Wedge gate valve red DNOVA-GGG50-EPDM-F4-RED PSI232 class 150 T=230-248°F flange connection, with rubber lined wedge EPDM, electric actuator DNOVA MT-110/220, 110/220V

From $231.84 USD
From $231.84 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Wedge gate valve red DNOVA-GGG50-EPDM-F4-RED PSI232 class 150 flange connection, with rubber lined wedge EPDM, electric actuator DNOVA MT-220, 220V is intended for installation on pipelines (Water and other liquid and gaseous non-aggressive media, in relation to which the materials used in the valve are corrosion-resistant) as a shut-off device in automatic control systems heat supply and water supply at industrial and civil facilities. It is connected to the pipeline using flanges. Installation is carried out with the drive facing upwards. Valves with electric drive are designed for operation in intermittent and short-term mode S2 in accordance with an on-time (ON) of 15%. The electric drive is powered from an alternating current network of 220 V 50 Hz.

Specifications

Country of origin
China
Body material
Сast iron GGG50
Stopper Material
Cast iron + EPDM
Maximum allowable temperature
120 °C
Connection type
Flanged
Control type
Electric actuator
Operating environment
Water, Compressed Air, Neutral Liquids
Gate valve type
Wedge Gate Valve
Nominal pressure
16 bar
Type of seal
EPDM
Coating type
Epoxy powder
Valve feedback
Limit switches
Explosion-proof
No
Thermal protection
Yes
Torque
50 Nm
Limit switches
Yes
Type of electric actuator
Multi-turn
Control signal
ON/OFF
Shaft shape rod
18 mm
Shaft shape square
18х18 mm
ISO - flange type
F10,F12
Rated current consumption
1.6 A
Supply voltage
110/220 V
Telescopic rod
No
Control column
No
Actuator model
MT-50

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN40 / 16 barD040-07335
DN40 / 16 barD040-07335
$0.00/ea		 $0.00
Sold out
$0.00/ea $0.00
DN50 / 16 barD040-07594
DN50 / 16 barD040-07594
$231.84/ea		 $0.00
$231.84/ea $0.00
DN65 / 16 barD040-07336
DN65 / 16 barD040-07336
$217.90/ea		 $0.00
$217.90/ea $0.00
DN80 / 16 barD040-07337
DN80 / 16 barD040-07337
$265.81/ea		 $0.00
$265.81/ea $0.00
DN100 / 16 barD040-07338
DN100 / 16 barD040-07338
$267.69/ea		 $0.00
$267.69/ea $0.00
DN125 / 16 barD040-07339
DN125 / 16 barD040-07339
$260.11/ea		 $0.00
$260.11/ea $0.00
DN150 / 16 barD040-07598
DN150 / 16 barD040-07598
$0.00/ea		 $0.00
Sold out
$0.00/ea $0.00
DN200 / 16 barD040-07340
DN200 / 16 barD040-07340
$0.00/ea		 $0.00
Sold out
$0.00/ea $0.00
DN250 / 16 barD040-07341
DN250 / 16 barD040-07341
$0.00/ea		 $0.00
Sold out
$0.00/ea $0.00
DN300 / 16 barD040-07342
DN300 / 16 barD040-07342
$0.00/ea		 $0.00
Sold out
$0.00/ea $0.00
DN40 MT-N-005Z-O1-220VAC-U1 / 16 barD040-08374
DN40 MT-N-005Z-O1-220VAC-U1 / 16 barD040-08374
$217.16/ea		 $0.00
$217.16/ea $0.00
DN150 MT-N-020Z-O1-220VAC-U1 / 16 barD040-08376
DN150 MT-N-020Z-O1-220VAC-U1 / 16 barD040-08376
$293.44/ea		 $0.00
$293.44/ea $0.00
