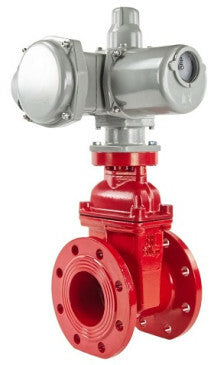

Wedge gate valve DNOVA PSI232 flange connection, body material - cast iron GGG50, wedge material - rubber, seal - EPDM, color -red, electric actuator GZ-380V

From $967.36 USD
From $967.36 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A wedge gate valve is intended for installation on pipelines (Water and other liquid and gaseous non-aggressive media, in relation to which the materials used in the valve are corrosion-resistant) as a shut-off device in automatic control systems for heat supply and water supply at industrial and civil facilities. It is connected to the pipeline using flanges. Installation is carried out with the drive upward. The electric drive is powered from an alternating current network with a frequency of 50 Hz.







Materials

1 Frame high-strength cast iron GGG50
2 Wedge cast iron + EPDM
3 screw bronze
4 Stock Stainless steel
5 Pad EPDM
6 Case cover high-strength cast iron GGG40
7 Ring Bronze
8 Ring EPDM
9 Bolts Carbon steel
10 ISO flange ductile iron
11 Seal ductile iron
12 Ring EPDM
13 Bolts Carbon steel




Dimensions

D.N. L D C B n.d. W G K S b h h2
40 140 150 110 84 4-19 125 102 70 18 6 30 190
50 150 165 125 99 4-19 125 102 70 18 6 30 200
65 170 185 145 119 4-19 125 102 70 20 6 30 215
80 180 200 160 133 8-19 125 102 70 20 6 30 250
100 190 220 180 154 8-19 125 102 70 20 6 30 280
125 200 250 210 184 8-19 125 102 70 20 6 30 345
150 210 285 240 210 8-23 125 102 70 20 6 30 385
200 230 340 295 265 12-23 175 140 100 30 8 30 460
250 250 405 355 319 12-28 175 140 100 30 8 30 580
300 270 460 410 370 12-28 175 140 100 30 8 30 640

Specifications

Country of origin
China
Body material
Сast iron GGG50
Stopper Material
Cast iron + EPDM
Maximum allowable temperature
120 °C
Connection type
Flanged
Control type
Electric actuator
Operating environment
Water, Compressed Air, Neutral Liquids
Gate valve type
Wedge Gate Valve
Nominal pressure
16 bar
Type of seal
EPDM
Coating type
Epoxy powder
Valve feedback
Limit switches
Explosion-proof
No
Thermal protection
Yes
Torque
70 Nm
Limit switches
Yes
Type of electric actuator
Multi-turn
Control signal
ON/OFF
Shaft shape rod
18 mm
ISO - flange type
F10
Rated current consumption
1.2 A
Supply voltage
380 V
Telescopic rod
No
Control column
No

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN50 / 16 barD040-00720
DN50 / 16 barD040-00720
$967.36/ea		 $0.00
$967.36/ea $0.00
DN80 / 16 barD040-00728
DN80 / 16 barD040-00728
$1,006.22/ea		 $0.00
$1,006.22/ea $0.00
DN100 / 16 barD040-00732
DN100 / 16 barD040-00732
$1,183.08/ea		 $0.00
$1,183.08/ea $0.00
DN125 / 16 barD040-00738
DN125 / 16 barD040-00738
$1,466.56/ea		 $0.00
$1,466.56/ea $0.00
DN150 / 16 barD040-00744
DN150 / 16 barD040-00744
$1,501.67/ea		 $0.00
$1,501.67/ea $0.00
DN200 / 16 barD040-00750
DN200 / 16 barD040-00750
$2,120.38/ea		 $0.00
$2,120.38/ea $0.00
DN250 / 16 barD040-00753
DN250 / 16 barD040-00753
$2,378.54/ea		 $0.00
$2,378.54/ea $0.00
DN300 / 16 barD040-00756
DN300 / 16 barD040-00756
$2,713.50/ea		 $0.00
$2,713.50/ea $0.00
DN40 / 16 barD040-00714
DN40 / 16 barD040-00714
$959.22/ea		 $0.00
$959.22/ea $0.00
DN65 / 16 barD040-00724
DN65 / 16 barD040-00724
$988.33/ea		 $0.00
$988.33/ea $0.00
