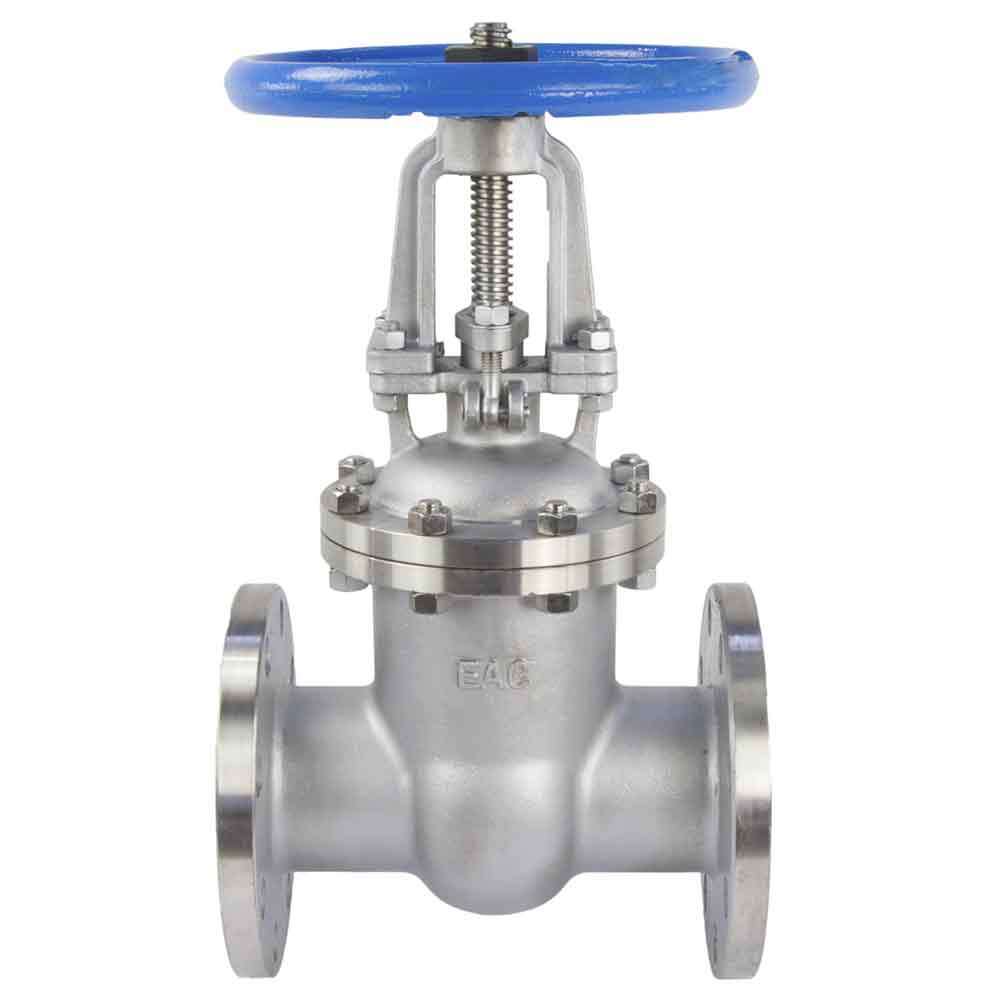

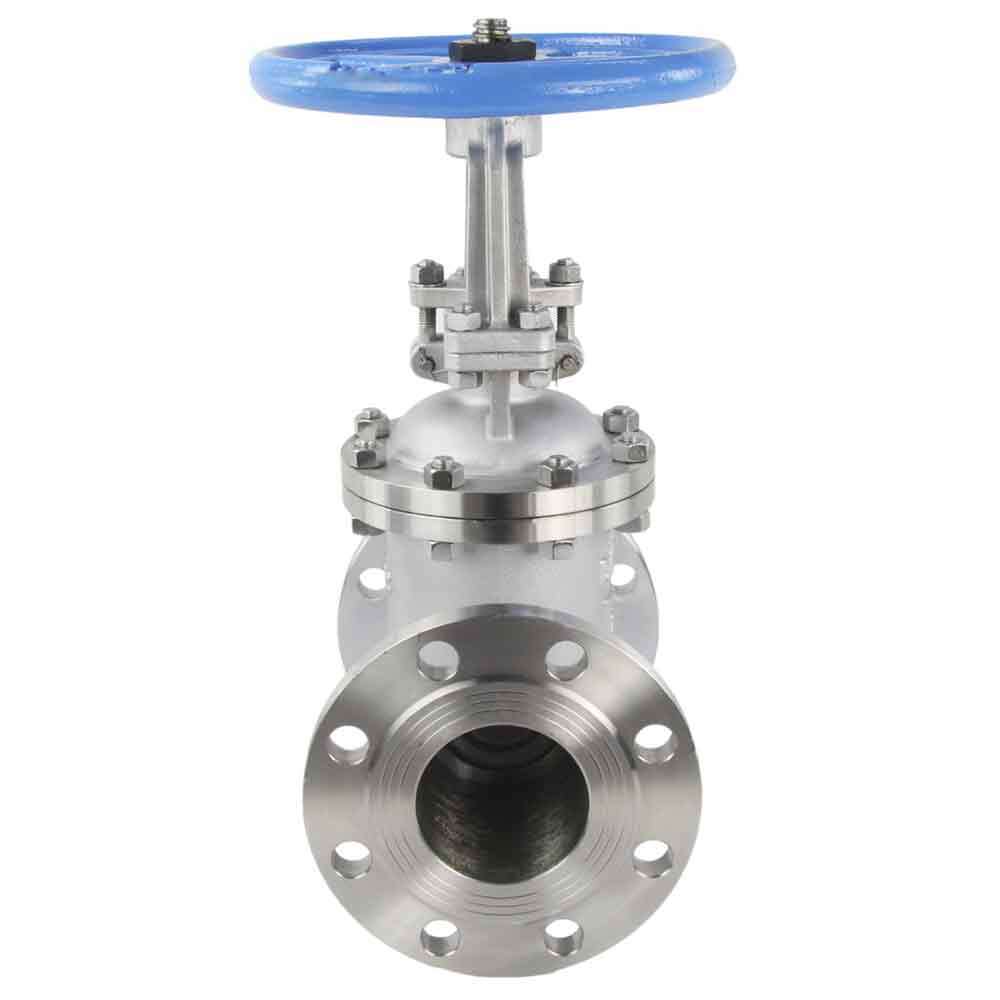

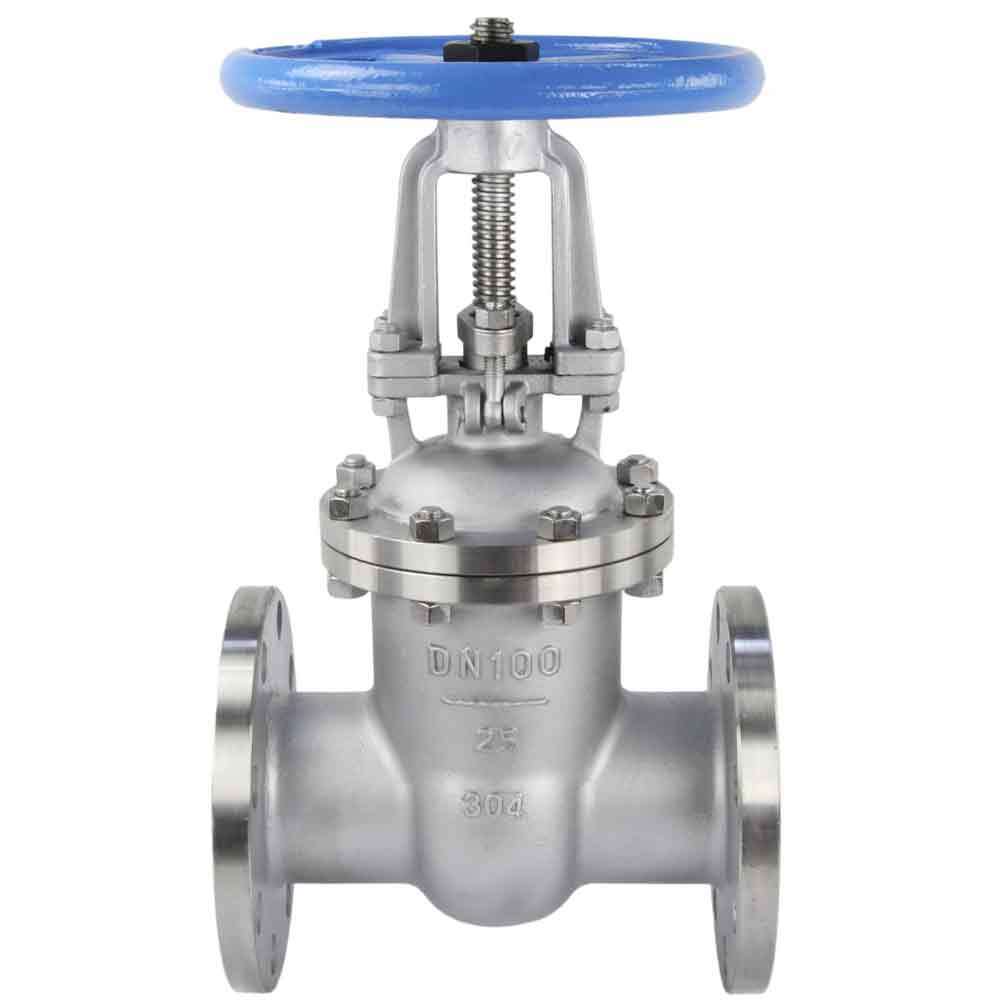

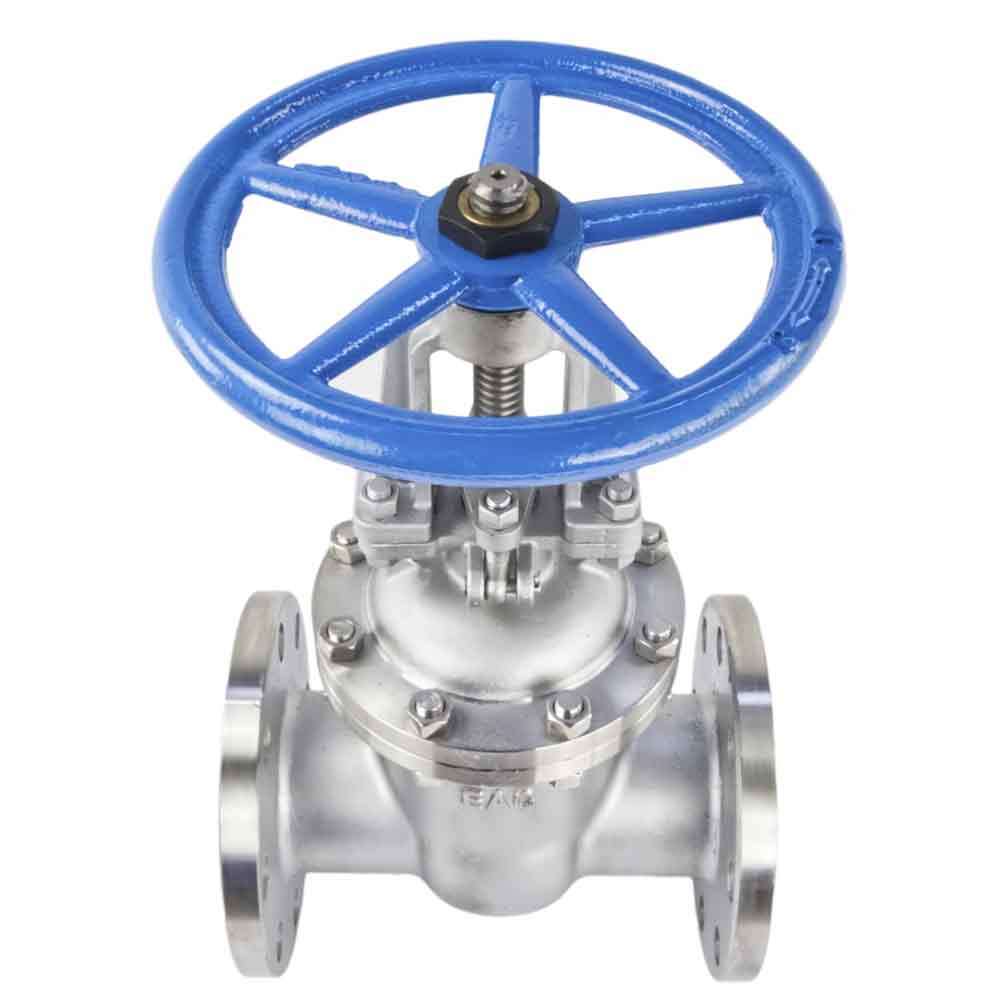

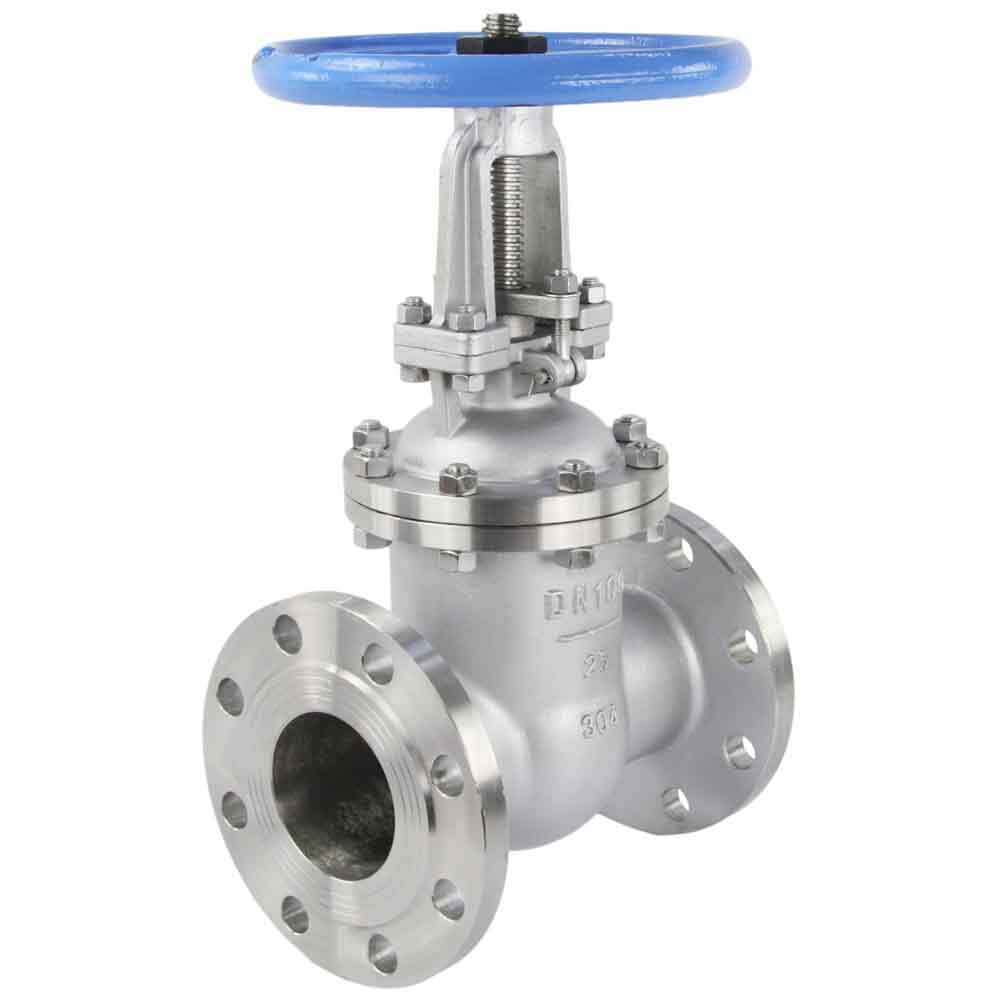

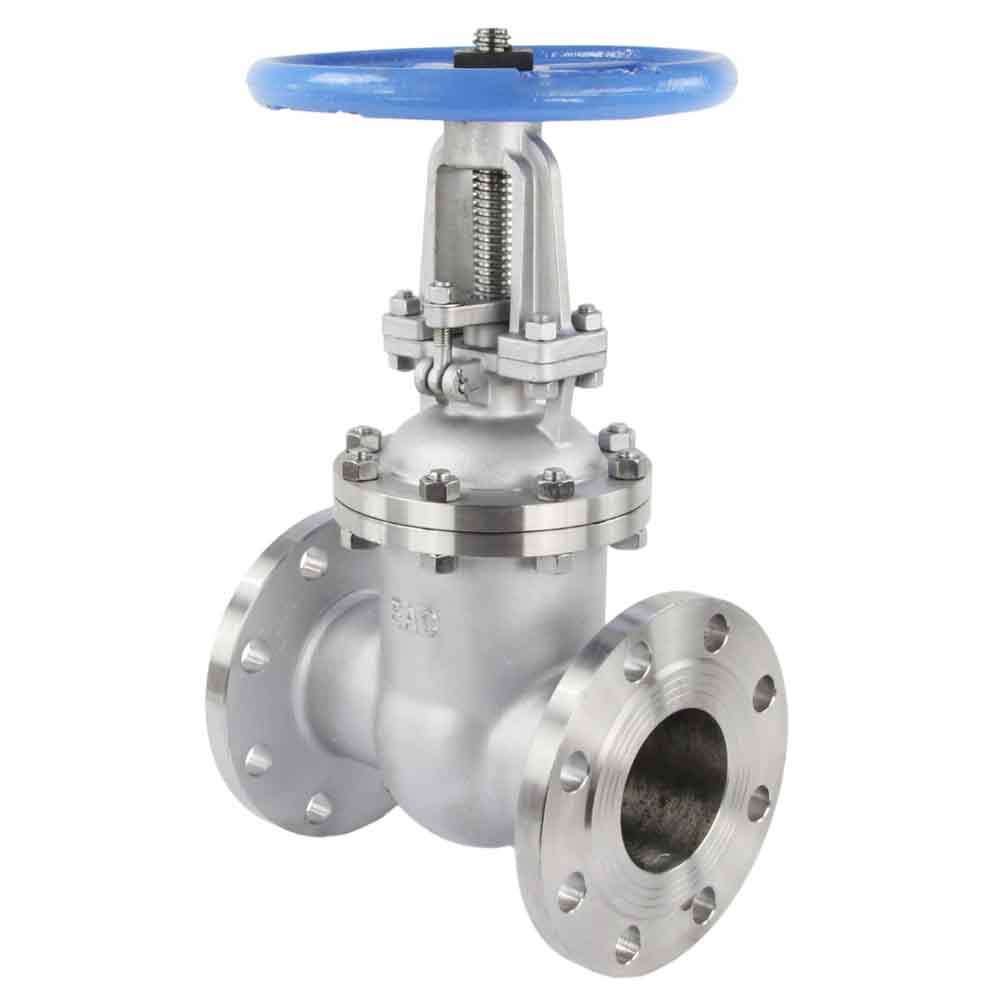

Wedge gate valve DNOVA, body material - stainless steel AISI CF8, wedge material - stainless steel AISI CF8, seal - stainless steel AISI 304, handwheel operated

From $100.16 USD
From $100.16 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A wedge gate valve is a type of valve that is widely used in many industries - its main purpose is to start or stop a fluid flow rather than to regulate it. The design of the wedge gate valve is quite straightforward: it typically consists of a wedge, a bonnet which houses the moving parts, valve stem which is used to operate the valve, and two seats where the wedge seals off the flow.





Overall dimensions of the gate valve DNOVA, body material - stainless steel AISI CF8

DN L D D1 D2 b f z-d
50 250 160 125 99 20 3 4-18
80 280 195 160 132 22 3 8-18
100 300 230 190 156 24 3 8-22
125 325 270 220 184 26 3 8-26
150 350 300 250 211 28 3 8-26
200 400 360 310 274 30 3 12-26
250 450 425 370 330 36 3 12-30
300 500 485 430 389 40 4 16-26

Gate valve sketch DNOVA, body material - stainless steel AISI CF8





Gate valve specification DNOVA, body material - stainless steel AISI CF8

№ Name Material
1 Case Steel CF8
2 Seat seal Steel 304
3 Wedge Steel CF8
4 Spindle Steel 304
5 Gasket Steel 304+TWG
6 Cover Steel CF8
7 Hairpin Steel 201
8 Nut Steel 201
9 Spindle seal TWG
10 gland Steel 201
11 bushing Steel CF8
12 Washer ZCuAl10Fe3
13 Flywheel KTH330-08

Material sketch of the gate valve DNOVA, body material - stainless steel AISI CF8

Specifications

Country of origin
China
Body material
Stainless steel AISI CF8
Stopper Material
Stainless steel AISI CF8
Maximum allowable temperature
425 °C
Connection type
Flanged
Control type
Handwheel
Gate valve type
Wedge Gate Valve
Nominal pressure
25 bar
Type of seal
Stainless steel AISI 304/1.4301
Coating type
None
