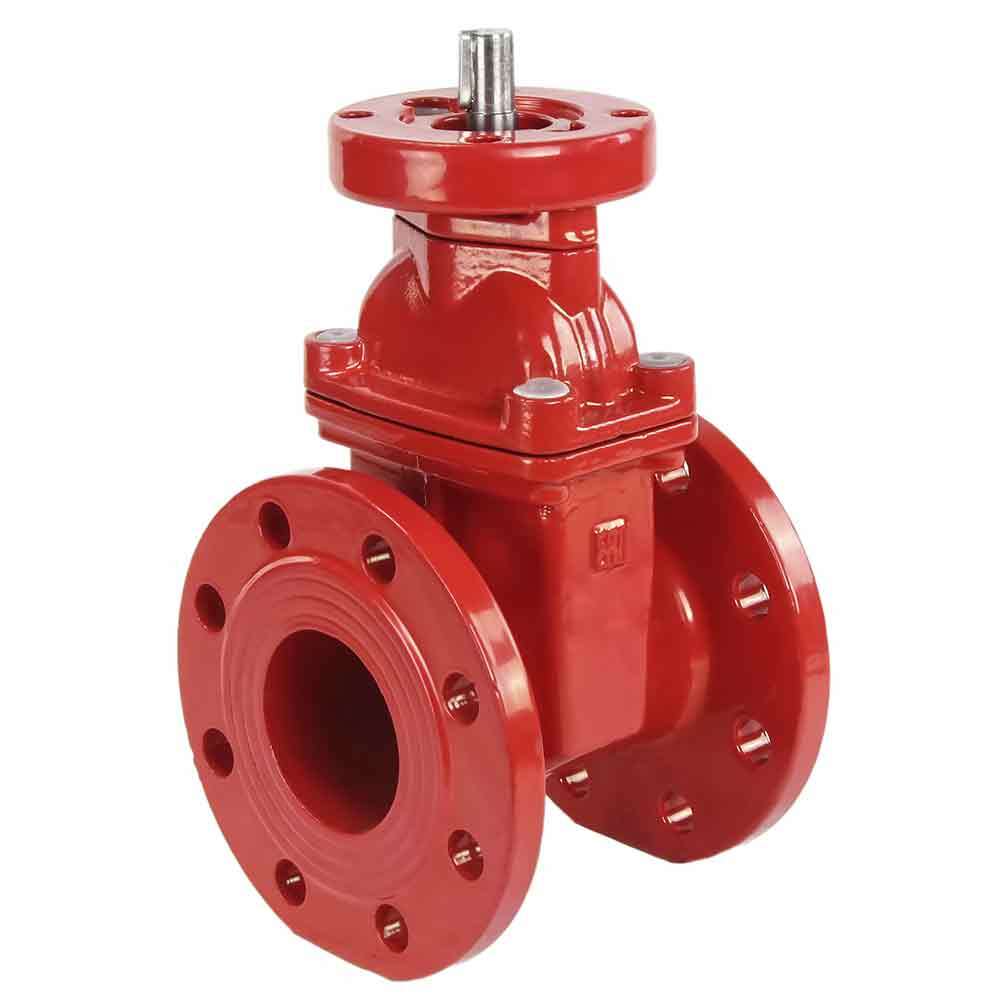

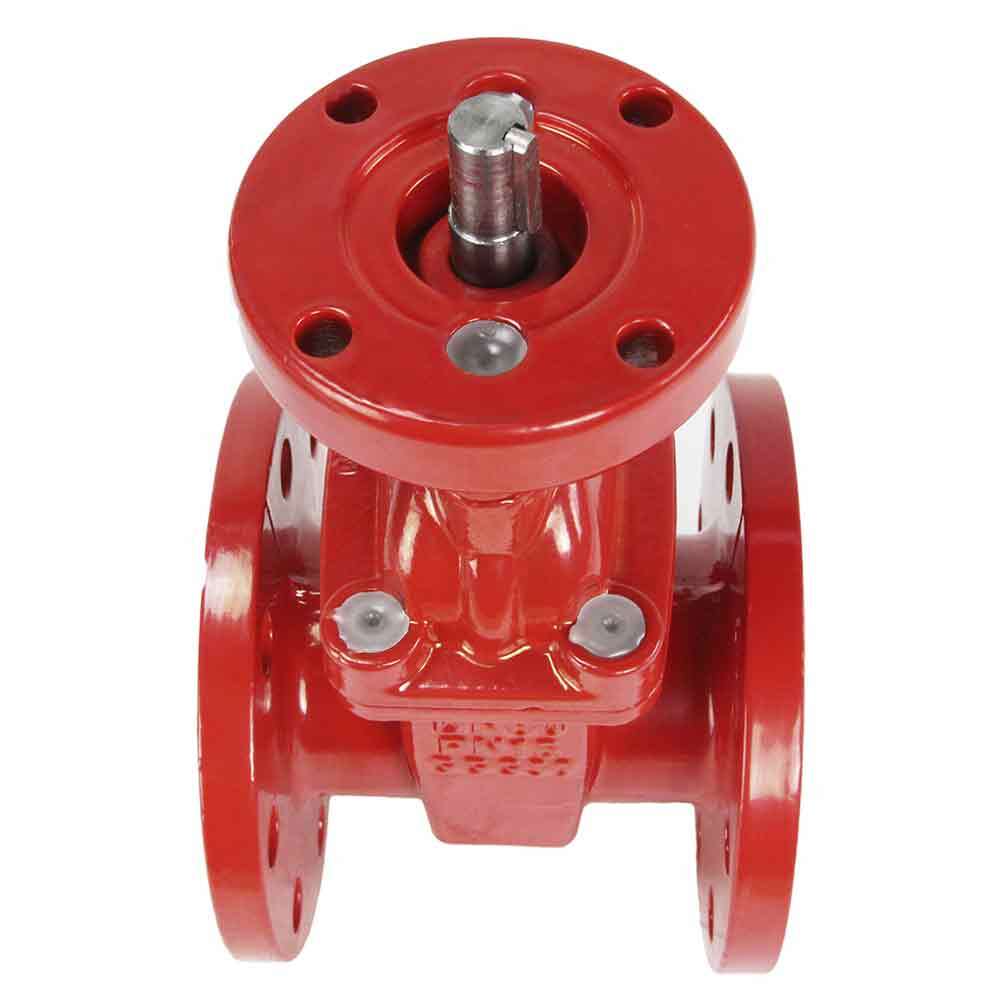

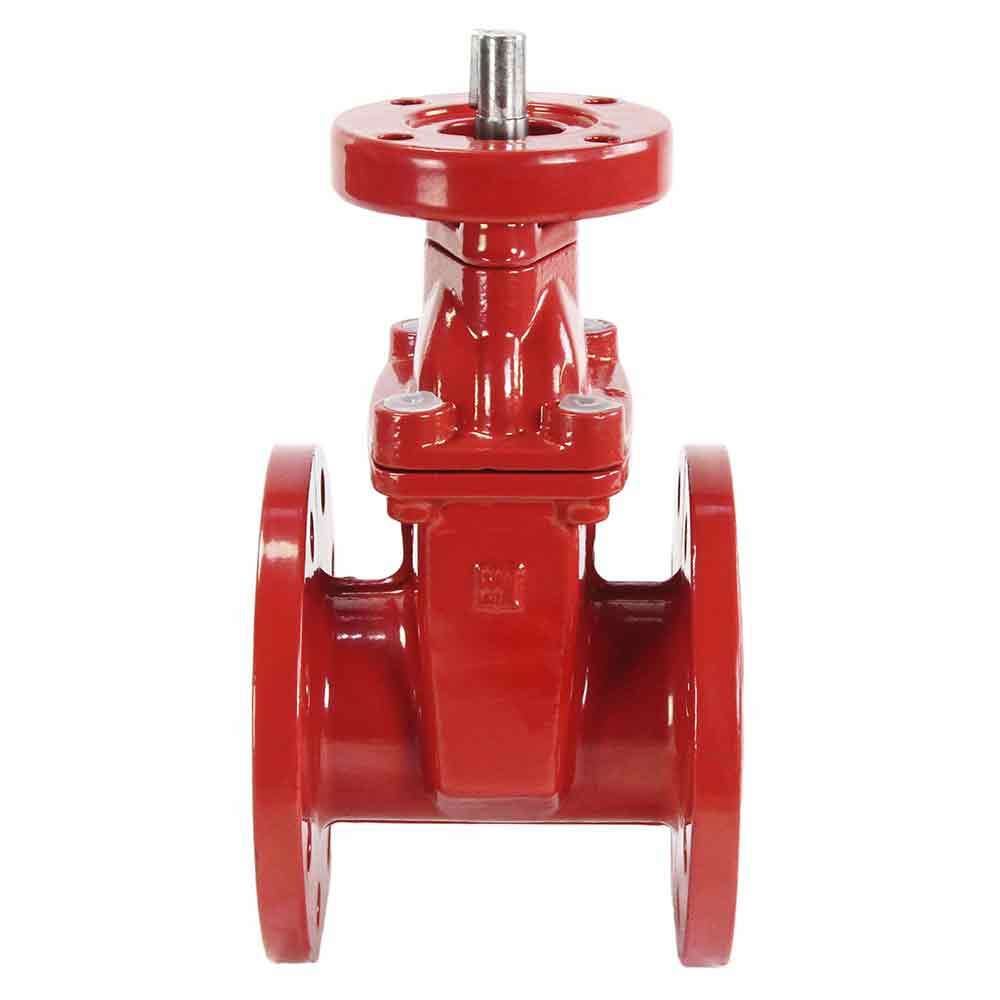

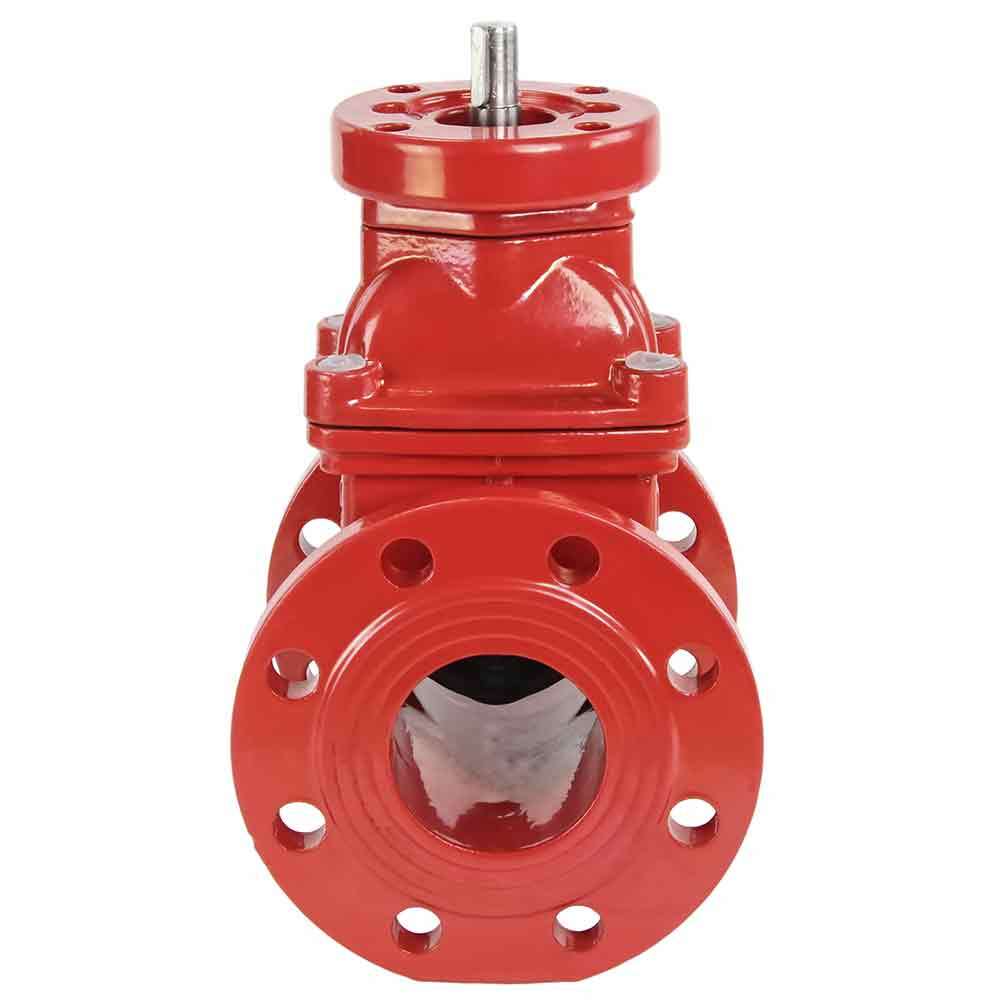

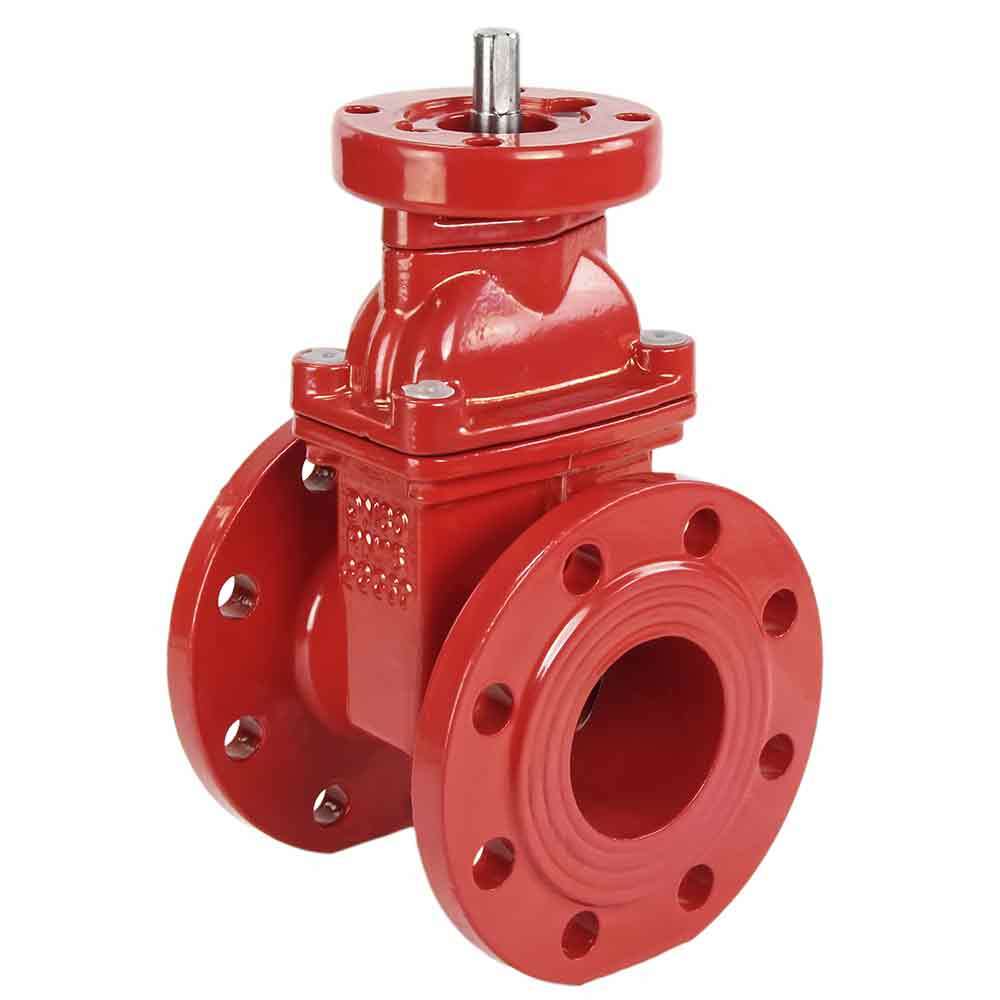

Wedge gate valve DNOVA, body material - cast iron GGG50, wedge material - cast iron + EPDM, seal - EPDM, stem only

From $399.42 USD
From $399.42 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A wedge gate valve is a type of valve that is widely used in many industries - its main purpose is to start or stop a fluid flow rather than to regulate it. The design of the wedge gate valve is quite straightforward: it typically consists of a wedge, a bonnet which houses the moving parts, valve stem which is used to operate the valve, and two seats where the wedge seals off the flow.





Overall and installation dimensions of gate valve GVWN1414E-2W-F

DN L D C B n-d W G K S b h h2
40 140 150 110 84 4-19 125 102 70 18 6 30 190
50 150 165 125 99 4-19 125 102 70 18 6 30 200
65 170 185 145 119 4-19 125 102 70 20 6 30 215
80 180 200 160 133 8-19 125 102 70 20 6 30 250
100 190 220 180 154 8-19 125 102 70 20 6 30 280
125 200 250 210 184 8-19 125 102 70 20 6 30 345
150 210 285 240 210 8-23 125 102 70 20 6 30 385
200 230 340 295 265 12-23 175 140 100 30 8 30 460
250 250 405 355 319 12-28 175 140 100 30 8 30 580
300 270 460 410 370 12-28 175 140 100 30 8 30 640



Sketch of gate valve GVWN1414E-2W-F





Design and materials of DN.ru gate valve GVWN1414E-2W-F

№ Part name Material
1 Case high-strength cast iron GGG50
2 Wedge cast iron + EPDM
3 Nut bronze
4 Stem Stainless steel
5 Gasket EPDM
6 Housing cover high-strength cast iron GGG40
7 Ring Bronze
8 Ring EPDM
9 Bolts Carbon steel
10 ISO flange high-strength cast iron
11 gland high-strength cast iron
12 Ring EPDM
13 Bolts Carbon steel



Sketch of gate valve GVWN1414E-2W-F

Specifications

Country of origin
China
Body material
Сast iron GGG50
Stopper Material
Cast iron + EPDM
Maximum allowable temperature
120 °C
Connection type
Flanged
Control type
Stem only
Gate valve type
Wedge Gate Valve
Nominal pressure
10 bar
Type of seal
EPDM
Coating type
Epoxy powder
