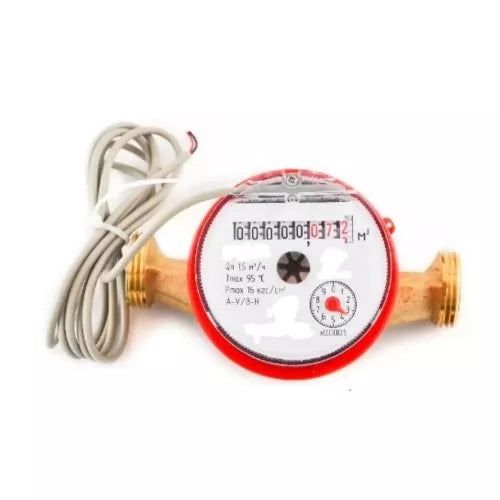

Water meters DNOVA MKU1i universal, impeller, with pulse output, single-jet, brass, threaded

Regular price From $5.88 USD
Regular price Sale price From $5.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Collapsible content

Description

The water meter is designed to measure the flow rate of cold drinking water and hot mains water flowing through pipelines at a pressure of up to 16 bar and temperature range from +5˚C to +90˚C. The operating principle of the meter is to measure the number of revolutions of the impeller rotating under the action of the flow of flowing water. The water flow enters the meter body through the inlet pipe, passes through the filter and then through the holes of the jet-directing device enters the measuring chamber, inside which the impeller with a magnet mounted on it (leading magnetic coupling) rotates on solid supports. After passing through the measuring chamber, the water flows through the outlet openings of the jet guide device into the outlet of the meter. The number of impeller revolutions is proportional to the amount of flowing water. The rotation of the impeller is transmitted to the driven part of the magnetic coupling installed in the counting mechanism. The magnetic coupling is protected from external magnetic field by an anti-magnetic shield.

Overall dimensions of universal impeller water meters DNOVA MKU1i with pulse output, single-jet, brass, threaded

Model Length Width Height
MKU1i DN15 110 82 76
MKU1i DN20 130 82 76

Specifications
