Construction
Parts and materials

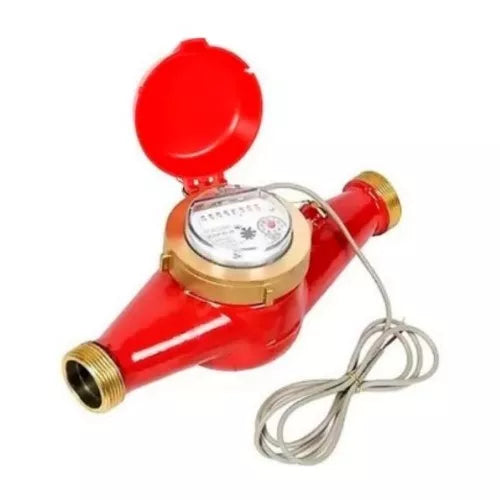

The water meter is designed to measure the flow rate of cold drinking water and hot mains water flowing through pipelines at a pressure of up to 16 bar and temperature range from +5˚C to +90˚C. The operating principle of the meter is to measure the number of revolutions of the impeller rotating under the action of the flow of flowing water. The water flow enters the meter body through the inlet pipe, passes through the filter and then through the holes of the jet-directing device enters the measuring chamber, inside which the impeller with a magnet mounted on it (leading magnetic coupling) rotates on solid supports. After passing through the measuring chamber, the water flows through the outlet openings of the jet guide device into the outlet of the meter. The number of impeller revolutions is proportional to the amount of flowing water. The rotation of the impeller is transmitted to the driven part of the magnetic coupling installed in the counting mechanism. The magnetic coupling is protected from external magnetic field by an anti-magnetic shield.
Dimensions of water meters universal impeller DNOVA MKU2 non-volatile, multi-jet, cast iron, threaded meters
| Model | Length | Width | Height |
| MKU2i DN25 | 260 | 190 | 120 |
| MKU2i DN32 | 260 | 190 | 120 |
| MKU2i DN40 | 300 | 250 | 150 |
| MKU2i DN50 | 300 | 280 | 180 |
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
