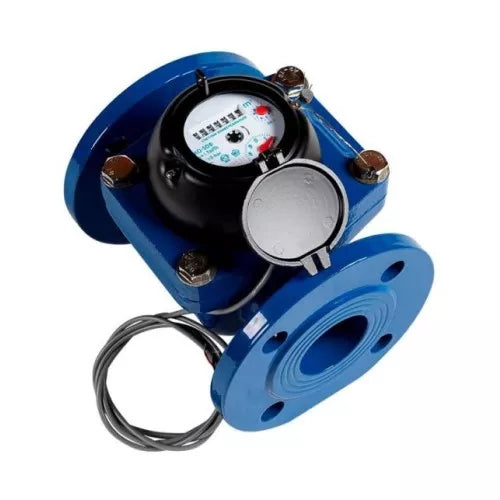

Water cold meters DNOVA MTX1i turbine, with pulse output, cast iron, flanged

Regular price From $44.93 USD
Regular price Sale price From $44.93 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Collapsible content

Description

The water meter is designed to measure the flow of cold drinking water flowing through pipelines at a pressure of up to 16 bar and a temperature range from +0.1˚C to +50˚C. This water meter belongs to the Voltmann type meters. The principle of operation is based on measuring the number of revolutions of the turbine rotating under the pressure of the flow of flowing water. Water is fed into the inlet of the flowing part of the meter through a strainer, passes through the turbine and exits through the outlet. The rotation of the turbine is transmitted to the driven part of the magnetic coupling installed in the counting mechanism. The magnetic coupling is protected against possible external magnetic fields by an anti-magnetic shield. Turbine revolutions are converted by means of the counting mechanism gearbox into values on the indicator device. The number of turbine revolutions is proportional to the amount of flowing water.

Dimensions of cold water turbine meters DNOVA MTX1i with pulse output, single-jet, cast iron, flanged meters

Model Construction length
MTX1i DN50 200
MTX1i DN65 200
MTX1i DN80 225
MTX1i DN100 250
MTX1i DN150 300
MTX1i DN200 350

Specifications

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Your cart
Variant Variant total Quantity Price Variant total
DN50 / 16 barD070-06790
DN50 / 16 barD070-06790
$44.93/ea
$0.00
$44.93/ea $0.00
DN65 / 16 barD070-06791
DN65 / 16 barD070-06791
$49.84/ea
$0.00
$49.84/ea $0.00
DN80 / 16 barD070-06792
DN80 / 16 barD070-06792
$53.92/ea
$0.00
$53.92/ea $0.00
DN100 / 16 barD070-06793
DN100 / 16 barD070-06793
$58.01/ea
$0.00
$58.01/ea $0.00
DN150 / 16 barD070-06794
DN150 / 16 barD070-06794
$96.41/ea
$0.00
$96.41/ea $0.00
DN200 / 16 barD070-06795
DN200 / 16 barD070-06795
$111.93/ea
$0.00
$111.93/ea $0.00
