Description
The butterfly valve is designed to be used as a shut-off or control valve for flow control in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
DNOVA pneumatic rotary actuators double-acting PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface, for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the distributors have one-way or two-way control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. Intended for use with quarter-turn pneumatic actuators.
The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off element of the valve: valve, tap or butterfly valve. It is installed on top of the surface of the pneumatic actuator and connected to the DIN standard actuator shaft. As a rule, there are two sensors in a sealed box that monitor the position of the actuator shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.
The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant from the reservoir to the compressed air flow to the elements of the pneumatic system.

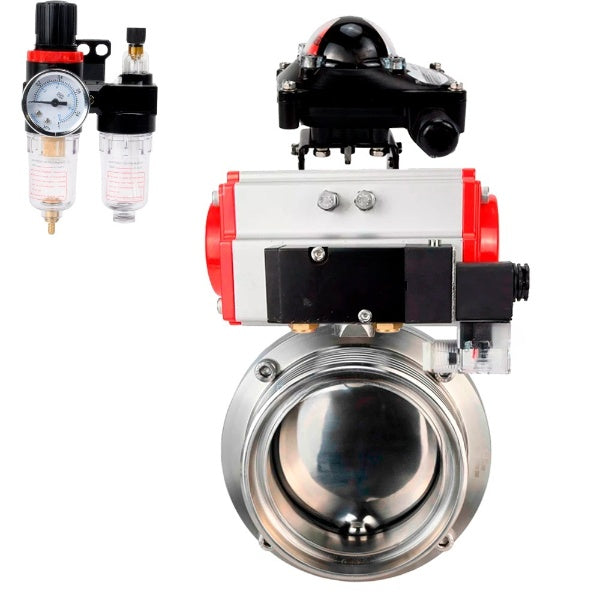

Technical characteristics of the DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 24V, LSUAPL-210N, ATU AFC2000
| Characteristic | Meaning |
| Shutter type | rotary disc |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working environment temperature | from -50 to +180°C |
| Application | Food industry |
| Connection type | clamp |
| Control type | pneumatic drive |
| Sealing class | A |
| Guarantee | 12 months |
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, ⁰C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Pneumatic distributors DNOVA 4M310-08 24V
Technical characteristics of pneumatic distributors DNOVA 4M310-08 24V:
| Characteristic | Meaning |
| Model of pneumatic distributor | 4m310-08 24v |
| Supply voltage | 24V |
| Design | spool type |
| Nominal pressure | 12 bar |
| Working pressure | 1.5...8 bar |
| Ambient temperature | from +5 to +50 ⁰C |
| Working environment | filtered compressed air |
| Response frequency | 5 cycles/s |
| Degree of protection | IP65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec |
Limit Switch Blocks DNOVA APL-210N
Technical characteristics of limit switch units DNOVA APL-210N:
| Characteristic | Meaning |
| Limit switch block model | APL-210N |
| Protection | All-weather IP65 |
| Ambient temperature | from -40°C to +80°C |
| Cable entry thread | 2 x NPT1/2” |
| Terminal block | 8 cells 0.08-2.6mm2 |
| Voltage | 12V, 24V, 38V, 48V, 110V, 220V, 250V |
| Sensor | 2 SPDT Electromechanical Microswitches OMRON V151-1C25 |
| External coating | polyester coating (black) |
| Shaft | standard (17 mm) |
Air preparation units DNOVA AFC2000
Technical characteristics of air preparation units DNOVA AFC2000:
| Characteristic | Meaning |
| Working pressure | 8 bar |
| Maximum pressure | 10 bar |
| Adjustable pressure range | 0.5...9 bar |
| Destruction pressure | 15 bar |
| Operating temperature | from -5°C to +60°C |
| Air connection | 1/4" |
| Size of filtered particles | 40 microns |
| Oil viscosity | ISO VG 32 |
Sketch of dimensions of butterfly valves DNOVA WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Overall and installation dimensions of the DNOVA WBV3131S-2W-CH clamp-type butterfly valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Sketch of dimensions of pneumatic distributors DNOVA 4M310-08 24V
Overall and installation dimensions of pneumatic distributors DNOVA 4M310-08 24V:
| Depth, mm | 27 |
| Height, mm | 69 |
| Width, mm | 134.5 |
Sketch of the dimensions of the limit switch blocks DNOVA APL-210N
Overall and installation dimensions of limit switch units DNOVA APL-210N:
| Depth, mm | 112 |
| Height, mm | 77 |
| Width, mm | 88 |
Sketch of dimensions of air preparation units DNOVA AFC2000
Overall and installation dimensions of air preparation units DNOVA AFC2000:
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Materials of parts of DNOVA WBV3131S-2W-CH rotary clamp disc valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel AISI 304 |
| 2 | Rotary assembly | Stainless steel AISI 304 |
| 3 | Disc | Stainless steel AISI 304 |
| 4 | Seat seal | EPDM or Silicon |
| 5 | Nut | Steel A2~70 |
| 6 | Bolt | Steel A2~70 |
| 7 | Plug | ABS plastic |
| 8 | Handle | Polyamide plastic |
Sketch of materials of butterfly valves DNOVA WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
