How it works
Electric quarter-turn actuator
Butterfly disc
The number that matters
Max. medium temperature
135°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Neutral Media
- Food Industry
Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Electric quarter-turn actuators are designed for remote and local control of 0° ~ 270° rotation of a shut-off valve of such types as ball valve, etc.
Operating principle: electric actuators are mounted directly on pipeline valves. The mounting dimensions comply with the international standard ISO 05211 / DIN3337. Four microswitches are used to limit the travel of the output shaft to the end positions of the valve actuator. The actuators are designed for operation in nominal short-time mode S2.

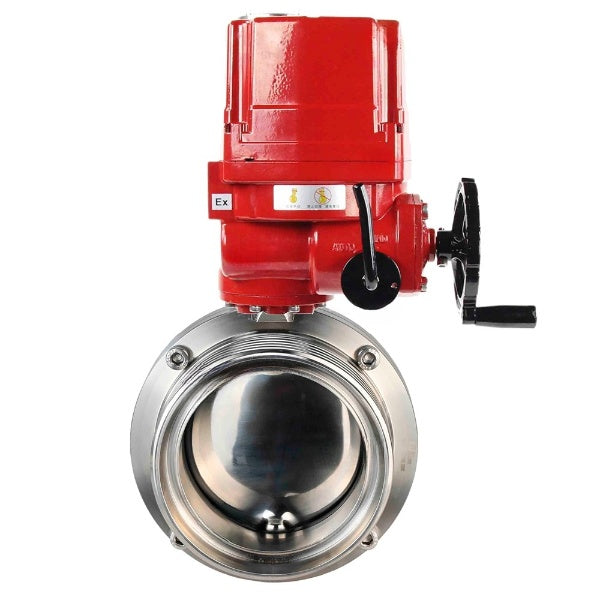

Technical parameters of DNOVA WBV3131E-2W-T-H, body material - stainless steel AISI 304, seal - EPDM, with quarter-turn actuator QT-EX-xEM-O1 380V:
| Characteristic | Meaning |
| Gate type | rotary disk |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working medium temperature | -20 to +135°C |
| Application | Food industry |
| Connection type | threaded |
| Control type | electric actuator |
| Sealing class | A |
| Manufacturer's country | China |
| Warranty | 12 months. |
Butterfly valves WBV3131E-2W-T-H, body material - stainless steel AISI 304, seal - EPDM, with quarter-turn actuator QT-EX-xEM-O1 380V
Technical characteristics of quarter-turn actuators QT-EX-xEM-O1-380VAC-U1:
| Characteristic | Significance |
| Actuator type | quarter-turn |
| Drive torque | 100 Nm |
| Supply voltage | 380 V |
| Ambient temperature | -20 to +60 °C |
| Explosion protection | ExdIICT4 |
| Climatic version | U1 |
Dimensions and dimensions of DNOVA WBV3131E-2W-T-H, body material - stainless steel AISI 304, seal - EPDM, with quarter-turn actuator QT-EX-xEM-O1 380V:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Sketch Butterfly valves WBV3131E-2W-T-H, body material - stainless steel AISI 304, seal - EPDM, with quarter-turn actuator QT-EX-xEM-O1 380V
Overall and installation dimensions of quarter-turn actuators QT-EX-xEM-O1-380VAC-U1:
| Model | X, mm | Z, mm | Y, mm |
| EX-010 | 255 | 265 | 170 |
| EX-015 | 255 | 265 | 170 |
| EX-020 | 280 | 270 | 200 |
| EX-030 | 310 | 310 | 200 |
| EX-040 | 310 | 310 | 200 |
| EX-050 | 310 | 310 | 200 |
| EX-060 | 420 | 350 | 350 |
| EX-100 | 420 | 350 | 350 |
| EX-200 | 420 | 350 | 350 |
Sketch of dimensions of quarter-turn actuators QT-EX-xEM-O1-380VAC-U1
Materials of parts DNOVA WBV3131E-2W-T-H, body material - stainless steel AISI 304, seal - EPDM, with quarter-turn actuator QT-EX-xEM-O1 380V:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel AISI 304 |
| 2 | Rotary assembly | Stainless steel AISI 304 |
| 3 | Disc | Stainless steel AISI 304 |
| 4 | Seat seal | EPDM or Silicon |
| 5 | Nut | Steel A2~70 |
| 6 | Bolt | Steel A2~70 |
| 7 | Plug | ABS plastic |
| 8 | Handle | Polyamide plastic |
Sketch of parts and materials Butterfly valves WBV3131E-2W-T-H, body material - stainless steel AISI 304, seal - EPDM, with quarter-turn actuator QT-EX-xEM-O1 380V
Design of quarter-turn actuators QT-N-xEM-O1-380VAC-U1 380V:
| № | Name |
| 1 | Output shaft |
| 2 | Cable lock |
| 3 | Mechanical stop |
| 4 | Manual wrench |
| 5 | Housing |
| 6 | Cover |
| 7 | Inspection window |
| 8 | Dust protection |
Sketch of quarter-turn actuators QT-N-xEM-O1-380VAC-U1 380V
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- 135 °C
- Connection type
- Threaded
- Control type
- Electric actuator
- Operating environment
- Water, Steam, and Neutral Media
- Applications
- Food Industry
- Type of seal
- EPDM
- Disc material
- Stainless steel AISI 304
- Explosion-proof
- Yes
- Manual override
- Handwheel
- Limit switches
- Yes
- Type of electric actuator
- Quarter-turn
- Feedback sensor
- No
- Rated current consumption
- 0.25 А
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
