Description

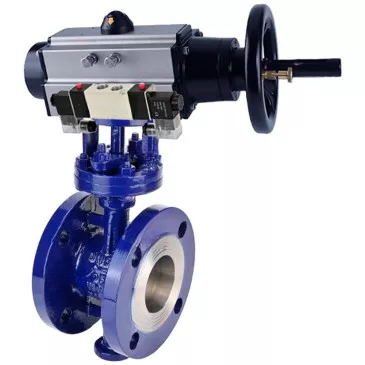

Butterfly valves DNOVA WBV3EX-3432M-1W-F-ISO are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve DNOVA 4V320-08 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
The DNOVA APL-510N EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. By using the AFC2000, it becomes possible to transmit information on the position of the pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
The DNOVA AFC2000 air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
Technical parameters of Butterfly valves DNOVA WBV3EX-3432M-1W-F-ISO, flanged, body - carbon steel WCB, METAL
| Name | Value |
|---|---|
| Nominal pressure PN, bar | 16 |
| Operating temperature, °C | -20 to 110 |
| Application | Water supply, heating, chemical industry, oil and gas industry, food industry |
| Pipeline connection | Wafer type |
| Valve type | Butterfly |
| Control type | Pneumatic actuator |
| Country of origin | China |
Dimensions and dimensions of Butterfly valves DNOVA WBV3EX-3432M-1W-F-ISO, flanged, body - carbon steel WCB, METAL
| DN | L, mm | D, mm | F, mm | L1, mm | G, mm | X, mm | Y, mm |
| 65 | 112 | 180 | 153 | 495 | 138,4 | 88 | 162 |
| 80 | 114 | 195 | 153 | 495 | 138,4 | 88 | 162 |
| 100 | 127 | 230 | 153 | 495 | 138,4 | 88 | 162 |
Sketch of Water Butterfly Valve DNOVA WBV3EX-3432M-1W-F-ISO, flanged, body - carbon steel WCB, METAL
Table of parts and materials for butterfly valves DNOVA WBV3EX-3432M-1W-F-ISO, flanged, body - carbon steel WCB, METAL
| № | Part Name | Material |
|---|---|---|
| 1 | Body | WCB Steel |
| 2 | Disc | Stainless Steel 316 |
| 3 | Stem | Stainless Steel 316 |
| 4 | Seat Seal | Metal (D507 overlay) + Graphite |
| 5 | Packing Seal | Stainless Steel 316 + Graphite |
Sketch of parts and materials for Butterfly valves DNOVA WBV3EX-3432M-1W-F-ISO, flanged, body - carbon steel WCB, METAL
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve DNOVA 4V320-08 220V
| Name | Value |
|---|---|
| Type of Pneumatic Valve | Spool-type |
| Pneumatic Valve Model | 4V320-08 220V |
| Operating Pressure, bar | 1.5 ÷ 8 |
| Supply Voltage, V | 220 V |
| Actuation Frequency, cycles/sec | 5 |
Specifications
