How it works

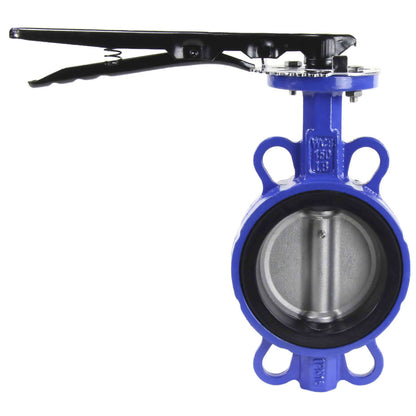

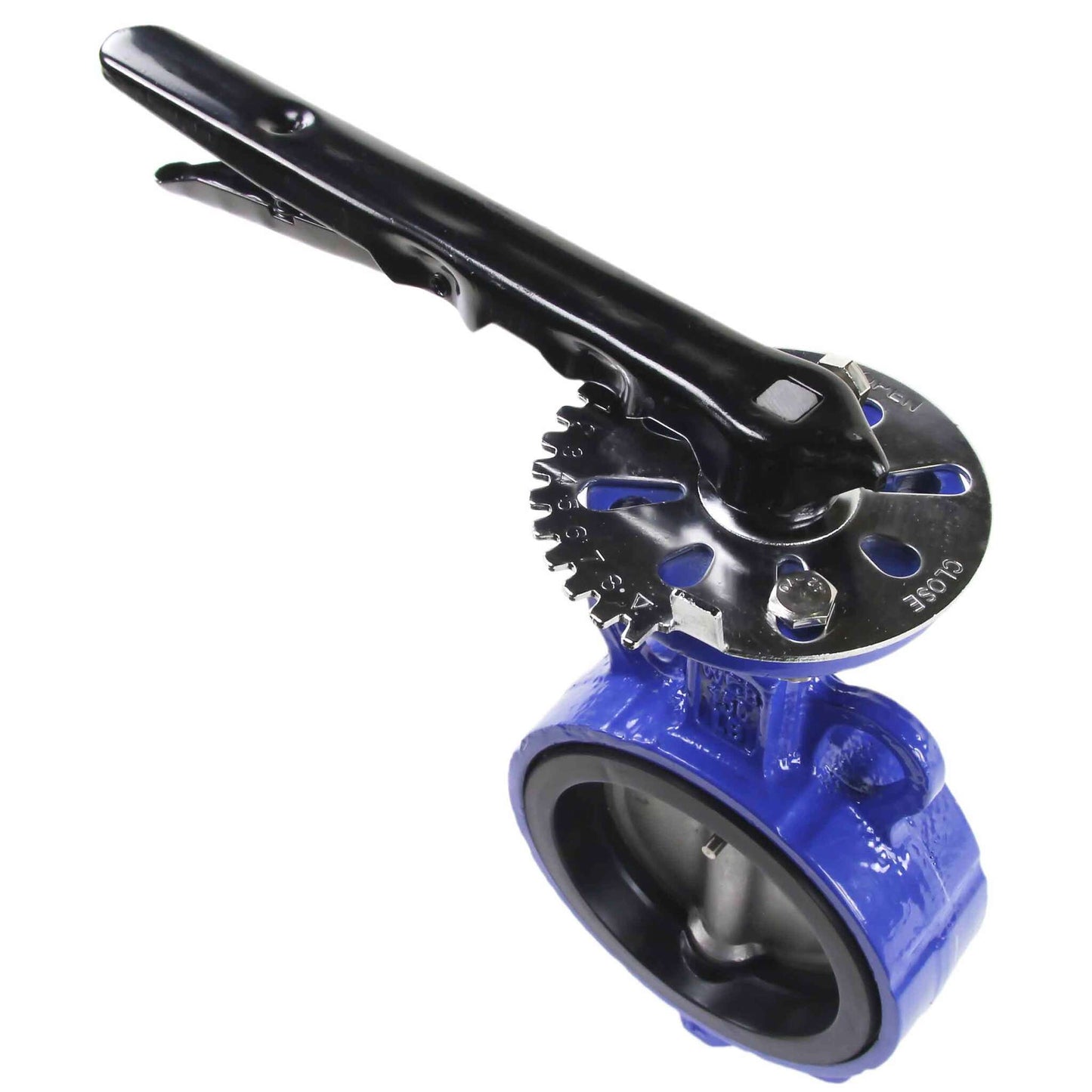

Quarter-turn lever

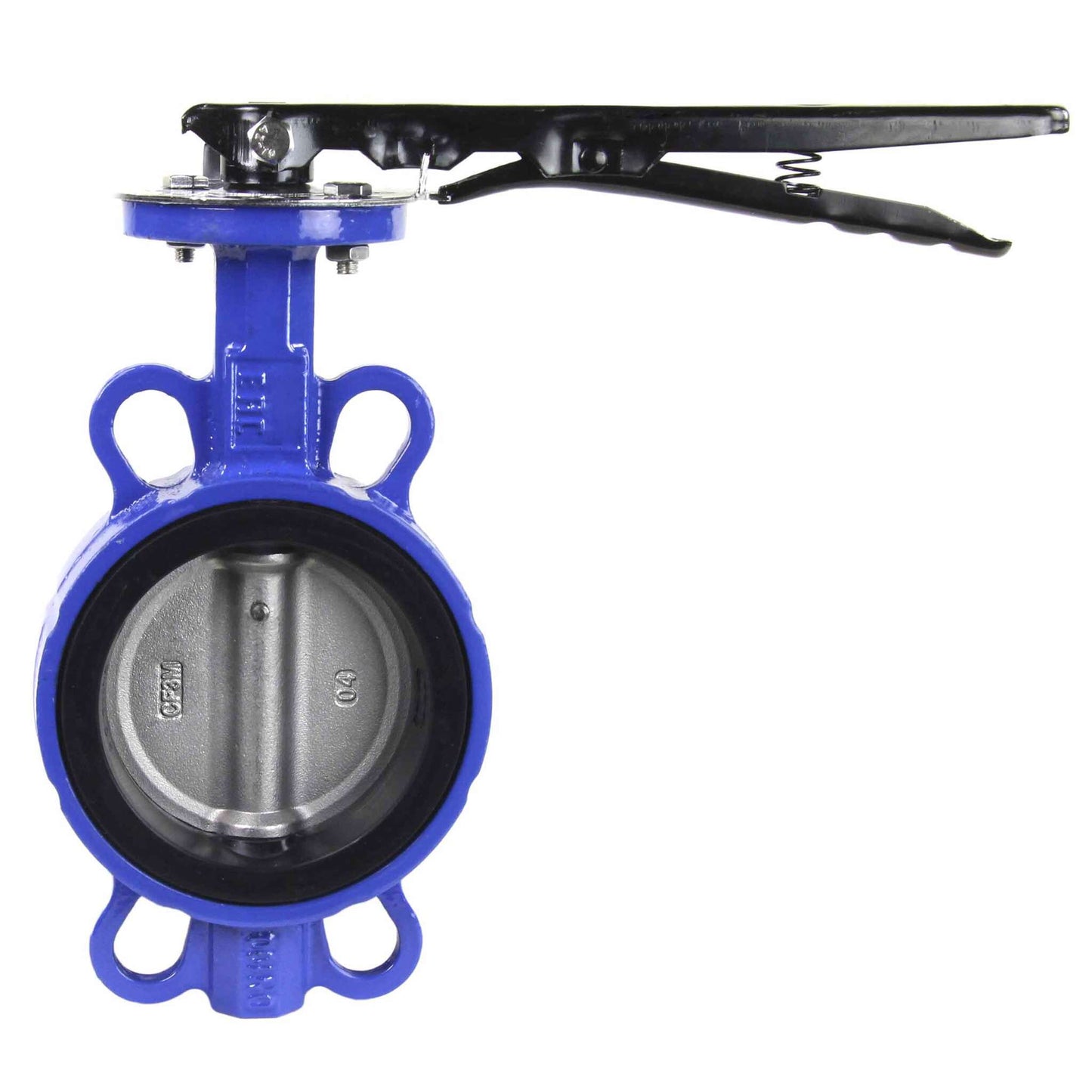

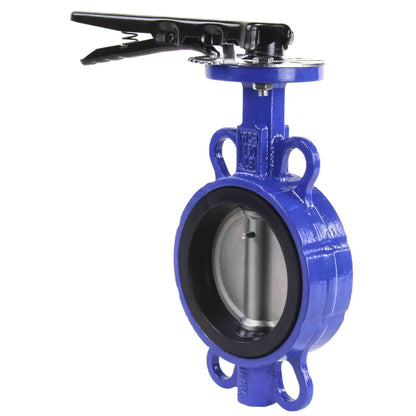

Butterfly disc
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials

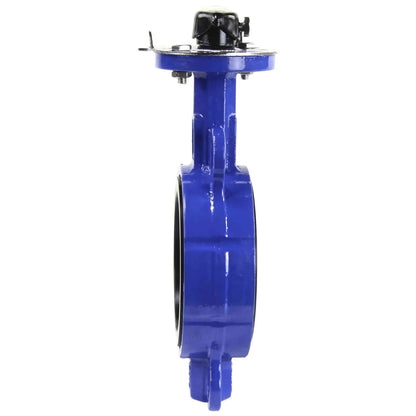

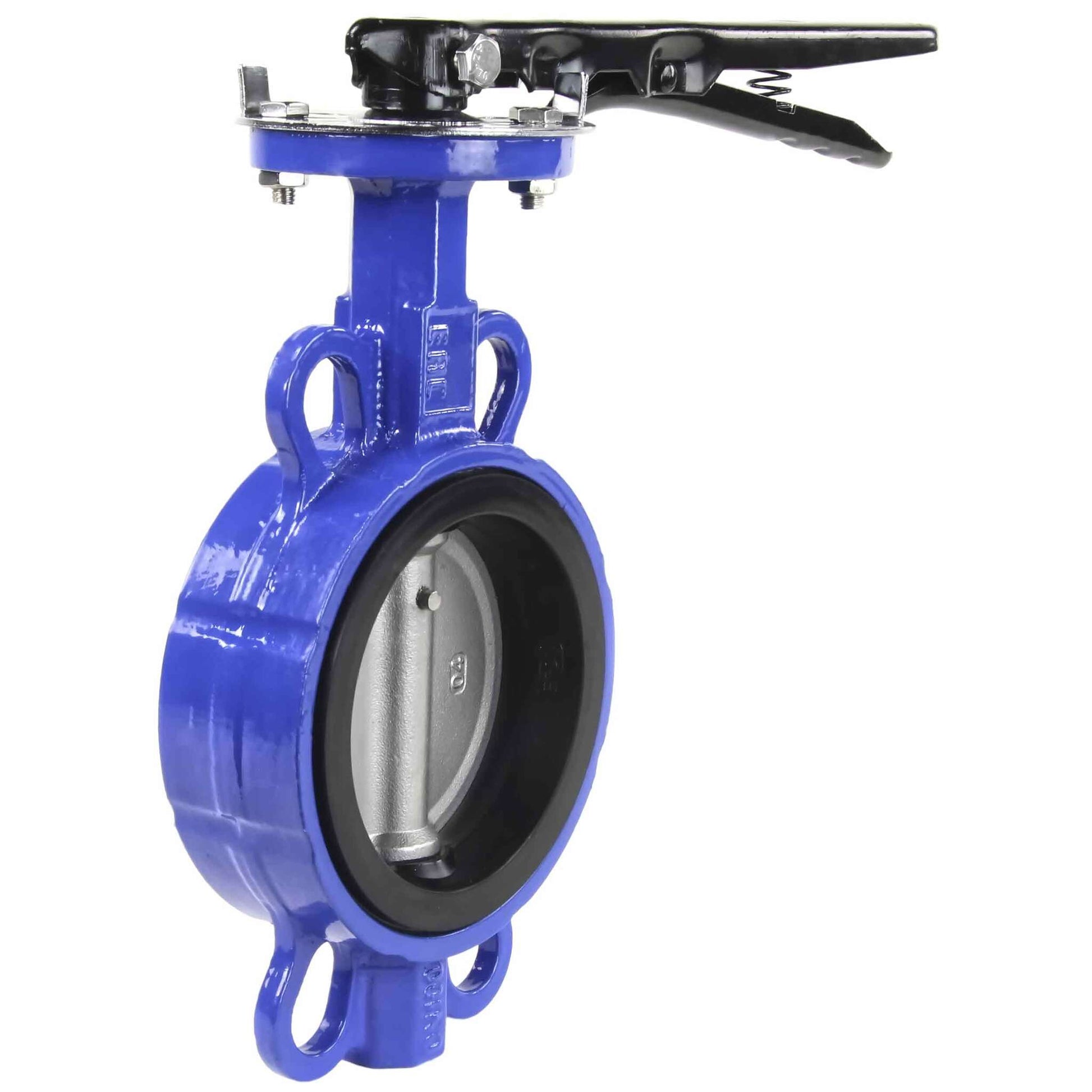

A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water.
Overall and installation dimensions of the gate valve DNOVA WBV3432N-2W-Fb-H PN16, body material - carbon steel WCB, disk material - stainless steel 316L, seal - NBR, handwheel operated
| DN | H1, mm | H2, mm | H3, mm | Dm, mm | Dk, mm | L, mm | ØC, mm |
| DN40/50 | 66 | 126 | 25 | 73 | 90 | 43 | 125 |
| DN50 | 66 | 126 | 25 | 73 | 90 | 43 | 125 |
| DN65 | 74 | 137 | 25 | 85 | 103 | 46 | 145 |
| DN80 | 91 | 146 | 25 | 100 | 116 | 46 | 160 |
| DN100 | 105 | 166 | 25 | 131 | 151 | 52 | 180 |
| DN125 | 121 | 182 | 25 | 155 | 174 | 56 | 210 |
| DN150 | 134 | 198 | 25 | 184 | 205 | 56 | 240 |
| DN200 | 169 | 223 | 35 | 234 | 255 | 60 | 295 |
| DN250 | 200 | 270 | 35 | 288 | 315 | 68 | 355 |
| DN300 | 240 | 299 | 35 | 340 | 375 | 78 | 410 |
Shutter sketch DNOVA WBV3432N-2W-Fb-H PN16, body material - carbon steel WCB, disk material - stainless steel 316L, seal - NBR, handwheel operated
Materials of bolt parts DNOVA WBV3432N-2W-Fb-H PN16, body material - carbon steel WCB, disk material - stainless steel 316L, seal - NBR, handwheel operated
| № | Name | Material |
| 1 | Housing | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | EPDM, PTFE, NBR |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Rod | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | carbon steel |
| 9 | Handle with lock | carbon steel |
Sketch of specification water Butterfly Valve DNOVA
- Body material
- Carbon steel WCB
- Maximum allowable temperature
- 85 °C
- Connection type
- Compact flanged
- Control type
- Handle
- Nominal pressure
- 16 bar
- Type of seal
- NBR
- Disc material
- Stainless steel AISI 316L/1.4404
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
