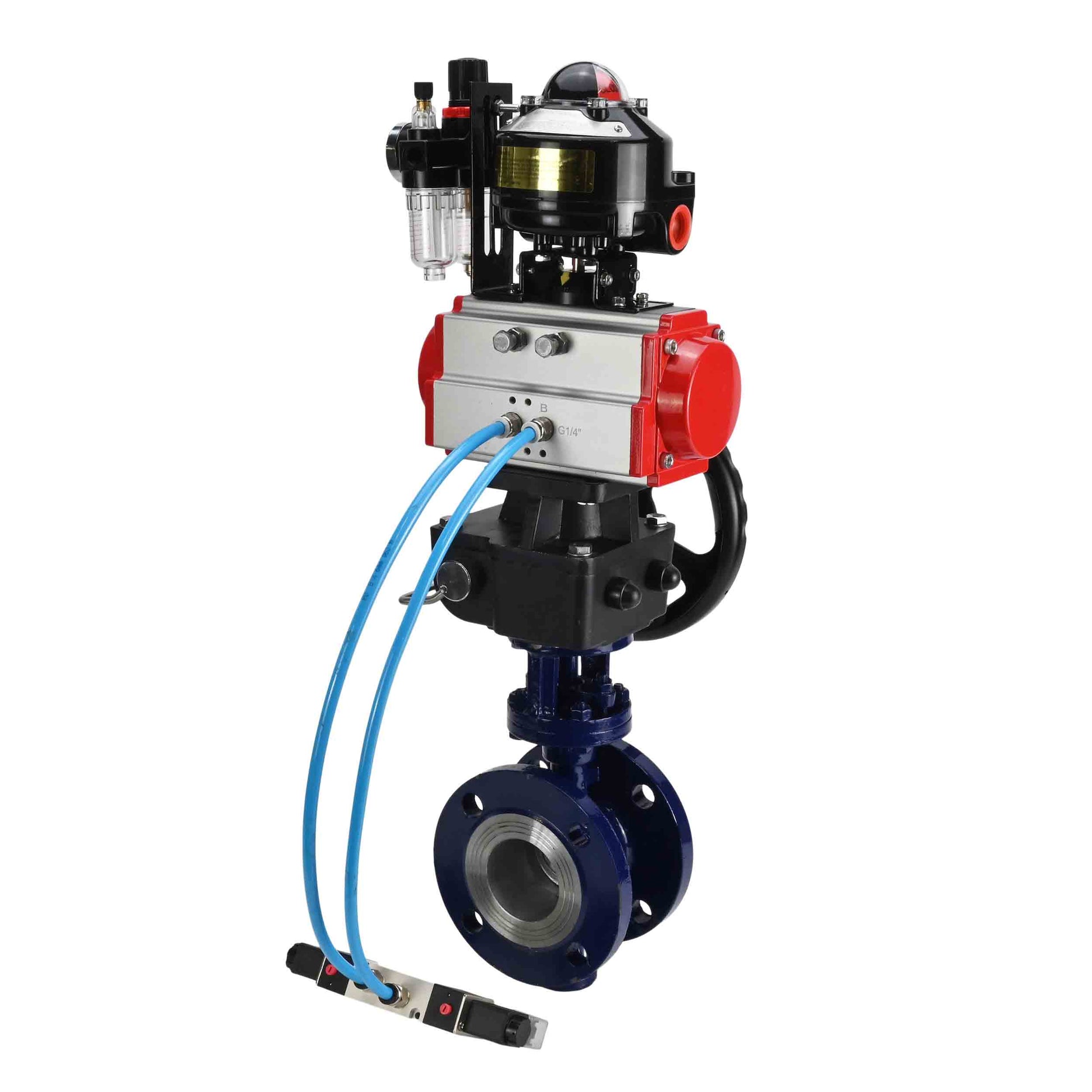

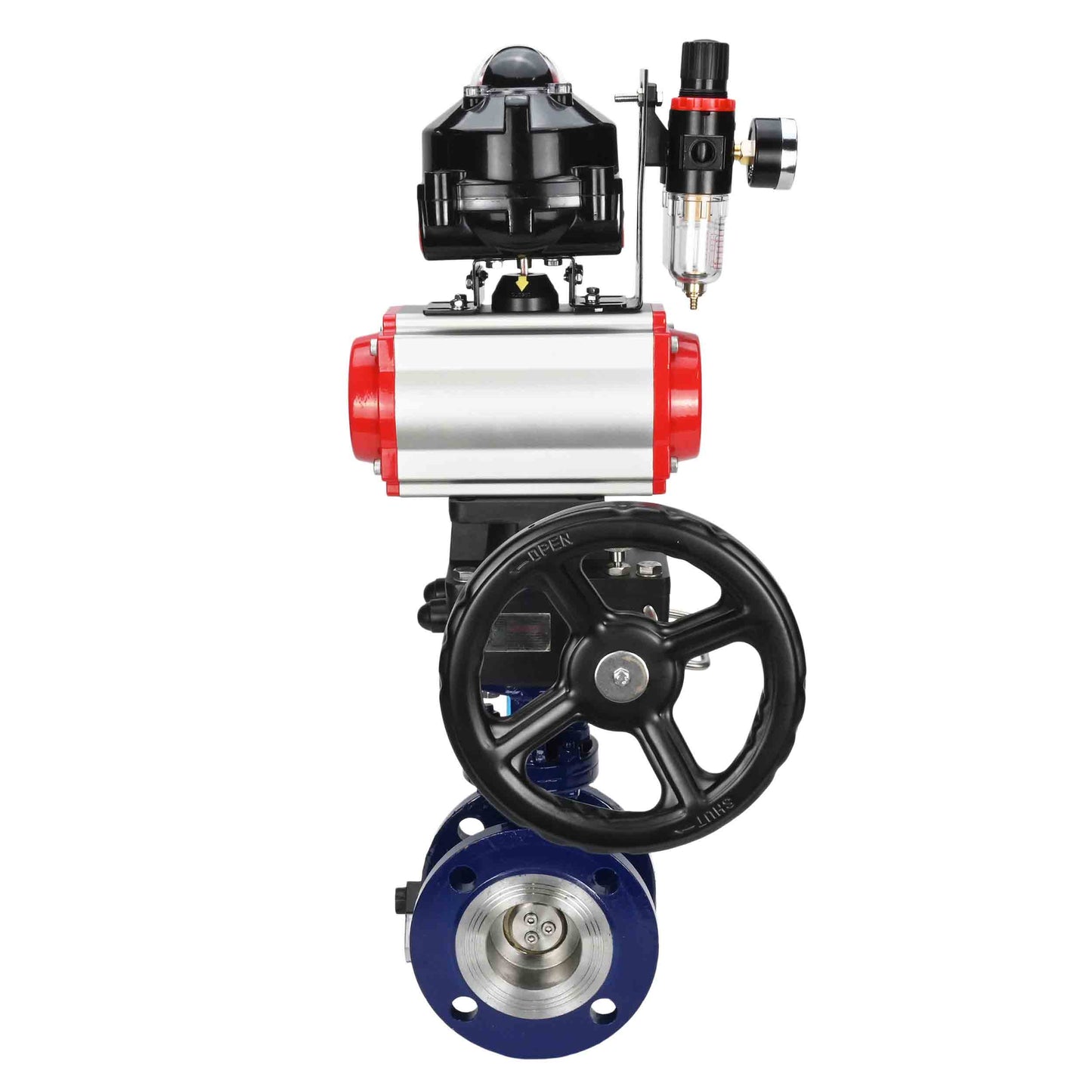

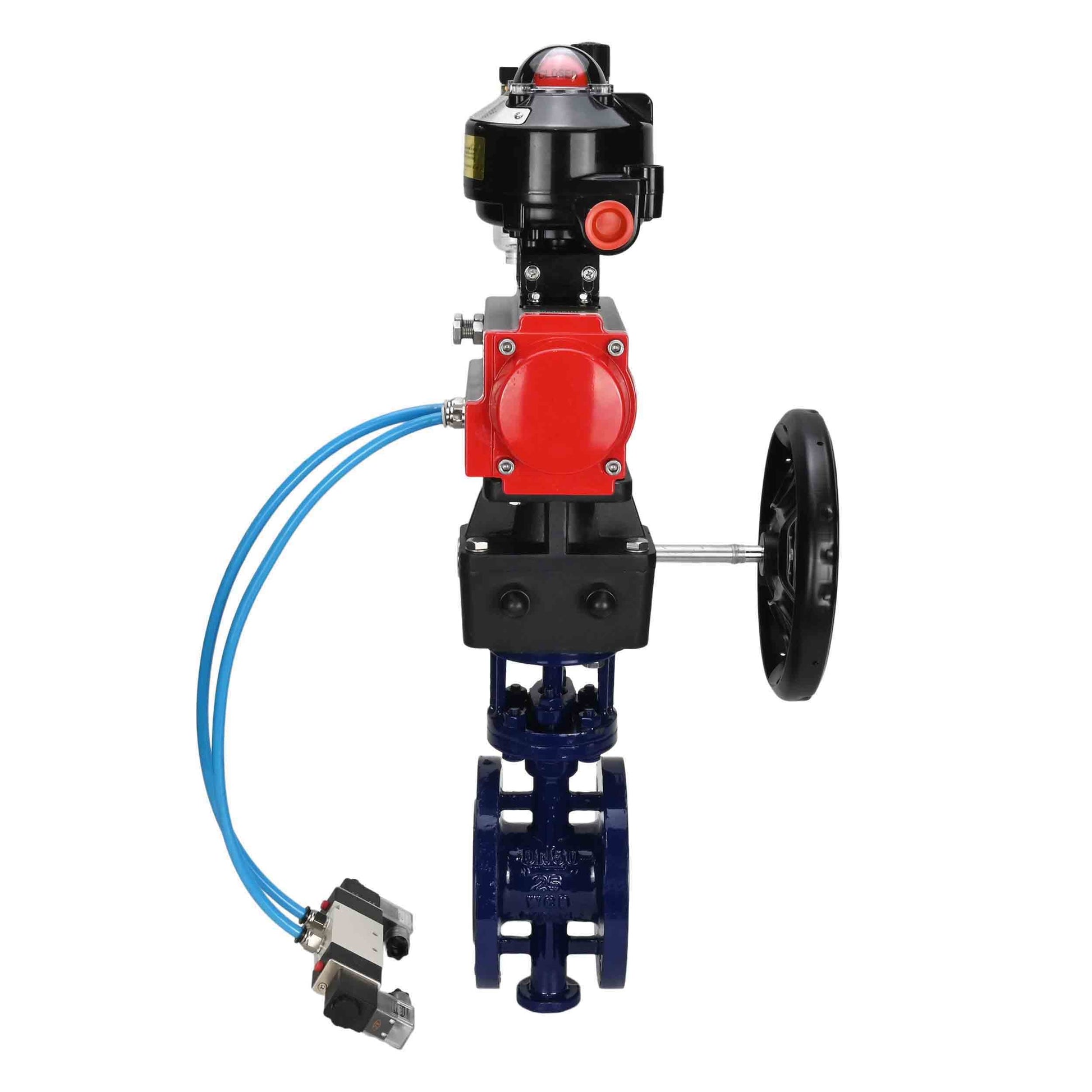

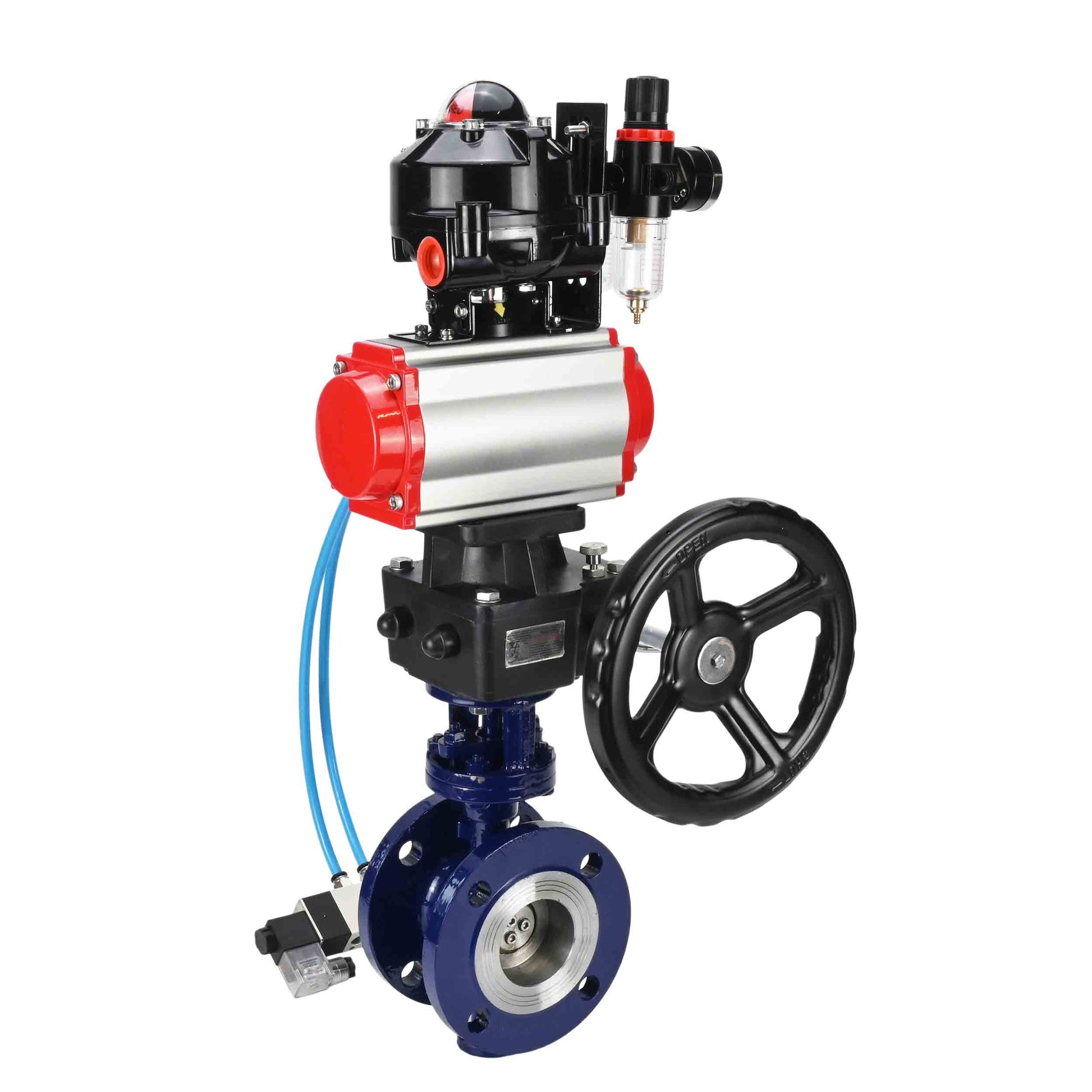

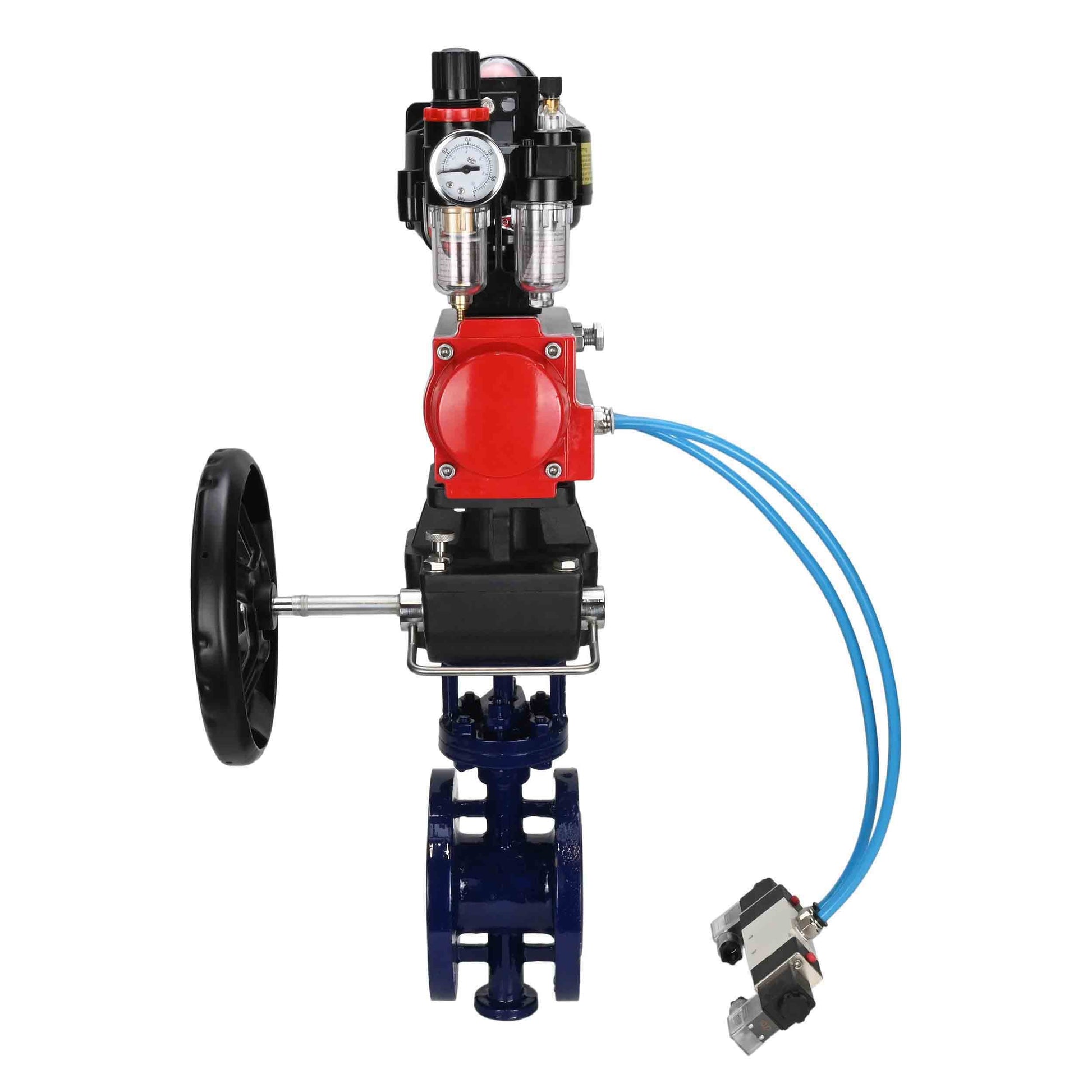

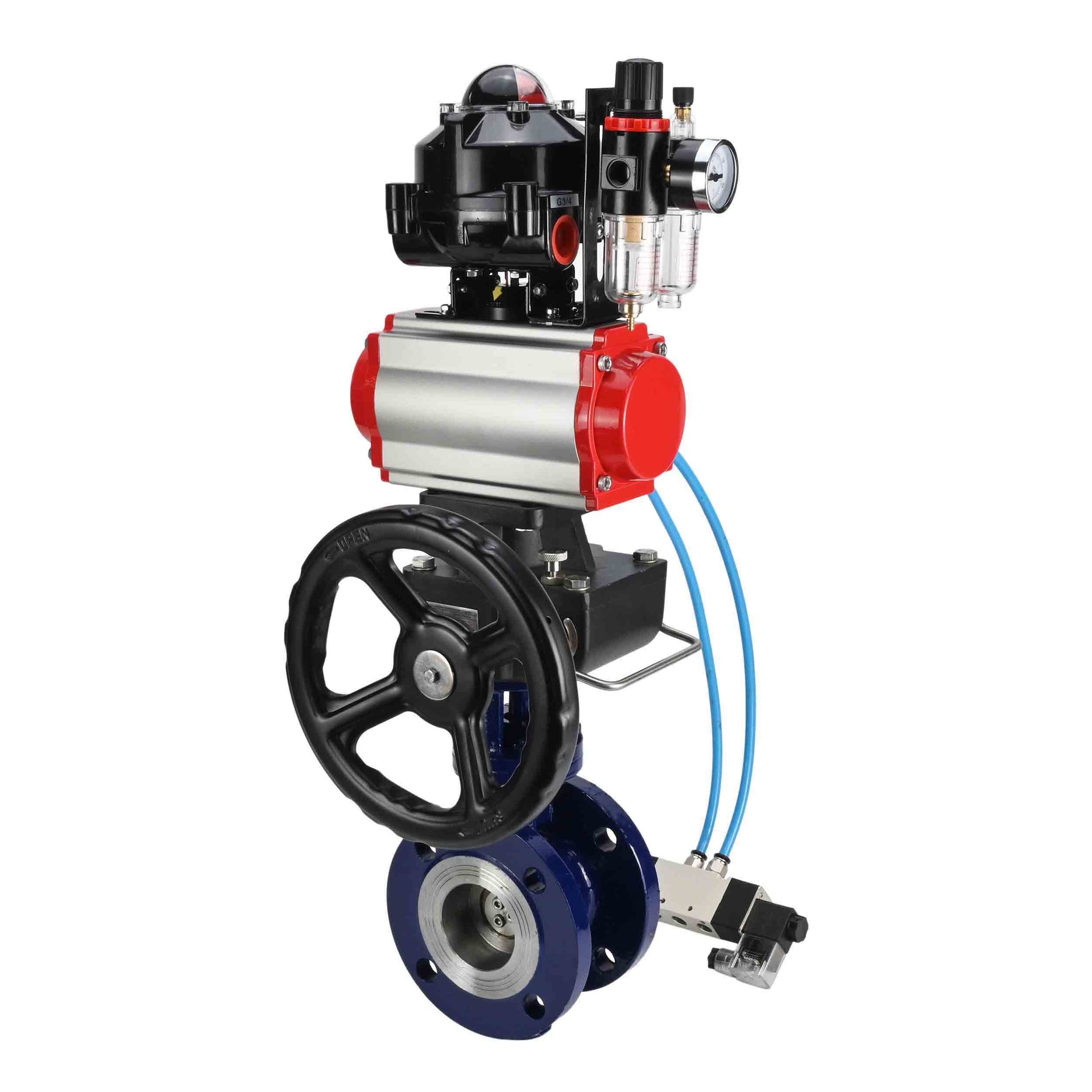

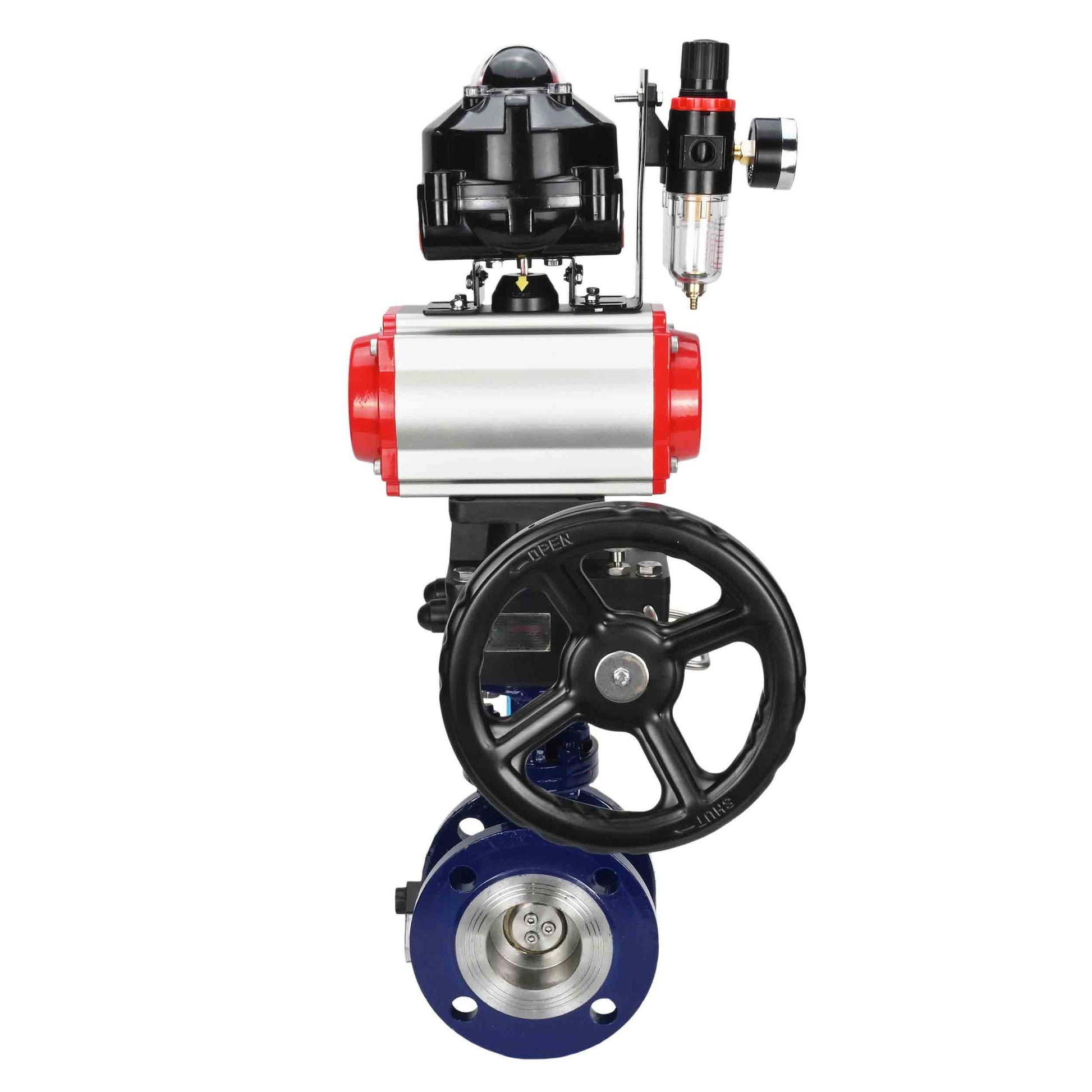

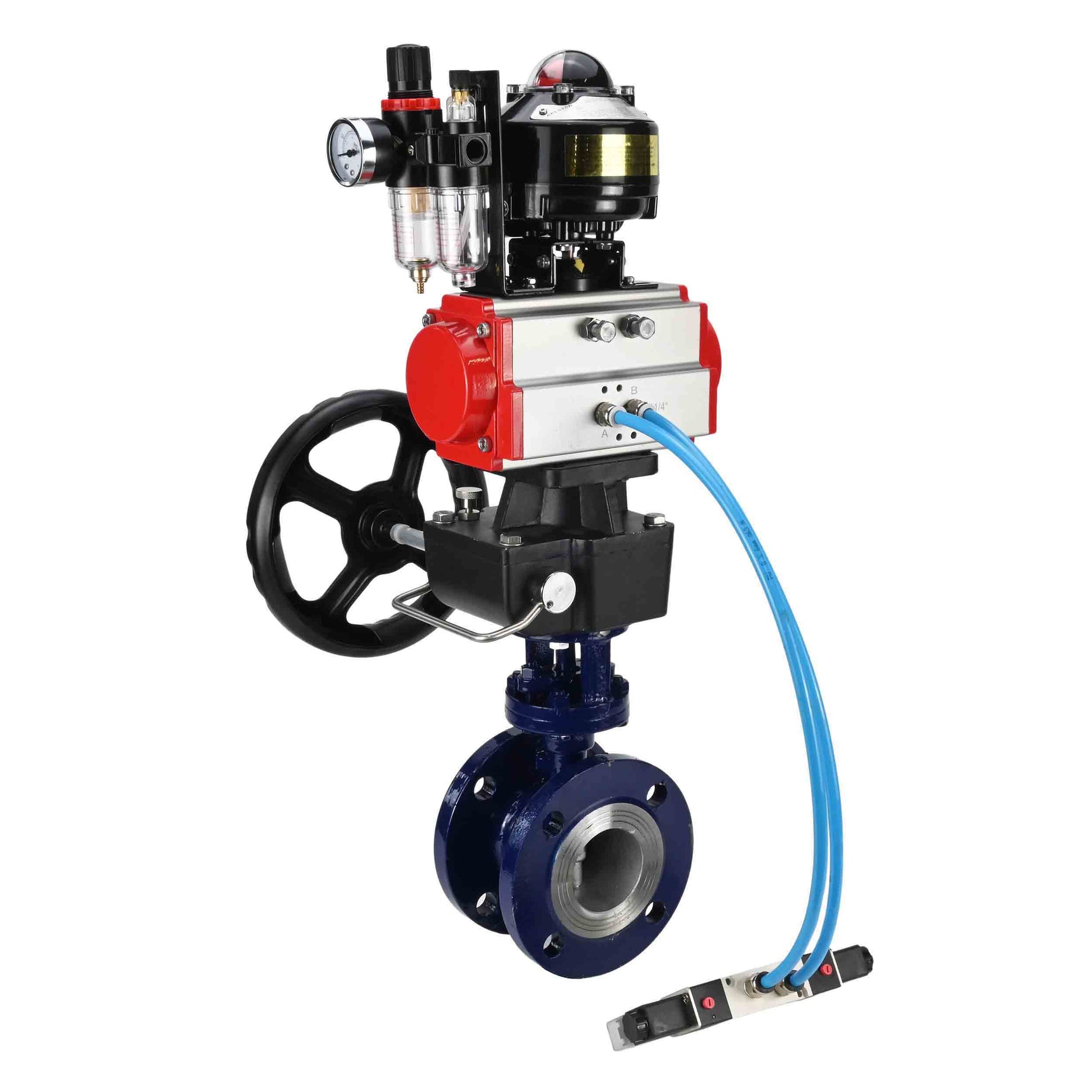

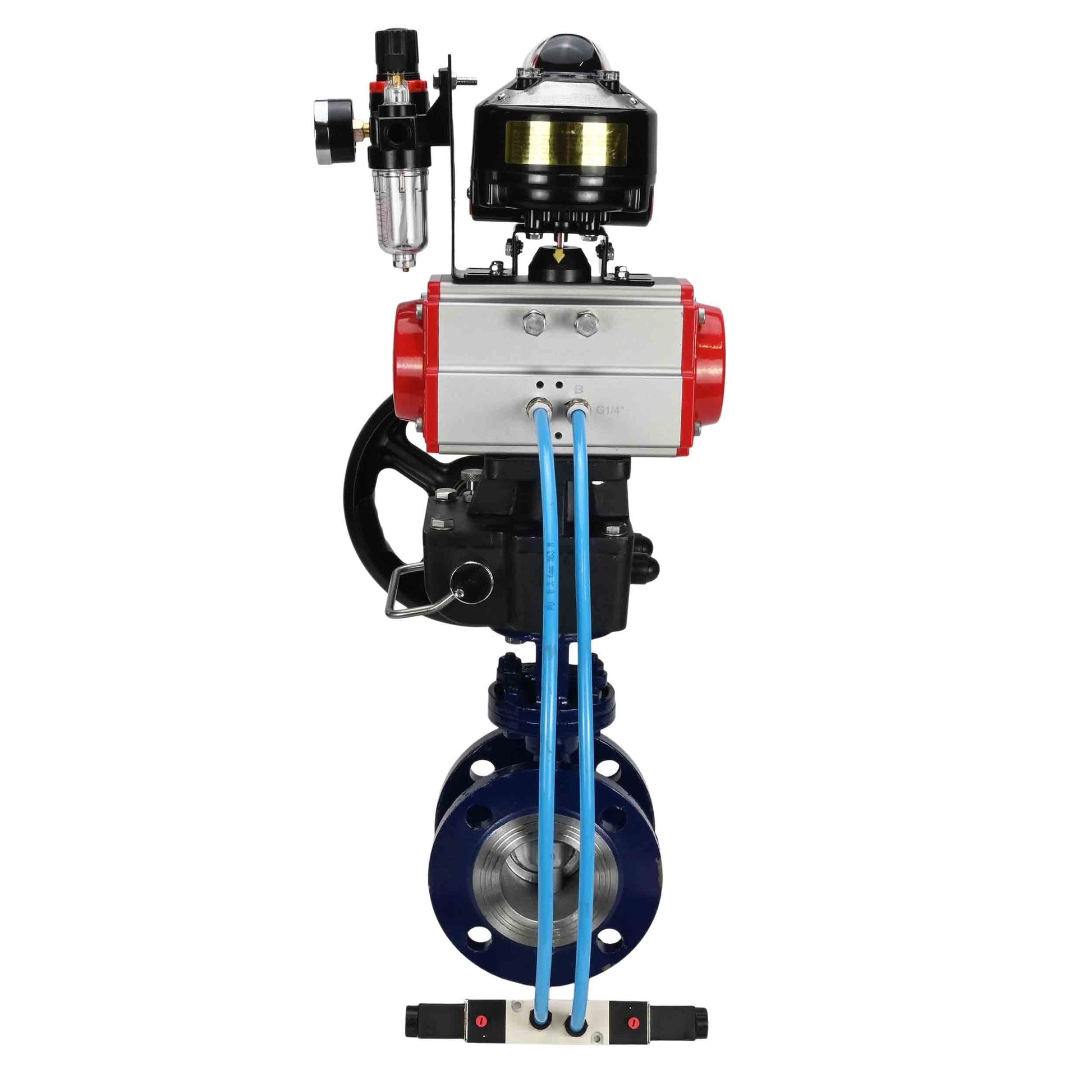

Butterfly valve WBV3EX-3432M-1W-F-ISO with pneumatic double-acting actuator

Double-acting · APL-510N EX limit switch · 4V320-10 220 V pilot · manual override · filter-regulator · flanged · metal seal · PN25

Model WBV3EX-3432M-1W-F-ISO SKU D050-55655
$975.34 USD
$975.34 USD
Sale Sold out
Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.
Request a quote
View full details

How it works

Double-acting rotary actuator

Double-acting rotary actuator: Air to one port
Air to one portAir turns the shaft one way.
Double-acting rotary actuator: Air to the other port
Air to the other portAir to the other port turns it back.

Butterfly disc

Butterfly disc: Closed
ClosedThe disc stands across the bore.
Butterfly disc: Open
OpenThe disc turns into line with the flow.

5/2 double-solenoid pilot

5/2 double-solenoid pilot: Coil 14 pulse
Coil 14 pulseSupply 1 feeds port 4; port 2 exhausts through 3.
5/2 double-solenoid pilot: Coil 12 pulse
Coil 12 pulseSupply 1 feeds port 2; port 4 exhausts through 5.
5/2 double-solenoid pilot: Both coils off
Both coils offThe spool keeps its last position; the drawing retains the coil-14 example.

Limit-switch box

Limit-switch box: Closed
ClosedThe closed-position contact is made.
Limit-switch box: Open
OpenThe open-position contact is made.

The number that matters

Nominal pressure

25bar

The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.

Applications

Media and industries

  • Water
  • Air
  • Steam
  • Oil
  • Oil Products
  • Corrosive Media
  • Natural Gas
  • Gaseous Media

Rotary disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disc by 90°. The triple eccentricity design reduces friction at the disc and seat contact points, which increases the reliability and service life of the gate. In this design, the stem is offset relative to the centre axis of the disc and the centre axis of the pipeline, and the sealing surfaces are asymmetrically shaped. The combination of the three displacements at the moment of pressing and opening of the sealing surfaces ensures complete absence of friction of the sealing surfaces, helping to minimise wear of the seat and seal during the entire service life of the valve.
DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start and stop the compressed air flow in the pneumatic system depending on the external control action.

Technical parameters of ball valves DNOVA WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal

Characteristic Value
Type of Valve Rotary Disc
Diameter 50-100 mm
Nominal Pressure 25 bar
Operating Temperature -45 to +425°C
Application Water supply, heating, process pipelines
Connection Type Flanged
Control Type Pneumatic actuator
Tightness Class A
Country of Manufacture China
Service Life 10 years
Warranty 12 months

Dimensions and dimensions of ball valves DNOVA WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal

Model DN L D D1 D2 n–Ød b H1 H2
mm
50 50 108 160 125 99 4–Ø18 20 102 78
65 65 112 180 145 118 8–Ø18 22 112 72
80 80 114 195 160 132 8–Ø18 24 122 78
100 100 127 230 190 156 8–Ø22 24 155 78
125 125 140 270 220 184 8–Ø26 26 157 95
150 150 140 300 250 211 8–Ø26 28 170 95
200 200 152 360 310 274 12–Ø26 30 200 102
250 250 165 425 370 330 12–Ø30 32 247 108
300 300 178 485 430 389 16–Ø30 34 274 110
Sketch dimensions and dimensions of ball valves DNOVA WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal



Table of parts and materials for ball valves DNOVA WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal

№ Part Name Material
1 Body WCB Steel
2 Disc Stainless Steel 316
3 Shaft Stainless Steel 316
4 Seat Seal Metal (D507 Overlay) + Graphite
5 Packing Seal Stainless Steel 316 + Graphite

Parts and materials sketch for ball valves DNOVA WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal

Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, °C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators


Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130

Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators

Technical parameters of pneumatic valve DNOVA 4V320-10 220V

Name Value
Pneumatic distributor model 4V320-10 220V
Operating pressure, bar 1.5 ÷ 8
Supply voltage, V 220V
Actuation frequency, cycles/sec 5

Dimensions and dimensions of DNOVA 4V320-10 220V pneumatic directional control valve

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
Sketch of dimensions and dimensions of pneumatic valve DNOVA




Technical parameters of limit switch unit DNOVA APL-510N EX

Name Value
Limit switch box model APL-510N EX
Service life, years 10

Dimensions and dimensions of limit switch unit DNOVA APL-510N EX

Model APL-510N EX
A, mm 118
B, mm 118
C, mm 138,4
D, mm 17
E, mm 19
F, mm 7
G, mm 3
H, mm 4
I, mm 59
J, mm 59
K, mm 59
L, mm 59
M, mm 121,4
Ød1, mm 50
Ød2, mm 5
Sketch of dimensions and dimensions of limit switch unit DNOVA APL-510N EX



Technical parameters of DNOVA AFC2000 air treatment unit

Name Value
Operating pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filtered particle size, µm 40 µm
Weight, kg 0.395


Dimensions and dimensions of DNOVA AFC2000 air treatment unit

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5
Sketch of dimensions and dimensions of DNOVA AFC2000 air treatment unit



Technical data for DNOVA MON gearboxes (handwheels)

Characteristic Value
Operating Mode Intermittent, Reversible
Working Medium Filtered compressed air or non-aggressive gases, oils
Operating Temperature -20°C to +80°C
Climatic Design U, UHL, T, OM
Stroke Mechanical limit 0-90°
Protection Degree IP67
Connection Type ISO 5211
Application Water supply, heating, fire protection, heat points
Torque 250-1200 Nm

Dimensions and mounting dimensions of gearboxes (handwheels) DNOVA MON

Model D1 (mm) D2 (mm) D3 (mm) D4 (mm) C (mm) M (mm) b1 (mm) N (mm) b2 (mm) A (mm) B (mm) F (mm) T (mm) Y (mm) H (mm) S (mm) K (mm)
HDM-1 50 70 50 70 88 16 14 22 14 90 55 115 44 145 120 53 10
HDM-2 70 102 70 102 110 18 17 22 17 125 64 135 62.5 178 133 56.5 13
HDM-3 102 125 102 125 129 22 22 28 22 140 71 166 70 212 180 68.7 12.5
HDM-4 102 125 125 140 174 30 27 32 27 188.5 93 202 94 280 195 84 15
Dimension sketch of gearboxes (handwheels) DNOVA MON

Gearbox (handwheel) component materials DNOVA MON

№ Name Material
1 Shaft for pneumatic actuator mounting Steel 45
2 Sealing ring EPDM
3 Retaining spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Retaining clip (main linkage) Steel 304
7 Housing Aluminum alloy
8 Sealing ring EPDM
9 Gearbox Cast iron
10 Adapter coupling Cast iron
11 Gearbox shaft Cast iron

Dimension sketch of gearboxes (handwheels) DNOVA MON

Body material
Carbon steel
Maximum allowable temperature
425 °C
Connection type
Flanged
Control type
Pneumatic actuator
Operating environment
Water, Air, Steam, Oil, Oil Products, Corrosive Media, Natural Gas, and Gaseous Media
Applications
Water Supply, Heat Supply, and Process Pipelines
Nominal pressure
25 bar
Type of seal
Metal
Disc material
Stainless steel AISI 316
Manual override
Handwheel
Limit switches
Yes
Supply voltage
220 V
Type of pneumatic actuator
double action
Angle of rotation
90°
Country of origin
China
